ISO 16525-5 Test: Definitive Guide to Shear Fatigue Testing of Isotropic Electrically Conductive Adhesives

Share:

ISO 16525-5 ICA Shear Fatigue Tester for Isotropic Electrically Conductive Adhesives | UnitedTest

UnitedTest develops and manufactures professional ISO 16525-5 compliant dynamic fatigue testing machines specially built for electronics laboratory testing of isotropic electrically conductive adhesives (ICAs). Our equipment supports miniature specimen clamping, synchronized mechanical cyclic loading and real-time electrical resistance monitoring to meet all ISO 16525-5 shear fatigue evaluation requirements for electronic interconnection joints.


ISO 16525-5 — Adhesives — Test methods for isotropic electrically conductive adhesives — Part 5: Determination of shear fatigue lays out standardized testing procedures utilizing miniature bonded specimens to assess shear fatigue performance of joints formed by isotropic electrically conductive adhesives paired with rigid adherends under controlled laboratory conditions.

Isotropic electrically conductive adhesives (ICAs) are vital interconnection materials widely adopted across the electronics sector, serving as eco-friendly alternatives to conventional tin-lead and lead-free solder. Common application scenarios include semiconductor die bonding, flexible printed circuit (FPC) assembly, microchip packaging and precision electronic component mounting.


A core performance hurdle for ICA bonding joints is enduring millions of thermal cycling and mechanical cyclic loads without two critical failures: loss of mechanical bonding integrity and breakdown of stable electrical conductivity. This dual performance requirement differentiates ICA testing from ordinary structural adhesive fatigue evaluations.

This standard stands apart from general structural adhesive fatigue protocols such as ASTM D3166. While traditional fatigue tests only track mechanical shear failure, ISO 16525-5 is engineered exclusively for electronic conductive adhesive joints. It simultaneously verifies consistent mechanical shear resistance and steady electrical resistance over long-term cyclic loading to simulate real electronic device service conditions. Test data guides electronics manufacturers in conductive adhesive formulation development, packaging process optimization, reliability qualification and accelerated lifetime testing of microelectronic assemblies.


Test Principle

The core principle of ISO 16525-5 is to apply a controlled cyclic shear strain to a miniature conductive adhesive joint and monitor both its mechanical response (shear force) and electrical response (resistance) until fatigue failure occurs.

A miniature specimen is prepared by bonding two rigid adherends (typically class-2 oxygen-free copper rods) with an isotropic electrically conductive adhesive.

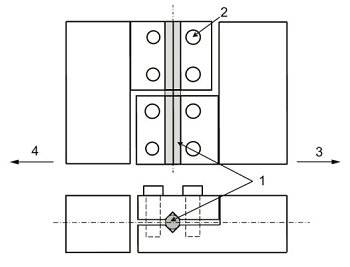

The specimen is fixed in a shearing jig connected to a fatigue testing machine and an ohmmeter.

A cyclic displacement is applied — using ramp, triangular, sine, or trapezoidal waveforms — at a controlled displacement rate.

The machine records maximum shear force, displacement, and electrical resistance continuously throughout the test.

Fatigue life is defined as the number of cycles until the maximum shear load drops to a specified percentage (e.g., 20% decline from initial) or the electrical resistance rises to a specified percentage (e.g., 20% increase from initial).

Results are plotted on a fatigue life diagram: the number of cycles to failure (Nf) vs. the total shear strain range or non-linear strain range, both on logarithmic scales.


Standard Test Specimen Information

Adherend material: Class-2 oxygen-free copper per ISO 431 (alternative substrates allowed only with full documentation)

ISO 16525-5 Test: Definitive Guide to Shear Fatigue Testing of Isotropic Electrically Conductive Adhesives

Copper rod diameter: φ2 mm; bonded overlap contact diameter φ1 mm

ICA glue line thickness: Fixed 0.05 mm (critical parameter for consistent shear strain calculation)

Rod free length from bond zone: 10 mm on each side

Bond chamfer: 45° bevel at bonding ends to avoid stress concentration at substrate edges

Copper lead wire: Welded to rod end faces for continuous electrical resistance monitoring during cycling


Test Equipment for ISO 16525-5 Shear Fatigue Testing of Isotropic Electrically Conductive Adhesives

Dynamic Fatigue Testing Machine

UnitedTest UTM-Micro series micro UTDS series electronic dynamic fatigue testing machine fully meets ISO 16525-5 apparatus specifications:

Actuator type: Linear DC motor or piezoelectric actuator for micrometer-level precise displacement control

Waveform support: Mandatory ramp/symmetric triangular waveform; compatible sine/trapezoidal waveforms for simulating real electronic device vibration

Non-contact displacement sensor: Eddy current or capacitance displacement detector mounted directly beside the specimen (actuator internal displacement cannot be used for feedback control)

Integrated load cell: Real-time capture of shear reaction force to detect micro force drop caused by internal adhesive crack propagation

Optional thermal environmental chamber: Precision temperature control from room temperature up to 400K for high-temperature fatigue aging testing.

Auxiliary Supplies

Dedicated miniature copper rod shear jig (custom-designed by UnitedTest): Centered force line layout to eliminate bending deformation of tiny specimens; screw clamping with torque-controlled fixing to avoid pre-damage to ICA layers.

ISO 16525-5 Test: Definitive Guide to Shear Fatigue Testing of Isotropic Electrically Conductive Adhesives

Four-terminal low-resistance ohmmeter: Fall-of-potential measurement method, eliminates copper lead wire resistance interference to detect micro resistance shifts in ultra-thin ICA joints

Stereoscopic microscope (50×–250× magnification, 2000lx illumination): Pre-test inspection for adhesive layer microcracks/voids, post-test fracture mode analysis complying with ISO 10365 failure classification

Multi-channel data recorder: Synchronously log displacement, shear force, electrical resistance, cycle count and temperature for full test traceability


Key Test Parameters

Waveform priority: Symmetric triangular wave as primary test waveform; trapezoidal wave (with dwell time) recommended to replicate real static-vibration hybrid electronic operating conditions

Shear strain range selection: 5–6 gradient levels spanning 0.5% to 5% shear strain range for complete fatigue curve plotting

Displacement rate rule: Adjust crosshead speed to maintain elastic shear strain rate of ~0.1% per second; calculated via shear modulus G × bonded area formula for preliminary calibration

Strain calculation correction: Subtract adherend and test fixture rigid deformation from raw actuator displacement to compute true ICA layer shear strain

Data requirement: Extract fatigue life data only from cycles with stable shear force for S-N fatigue diagram plotting; raw actuator displacement values cannot be used for cross-specimen comparison


Step-by-Step Standard Test Procedures of ISO 16525-5 Shear Fatigue Testing of Isotropic Electrically Conductive Adhesives

Specimen Pre-Inspection: Examine cured ICA layer under stereomicroscope; discard samples with voids, microcracks or uneven glue thickness

Jig Mounting & Wiring: Fix copper rod specimen on torque-controlled shear jig to eliminate pre-stress; connect four-terminal ohmmeter probes to copper lead wires for real-time resistance tracking

Environment Setup: Activate thermal chamber to set target test temperature (298K/348K/398K); stabilize atmosphere per ISO 291 conditioning rules

Loading Parameter Calibration: Calculate target displacement rate based on ICA shear modulus; select triangular/trapezoidal waveform and set 5–6 distinct shear strain range gradients

Baseline Recording: Capture initial stable peak shear force and original electrical resistance as reference failure thresholds

Continuous Cyclic Fatigue Test: Run cyclic shear displacement until either 20% load drop or 20% resistance rise triggers test termination; auto-log force, displacement, resistance and cycle number throughout operation

Post-Failure Analysis: Remove specimen, observe fracture surface under microscope, classify failure mode (cohesive inside ICA, adhesive copper separation, mixed failure) per ISO 10365

Multi-Gradient Batch Testing: Repeat full procedure for all pre-set shear strain levels to collect complete dataset for logarithmic fatigue life curve plotting (shear plastic strain range Δγp vs failure cycles Nf)


Related Test Standard:

ISO 9664Adhesives - Test methods for fatigue properties of structural adhesives in tensile shear
ASTM D3166Standard Test Method for Fatigue Properties of Adhesives in Shear by Tension Loading (Metal/Metal)
GB/T 27595Adhesives - Test methods for fatigue properties of structural adhesives in tensile shear
ISO 16525-5Adhesives - Test methods for isotropic electrically conductive adhesives - Part 5: Determination of shear fatigue
ISO 16525-4Determination of shear strength and electrical resistance using rigid-to-rigid bonded assemblies
ISO 16525-6Determination of pendulum-type shear impact
ISO 4587Static tensile lap-shear strength test for rigid bonded assemblies; provides the static shear strength τR required to set ISO 9664 test stress levels
ISO 15274General structural assembly adhesive specification; cites ISO 9664 as mandatory fatigue performance verification test;
ASTM D3479Composite material fatigue test, adaptable for bonded composite lap joint fatigue evaluation


Keywords: UnitedTest ISO 16525-5 tester, ISO 16525-5 ICA shear fatigue tester, isotropic electrically conductive adhesive fatigue test machine, electronic conductive adhesive cyclic shear testing equipment, ISO 16525-5 miniature specimen shear fatigue test for semiconductor die attach ICAs, ICA vs solder electronic interconnection fatigue resistance analyzer, dual mechanical and electrical monitoring conductive adhesive fatigue tester, difference between ISO 16525-5 and ASTM D3166 adhesive fatigue test rig, flexible printed circuit FPC isotropic conductive adhesive shear fatigue laboratory instrument

Related products and device

ISO 16525-5 Adhesive Shear Electronic Dynamic Testing Machine/Cyclic Testing Equipment

Electronic Dynamic Testing Machine for high-precision cyclic and vibration testing of materials and components, featuring accurate frequency control, stable performance, and laboratory-grade reliability.

ISO 16525-5 Isotropic Electrically Conductive Adhesives Tensile shear test fixture

Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Related Standard

ISO 9664 Shear Fatigue Testing of Adhesives

ISO 9664 – Adhesives – Test methods for fatigue properties of structural adhesives in tensile shear

ISO 9664 defines standardized cyclic tensile-shear fatigue testing procedures to evaluate the fatigue strength of structural adhesives bonded on metal substrates. Critical caveat: test results are joint-system dependent (affected by specimen geometry) and cannot be directly used for structural design calculations, only for material comparative characterization.

ISO 4587 Adhesives Tensile Shear Test of rigid bond material

ISO 4587 Adhesives — Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies

ISO 4587 determining tensile lap-shear strength of adhesive single-lap joints between two rigid substrates, for comparative evaluation rather than structural engineering design data. UnitedTest manufactures high-precision ISO 4587 compliant lap-shear test machines, designed to evaluate the tensile shear performance of rigid-to-rigid adhesive bonded assemblies for industrial quality control and adhesive material comparison.

ASTM D1002 Lap Shear Test of Adhesively Bonded Metal Specimens

ASTM D1002 is the most widely used standard test for measuring the apparent shear strength of metal‑to‑metal adhesive single‑lap joints under tension loading. It provides comparative data for adhesive selection, process control, and quality assurance in structural bonding applications. It is the most common test for evaluating adhesive shear performance.

ASTM D3166 Complete Guide to Adhesive Shear Fatigue Testing

ASTM D3166 — Standard Test Method for Fatigue Properties of Adhesives in Shear by Tension Loading (Metal/Metal)

ASTM D3166 is a standardized laboratory method for measuring the fatigue strength of adhesives in shear under cyclic tensile loading. It uses a single-lap-joint metal specimen and applies a sinusoidal axial load repeatedly until the bond fails. The result is an S-N curve (stress vs. logarithm of cycles), from which the "fatigue strength at 10 million cycles" is designated as the key design value.

When structural adhesives replace welding or mechanical fasteners in aerospace, automotive, and industrial assemblies, a single question decides whether the bond will survive millions of load cycles: how long can the adhesive resist repeated shear stress before it fails?

ISO 16525-5 Test FAQs: Everything You Need to Know About Shear Fatigue Testing of Electrically Conductive Adhesives

UnitedTest is a professional manufacturer of micro dynamic fatigue testing machines fully compliant with ISO 16525-5:2014, the exclusive international standard for shear fatigue characterization of isotropic electrically conductive adhesives (ICA). Below are the most frequently asked questions from semiconductor labs, EV electronics factories, automotive ECU manufacturers and adhesive R&D engineers about ISO 16525-5 test rules, equipment requirements, specimen standards, test parameters, cross-standard comparison and real industrial value. All answers strictly follow normative clauses of ISO 16525-5 original standard, solving lab compliance, test repeatability and machine selection pain points for electronic interconnect reliability certification.


Q1: What exactly is ISO 16525-5:2014 test?

A1: ISO 16525-5 is Part 5 of the ISO 16525 complete series dedicated to isotropic electrically conductive adhesives (ICA). It specifies a miniature copper rod cyclic shear fatigue test method to evaluate dual mechanical-electrical failure performance of rigid-rigid ICA bonded joints under controlled temperature & humidity cyclic shear strain loads. Unlike general structural adhesive fatigue standards, it synchronously tracks both shear force degradation and electrical resistance drift to judge fatigue life, specially designed for microelectronic conductive interconnect materials like silver-filled epoxy ICA.


Q2: Why is ISO 16525-5 shear fatigue test critical for ICA materials and electronic manufacturing?

A2: 7 core industrial reasons:

Simulate real electronic service failure modes: Micro components bear continuous low-amplitude vibration + thermal expansion cycles; static shear tests (ISO 16525-4) cannot detect invisible microcracks inside ICA layers that break conductive filler contact.

Unique dual mechanical-electrical monitoring: Conductive adhesives’ core function is electrical transmission. Minor internal cracks cause resistance rise long before full mechanical bond breakage, a risk ignored by single-load fatigue standards such as ASTM D3166.

Mandatory lead-free solder replacement certification: RoHS-compliant electronics widely adopt ICA instead of toxic tin-lead solder; ISO 16525-5 fatigue data is required reliability proof for EU, North America and Asia electronic market access.

Optimize ICA formulation & bonding processes: Engineers compare fatigue life curves of different resin matrices, silver filler loadings, curing temperatures and copper surface treatments to develop high-vibration-resistant conductive adhesives.

Prevent costly field electronic faults: Tiny ICA joint fatigue damage triggers intermittent signal loss, power drop or complete device shutdown in EV power modules, automotive sensors and aerospace avionics.

High-temperature operating condition validation: Power electronics run above adhesive glass transition temperature (Tg); the standard prioritizes resistance change as failure indicator at high temperature to avoid misleading shear force readings caused by resin softening.

Global uniform benchmark: Standardized miniature specimen geometry and strain correction rules eliminate inter-lab data deviation, enabling consistent cross-supplier ICA performance comparison.


Q3: Which industries rely on ISO 16525-5 compliance testing?

A3: UnitedTest micro fatigue testers serve these core verticals:

Semiconductor packaging & microelectronics: Die attach conductive adhesive, flip-chip, passive component bonding vibration reliability verification

Electric Vehicle (EV) electronics: Battery module conductive bonding, IGBT power module silver adhesive thermal-vibration fatigue test

Automotive electronics: ECU, engine sensor, on-board power component ICA joint durability certification

Consumer wearables & PCB electronics: Mini circuit conductive bonding long-term vibration resistance

Aerospace miniature avionics: Satellite micro-component lead-free ICA interconnect qualification

New energy storage: Lithium battery tab, supercapacitor conductive bonding cyclic shear performance testing

Adhesive R&D & third-party certification labs: New ICA formulation development, international electronic product reliability testing


Q4: Core Difference: ISO 16525-5 vs ASTM D3166 (Metal-Metal Structural Adhesive Fatigue)

Comparison ItemISO 16525-5ASTM D3166
Target MaterialIsotropic electrically conductive adhesives (electronic interconnects)General structural non-conductive adhesives for aerospace/automotive metal bonding
Specimen GeometryMiniature φ2mm copper cylindrical rod joint (0.05mm ultra-thin glue line)Large flat 1.63mm aluminum single lap-shear panel (9.5mm overlap)
Monitoring SignalsDual tracking: Shear force + electrical resistance driftSingle mechanical shear load monitoring only
Failure Judgment20% load drop OR 20% resistance riseBond fracture via load loss only, no electrical criteria
Waveform & Strain ControlDisplacement-controlled triangular/trapezoidal waves, micro shear strain focusSinusoidal load-controlled cyclic tension, high shear stress range
Primary IndustrySemiconductor packaging, microelectronics, EV electronicsAerospace, automotive chassis, wind turbine structural bonding
Cycle Target RangeLow-to-medium cycle fatigue (10¹ ~10⁵ cycles)Long-life high-cycle fatigue up to 10,000,000 cycles


Q5: What cyclic waveforms does ISO 16525-5 mandate/recommend?

A5: Symmetric triangular waveform is the primary mandatory test waveform; trapezoidal waveform (with dwell time) is highly recommended to simulate real static-vibration hybrid operating conditions of electronic devices. Sine and ramp waveforms are also acceptable for special customer test agreements but must be fully recorded in reports.


Q6: What are the two official fatigue life failure judgment criteria?

A6: The test terminates automatically once either threshold is triggered:

Mechanical failure: Maximum cyclic shear load decreases by 20% relative to initial stable load value

Electrical failure: Bond electrical resistance increases by 20% relative to original baseline resistance

Special rule: When test temperature exceeds ICA glass transition temperature (Tg), electrical resistance drift is prioritized as the primary failure marker, since resin softening distorts shear force measurement accuracy.


Q7: Can I replace the standard copper rod with other metal substrates for testing?

A7: Alternative substrates are allowed only if you fully document material grade, surface treatment method and mechanical rigidity parameters in the test report. The standard’s baseline adherend is class-2 oxygen-free copper (ISO 431); switching materials will change shear strain correction factors and cannot be used for cross-comparison with standard ICA performance data.


Q8: Does UnitedTest supply full ISO 16525-5 compliant turnkey test systems? What exclusive advantages do UnitedTest micro fatigue testers have?

A8: Yes, UnitedTest is a dedicated OEM manufacturer of ISO 16525-5 micro dynamic fatigue testing equipment with complete one-stop solutions:

UTM-Micro piezoelectric micro fatigue frame: Micrometer displacement precision, supports 0.001–5mm cyclic displacement matching miniature copper rod specimen strain requirements

Custom standardized ISO 16525-5 copper shear jig kit: Precisely fixed 0.05mm bond gap positioning, torque-controlled self-centering clamping to eliminate specimen bending deformation

Embedded four-terminal resistance monitoring module: Integrated into test software, auto-trigger test termination at 20% resistance/load failure thresholds without manual observation

Pre-programmed ISO 16525-5 dedicated software module: Auto-generates logarithmic shear plastic strain vs fatigue life curves, auto-fills all mandatory ISO test report clauses and fracture mode recording templates

Combined thermal chamber integration option: -40°C ~ 150°C temperature control for room/high-temperature dual fatigue testing as standard recommended

Multi-standard compatibility: Single machine supports ISO 16525-5 ICA fatigue, ISO 16525-4 static shear and ASTM D3166 structural adhesive fatigue for multi-purpose lab utilization

Compact cleanroom-friendly design: Low-vibration base frame optimized for semiconductor microelectronics laboratory environments

Global after-sales engineering support: On-site calibration, fixture customization and operator training for electronic factories and third-party certification labs worldwide


Q9: Why is a special shear jig required instead of standard lap-shear grips?

A9: ISO 16525-5 miniature copper rod specimens are ultra-small cylindrical parts; ordinary flat lap-shear grips create eccentric bending stress, distort shear strain readings and lead to premature specimen fracture outside the ICA bond layer. UnitedTest custom ISO 16525-5 jig uses centered force line layout to eliminate bending deformation and guarantee pure shear stress inside the conductive adhesive joint.


Q10: Why does the specimen break in copper rod adherend instead of the ICA adhesive layer?

A10: Valid fatigue test data requires failure to occur inside the conductive adhesive layer; substrate breakage invalidates results:

Excessive shear strain range reduces copper rod service life: Lower maximum shear strain gradient levels

Copper surface chamfer missing or non-standard (not 45°): Fabricate specimens strictly following standard drawing dimensions

ICA static shear strength far higher than copper tensile strength: Adjust ICA formulation or select lower-strength conductive adhesive for testing


Q11: Why does electrical resistance rise sharply while shear force remains stable during testing?

A11: This is a typical early fatigue failure unique to conductive adhesives: Microcracks propagate inside the ICA layer and disconnect silver conductive filler particles, increasing contact resistance long before large-scale mechanical bond degradation. Per ISO 16525-5 rules, resistance rise of 20% is an official test termination threshold regardless of shear force value, especially for high-temperature testing above adhesive Tg.
