ISO 9664 Structural Adhesive Tensile Shear Fatigue Tester | UnitedTest

UnitedTest manufactures professionalISO 9664 compliant adhesive fatigue testing machines, specially built for cyclic tensile shear fatigue performance evaluation of structural adhesives used in metal substrate bonding applications.

ISO 9664 – Adhesives – Test methods for fatigue properties of structural adhesives in tensile shear specifies standardized cyclic tensile-shear fatigue testing procedures to accurately assess the fatigue strength of structural adhesive bonds on metal substrates. This industry standard focuses on simulating repeated shear load conditions to verify the long-term durability and anti-fatigue performance of structural adhesive joint systems.

A key technical note for ISO 9664 testing: all fatigue test results are joint-system dependent and heavily influenced by specimen geometry. Therefore, the generated data is exclusively used for adhesive material comparative characterization and is not applicable for direct structural design calculations. Our ISO 9664 fatigue tester delivers stable, repeatable cyclic test data for structural adhesive R&D, material screening, and production quality control.

Test Principle

Static mean shear stress (τm): Constant baseline load;

Alternating shear stress amplitude (τa): Repeated fluctuating load superimposed on the mean stress.

For each fixed pair of τm (or fixed stress ratio (Rτ) and τa, record the number of load cycles (N) until the bonded joint fails. Aggregate cycle-failure data across multiple stress amplitudes to plot an S-N (Wöhler) curve, which quantifies the joint’s fatigue resistance and identifies its fatigue limit (τD, endurance limit at a defined cycle threshold, typically 10⁶ cycles).

The standard distinguishes two curve zones:

Fatigue zone: All specimens fail before NF=10⁶ cycles at a given stress amplitude;

Endurance zone: Some specimens survive 10⁶ cycles without rupture, defining the fatigue limit.

Standard Test Specimen Information

1, Substrate Materials

Steel: XC18 / E24 Grade 1/2;

Aluminium: 2024 A 5T3;

Other metals are permitted only if matching the adhesive’s end-use application.

2, Three kinds Specimen

Clamped single-lap steel specimen (a)

Substrate thickness: 1.6±0.1mm; width: 250±0.25mm; total length: 187.5mm;

Bond overlap length: 12.5±0.2; clamped zones on both ends: 100 mm each.

ISO 9664 Shear Fatigue Testing of Adhesives

Hole-mounted reinforced steel specimen (b)

Same base dimensions as (a), with two Φ8 mounting holes for through-fixture clamping.

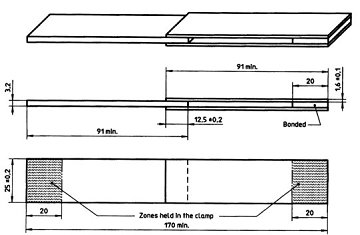

Double-overlap aluminium specimen (c)

Substrate thickness: 3.2; width: 25±0.2; minimum total length:170;

Double overlap bonded zone: 12.5±0.2; end clamping zones: 20mm each.

ISO 9664 Shear Fatigue Testing of Adhesives

3, Specimen Quantity

Static shear strength test (τ_R) : At least 6 identical specimens;

S-N curve construction: Minimum 3 distinct stress amplitude levels (τ_a) with failure cycles between 10⁴ ~ 10⁶; minimum 4 specimens per amplitude (≥12 total for 10⁶cycle endurance limit calculation).

Test Equipment for the ISO 9664 Shear Fatigue Testing of Adhesives

Fatigue Testing Machine

Recommend UnitedTest UTDS series electronic dynamic fatigue testing machine.

Capability: Generate pure sinusoidal shear cyclic stress; load reading shall occupy 10%–80% of the machine’s full scale range.

Frequency rules: Default test frequency = 30 Hz; maximum allowable frequency = 60 Hz (higher frequencies cause excessive adhesive bond heating and distort fatigue data).

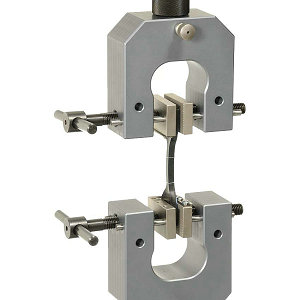

Mechanical requirement: Equipped with self-centring, perfectly aligned clamping fixtures to eliminate lateral bending; fixture axis must align with the specimen’s central load axis.

Optional reinforced fixture: For specimens with through-hole mounting, add extra support plates to avoid substrate deformation.

Bonding Template

Precision fixture to fix metal substrates during adhesive curing, ensuring consistent overlap length, uniform bondline thickness and coaxial alignment for all specimens.

Auxiliary Supplies

Standard climate chamber (per ISO 291) for specimen conditioning;

Thickness gauges to measure adhesive bondline thickness;

Key Test Parameters

Mean stress τm selection:

Range: 0.25 τR ~ 0.5 τR (τR = static shear strength from ISO 4587)

Commonly used: τm = 0.35 τR

Test frequency: 30 Hz nominal, ≤60 Hz maximum;

Stress amplitude τa: choose ≥ 3 levels so failures fall between 10⁴ and 10⁶ cycles

Run-out definition: NF = 10⁶ cycles ("fault test cycles")

Creep check: ensure τm alone does not cause creep failure mistaken as fatigue failure.

Step-by-Step Standard Test Procedures of ISO 9664 Shear Fatigue Testing of Adhesives

Step 1: Pre-Test Static Shear Calibration

Test minimum 6 identical specimens per ISO 4587 to obtain static rupture shear strength τR.

Step 2: Specimen Fabrication & Conditioning

Prepare metal substrates per ISO 4588 surface preparation;

Bond substrates with adhesive via precision template to control overlap and bondline thickness;

Cure adhesive per manufacturer’s instructions; condition specimens under ISO 291 standard atmospheric environment before testing.

Step 3: Define Fixed Test Condition

Choose either constant mean stress τm (0.25–0.5τR, default 0.35τR) or constant stress ratio R_t (typical 0.1). Set test frequency to 30 Hz (≤60 Hz cap).

Step 4: Multi-Amplitude Fatigue Testing

Select 3 + evenly spaced τa levels targeting failure cycles between 10⁴ ~ 10⁶; test minimum 4 specimens per amplitude:

Mount specimen symmetrically in aligned fixture;

Ramp load to static mean stress τm;

Activate sinusoidal cyclic load to reach target τa;

Record cycle count N at joint rupture; if no failure at 10⁶ cycles, terminate and mark as non-failure.

Step 5: Statistical Calculation of Fatigue LimitUse either Staircase or Data Reclassification method to compute τD(10⁶, τm) and data scatter standard deviation.

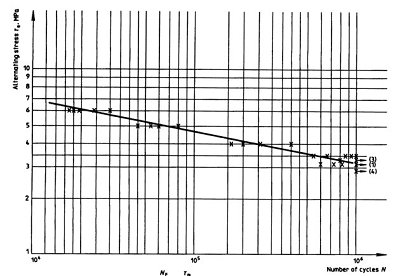

Step 6: Plot S-N Fatigue Curve

Two acceptable plotting formats:

Linear vertical axis (τa) + logarithmic horizontal axis (cycle count N);Linear-log S-N curve example

ISO 9664 Shear Fatigue Testing of Adhesives

Log-log dual logarithmic axes for linear trend fitting of fatigue zone data.

Label fatigue zone, endurance zone and calculated 10⁶-cycle fatigue limit on the chart.

Step 7: Compile Full Standard Test Report

Include all mandatory items listed in Clause 9 of ISO 9664: standard reference, adhesive identification, substrate grade, surface treatment method, bonding/curing parameters, average bondline thickness, specimen count, test frequency, τR, τm, τD, raw cycle data and complete S-N curves.

Industrial Application Fields

ISO 9664 testing is critical for structural adhesive R&D and quality control in load-bearing bonded assembly industries:

Automotive manufacturing: Vehicle body structural bonding, chassis, composite-metal hybrid joints subject to road vibration cyclic loads;

Aerospace: Aircraft metal/composite structural adhesives enduring repeated flight vibration and pressure cycles;

Rail transport: Train carriage, bogie bonded components under continuous dynamic shear loading;

Civil engineering & construction: Structural metal facade, beam bonding for buildings and bridges;

Heavy machinery: Construction equipment, agricultural machinery load-bearing adhesive joints;

Electronics: High-load electronic housing structural bonding with long-term vibration service life requirements.

Related Test Standard:

ISO 9664	Adhesives - Test methods for fatigue properties of structural adhesives in tensile shear
ASTM D3166	Standard Test Method for Fatigue Properties of Adhesives in Shear by Tension Loading (Metal/Metal)
GB/T 27595	Adhesives - Test methods for fatigue properties of structural adhesives in tensile shear
ISO 16525-5	Adhesives - Test methods for isotropic electrically conductive adhesives - Part 5: Determination of shear fatigue
JIS K 6864	Adhesives -- Test methods for fatigue properties of structural adhesives in tensile shear
T/CSTM 01349.2	Test and evaluation method of fatigue properties of composites for wind turbine blades——Part 2: Structural adhesive tensile shear fatigue
ISO 4587	Static tensile lap-shear strength test for rigid bonded assemblies; provides the static shear strength τR required to set ISO 9664 test stress levels
ISO 15274	General structural assembly adhesive specification; cites ISO 9664 as mandatory fatigue performance verification test;

Importance of ISO 9664 Testing for Structural Adhesive Materials

Simulate real service dynamic loads: Most structural adhesive joints operate under repeated cyclic shear stress (vehicle vibration, machinery oscillation). Static shear strength (ISO 4587) only reflects one-time breakage resistance, while ISO 9664 evaluates long-term durability under fluctuating loads that cause progressive crack growth and delayed fatigue failure.

Adhesive formulation comparison benchmark: Provides repeatable, standardized test data to rank different structural adhesives (epoxy, polyurethane, acrylic) on the same metal substrate for fatigue performance, supporting material selection in product development.

Quantify joint endurance limit: The 10⁶-cycle fatigue limit τD defines the safe long-term cyclic load threshold for bonded assemblies, avoiding premature field failure caused by excessive alternating shear stress.

Detect manufacturing process impacts: The test reveals how variables like surface treatment, bondline thickness, curing schedule and substrate material degrade joint fatigue resistance, guiding production process optimization.

Regulatory & quality compliance: Aerospace, automotive and civil engineering product certification bodies require ISO 9664 fatigue data to validate structural adhesive service life reliability, supporting product safety documentation and batch quality control.

Keywords: UnitedTest ISO 9664 tester, ISO 9664 adhesive fatigue test machine, structural adhesive tensile shear fatigue tester, metal substrate adhesive fatigue strength testing equipment, cyclic tensile shear fatigue test for structural adhesives, ISO 9664 adhesive long-term durability tester, geometry-dependent adhesive joint fatigue performance test, comparative characterization structural adhesive fatigue strength machine

Electronic Dynamic Testing Machine for high-precision cyclic and vibration testing of materials and components, featuring accurate frequency control, stable performance, and laboratory-grade reliability.

Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is the core purpose of ISO 9664?

A1: This standard specifies a standardized cyclic tensile-shear fatigue test method to evaluate the fatigue resistance of metal-to-metal structural adhesive joints. It generates S-N (Wöhler) curves and calculates the 10⁶-cycle fatigue limit under controlled sinusoidal shear load, to compare the long-term dynamic durability of different structural adhesives. It is only for material performance comparison, not direct structural design calculation.

Q2: Why is ISO 9664 fatigue test more important than the static shear test ISO 4587?

A2: ISO 4587 only measures one-time static breaking strength τD. In real service (automotive, aerospace, rail), bonded joints bear repeated cyclic vibration loads, not single static overload. Static strength cannot predict slow fatigue crack propagation and delayed joint failure under cyclic shear. ISO 9664 simulates real fluctuating service loads and quantifies service life under repeated stress, which static testing cannot reflect.

Q3: Why must τmin (minimum cyclic shear stress) always stay positive?

A3: This test only evaluates tensile-shear fatigue of structural lap joints. Negative shear stress would create reverse loading (compressive shear), which introduces different failure mechanisms and does not match the tensile-shear service mode the standard targets.

Q4: What substrate materials are recommended by ISO 9664, and can I use other metals?

A4: Recommended standard substrates: aluminium 2024 A 5T3 and steel XC18 / E24 Grade 1 or 2. Other metals (e.g., galvanized steel, magnesium alloy) are allowed only if they match the substrate the adhesive will bond in final end-use. All substrate material must be fully recorded in the test report.

Q5: What are the two normative statistical calculation methods in ISO 9664 Annex A and B, and when to use each?

A5: Annex A – Staircase (Dixon-Mood) Method: Ideal for precise fatigue limit estimation with sequential single-specimen testing, suitable for high-precision R&D material screening. Requires an uneven total number of specimens.

Annex B – Data Reclassification Method: Optimized for batch parallel testing with equal specimens at evenly spaced stress levels; does not require normal distribution assumption for fatigue data, suitable for routine quality control testing.

Q6: Why must bondline thickness and overlap length be strictly controlled with a bonding template?

A6: Bond thickness and overlap geometry drastically change shear stress distribution inside the joint. Uncontrolled thickness causes inconsistent stress concentration, leading to huge scatter in fatigue cycle results. The template ensures uniform overlap, parallel substrates and fixed adhesive layer thickness for repeatable, comparable test data across all samples.

Q7: What is the standard test frequency for ISO 9664, and why is 60 Hz the maximum limit?

A7: Nominal default frequency is 30 Hz; upper limit is 60 Hz. Higher frequencies generate excessive frictional heat inside the adhesive bondline. Thermal softening of the adhesive will artificially reduce fatigue life and produce false low fatigue strength data that does not represent room-temperature service performance.

Q8: What does "self-centring fixture" mean and why is it mandatory for the fatigue machine?

A8: The fixture must align the specimen’s central load axis perfectly with the machine’s force application axis. Any misalignment introduces unwanted bending stress superimposed on target shear load, accelerating premature joint failure and invalidating fatigue test data.

Q9: How to distinguish creep failure from real fatigue failure before testing?

A9: Pre-run preliminary static hold tests at the selected mean stress τm. If a joint fails under sustained static load without cyclic fluctuation, the failure is creep. Adjust τm to a lower value to eliminate creep interference before formal fatigue testing, so all recorded rupture cycles reflect pure fatigue damage.

Q10: How does ISO 9664 test help adhesive manufacturers optimize formulations?

A10: The standardized test creates a fair comparison benchmark. Formulators can modify resin, filler, or curing agent content and compare S-N curves and fatigue limits from ISO 9664 testing to identify which formulation delivers better anti-fatigue performance under cyclic shear loads.
