ISO 4152 GRP Pipe Long‑Term Axial Modulus Tester | UnitedTest
ISO 4152 defines beam‑bending creep test for water‑filled GRP pipes to obtain apparent axial long‑term modulus for above‑ground piping structural design. UnitedTest manufactures ISO 4152 compliant GRP pipe testing machines.
ISO 4152 sets out a standardized laboratory beam‑bending test procedure for glass‑reinforced thermosetting plastic (GRP / FRP) pipes. This test evaluates long‑term flexural creep behaviour of water‑filled GRP pipe specimens under simply‑supported end conditions.
During the ISO 4152 test, the GRP pipe sample is filled with water and supported at both ends. Time‑dependent flexural deformation is monitored to calculate the apparent axial long‑term modulus. This critical material parameter serves as core design input for structural engineering of above‑ground GRP piping systems, helping engineers predict long‑term deflection and service‑life performance under sustained load.
The ISO 4152 beam bending creep test fills an essential gap for GRP pipe qualification, distinguishing short‑term elastic modulus from time‑dependent creep properties that dominate real‑world above‑ground installation performance.
UnitedTest manufactures professional ISO 4152 compliant GRP pipe testing machines. Our test equipment delivers stable long‑term deformation measurement for GRP pipe R&D, factory quality verification and third‑party laboratory structural material assessment.
Core Test Principle
A pipe sample is mounted on supports at the ends and filled with water. The deflection is measured both at mid‑span and at the supports. The deflections measured at the supports is subtracted from the deflection measured at the centre to obtain a flexural deflection to be used to compute the modulus. The displacements are measured at pipe springlines to minimize errors caused by pipe cross‑section deformation.
The deflection is monitored over time, and the apparent axial long‑term modulus computed. The 50‑year modulus is computed from the extrapolated deflection after 10000 h of testing.
Test Specimen Requirements
| Parameter | Requirement |
|---|---|
| Material | GRP pipe manufactured according to ISO 23856 (UP‑based GRP piping systems). |
| Diameter limit | For practical reasons, the method is not suited for diameters > DN 600. |
| Length | Chosen such that the axial beam‑bending stress at mid‑span equals the planned allowable stress for the installation conditions within ±10 %. |
| Number of specimens | As specified in the referring standard (e.g., ISO/TS 10986 or a project specification). |
| Dimensional checks | Outside diameter measured at three stations (centre + 1/6 L each side); wall thickness measured at 12 points (6 around each end); inner diameter derived as do–2e. |

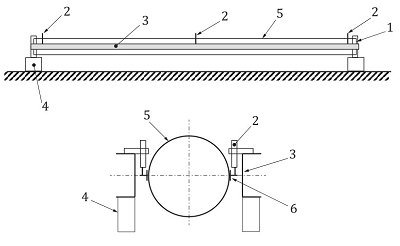

Test Equipment ISO 4152 Beam Bending Measure Apparent Axial Long Term Modulus of GRP Pipes
| Supporting Frame | Two parallel ultra-rigid steel beams (no visible deformation during testing), floor fixed supports, and two sealed circular end closures. Each steel beam length = specimen length + minimum 100 mm.
|
| End Caps | End closures fitted with rubber sealing gaskets (water-tight for full test duration), water filling fittings, air bleed holes, and bolt/weld mounting brackets to fix onto steel beams (no rotation of closures allowed).
|
| Bracket Supports | 6 rigid adhesive brackets glued to pipe springline as contact points for displacement transducers: 2 brackets at mid-span, 2 brackets at each pipe end. |
| Displacement Measuring System | 6 displacement transducers connected to continuous automatic data acquisition system, total system calibration tolerance ±1%. One transducer matches each bracket support. |
Critical Mandatory Stipulations
All measuring equipment (dimensional tools, displacement transducers) must maintain ±1% calibration accuracy.
Water filling must finish within 1 hour; sensor zeroing within 1 hour post pipe mounting.
Daily deflection recording is mandatory for the full 10,000-hour test period.
End closures must remain fully water-leak-tight throughout long-term creep monitoring.
Pipe ends cannot physically contact end closure internal walls under maximum bending deflection.
Standardized Full Test Procedures ISO 4152 Beam Bending Measure Apparent Axial Long Term Modulus of GRP Pipes
Prepare specimen – glue six brackets at the springline positions (2 at mid‑span, 4 near ends at distance ).
Prepare frame – drill bolt holes, position steel beams on floor supports, weld/bolt end closures to beams. Ensure correct spacing so the rotating pipe ends never contact the closures.
Mount specimen – place end closures onto pipe ends; bolt/weld closures to the steel beams.
Install displacement meters – mount six meters on the steel beams, connect to data‑acquisition system, take zero readings within 1 h.
Fill with water – through the end‑closure fitting, bleed air, fill < 1 h; record the deflection at the “full” moment as the initial deflection .
Monitor – continuously during filling; afterwards at least once every 24 h for 10 000 h.
Compute – subtract end deflections from centre deflection → true flexural deflection; calculate from ; extrapolate deflection to 50 years using ISO 10928; calculate .
Report – compile all required data and observations into the test report.
Industrial Application Fields
The standard is explicitly written to support above‑ground GRP pipe installations where the pipe is supported at multiple points (e.g., on racks, sleepers, or piers). In such configurations the pipe behaves as a continuous beam, and its long‑term deflection and end rotation must be predicted for:
Support spacing design – to avoid excessive sagging or interference with equipment.
Stress verification – ensuring that bending stresses remain within allowable limits over the 50‑year service life.
Compatibility with connected equipment – pumps, compressors, and vessels that cannot tolerate large pipe movements.
Industries that rely on GRP piping—such as **chemical processing, water & wastewater, power plants, desalination, and oil & gas—use this standard as part of their structural design toolkit.
Related Standard:
| ISO 10468 | GRP ring creep modulus test (measures circumferential ring stiffness creep, vs ISO 4152 axial beam creep) |
| ISO 10471 | Long-term ultimate bending strain test for GRP pipes |
| ISO 7685 | Short-term ring stiffness test for GRP pipe cross-section rigidity |
| ISO 4152 | Glass-reinforced thermosetting plastics (GRP) pipes - Determination of the apparent axial long-term modulus of pipes subject to beam bending |
Keywords: ISO 4152 GRP pipe apparent axial long‑term modulus, GRP pipe beam bending creep test, ISO 4152 testing machine for GRP pipes, FRP pipe long‑term flexural modulus tester, ISO 4152 simply‑supported water‑filled GRP pipe creep test, apparent axial long‑term modulus test for above‑ground GRP piping, GRP pipe structural design beam‑bending test equipment, UnitedTest ISO 4152 GRP pipe long‑term modulus tester, lab creep performance measurement for glass‑reinforced thermosetting plastic pipe
