ISO 34-2 Rubber, vulcanized or thermoplastic. Determination of tear strength. Small (Delft) test pieces

ISO 34-2 specifying tear strength testing for vulcanized and thermoplastic rubber. It defines Delft small rectangular specimens for limited material or tiny finished rubber parts, and test data from the two parts cannot be directly correlated due to distinct specimen configuration and loading mode.

(When the amount of material is limited (small finished products, thin sections, expensive compounds); uses a much smaller rectangular coupon with a pre-cut slit)

Test Principle

Rectangular small specimen with a centered fixed-width internal slit; tensile load pulls specimen to tear across remaining unslit rubber width, record peak tearing force and normalize into standardized tear strength via specified conversion formula accounting for actual specimen thickness and effective torn width (b₃)). Preferred when raw rubber material is scarce or only miniature finished rubber products available for QC inspection.

The force required to tear across the width of a small rectangular coupon (60 × 9 mm) containing a central slit (5.0 ± 0.1 mm long) is measured. The tearing occurs across the remaining uncut ligament b3=W−w≈ 4 mm wide, and the result is normalized to a standard width × thickness reference.

Test Mehods:

Only one uniform testing approach: rectangular specimen with symmetrical central 5.0±0.1 mm slit cut via dedicated die; two official options to calculate effective torn width b₃:

Method1 (Microscope Measurement): Section specimen at slit plane, measure left & right residual rubber width (b₁+b₂)) with travelling microscope (theoretically accurate but operationally complex).

Method2 (Die Dimension Calculation, Default): (b₃=W-w), W=total die width (9.0±0.1 mm), w=slit blade width (5.0±0.1 mm), commonly adopted for routine lab testing; results from two width measurement approaches cannot be cross-compared.

Test Specimen Info

Parameter	Detail
Shape	Rectangular: L = 60 mm, B = 9.0 ± 0.1 mm
Slit	Central slit length b = 5.0 ± 0.1 mm (cut by the die blade)
Thickness	d = 2.0 ± 0.2 mm (strict — thinner/thicker makes the geometry non-standard)
Cutting	Single press stroke / mallet blow onto yielding backing; wet with water/soap; thickness checked in slit region (≥3 readings, no reading >2% from used value)
Grain	Normally cut with grain ⊥ length; evaluate both directions if grain effects matter
Number of specimens	At least 3, preferably 6
measurement — critical:	Method 1 (traveling microscope on cross-sectioned piece — theoretically exact but impractical) vs. b (calculate b3=W-w from die dims — simpler, commonly used). Results from different methods shall NOT be compared.

ISO 34-2 Small (Delft) Specimen Tear Test Required Testing Machine (Similar like ISO 34-1)

Tensile Tensile Testing Machine: Comply fully with ISO5893: Class 1 force measurement accuracy, equipped with low-inertia electronic load cell and auto-recording system (for curve capture required by ISO6133).

Specimen matching tear grips: auto-tightening grips to avoid specimen slippage during tension, symmetric centering alignment structure for all three specimen shapes.

Calibrated Thickness Gauge: Circular foot (~6 mm diameter), applied pressure 22±5 kPa per ISO23529 specification for thickness measurement.

Specimen Cutting Press and dies: Sharp-edged custom dies with dimensional tolerance defined in respective standard drawings; single-stroke press or mallet for punching specimens (rubber can be wetted by water/soap solution for smooth cutting, supported on flexible backing board like leather/cardboard).

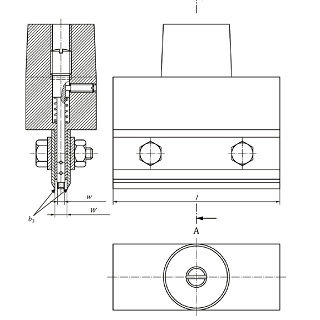

Dedicated Delft die (fixed W=9.0±0.1 mm, slit blade w=5.0±0.1 mm, die length＜120 mm) as defined in standard; no extra nicking tool required (slit formed during die punching in one step).

ISO 34-2 Rubber and Elastomers Tear Test - Small (Delft) Specimen

Key Fixed Test Parameters Summary

Crosshead Speed	Fixed 500±50 mm/min
Standard Test Temp	Same ISO23529 standard lab temp rule
Effective Grip Span	30 mm free length between two grips (15 mm from slit center on each side)
Thickness tolerance	≥3 thickness readings around slit, individual reading ≤2% vs specimen median; group thickness ≤10% deviation vs batch average
Vulcanization-to-test interval	Governed fully by ISO23529

ISO 34-2 Tear Test Procedure

1, Condition per ISO 23529 (time after vulcanization per ISO 23529 schedule).

2, Cut Delft pieces from sheet with the dedicated punch die; measure thickness & b₃.

3, Mount in tensile machine so free length between grip contact points = 30 mm (each grip 15 mm from the slit), slit centered in the gauge.

4, Pull at 500 mm/min without interruption until the piece tears completely through.

5, Note the maximum force F(N).

6, Calculate tear strength: ISO 34-2 Rubber and Elastomers Tear Test - Small (Delft) Specimen

8=4 mm (nominal b₃)×2 mm (nominal d)— normalizes to standard geometry

b₃= actual uncut width (mm), d= actual thickness (mm)

F₀= tear strength in newtons (N) — note: Delft reports in N, NOT kN/m like ISO 34-1.

7, Report median (or median of two middle values for even N; individual values if only 3), with all metadata.

Side-by-Side Comparison: ISO 34-1 vs. ISO 34-2

Feature	ISO 34-1 (Trouser/Angle/Crescent)	ISO 34-2 (Delft Small)
Material needed	Moderate-to-large (full sheets, larger coupons)	Very little — 60×9 mm strip
Result unit	kN/m (force/thickness)	N (normalized force to std geometry)
Primary physics	Steady-state or initiation-controlled tear propagation	Slit-initiated tear across a narrow ligament (~4 mm)
Grain sensitivity	Explicitly addressed; multiple directions recommended	Explicitly addressed; grain ⊥ length standard
Pull speeds	100 mm/min (trouser) / 500 mm/min (angle/crescent)	500 mm/min
Specimen count	≥5 (ideally 5×2 directions)	≥3, pref. 6
Nick/Cut precision	Critical for angle/crescent (±0.2 mm)	Built into die geometry (±0.1 mm)
When chosen	R&D, specification compliance, adequate material	Small molded parts, thin sections, forensic/field sampling, QC where sheet stock unavailable
