ISO 34-1 Rubber, vulcanized or thermoplastic — Determination of tear strength — Part 1: Trouser, angle and crescent test pieces

ISO 34-1 specifying tear strength testing for vulcanized and thermoplastic rubber, include three conventional specimen (trouser, angle, crescent) for regular-size rubber samples. Tear strength is a fundamentally different property from tensile strength: it measures how well a material resists catastrophic crack growth once a defect already exists, which is the realistic failure mode in service.

Test Principle

A tensile testing machine applies a constant rate of traverse pull to a specially shaped test piece containing a cut or nick, and the force required to propagate (or initiate + propagate) tearing is recorded. The tearing force is then normalized by the thickness to give tear strength in kN/m, reflecting rubber’s resistance to crack initiation and crack propagation under tension load.

Test Mehods:

Method	Test Piece Shape	What It Measures	Defect Type	Pull Speed
A - Trouser (Preferred)	"Trouser" leg shape, central cut 40 mm deep	Pure tear propagation - force is steady (or knotty/oscillating); reports median force via ISO 6133	Cut of depth 40 mm ± 5 mm at centre of width	100 mm/min ± 10 mm/min
B, (a) - Unnicked Angle	90° angle shape, no nick	Combined tear initiation + propagation - measures the max force to rupture the whole angle tip; cannot separate the two.	No nick - stress builds at the natural apex	500 mm/min ± 50 mm/min
B, (b) - Nicked Angle	Same angle shape, 1.0 mm ± 0.2 mm nick at apex	Tear propagation from a controlled flaw - more reproducible than unnicked; nick depth must be tightly controlled	Razor nick 1.0 mm ± 0.2 mm	500 mm/min ± 50 mm/min
C - Crescent	Crescent (notched beam) shape, 1.0 mm ± 0.2 mm nick at inner edge	Tear propagation from a controlled flaw under bending + tension; widely used in tire/rubber industry	Razor nick 1.0 mm ± 0.2 mm	500 mm/min ± 50 mm/min

Test Specimen Info

Source sheet thickness	Preferably 2.0 ± 0.2 mm; recognizes that finished-product slices can't always achieve this
Cutting	Single press stroke (or single mallet blow); support on slightly yielding backing (leather/cardboard); wet rubber with water/soap; let dry before test
Grain / anisotropy	Tear strength is highly grain-sensitive — take pieces in two directions 90° apart (⊥ grain and ∥ grain) whenever possible
Nick / cut depth	Trouser: cut 40 ± 5 mm (last ~1 mm done carefully with razor); Angle nick: 1.0 ± 0.2 mm; Crescent nick: 1.0 ± 0.2 mm
Time: cut/nick → test	Preferably immediate; max 24 h if stored at standard lab temp
Number of specimens	At least 5 per sample (ideally 5 in each grain direction → 10 total)
Thickness check	Readings in tear zone; no single reading deviates >2% from median for that piece; between-group median thickness within 7.5%

ISO 34-1 Required Testing Machine

Universal Tensile Testing Machine: Comply fully with ISO5893: Class 1 force measurement accuracy, equipped with low-inertia electronic load cell and auto-recording system (for curve capture required by ISO6133).

Specimen matching tear grips: auto-tightening grips to avoid specimen slippage during tension, symmetric centering alignment structure for all three specimen shapes.

Calibrated Thickness Gauge: Circular foot (~6 mm diameter), applied pressure 22±5 kPa per ISO23529 specification for thickness measurement.

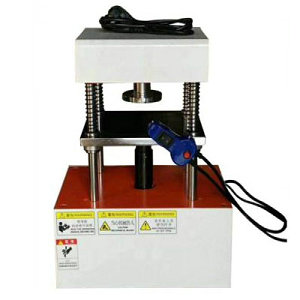

Specimen Cutting Press and dies: Sharp-edged custom dies with dimensional tolerance defined in respective standard drawings; single-stroke press or mallet for punching specimens (rubber can be wetted by water/soap solution for smooth cutting, supported on flexible backing board like leather/cardboard).

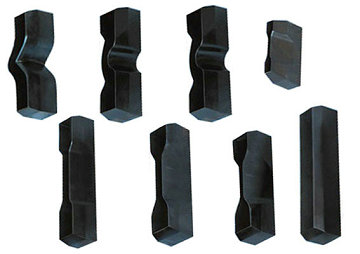

ISO 34-1 Tear strength test of rubber thermoplastic (Trouser, angle, crescent sample)

Precision Nick Cutter: Clamping fixture + sharp razor blade, adjustable notch depth control (accuracy ±0.05 mm), for standardized 1 mm fixed-depth nicking on angle/crescent specimens; microscope to verify actual nick depth post-cutting.

Key Fixed Test Parameters Summary

Crosshead Speed	Trouser:100±10 mm/min; Angle/Crescent:500±50 mm/min
Standard Test Temp	Standard lab temperature (per ISO23529); non-standard temp needs full thermal equilibrium pre-conditioning
Effective Grip Span	Trouser defined grip distance; Angle/Crescent fixed clamping position
Thickness tolerance	Comparative batch median thickness within 7.5% of overall grand median; single specimen thickness reading ≤2% deviation vs specimen median

ISO 34-1 Tear Test Procedure

1, Pre-condition rubber sheet ≥3 h at standard lab temp, punch standardized specimens with matched sharp die; prepare required nicks (1.0±0.2 mm depth for B-b & C) with calibrated nick cutter, verify nick depth under microscope.

2, Measure specimen thickness at anticipated tear path following ISO23529 Method A, screen out over-tolerance thickness specimens.

3, Mount specimen symmetrically into tester auto-grips per defined positioning drawing; avoid twisting or uneven clamping compression.

Trouser: insert legs into grips per Figure 4 so pull is in-plane with the cut;

Angle/Crescent: grip parallel-sided ends, nick centered in the gauge.

ISO 34-1 Tear strength test of rubber thermoplastic (Trouser, angle, crescent sample)

4, Start tensile machine at specified crosshead rate (100 mm/min trouser /500 mm/min angle/crescent), run continuously until full specimen rupture without interruption; record full force-displacement curve (critical for trouser median force calculation via ISO6133 multi-peak analysis).

5, Collect peak force (angle/crescent) or process curve for median tearing force (trouser); calculate tear strength Ts=F/d (kN/m), arrange data to get median value of replicates per grain direction.

6, Repeat for remaining specimens of same cutting orientation, document abnormal tear behaviours (knotty irregular tear, premature edge break etc.)

Side-by-Side Comparison: ISO 34-1 vs. ISO 34-2

Feature	ISO 34-1 (Trouser/Angle/Crescent)	ISO 34-2 (Delft Small)
Material needed	Moderate-to-large (full sheets, larger coupons)	Very little — 60×9 mm strip
Result unit	kN/m (force/thickness)	N (normalized force to std geometry)
Primary physics	Steady-state or initiation-controlled tear propagation	Slit-initiated tear across a narrow ligament (~4 mm)
Grain sensitivity	Explicitly addressed; multiple directions recommended	Explicitly addressed; grain ⊥ length standard
Pull speeds	100 mm/min (trouser) / 500 mm/min (angle/crescent)	500 mm/min
Specimen count	≥5 (ideally 5×2 directions)	≥3, pref. 6
Nick/Cut precision	Critical for angle/crescent (±0.2 mm)	Built into die geometry (±0.1 mm)
When chosen	R&D, specification compliance, adequate material	Small molded parts, thin sections, forensic/field sampling, QC where sheet stock unavailable

Industrial Application Fields

Automotive rubber industry: Tire sidewall/inner liner rubber formulation development, engine rubber gaskets, suspension vibration damping pads, automotive reinforced rubber hose; Method A preferred for fundamental tire compound tear property screening, B/C widely used for molded seal QC testing.

Industrial rubber goods: Heavy-duty conveyor belt rubber layer, industrial hydraulic sealing rings, rubber expansion joints, mining wear-resistant rubber liners.

Footwear & consumer rubber: Rubber shoe sole, waterproof rubber coated fabric, household elastic rubber parts; crescent test common for tough high-hardness footwear rubber inspection.

Raw material R&D lab: New synthetic rubber (SBR/NR/EPDM) formulation screening, carbon black/filler grade comparison, curing agent optimization test.

Related Test Standard:

ASTM D624	Standard Test Method for Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers
JIS K 6252-1	Rubber, vulcanized or thermoplastic -- Determination of tear strength -- Part 1: Trouser, angle and crescent test pieces
GB/T 529	Rubber,vulcanized or thermoplastic - Determination of tear strength（Trouser，angle and crescent test pieces）
ISO 34-2	Rubber, vulcanized or thermoplastic. Determination of tear strength. Small (Delft) test pieces
ISO 6133	Multi-peak ("knotty tear") trace analysis — required for Method A (trouser) to extract the median tearing force from oscillating traces

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Tear fixture ISO 505, ASTM D1004, vise grip or self-tightening roller grips are the most popular for this application and the least expensive. They can be provided with a rubber faced surface to measure the tear resistance strength of flexible plastic film and sheeting.

Electric sample punching machine is a sample preparation device designed based on the punching principle, specifically developed for preparing standard samples of sheet-like, film-like, and thin plate materials.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Webbing test fixture used for tensile testing of the webbing, belt test sample, determine the webbing, belt tensile strength, elongation etc., Webbing is a strong fabric woven as a flat strip or tube of varying width and fibres often used in place of rope.

Q1: What core purpose does ISO 34-1 serve?

A: ISO 34-1 specifies three standardized test methods (Trouser-A / Angle-B / Crescent-C) to measure tear strength of vulcanized & thermoplastic rubber, quantifying rubber’s resistance to crack initiation and crack propagation under tensile load; test results reflect real-life anti-tear performance of finished rubber parts. It is the primary global QC standard for bulk rubber sheet when sufficient raw material is available (small limited samples use ISO34-2 Delft instead).

Q2: Why is ISO 34-1 tear test critical for rubber manufacturers and material R&D?

A: Prevent in-service failure: Most rubber product breakdown (tire side crack, seal rupture, hose split) originates from crack expansion; standardized tear data screens poor formulation to avoid safety hazards in automotive/industrial goods.

Raw material & formulation optimization: Compare different rubbers (NR/SBR/EPDM), carbon black grades, curing additives via unified ISO test data to adjust compound formula and balance cost & durability.

Production batch quality control: Regular tear spot check monitors abnormal vulcanization (under/over cure directly reduces tear resistance) and adjusts molding parameters timely.

Global trade conformity: Uniform ISO testing eliminates cross-country lab deviation; ISO test report is globally accepted certification for international rubber product trade complying with WTO TBT rules.

Anisotropy analysis: Dual-direction test (parallel/perpendicular to rubber mill grain) quantifies directional tear difference caused by calendering flow to optimize mold design.

Q3: Can ISO34-1 test fabric-reinforced laminated rubber composites?

A: No. ISO34-1 only applies to solid vulcanized/thermoplastic rubber without embedded textile reinforcement; bonded rubber-fabric adhesion test follows ISO36, tiny limited material uses ISO34-2 Delft test.

Q4: How to select among Method A (Trouser), B (Angle), C (Crescent)?

A: Method A (Trouser, preferred for fundamental research): Best for evaluating steady tear propagation; less sensitive to pre-cut length & rubber modulus variation; ideal for raw rubber formulation screening (tire compound, general elastomer R&D), crosshead speed:100±10 mm/min.

Method B-a (Unnicked Angle): Simulates spontaneous crack starting from sharp corner; tests combined tear initiation+propagation, used for molded rubber gaskets with sharp edges.

Method B-b (Nicked Angle): Fixed 1mm pre-notch, only measures existing crack expansion force, common for routine QC of industrial sealing parts.

Method C (Crescent): High stress concentration at concave nick; simulates severe crack growth for high-hardness heavy-duty rubber (tire sidewall, mining rubber liner), crosshead speed:500±50 mm/min.

Q5: What is the core difference between nicked vs unnicked Angle test (Method B-a/B-b)?

A: B-a (Unnicked): No pre-made notch; tear starts naturally at the 90° angle apex; measured force covers both crack initiation + propagation together.

B-b (Nicked): Precisely controlled 1.0±0.2mm fixed-depth notch at apex; test only measures force to expand existing pre-crack (no initiation included).

Q6: What’s the rule for non-standard temperature testing (not standard lab temp)?

A: Specimens need pre-conditioning long enough to reach full thermal equilibrium at target test temperature; minimize conditioning duration as much as possible to prevent unintended rubber thermal ageing; all parallel comparison tests must run under identical test temperature.

Q7: My trouser test curve shows irregular fluctuating “knotty tear”, how to handle results?

A: Knotty irregular tear is inherent property of some rubber compounds; follow ISO6133 multi-peak analysis rules to extract valid median force value; note abnormal tearing behaviour formally on final test report for reference.

Q8: Why is tear strength important? Isn't tensile strength enough?

A: No — and this is one of the most common mistakes in rubber specification.

Rubber articles in service always accumulate surface nicks, mold parting-line defects, ozone micro-cracks, or internal voids from incomplete fill.

A compound can have excellent tensile strength but disastrous tear resistance — highly filled compounds and some thermoplastic elastomers are notorious for this.

The governing failure mode in tires, hoses, mounts, and seals is almost always cut growth → tear propagation → catastrophic rupture, not uniform tensile pull-apart.

ISO 34-1 exists because the flaw is the starting point you have to design for, not a theoretical worst-case you hope never happens.

Q9: How many test pieces do I need?

A: At least 5 per sample, and — wherever possible — 5 in each grain direction (→ 10 total). Report the median and range for each direction separately.

Fewer than 5 is explicitly called out as marginal; with tear testing's inherent variability (reproducibility in the precision annex can be 30–60% of mean for some compounds), n= 5 is really the minimum for any statistically defensible decision.

Q10: What's the most common mistake labs make with ISO 34-1?

#	Mistake	Why It Matters
1	Hand-nicking freehand instead of using a fixture	Nick depth variation blows up your scatter (±0.2 mm is tight)
2	Only testing one grain direction	You'll report the strong direction and miss the real-world weak one
3	Using the absolute max peak from a knotty trouser trace instead of ISO 6133 median	Overstates tear strength by 10–30%; kills reproducibility
4	Dull die edges → ragged, stressed cut surfaces	Pre-damages the tear path before the test even starts
5	Comparing across labs without verifying machine Class 1, speed tolerance, and conditioning	The precision data show reproducibility can hit 30–60% on tough compounds - undisciplined procedure is reason

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
