ASTM F2606 Standard Guide for Three-Point Bending of Balloon-Expandable Vascular Stents and Stent Systems.

ASTM F2606 defines quantitative three-point bending procedures to characterize the bending flexibility and stiffness of balloon-expandable vascular stents and stent systems (pre-deployment and deployed states). It is a critical testing protocol in the biomedical engineering field. Since vascular anatomies are naturally curved and tortuous, a stent must be flexible enough to navigate through the delivery pathway (trackability) and conform to the vessel's curvature once deployed without causing vascular trauma . This standard provides the guidelines to measure these mechanical properties accurately.

Test Principle:

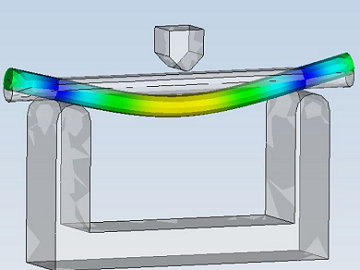

The test operates on the classic three-point bending mechanical principle. The specimen (stent or stent system) is placed on two parallel lower static supports (creating a "span"). A vertical load is then applied midway between these supports by an upper dynamic load applicator, causing the specimen to bend. By measuring the applied force and the resulting deflection, the bending flexibility and stiffness of the test article can be quantitatively determined.

ASTM F2606 Three-Point Bending Test for Balloon-Expandable Vascular Stents and Stent Systems

Specific Test Methods:

The standard outlines two primary methods for conducting the three-point bending test, differing mainly in how the span length is handled :

Fixed Span Length Method	The distance between the lower supports remains constant.
	Advantage:Allows for direct force-vs-deflection comparisons independent of stent length. Useful for comparing stents of different diameters or designs, and allows for evaluating flexibility at multiple points along a long stent.
Variable Span Length Method	The span length changes based on the specimen's length (e.g., 10-14 mm stents use a 10 mm span, while >35 mm stents use a calculated span).
	Advantage:Maximizes the bending moment arm for any given stent length, minimizing the risk of non-bending deformation (like kinking or crushing) at a given load. Comparisons are made by evaluating midspan bending moments at given curvatures.

ASTM F2606 Required Test Equipment & Apparatus

Recommend UnitedTest Universal testing machine + 3 points bending fixture for vascular stent.

Loading Test Machine

Capable of applying a controlled, constant deflection rate vertically. It must have adequate displacement rate control to avoid inertial effects.

Three-Point Bend Fixture

Consists of two lower static supports and one upper dynamic load applicator.

Support Dimensions: Typically, the supports are cylinders with a diameter of 6.35 mm (1/4 inch).

However, alternative geometries/materials (like Teflon or Delrin) can be used to minimize adverse friction or localized stent crushing.

Grooves or shoulders may be added to the lower supports to keep the specimen perpendicular during the test.

Environmental Controls

(Optional but recommended): Means to maintain the test article at 37 ± 2°C (simulating body temperature) and keep it fully hydrated.

Test Specimen Information

Quantity: Minimum 3 identical specimens (same labeled diameter/length) per test condition; more samples may be needed for performance claims.

Specimen types: Pre-deployment stent systems, deployed stents, and standalone delivery systems.

Orientation: Test maximum/minimum bending stiffness orientations if properties are rotation-sensitive.

Variable-span selection: Shortest stents for maximum bending load; longest stents for minimum bending load.

Exclusion: Not for self-expanding stents, stent-grafts, or specimens with span-to-OD ratio <4:1.

Key Test Parameters

Parameter	Requirement
Span length	Fixed span: ≥4 mm smaller than the minimum stent length Variable span: According the standard requirement (10–14 mm stent: 6D span; >35 mm: (length/1.093)−2).
Maximum deflection	The vertical displacement applied by the upper load applicator. Variable span: 1.2 mm (10–14 mm stent) to 0.2×span (>35 mm stent)
Deflection rate	Must be constant and slow enough to avoid excessive inertial loads. Should be consistent when comparing different devices.
Preload	0.005–0.200 N to ensure three-point contact

Test Stipulations (Rules & Validity)

No Retesting: If a stent deforms during a test, it must be discarded. Even if no deformation is visible, retesting is discouraged as prior loading affects the material properties .

Data Validity: The test results are considered invalid if:

The specimen exhibits substantial non-uniform bending.

Localized kinking, buckling, or crushing is observed (slight uniform ovalization is acceptable).

Appreciable elongation of the test article occurs during loading .

Data Analysis: Force vs. Deflection curves should be plotted. For valid flexibility comparisons, the slope of the linear region (R² ≥0.9) is used. A lower slope indicates greater bending flexibility.

ASTM F2606 Vascular stent three-point bending Test Procedures:

Preparation	Set up the fixture. Mark the midpoint of the stent for load application. Cut the stent system or deploy the standalone stent as required.
Conditioning	If required, preheat the fixture and specimen to 37 ± 2°C and ensure full hydration.
Positioning	Place the specimen centrally on the lower supports, ensuring the upper applicator will hit the marked midpoint.
Zeroing	Balance the force transducer. Apply a slight preload or account for the initial gap.
Execution	Apply the vertical load at a constant deflection rate until the maximum desired deflection is reached. Record force and deflection continuously. Unloading data should also be recorded at the same rate to check for elastic recovery.
Inspection	Visually inspect the specimen post-test for kinking, buckling, or crushing.
Calculation	Correct the raw data for preload/gap. Calculate Midspan Bending Moment (M=PL/4) and Midspan Curvature (κ=12δ/L²) if using the variable span method.

Test Application (Industry Field)

Core field: Cardiovascular/vascular medical device industry for balloon-expandable vascular stents and stent delivery systems.

Extended use: Non-vascular balloon-expandable stents.

Purpose: R&D characterization, material/design comparison, and quantitative evaluation of bending performance for regulatory and product optimization.

Related Standards

ASTM F2477	Standard Test Methods for in vitro Pulsatile Durability Testing of Vascular Stents and Endovascular Prostheses
ASTM F2516	Standard Test Method for Tension Testing of Nickel-Titanium Superelastic Materials
ASTM F3067	Standard Guide for Radial Loading of Balloon-Expandable and Self-Expanding Vascular Stents
ISO 25539-2	Cardiovascular implants - Endovascular devices - Part 2: Vascular stents

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

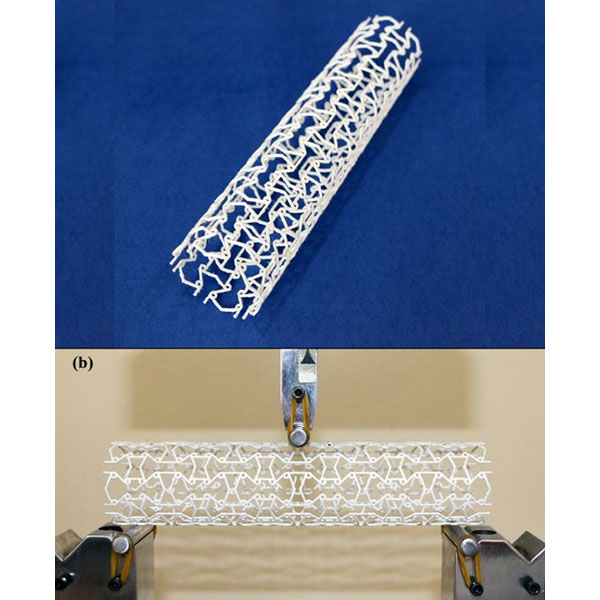

Three-Point Bending Test fixture for Vascular Stent is a specialized mechanical testing instrument designed to evaluate the flexural properties of balloon-expandable vascular stents and stent system. Conform with ASTM F2606, ISO 25539-2.

Q1: What exactly is the ASTM F2606 test?

A: Simply put, it is a standardized, scientific method for measuring how well a balloon-expandable vascular stent or stent system can bend without breaking or deforming. It uses a "three-point bending" setup—imagine placing a tiny bridge (the stent) on two pillars and gently pressing down on its center until it curves. By measuring the force required to bend it, we get a clear, objective score of its flexibility .

Q2: Why is this test so important for vascular stents?

A: Think of the human vascular system—it’s not a straight pipe; it’s full of curves and twists. A stent needs to be rigid enough to hold open a blocked artery, but flexible enough to bend naturally as the patient moves, breaths, or walks. If a stent is too stiff, it can cause vessel trauma, discomfort, or even fracture over time. This test quantitatively proves that the stent can safely navigate and adapt to the body's natural anatomy .

Q3: Does the test setup change based on the size of the stent?

A: Yes, absolutely. The standard offers two main approaches:

Fixed Span Method: The distance between the two bottom supports stays the same. This is great for comparing stents of different lengths or designs directly against each other .

Variable Span Method: The distance between the supports changes depending on the stent's length (as outlined in Table 1 of the standard). This maximizes the bending effect and minimizes the risk of the stent simply crushing or buckling rather than bending.

Q4: What mandatory information is in the test report?

A: Specimen details (part/lot number, dimensions), test type (stent system/deployed stent), span/deflection/rate, temperature/hydration, force-deflection and moment-curvature curves, slope/R² values, deformation observations, and statistical data (mean, standard deviation).

Q5: Can I reuse a stent for another test if it didn't break?

A: No. The standard strictly advises against retesting. Even if the stent looks perfectly fine to the naked eye, the microscopic structure of the metal (or polymer) may have already been altered or fatigued by the initial bend. Using it again will give you inaccurate, compromised data .

Q6: What makes a test result "invalid"?

A: You have to watch the stent very carefully during the bend. A result is thrown out if the stent doesn't bend smoothly. For example, if it suddenly kinks, buckles, crushes, or stretches noticeably, the data is no longer reflecting pure "flexibility"—it's reflecting a failure mode.

Q7: Why must the test temperature be controlled at 37±2 °C?

A: This simulates human body temperature. Bending properties of many stent materials change with temperature; testing at 37 °C ensures data reflects in vivo performance.

Q8: Can I use this test for heart valve stents or aortic aneurysm stents (stent-grafts)?

A: Not directly. ASTM F2606 is highly specialized for balloon-expandable vascular stents (like those used in coronary arteries). It is not recommended for self-expanding stents, endoprostheses (stent-grafts), or heart valves. However, the core principles of three-point bending described in the guide could serve as a helpful starting point if you were developing a custom test for those other devices .

Q9: Does passing this test guarantee the stent will work perfectly in a patient?

A: Not entirely on its own. This test specifically measures bending flexibility. While crucial, a stent's overall safety and efficacy also depend on other factors like its radial strength (resistance to compression), its fatigue life (how long it lasts), and its trackability (how easily it navigates through blood vessels before deployment). The ASTM F2606 is one vital piece of a much larger puzzle .

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
