ASTM F2606, ISO 25539-2

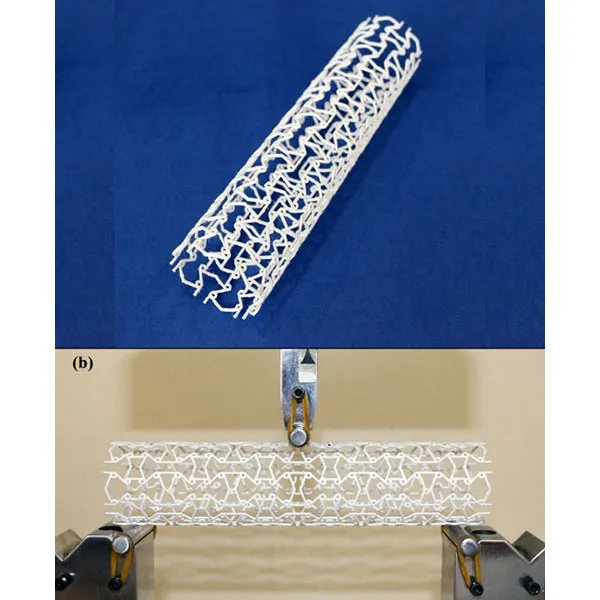

Three-Point Bending Test fixture for Vascular Stent is a specialized mechanical testing instrument designed to evaluate the flexural properties of balloon-expandable vascular stents and stent system. It quantifies critical performance metrics including flexural stiffness, bending resistance, yield behavior, and structural integrity under controlled bending conditions, simulating the physiological stresses stents encounter during navigation through tortuous blood vessels and post-implantation vessel wall interactions. This device is explicitly referenced in ASTM F2606 (Standard Guide for Three-Point Bending of Balloon-Expandable Vascular Stents and Stent Systems) .
General introduction
Three-Point Bending Test fixture for Vascular Stent is a specialized mechanical testing instrument designed to evaluate the flexural properties of balloon-expandable vascular stents and stent system. It quantifies critical performance metrics including flexural stiffness, bending resistance, yield behavior, and structural integrity under controlled bending conditions, simulating the physiological stresses stents encounter during navigation through tortuous blood vessels and post-implantation vessel wall interactions. This device is explicitly referenced in ASTM F2606 (Standard Guide for Three-Point Bending of Balloon-Expandable Vascular Stents and Stent Systems) .
Core Working Principle
The device operates on the classic three-point bending mechanics principle, applying a concentrated load at the midpoint of a stent sample supported by two fixed parallel cylindrical supports. This creates a state of pure bending in the stent's central region, allowing precise measurement of the relationship between applied force and resulting deflection.
Key Features
1, Low-Friction and Biocompatible Contact Surface:
Support columns and loading heads are usually made of polytetrafluoroethylene (PTFE) or other engineering materials with low friction coefficients, excellent rigidity, and that do not scratch the stent, ensuring that external forces are fully used for pure bending deformation of the stent, eliminating friction interference.
2, Physiological Environment Temperature Simulation (Key Features):
Considering that the mechanical properties of stent materials such as Nitinol are extremely sensitive to temperature, high-end testing devices integrate environmental test chambers (like BioBox) or constant temperature water baths (like BioBath). Testing can be conducted in a bionic liquid or air environment at 37 ± 2°C to obtain mechanical data closest to the actual in vivo conditions.
3, High-Precision Closed-Loop Control and Multi-Mode Testing:
The device can accurately control actuator movement (position control or force control) to achieve a constant deflection loading rate. It also supports real-time monitoring of force-displacement (P-δ) throughout the process and can perform multi-cycle loading-unloading tests to evaluate the stent's elastic recovery and hysteresis characteristics.
Loading phase: A moving upper cylindrical indenter applies displacement at a controlled rate (typically 1-10 mm/min) to the stent midpoint.
Force-deflection monitoring: High-precision load cells and displacement sensors record real-time data to generate bending force vs. deflection curves.
Unloading phase (optional): The indenter retracts to measure elastic recovery and hysteresis behavior.
Failure detection: The system identifies yield points and structural failure (fracture, permanent deformation) based on predefined criteria.
ASTM F2606 Standard Guide for Three-Point Bending of Balloon-Expandable Vascular Stents and Stent Systems.
Applicability: Balloon-expandable stents and stent systems (pre-deployment and post-deployment states)ASTM International
Span Length Requirement: Minimum 4:1 span-to-stent outer diameter ratio (as tested)
Loading Protocol:
Pre-deployment testing: Evaluate stent system flexibility in the stent-balloon region
Post-deployment testing: Characterize deployed stent flexibility after balloon expansion
Deflection Limit: Test typically stops at 0.2 × span length or until structural failure
ISO 25539-2 Cardiovascular implants — Endovascular devices — Part 2: Vascular stents
Span-to-Diameter Ratio: Failure to maintain ≥ 4:1 ratio results in invalid stress distribution and non-compliant data.
Stent Alignment: Misalignment (>0.1 mm) causes asymmetric loading and inaccurate stiffness measurements.
Surface Finish: Rough support/indenter surfaces (Ra > 0.8 μm) can damage stent struts and affect test results.
Temperature Sensitivity: Nickel-titanium (NiTi) stents exhibit temperature-dependent mechanical properties; precise 37°C control is mandatory.
Preload Application: Insufficient preload leads to inconsistent initial contact; excessive preload causes plastic deformation.
Test Speed: Faster speeds (>10 mm/min) may induce dynamic effects that do not reflect physiological conditions.
Main Technical Specification
| Stent Diameter Capacity | 2-14 mm (customizable up to 20 mm) |
| Stent Length Capacity | 8-40 mm |
| Span Length Range | 20-100 mm |
| Force Measurement Range | 0-50 N (resolution 0.001 N) |
| Displacement Resolution | 0.001 mm |
| Test Speed | 0.1-50 mm/min (standard: 2 mm/min) |
| Temperature Control | 37°C ± 0.5°C (range 5-60°C) |
| Data Sampling Rate | 100-1000 Hz |
| Test Modes | Static bending, cyclic loading, creep, stress relaxation |
Standard
ASTM F2606 defines quantitative three-point bending procedures to characterize the bending flexibility and stiffness of balloon-expandable vascular stents and stent systems (pre-deployment and deployed states). It is a critical testing protocol in the biomedical engineering field. Since vascular anatomies are naturally curved and tortuous, a stent must be flexible enough to navigate through the delivery pathway (trackability) and conform to the vessel's curvature once deployed without causing vascular trauma . This standard provides the guidelines to measure these mechanical properties accurately.
ASTM F3067 establishes in vitro test frameworks to characterize the radial mechanical performance of balloon-expandable vascular stents and self-expanding vascular stents. It quantifies three key indicators: radial strength and collapse pressure for balloon-expandable stents, and chronic outward force (COF) for self-expanding stents.
ASTM F2942 specifies in vitro test methodologies to evaluate the cyclic durability of vascular stents under non-radial mechanical deformations (axial, bending, and torsion) that occur in vivo due to musculoskeletal motion, breathing, or cardiac activity.
ASTM F2477 designed to evaluate the long-term fatigue durability and radial cyclic deformation resistance of vascular implants under simulated physiological pulsatile loading conditions. It is crucial for simulating the cyclical stresses these medical devices endure inside human blood vessels.
ASTM F2942 specifies in vitro test methodologies to evaluate the cyclic durability of vascular stents under non-radial mechanical deformations (axial, bending, and torsion) that occur in vivo due to musculoskeletal motion, breathing, or cardiac activity. include Axial, bending, torsional, Pulsatile Durability, Radial Loading etc., test.
Step-by-Step Testing Procedure
1, Sample Preparation:
Pre-deployment: Mount stent on delivery balloon (no inflation); ensure proper crimpingASTM International
Post-deployment: Inflate balloon to nominal pressure (per manufacturer's specs), deflate, and remove balloonASTM International
Equilibrate in 37°C physiological saline for 10-30 minutes to simulate body temperatureASTM International
2, Device Setup:
Select appropriate span length (≥ 4× stent outer diameter)ASTM International
Calibrate force and displacement sensors according to manufacturer guidelines
Set temperature chamber to 37°C ± 0.5°C
Configure test parameters: speed (typically 2 mm/min), deflection limit (0.2× span), data sampling rate (100 Hz)
3, Testing Execution
3.1, Stent Loading:
Position stent perpendicular to supports, centered under the indenter
Apply preload (0.05-0.1 N) to ensure uniform contact with all three points
Verify alignment with optical system (coaxiality ≤ 0.1 mm)
3.2, Bending Test:
Start displacement-controlled loading at specified speed
Record force and displacement data continuously throughout the test
Stop test at deflection limit or when structural failure occurs (force drop ≥ 20%)
4, Post-Test Analysis:
Generate force vs. deflection curve
Calculate key parameters: flexural stiffness, yield force, maximum force, deflection at failure
Perform visual inspection for cracks, permanent deformation, or structural damage
Compare results with acceptance criteria from standards and product specifications
