ASTM F2477-24 Standard Test Methods for in vitro Pulsatile Durability Testing of Vascular Stents and Endovascular Prostheses

ASTM F2477 designed to evaluate the long-term fatigue durability and radial cyclic deformation resistance of vascular implants under simulated physiological pulsatile loading conditions. It is crucial for simulating the cyclical stresses these medical devices endure inside human blood vessels.

Test Principle of ASTM F2477

The core scientific principle of ASTM F2477-24 is to simulate the relentless, cyclical mechanical environment of the human cardiovascular system in vitro.

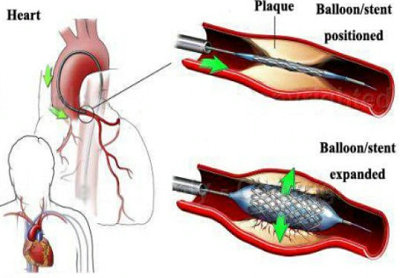

When a stent or endovascular prosthesis is implanted, it is constantly subjected to the pulsing rhythm of the cardiac cycle—expanding and contracting with every heartbeat . This standard replicates that exact mechanical stress. By deploying the medical device into a simulated elastic "mock vessel" and subjecting it to hydrodynamic pulsatile loading (rhythmic fluid pressure), the test determines if the device can withstand these repetitive diameter changes without structural failure . It essentially accelerates the aging process of the device to predict its fatigue resistance over its intended lifespan (typically equivalent to 10 years or approximately 380 million cycles)

This test uses hydrodynamic pulsatile loading (cyclic internal/external fluid pressurization) to generate repeated diametric expansion–contraction of the elastomeric mock vessel, which cyclically deforms the implanted stent/prosthesis to replicate the in vivo mechanical environment driven by cardiac cycles (diastole → systole → diastole).

ASTM F2477 Test for in-vitro Pulsatile Durability Testing of Vascular Stents

Test Metnods

Outlines two distinct, mandatory evaluating stent durability under cyclic diametric distention:

Methods

Description

Key Feature

Physiological Pressure Test

Replicating the actual blood pressure differentials found in the human body.

The mock vessel is pressurized from the inside (or outside) to achieve targeted systolic and diastolic pressures.

The primary goal is to mimic the physiological transmural pressure (the difference between external and internal pressure) to ensure the test accurately reflects real-world loading conditions

Load-controlled; mimics natural blood pressure waveforms.

Diameter Control Test

(Strain Control)

Sometimes called the strain control method, this approach prioritizes hitting exact diameter targets.

Using a precise diameter measurement system, the test ensures that the device itself reaches the predetermined minimum and maximum outer diameters (OD) at the test frequency.

This method is particularly useful when direct pressure simulation is difficult, as it directly controls the physical deformation (strain) of the device.

Displacement-controlled; isolates radial fatigue effects.

Test Device and equipment required for ASTM F2477 vacular stent Pulsatile Durability Test

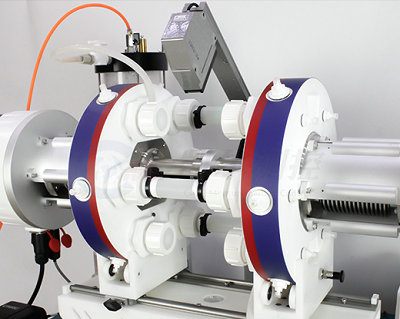

Recommend UnitedTest UTCA-VSRD6 Vascular Stent Radial Pulsatile Fatigue Testing System, conform with ASTM F2477, ISO 25539 stipulation:

Hydrodynamic Pulsatile Pump	A computer-controlled system capable of injecting precise volumes of fluid into the mock vessel at a controlled frequency to generate the rhythmic pulsing.
Mock Vessel	This is the artificial artery or vein. It is typically manufactured from elastomeric materials (like specialized silicones) designed to perfectly replicate the inner diameter (ID) and radial compliance (how much it stretches) of a real human blood vessel under pressure.
Pressure Measurement System	Monitors dynamic pressure during testing. High-frequency, calibrated sensors to monitor systolic and diastolic pressures in real-time.
Dimensional Measurement System	Verifies stent diameter changes. High-speed cameras or laser micrometers capable of measuring microscopic changes in the vessel and device diameter dynamically during pulsing.
Temperature Control System	A thermal bath or heating jacket to maintain the test environment at a steady 37 ± 2°C, simulating human body temperature.
Cycle Counting System	Tracks test progression; Precision of ±1 cycle; automatic shutdown at target cycles.
Test Chamber	Contains simulated body fluid (SBF); Biocompatible materials; maintains sterility

Test Specimen information:

Type: Balloon-expandable and self-expanding metallic/metal alloy vascular stents; endovascular prostheses (stent grafts, covered stents) with metal supports.

Sample condition: Fully processed, implant-quality product; sterilized (unless sterilization does not affect durability).

Size selection: Worst-case labeled diameter (supported by FEA or rationale per ASTM F2514).

Quantity: Justified by risk assessment (ASTM F3172, ISO 14971); one single device or one pair of overlapped devices = one sample. Recommend 3~6 sample each test.

Deployment: Deployed into mock vessels, avoiding end effects and cross-device interference.

Mock Vessel Specifications

Elastic modulus: 0.1–10 MPa (matching arterial/venous tissue);

Wall thickness: 0.5–2 mm;

Length: ≥ stent length + 20 mm (to avoid edge effects).

Key Test Parameters:

To ensure the in vitroresults translate accurately to in vivoperformance, the standard strictly defines the physiological parameters of the test environment :

Temperature	Strictly maintained at 37 ± 2°C to mirror human body temperature.
Test Fluid	Must be a physiologic pH buffered saline (like Phosphate Buffered Saline - PBS) to simulate blood chemistry. Alternative fluids require scientific justification.
Cardiac Cycle Rate	The testing apparatus must simulate a heart rate of 1.2 Hz (72 beats per minute) .
Blood Pressure	Systolic and diastolic pressures must be tailored to the target patient population. For example, testing for hypertensive patients might require simulating pressures of 160 mmHg (systolic) and 80 mmHg (diastolic).
Test Duration	The number of cycles must be scientifically justified to prove the device's reliability. Historically, 380 million cycles is the established benchmark for a 10-year implant lifespan
Diametric strain	Calculated as (D_max − D_min)/D_min; controlled within tolerance for diameter-control mode.
Mock vessel	Elastomeric, ID matched to worst-case device diameter; curved or aneurysm-simulated vessels allowed.

Test Requirements and Stipulations

Beyond the basic setup, ASTM F2477-24 enforces several rigorous stipulations to guarantee the integrity and clinical relevance of the test results :

Minimizing "End Effects": The device must be deployed with enough clearance at both ends of the mock vessel to ensure the pulsing action isn't artificially distorted by the clamps or connections of the test machine .

Device Tracking Simulation: To mimic real surgical insertion, the device should ideally be pre-conditioned by loading it into its delivery catheter and tracking it through a challenging simulated anatomical path before being deployed into the test mock vessel .

Deformation Verification: The researcher must prove that the device is actually experiencing the intended deformation. Because light refracts differently through air, silicone, and water, simply filming the device inside the mock vessel is problematic. The standard recommends using high-speed cameras, strobe lights, or empirical correlations between the mock vessel's outer diameter and the device's inner diameter to verify the strain .

Curved Vessel Conditions: The standard allows for testing in curved mock vessels to simulate the natural tortuosity of human anatomy, though it notes that this introduces complex variables that must be carefully managed .

Comprehensive Reporting: Any deviation from the standard must be heavily justified. The final test report must detail everything from the mock vessel's compliance and the fluid's chemical composition to the exact failure modes observed (e.g., strut fracture, graft material wear, or fretting between overlapping components).

ASTM F2477 Test Application (Industry Field)

Stent Manufacturers: Evaluate design and material performance for regulatory submissions (FDA, CE marking)

Biomedical Engineers: Optimize stent design (strut thickness, pattern, material selection)

Regulatory Bodies: Use as a recognized consensus standard for pre-market approval (PMA)

Quality Control: In-process testing for production consistency

Research Institutions: Compare new materials (e.g., biodegradable polymers) against traditional metals

The standard applies to:

Coronary stents; Peripheral stents (iliac, femoral, carotid); Biliary and urinary stents (modified protocols); Endovascular prostheses (stent grafts) .

Related Test Stadnard:

ISO 7198	Determination of Dynamic Radial Compliance for Tubular Vascular Grafts.
ISO 25539-1/-2	Cardiovascular Implants – Endovascular Devices. Equivalent covering similar durability requirements with ASTM F2477.
ASTM F2514	Guide for Finite Element Analysis (FEA) of Metallic Vascular Stents.
ASTM F3067	Guide for Radial Loading of Balloon-Expandable and Self-Expanding Vascular Stents.
ASTM F3211	Guide for Fatigue-to-Fracture (FtF) Methodology for Cardiovascular Devices

Test Procedures of ASTM F2477 Pulsatile Durability Testing of Vascular Stents

Sample Preparation: Select finished implant-grade samples, sterilize, and deploy into calibrated mock vessels (minimize end effects)

System Setup & Calibration: Calibrate pressure, diameter, temperature, and cycle-count systems; fill with test fluid and purge air

Parameter Setting: Stabilize temperature at 37 ± 2 °C; set target pressure/diametric strain, frequency, and cycle goal (≥380 million).

Deformation Validation: Use high-speed camera/strobe to confirm intended cyclic diametric deformation.

Cyclic Testing: Start the test, zero the counter; periodically monitor and adjust pressure/diameter to maintain tolerances.

Test Termination: Stop upon reaching the valid target cycle count or detecting device failure.

Post-Test Inspection: Examine samples for fractures, wear, detachment, or other durability failures.

Reporting: Compile all test data, observations, deviations, and conclusions into a formal test report.

Radial Pulsatile Accelerated Durability Tester is designed to perform accelerated pulsatile durability testing on vascular implants such as stents or valve frames, in accordance with relevant requirements of ISO 25539 and ASTM F2477.

Q1: What exactly is the ASTM F2477 test?

A: Think of it as a "final exam" for cardiovascular implants. Officially titled Standard Test Methods for in vitro Pulsatile Durability Testing of Vascular Stents and Endovascular Prostheses, it is a globally recognized scientific benchmark. It uses specialized machinery to simulate the rhythmic pulsing of the human heart, ensuring that a stent or vascular graft won't break down mechanically after being implanted in a patient's bloodstream.

Q2: Why is this test so critically important?

A: Simply put, it is a matter of life and death. When a stent is placed inside a human artery, it is subjected to roughly 100,000 beats per day. Over ten years, that’s nearly 400 million stress cycles. ASTM F2477 is crucial because it acts as a proactive safety net. By accelerating this aging process in a lab setting, manufacturers can catch potential structural flaws—like metal fatigue or fracture—before the device ever reaches a human body. It ensures the long-term reliability of the implant, protecting patients from catastrophic device failure.

Q3: How do you realistically simulate the inside of a human body in a lab?

A: It requires a highly controlled, artificial circulatory system. The test involves placing the stent inside a "mock vessel" (usually made of a special elastic polymer that mimics the stretchiness of a real human artery). The device is then submerged in a warm, saline fluid (kept at 37°C / 98.6°F to perfectly imitate human body temperature). A pulsatile pump then forces fluid through the system, rhythmically expanding and contracting the vessel and the stent inside it, just like a beating heart.

Q4: Is this test legally required to sell a stent or graft?

A: In the medical device world, "voluntary standards" are often anything but voluntary. While ASTM F2477 is technically a consensus standard, regulatory powerhouses like the U.S. FDA (Food and Drug Administration) and international bodies requiring CE marking explicitly demand this exact non-clinical durability data before they will approve a new cardiovascular device for the market. Skipping or failing this test means your device won't see the light of day.

Q5: What happens if a device fails the ASTM F2477 test?

A: Failure is actually a massive success for the testing process. If a stent strut cracks or a graft wears out prematurely in the lab, it gives the engineering team invaluable data. They can go back to the drawing board to tweak the design, adjust the manufacturing process, or change the material. It is infinitely better for a stent to fail at 200 million cycles in a controlled lab than at 5 years inside a patient's femoral artery.

Q6: What is "mock vessel compliance" and why does it matter?

A: In simple terms, compliance is how much a blood vessel stretches when pressure is applied. A young, healthy artery is very compliant (stretchy), while an older, diseased artery is stiff. If you test a rigid stent in a perfectly stiff plastic tube, you aren't learning anything useful. ASTM F2477 mandates the use of mock vessels that accurately replicate the specific "give" or compliance of the target human vessel, ensuring the stent is stressed exactly as it would be in its intended environment.

Q7: What kind of damage are you actually looking for during the inspection?

A: After the grueling millions of cycles, the devices undergo a meticulous forensic-style inspection. Testers are looking for specific failure modes, including:

Strut Fracture: Tiny cracks or complete breaks in the metal scaffolding of the stent.

Graft Wear: For stent-grafts, checking if the fabric covering has thinned, torn, or detached from the metal struts.

Fretting Wear: Damage caused by two overlapping components rubbing against each other repeatedly.

Q8: What is the key difference between the two test methods?

A: The Pressure Method relies on physiological pressure control and compliant mock vessels; the Diameter Control Method directly controls device diameter/strain and can use non-physiologic mock vessels for accelerated testing.

Q9: What physiological pulse rate is used in the test?

A: 1.2 Hz (72 beats per minute), the standard physiological pulse rate for vascular simulation.

Q10: Can this test evaluate bending/torsion/axial loading of stents?

A: No; it only assesses radial diametric deformation from pulsatile hydrodynamic loading, not bending, torsion, extension, or compression.

Q11: Is sterilization required for test samples?

A: Yes; samples should be fully processed, implant-grade, and sterilized unless it can be proven sterilization does not affect durability results.
