ASTM D882 Standard | Tensile Property Test Machine for Thin Plastic Film & Sheeting | UnitedTest

As a professional tensile testing machine manufacturer, UnitedTest develops fully ASTM D882-compliant universal tensile testers engineered exclusively for thin flexible plastic film and sheeting quality testing across packaging, polymer and flexible material labs worldwide.

ASTM D882 Standard Test Method for Tensile Properties of Thin Plastic Sheeting is the leading American industrial standard dedicated to measuring core tensile mechanical performance of thin plastic substrates with thickness less than 1.0 mm (0.04 in.). This complete standard covers the full end-to-end testing workflow, including specimen cutting, environmental conditioning, equipment calibration, tension loading control, real-time data acquisition, mathematical computation and standardized test result reporting for all flexible thin plastic materials.

This test protocol quantifies five critical tensile performance metrics for plastic film samples: ultimate tensile strength, yield strength, elongation at break, tensile energy to break, and tensile modulus of elasticity. Distinct from general plastic tensile standards that use dumbbell-shaped specimens, ASTM D882 requires only rectangular strip samples with a minimum length-to-width ratio of 8:1; no dumbbell cutting is necessary for sub-1mm thin sheeting.

To eliminate inconsistent test deviation, all rectangular strip specimens must be completely free of surface nicks, slitting scratches or cutting imperfections, as minor edge defects will drastically skew tensile strength, elongation and modulus measurement results. Our UnitedTest single-column tensile testing machine supports customized soft film grips, precise speed regulation and built-in ASTM D882 test software templates, fully complying with all specimen dimension, clamping and calculation rules defined in the standard to deliver repeatable, reliable tensile test data for factory QC, new polymer formulation R&D and third-party compliance certification.

Core Test Principle

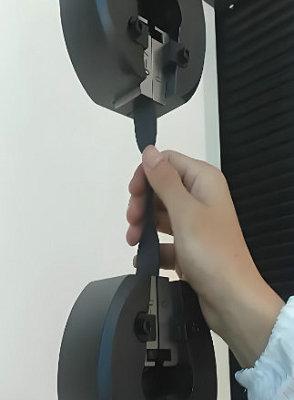

A uniform rectangular plastic strip specimen is clamped between two grips of a constant-speed universal tensile testing machine. The movable crosshead pulls the specimen at a controlled constant strain rate until fracture. The system continuously records real-time tensile force and specimen extension to generate force-extension curves. From these curves, critical tensile metrics (strength, elongation, modulus, toughness) are calculated to quantify the film’s stretch resistance, stiffness, ductility, and energy absorption capacity under uniaxial tension. Three extension measurement approaches are allowed: grip separation displacement, manual gage mark tracking, or high-precision extensometer attachment.

ASTM D882 Tensile test of Thin Plastic Sheeting

Test equipment required for ASTM D882 Tensile test of Thin Plastic Sheeting:

Equipment Item	Key Specifications
Universal Testing Machine	Constant-Rate Tensile Testing Machine Fixed stationary member with one grip and movable crosshead carrying the second grip; uniform crosshead speed deviation ≤5% under full load capacity. Force indicator: Accuracy ±1% of measured force value, low inertial lag for fast strain rates. Crosshead extension indicator: Accuracy ±1% of displacement reading.
Extensometer	Low-extension (<20% elongation) extensometer: Class C instrument per ASTM E83, accuracy ±1%. High-extension (≥20% elongation) extensometer: Accuracy ±10% of measured strain. Minimize contact stress on thin film surfaces.
Test Grips	Flat grips: Flat contact surfaces lined with thin rubber, emery cloth (minimum 800 grit), crocus cloth, or pressure-sensitive tape to prevent slipping. Line grips: Half-round convex jaw padded with 0.75–1.00 mm blotting paper, superior for ultra-thin films to avoid edge fracture. Optional pneumatic grips: Preferred for necking-prone films to maintain consistent clamping force during stretching. Self-aligning grips are recommended to avoid uneven stress distribution.
Dimensional Measuring Tools	Thickness micrometer: For films ≤0.25 mm thick, precision ±0.0025 mm; for 0.25–1.0 mm films, precision ±1% thickness value.
Specimen Cutting Tools	Single razor blade cutting template (punch presses and striking dies are prohibited, as they create jagged edge flaws triggering premature breakage).
Auxiliary Devices	Environmental conditioning chamber for temperature/humidity pre-treatment; polarizing optical microscope to inspect micro-flaws on specimen edges; curve integrator or planimeter to calculate tensile energy to break (TEB).

Test Specimen Specifications

Shape & Dimensions

Uniform rectangular strips (no dumbbell geometry unlike ASTM D638).

Nominal width: 5.0 mm to 25.4 mm; width-thickness ratio ≥8 to eliminate edge strain interference.

Total length: Minimum 50 mm longer than the set initial grip separation distance.

Standard gage length for modulus referee testing: 250 mm (10 in.); 100 mm (4 in.) is acceptable only if validated not to skew test results.

Thickness Uniformity Requirement

Films ≤0.25 mm thick: Thickness variation within 10% of average thickness across the gage length.

Films 0.25–1.0 mm thick: Thickness variation controlled within 5% of average thickness.

Specimen Quantity

Isotropic materials: Minimum 5 replicates per batch.

Anisotropic materials: Minimum 10 replicates (5 MD + 5 TD).

Reduced sampling (3/6 specimens) permitted only for in-line QC or insufficient raw material; standard deviation cannot be reported for reduced sample counts.

Key Test Parameters & Mandatory Stipulations

1, Dimensional Measurement Rules

Measure specimen width and thickness at three evenly spaced positions (gage center and 13 mm from each gage end), use average cross-sectional area for all stress calculations.

2, Calculation Stipulations for Core Tensile Metrics

Breaking Factor: Max force ÷ average specimen width, unit kN/m, always report film thickness to 0.0025 mm precision.

Nominal Tensile Strength / Tensile Strength at Break: Max force / break force divided by average original cross-sectional area, unit MPa. For tear-type failure, record stress-strain data at tear initiation point.

Elongation at Break / Yield Elongation: (rupture/yield extension ÷ initial gage length) ×100, reported to 2 significant figures.

Elastic (Tangent) Modulus: Stress divided by corresponding strain on the initial linear curve segment after toe compensation, MPa. Secant modulus is used only if no linear elastic region exists.

Tensile Energy to Break (TEB): Integral area under stress-strain curve (energy per unit volume, MJ/m³, 2 significant figures), also defined as material toughness.

3, Crosshead Speed & Strain Rate

Elongation at Break	Initial Strain Rate (mm/mm·min)	Initial Grip Separation	Crosshead Speed
Modulus of Elasticity Determination
	0.1	250 mm (10 in)	25 mm/min
Determinations other than Elastic Modulus
< 20%	0.1	125 mm (5 in)	12.5 mm/min
20–100%	0.5	100 mm (4 in)	50 mm/min
> 100%	10.0	50 mm (2 in)	500 mm/min

Step-by-Step Standard Test Procedures of ASTM D882 Tensile test for Thin Plastic Sheeting

1	Specimen Preparation	Cut rectangular strips with razor blade cutter, inspect edges under microscope for defects, measure width/thickness at three points; then place specimens in standard temperature/humidity chamber for ≥40 h conditioning.
2	Machine Setup & Calibration	Select appropriate force range so specimen rupture falls within the upper two-thirds of the load scale; Set initial grip separation to standard 250 mm gage length (or validated shorter length); Set crosshead speed to match required strain rate; zero force, extension, and recording systems. Install extensometer if modulus or low-strain precision is required.
3	Specimen Mounting	Align the specimen’s central long axis perfectly with the grip pull centerline; evenly fasten flat/line grips to eliminate slippage without crushing thin film edges. Mark gage length reference lines with crayon if no extensometer is used.
4	Tensile Loading & Data Recording	Start crosshead movement at constant speed; continuously record force vs. grip separation (or extensometer displacement). For modulus testing: Stop test once the force curve deviates from linearity to avoid plastic deformation interference. For TEB/toughness testing: Run until full specimen rupture and capture complete stress-strain curve for integration.
5	Post-Test Specimen Inspection	Record failure mode: normal gage fracture, edge tear failure, jaw breakage, or flaw-induced premature breakage. Discard invalid specimens and repeat tests.
6	Data Calculation & Report Compilation	Apply toe compensation to raw extension data; compute all tensile properties, average values, and standard deviation; compile full test report.

Related Standards:

ISO 527-1	General principles for plastic tensile testing (conditioning, equipment, results)
ISO 527-3	Plastics — Determination of tensile properties — Part 3: Test conditions for films and sheets ISO 527-3 permits extra specimen geometries, specifies different crosshead speeds, mandates extensometer/gage mark strain measurement, ASTM D882 allows grip separation as a low-cost extension measurement method without mandatory extensometer
ISO 18872	Plastics - Determination of tensile properties at high strain rates
ASTM D638	ASTM D638 applies to plastics ≥1.0 mm thick, uses dumbbell-shaped specimens; ASTM D882 is exclusively for thin film <1.0 mm with rectangular strips.
ASTM D882	Standard Test Method for Tensile Properties of Thin Plastic Sheeting
JIS K7127	Japanese Industrial Standard for plastic tensile testing
GBT 1040.3	Plastics - Determination of tensile properties - Part 3: Test conditions for films and sheets

Key words: UnitedTest ASTM D882 tensile testing machine, ASTM D882 thin plastic film tensile strength tester, under 1mm plastic sheeting tensile property test equipment, rectangular strip film tensile universal tester, ultimate tensile strength elongation modulus measurement for packaging film, nick-free plastic strip tensile sample preparation, flexible thin plastic sheet tension loading inspection machine

Thin Plastic Film Tensile Testing Fixture is specially designed for tensile strength testing of flexible and soft plastic film specimens. Fully compliant with the ASTM D882 standard for thin film tensile testing, the fixture features premium rubber-coated jaws.

Q1: What is the core difference between ASTM D882 and ASTM D638?

A1: ASTM D882 applies only to thin plastic films/sheeting with thickness less than 1.0 mm (0.04 in.), uses simple rectangular strip specimens, and allows grip separation for strain measurement. ASTM D638 is for rigid/thick plastics ≥1.0 mm, adopts dumbbell specimens, and is unsuitable for ultra-thin films prone to slipping or edge tearing. They cannot be used interchangeably for material comparison.

Q2: Is ASTM D882 technically equivalent to ISO 527-3?

A2: No. Though both test plastic film tensile properties, they are not technically equivalent. ISO 527-3 requires extensometers or gage marks for strain reading, has different standard test speeds and extra specimen shapes. ASTM D882 permits crosshead grip separation as a low-cost strain measurement method, so test results from the two standards cannot be directly compared.

Q3: What thickness counts as a “film” under ASTM D882?

A3: Per ASTM D883 referenced in D882, a film is sheeting with nominal thickness ≤0.25 mm (0.010 in.). Materials 0.25–1.0 mm thick are classified as thin sheeting, still covered by D882; anything ≥1.0 mm must use D638.

Q4: Why can’t we use punch presses or stamping dies to cut D882 specimens?

A4: Punch tools create jagged, micro-cracked edges on thin plastic. These edge flaws act as stress raisers and trigger premature, inconsistent fracture, leading to unreliable tensile data. The standard only recommends razor-blade cutting methods for film specimens.

Q5: What is the minimum width-thickness ratio for specimens, and why?

A5: The ratio must be at least 8:1. Narrow specimens amplify edge strain and minor surface defects, causing large deviation in tensile strength and elongation results. A sufficient width-thickness ratio minimizes edge effect interference for repeatable data.

Q6: Do I need to test specimens in two directions for all films?

A6: Only if the material is anisotropic (e.g., blown PE, oriented PET/BOPP, extruded cast films with machine direction / transverse direction differences). Test 5 parallel and 5 transverse specimens for anisotropic materials; isotropic films only need 5 replicates total.

Q7: When can I use a reduced number of specimens (3 instead of 5)?

A7: Three specimens are allowed only for in-line factory quality control, or when raw material size is insufficient to cut 5 full samples. Critical note: Standard deviation cannot be calculated or reported for reduced sample sizes, and these results are not acceptable for referee testing or official material certification.

Q8: What are line grips, and when are they better than flat grips?

A8: Line grips have one flat jaw and one half-round padded jaw (with 0.75–1.0 mm blotting paper on the round side), concentrating clamping force along a single line. They perform better for ultra-thin films (<0.25 mm) to avoid jaw-edge premature breakage, and deliver consistent modulus results with shorter 100 mm gage lengths. Flat grips are more common for medium-thickness thin sheeting.

Q9: Why do grip surfaces use 800+ grit emery cloth or rubber lining?

A9: Thin films easily slip under tension during pulling, which falsely inflates measured elongation and reduces modulus accuracy. Coarse lining materials increase friction to eliminate slippage. Operators must balance friction force—too abrasive surfaces will cut thin film edges and cause early failure.

Q10: Is an extensometer mandatory for ASTM D882 testing?

A10: No, it is optional. Basic tensile strength and break elongation can be measured via crosshead grip separation. However, extensometers are strongly recommended for tensile modulus and low-strain measurements (<20% elongation) to avoid errors from grip slippage; extensometers must meet Class C accuracy per ASTM E83 for modulus testing.

Q11: What is toe compensation, and why is it required?

A11: The “toe region” at the start of force-extension curves comes from slack take-up, specimen misalignment, or jaw seating—not real material elastic behavior. Toe compensation (Annex A1) shifts the zero-strain origin by extending the linear elastic tangent to the strain axis. Without correction, modulus, yield strength and strain values will be significantly inaccurate.

Q12: What should I do if most specimens break right at the grip jaws?

A12: Solutions:

Switch to line grips with blotting paper padding;

Increase the edge radius of grip contact surfaces;

Change grip lining to softer thin rubber instead of rough emery cloth;

Reduce clamping pressure slightly while monitoring for slippage.

If jaw break results match gage-section fracture data after verification, jaw failures can be accepted for reporting.

Q13: Which failure mode data must be discarded?

A13: Discard specimens that fail at obvious surface nicks, scratches, or outside the marked gage length, unless the test’s research goal is to study flaw-induced failure. Record “tear failure” separately—tear fracture generates abnormal force-deformation curves and cannot be compared with normal central break data.

Q14: Why is ASTM D882 importance of ASTM D882 Testing for Thin Plastic Materials?

A14: Material Identification & Specification Compliance

It acts as the official referee test to verify if plastic film meets industry or customer mechanical specifications; tensile data differentiates polymer grades (e.g., LDPE vs HDPE stretch behavior).

Engineering Design Data Support

Tensile modulus quantifies film stiffness for converting machine roll design; elongation at break predicts stretch limits for forming, printing, and lamination processes; tensile strength defines maximum load the film can withstand during transport and end-use.

Quality Control & Batch Consistency Monitoring

Small fluctuations in tensile metrics signal inconsistent raw material, film orientation, extrusion thickness variation, or surface micro-flaws, enabling real-time production adjustment.

Failure Mode Risk Assessment

Tear failure data identifies brittle film batches prone to machine breakdown during high-speed web processing; TEB (toughness) evaluates resistance to repeated mechanical abuse in packaging and separator applications.

Anisotropy Performance Evaluation

Oriented films show large MD/TD tensile gaps; D882 mandatory dual-direction testing prevents product failure caused by unbalanced directional stretch resistance.

R&D & New Material Development Benchmarking

Standardized, repeatable test conditions allow side-by-side comparison of modified polymer formulations, coating layers, and composite film structures to optimize mechanical performance.

Regulatory & Supply Chain Documentation

Test reports following ASTM D882 are widely accepted by manufacturers, buyers, and third-party certification bodies for North American market access and military material qualification.

Q15: Which industries rely heavily on ASTM D882 testing?

A15: ASTM D882 is the universal tensile test standard for all thin plastic film and sheeting industries:

Flexible Packaging Industry

Food packaging films (LDPE, HDPE, PP), shrink wrap, stretch film, BOPET, BOPP, laminated composite films. Tests evaluate puncture resistance, stretchability during printing/converting, and shelf-life mechanical stability.

Lithium Battery Separator Film Manufacturing

ASTM D882 Tensile test of Thin Plastic Sheeting

Polyolefin microporous separator films; tensile strength and elongation data assess winding process durability and short-circuit prevention safety during battery operation.

Coating & Functional Film Sector

Optical PET film, release liner, adhesive carrier film, agricultural mulch film, construction vapor barrier sheeting. Modulus data controls stiffness and roll flatness.

Medical Plastic Films

Sterile packaging film, disposable medical bag thin sheets; verify compliance with medical material tensile specifications.

Printing & Label Substrates

Thin plastic label stock, thermal transfer film; TEB toughness metrics predict resistance to web transport tearing during high-speed printing.

Quality Control & R&D

Raw material incoming inspection, new polymer formulation development, material batch comparison, third-party referee testing for material specification disputes.
