ASTM D6077 Leather Trapezoid Tear Tester | Leather Tearing Strength | UnitedTest

ASTM D6077 specifies the trapezoid test method to measure tearing load of leather materials, excluding wet-blue leather. UnitedTest manufactures ASTM D6077 compliant trapezoid tearing strength test machines for leather lab quality testing.

ASTM D6077 is the standard test method for evaluating the trapezoid tearing strength of leather materials. It adopts the trapezoid test principle to measure the tearing load required to extend and propagate a tear through a trapezoid-shaped leather specimen. This standard clearly states that wet-blue leather is outside the scope of this test method and cannot be tested under this specification.

The trapezoid tear test measures the force needed to keep an existing crack growing across the leather sample, reflecting the material’s resistance to tear propagation. It is widely used for quality control, raw material incoming inspection, new leather formulation development and product performance verification for footwear, bags, upholstery and leather goods. The test delivers repeatable tear load data to assess leather durability and mechanical integrity under tensile stress.

UnitedTest designs and manufactures high-precision ASTM D6077 trapezoid tearing strength testing machines. Our equipment provides stable tensile force control and accurate tear load recording, fully meeting the standard requirements for leather specimen testing, ideal for leather factories, third-party testing laboratories and leather product certification institutions.

Test principle

This is a tension‑type tearing test. A pre‑cut trapezoid‑shaped leather specimen is clamped on its two non‑parallel edges. Constant tensile displacement drives tear propagation across the specimen width. The tearing load is recorded via load‑elongation curve. The tearing performance depends mainly on the interlocking fibre structure of leather. It evaluates how easily leather may tear and detects strength anisotropy (strength difference parallel / perpendicular to the hide backbone).

Test Sample specifications

1. Specimen quantity: Ten specimens total: five parallel‑direction pieces and five perpendicular‑direction pieces unless other agreement exists.

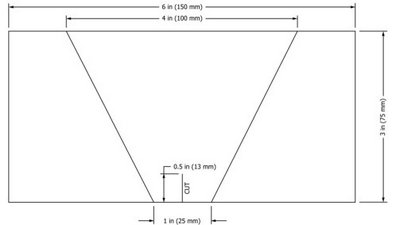

2. Specimen geometry: Overall size 150 mm × 75 mm (6 in × 3 in). Internal trapezoid upper opening 100 mm (4 in). A 13 mm (0.5 in) pre‑cut notch is made at the bottom mid‑point of trapezoid, with notch base width of 25 mm (1 in)

Test Equipment required for ASTM D6077 Leather Trapezoid Tear Strength Test

Component	Specification
Universal Testing Machine	Constant‑rate‑of‑traverse tensile testing machine: equipped with autographic recorder for load‑elongation recording
Clamps fixture	jaw face dimension 25 mm × 75 mm (1 in × 3 in); longer jaw dimension perpendicular to load direction.
Cutting die / marking template	marking trapezoid contour on specimens

Component

Specification

Universal Testing Machine

Constant‑rate‑of‑traverse tensile testing machine: equipped with autographic recorder for load‑elongation recording

Clamps fixture

jaw face dimension 25 mm × 75 mm (1 in × 3 in); longer jaw dimension perpendicular to load direction.

Cutting die / marking template

marking trapezoid contour on specimens

ASTM D6077 Leather Trapezoid Tear Strength Test

Test Parameters

Initial clamp separation	25 ± 1 mm (1 ± 0.05 in.)
Crosshead / traverse speed	300 ± 10 mm/min (12 ± 0.40 in./min)
Load range selection	Chosen so that rupture falls between 10 % and 90 % of full‑scale load
Reporting unit	Force (tearing load); SI values are the standard, inch‑pound in parentheses is informational
Specimen count per direction	5 + 5
Expected scatter	Coefficient of variation ≈ 5 %

Step-by-Step Test Procedures of ASTM D6077 Leather Trapezoid Tear Strength Test

Condition the specimens per D1610 and test in the standard atmosphere.
Set up the machine: jaws 25 ± 1 mm apart, speed 300 ± 10 mm/min, load range selected for 10–90 % full‑scale break.
Mark the trapezoid on each specimen with the Fig. 1 template and make the starter cut at mid‑width.
Mount the specimen: grip along the two non‑parallel edges, position the cut halfway between the clamps, pull the short edge taut and allow the long edge to lie in folds.
Start the machine with the pawls disengaged; record the tearing load continuously. Expect a series of maxima and minima, not a single peak.
Evaluate (Clause 10): visually fit a straight line parallel to the elongation axis through the maxima → "maximum load"; fit a second line through the minima → "minimum load"; the average of the two is the tearing load for that specimen.
Average the five parallel results and the five perpendicular results separately.

Industry Applications

D6077 is a quality‑control, specification and R&D test for finished leather, used wherever a component must resist a nick or cut turning into a runaway tear:

Footwear — uppers, linings, soles‑adjacent components (stitch holes and lasting stresses are classic tear initiators)
Automotive interiors — seat covers, steering‑wheel wraps, door‑trim leather (also driven by OEM material specs and seam‑strength requirements)
Furniture and contract upholstery — seating leather, abrasion/tear durability clauses
Leather goods — bags, belts, straps, wallets, watch straps, luggage
Apparel and gloves — garment leather, protective and work gloves (where tear resistance is a performance criterion)
Tannery process control — comparing tanning, retanning, fatliquoring, shaving and finishing routes and detecting weak/loose‑grain leather
Specification / acceptance testing and sourcing disputes between tanner, brand and laboratory

Related Standard:

ASTM D4533	Standard Test Method for Trapezoid Tearing Strength of Geotextiles
ASTM D2261	Standard Test Method for Tearing Strength of Fabrics by the Tongue (Single Rip) Procedure (Constant-Rate-of-Extension Tensile Testing Machine)
ASTM D5733	Standard Test Method for Tearing Strength of Nonwoven Fabrics by the Trapezoid Procedure
CNS 13299	Method of Test for Trapezoid Tearing Strength of Geotextiles
AS 3706.3	Test methods for geotextiles Determination of tear strength Trapezoidal method
DIN 53859-5	Textiles — tear growth test — trapezoid test
ASTM D5587	Standard Test Method for Tearing Strength of Fabrics by Trapezoid Procedure
ASTM D751	Trapezoid tear test for coated industrial textiles, used for comparative testing of coated geotextile variants.
ASTM D6077	Standard Test Method for Trapezoid Tearing Strength of Leather
ASTM D4704	Tongue‑tear strength of leather (tongue tear geometry instead of trapezoid tear)
ASTM D1117	Test Methods for Nonwoven Fabrics (referenced in older D6077 editions as the source method).
ASTM D4705	Double‑hole stitch‑tear strength of leather (evaluates tear resistance around stitching holes)
ISO 3377-1	Leather, determination of tear load, Part 1: single‑edge ("trouser") tear; 6 specimens (3+3), 100 ± 20 mm/min, jaw width ≥ 50 mm.
ISO 9073-4	Nonwovens — Test methods Part 4: Determination of tear resistance by the trapezoid procedure

Why ASTM D6077 test matters for the leather material

Leather is natural fibrous material. Trapezoid tearing load reflects the real‑world tearing resistance governed by fibre interlocking status, simulating progressive‑tear service failure mode (not only one‑shot complete rupture).
Reveals anisotropy: leather shows different tear resistance along and across the backbone grain direction, critical for upholstery cutting‑pattern design.
Provides quantitative performance index for quality control, incoming‑material inspection, and product specification validation for furniture, apparel and accessory leather.
Test bias is negligible by standard definition; ~5 % coefficient‑of‑variation precision enables reliable batch‑comparison of finished‑leather tear‑resistant performance.
