ASTM D3654 Standard | Shear Adhesion Holding Power Test Machine for PSA Tapes & Labels | UnitedTest

UnitedTest is a professional manufacturer of adhesive performance testing instruments, supplying fully ASTM D3654-compliant static Shear Adhesion Tester tailored for pressure-sensitive adhesive tape factories, packaging labs, and third-party material compliance inspection centers worldwide.

ASTM D3654 Standard Test Methods for Shear Adhesion of Pressure‑Sensitive Tapes is the primary American industrial specification dedicated to measuring shear adhesion, also widely referred to as holding power, of PSA tapes and self-adhesive labels. This standard quantifies a tape’s sustained bonding capability when a constant parallel load acts along the interface between the adhesive tape and its substrate surface.

The static shear test workflow replicates long-term sliding frictional stress that tape joints encounter in real industrial service environments, generating objective time-to-failure data to evaluate how securely PSA tapes maintain adhesion under persistent parallel shear force.

Unified under one complete standard, ASTM D3654 acts as a globally recognized benchmark for adhesive formulation R&D, in-factory production quality control, and formal buyer-seller product acceptance inspections for all types of packaging PSA tapes.

Our UnitedTest shear adhesion tester supports all eight ASTM D3654 test protocols, with interchangeable vertical/horizontal test panels, temperature-controlled chamber options for high-temperature aging tests, multi-station simultaneous testing and built-in automatic timing recording software pre-programmed for ASTM D3654 calculations. The equipment fully meets all specimen preparation, roller lamination pressure, load weight configuration and data reporting rules defined in the standard, delivering repeatable holding power results for packaging, logistics labeling, industrial filament tape and general PSA adhesive product validation.

Core Test Principle

Static shear adhesion follows a simple standardized mechanical principle:

A precisely sized tape specimen is uniformly laminated onto a defined substrate (stainless steel or fiberboard) with controlled rolling pressure to eliminate bubbles and ensure consistent contact area.

The substrate panel is mounted vertically or horizontally per procedure rules, with a free tape tail hanging unobstructed.

A fixed calibrated mass is gently suspended from the tape’s free end to apply a constant shear force parallel to the bonding interface (no peel stress allowed).

Two types of test outputs are recorded as performance metrics:

For vertical panel tests (A/B/C/D/H): Total elapsed time until the tape fully detaches from the substrate (time-to-failure, longer = better shear resistance).

For horizontal filament tape tests (E/F/G): Tape slippage distance measured after a fixed 48-hour sustained load (smaller slippage = superior holding performance).

The test evaluates two failure modes: cohesive failure (adhesive splits internally) and adhesive failure (adhesive cleanly separates from the substrate).

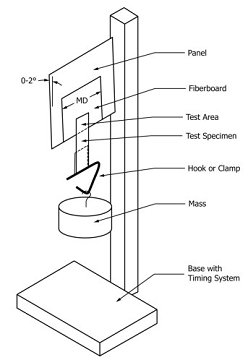

ASTM D3654 Shear Adhesion Test of Pressure-Sensitive Tapes

Eight Specific Test Methods (A–H)

Procedure	Panel / Substrate	Orientation	Tape Type	Key Feature
A	Standard steel (302/304 SS)	Vertical	General PSA	Baseline method
B	Steel + NIST SRM 1810A fiberboard	Vertical	General PSA	Packaging carton‑style
C	Steel + CEN standard fiberboard	Vertical	General PSA	European carton
D	Steel + buyer/seller‑agreed fiberboard (or other)	Vertical	General PSA	Custom substrate
E	Standard steel, 120° bend at end	Horizontal, tape‑side up	Filament‑reinforced	Free end hangs over bend
F	NIST fiberboard on bent panel	Horizontal	Filament‑reinforced	Packaging filament
G	CEN fiberboard on bent panel	Horizontal	Filament‑reinforced	European filament
H	Same as A, but at elevated temperature (50 °C, 10‑min dwell)	Vertical	General PSA	Accelerated / high‑temp

Test Specimen Specifications

1, Specimen Dimensions

A/B/C/D/H: Standard bonding contact area = 12 × 12 mm (0.5 × 0.5 in); optional 24 × 24 mm. Total tape strip length ≈150 mm, width 12 mm ±0.05 mm.

E/F/G (filament tape): Specimen fixed width 12 mm ±0.05 mm, total strip length ≈300 mm; bonded length 75 mm on horizontal panel surface.

2, Sampling & Replication Requirements

Pre-sample preparation: Unwind and discard 3–6 outer tape wraps from each roll before cutting specimens to avoid surface contamination.

Unwinding speed: 500–750 mm/s when pulling tape from rolls.

Replicate quantity for statistical averaging:

A/E/H: Minimum 3 replicate specimens per roll.

B/C/D/F/G: Minimum 5 replicate specimens per roll.

Single specimen results are not acceptable as representative data.

Test Equipment required for ASTM D3654 Shear Adhesion Test of Pressure-Sensitive Tapes:

Recommend UnitedTest Shear Adhesion Tester:

Item	Specification
Specimen cutter	Two parallel single‑edge razor blades, spaced 12 mm ±0.10 mm (0.5 in) or 24 mm (1 in). Must not damage edges.
Test panel	Vertical test panels (A/B/C/D/H): 50 × 125 mm, ≥1.1 mm thick 302/304 annealed stainless steel per ASTM A666; surface roughness Ra = 50 nm ±25 nm, scratch/stain-free. Horizontal filament tape panels (E/F/G): Same steel sheet with a 12 mm long 120° curved bend at one end, bend radius 1.5–3 mm.
Roller	Steel, Ø 85 ± 2.5 mm, width 45 ± 1.5 mm, rubber‑covered (~6 mm), Shore A 80 ± 5, mass 2040 ± 45 g, rolling speed 10 ± 0.4 mm/s.
Test stand	Holds panel vertical (0–2° from vertical, A–D/H) or horizontal (~300 mm above work surface, E–G).
Clamp / Hook	Distributes load equally across specimen width.
Test masses	1000 g ± 5 g (A–D, H); 4.5 kg ± 0.2 kg (E–G). Clamp/hook mass counts toward total.
Timing	Minutes resolution (A–D/H); slippage gauge to 1 mm (E–G).
Solvents / cleaning	MEK, acetone, methanol, n‑heptane, diacetone alcohol. Referee testing: final clean with MEK or acetone. Lint‑free gauze/cotton.

Mandatory Test Parameters & Stipulations

Lamination Standardization

Roller weight, speed, and double bi-directional rolling are mandatory to eliminate inconsistent bonding pressure.

Steel panels must be cleaned 3 times with solvent (MEK/acetone for referee testing) before use; no finger contact with cleaned test surfaces.

Fiberboard grain direction must run perpendicular to the panel’s long axis for B/C/D/F/G tests.

Load Application Rules

Suspended mass must be attached gently without impact shear shock on the tape bond.

Panel tilt strictly limited to 0–2° vertical offset to prevent peel force interference with pure shear measurement.

Step-by-Step General Test Procedures (Taking Procedure A as Representative)

1, Panel Cleaning: Wash stainless steel panel 3 times with approved solvent, wipe dry with lint-free gauze; avoid touching test surface.

2, Specimen Mounting: Center 12×12 mm tape contact area on panel end, mask excess adhesive on free tape tail.

3, Auxiliary Support: Place backing panel under free tape tail to avoid cutting during rolling.

4, Controlled Rolling: Pass standard rubber roller twice forward and twice backward over bonded area.

5, Fixture Assembly: Mount clamp fully across tape width to evenly distribute load.

6, Stand Installation: Fix panel on vertical stand at 0–2° vertical tilt, ensure tape tail hangs purely vertical with no peel force.

7, Load Application: Suspend calibrated 1000 g mass gently to avoid impact shock.

8, Timing Recording: Start timer immediately after mass hangs; record total minutes until tape fully separates from steel panel.

9, Replicate Testing: Repeat full process for 3 independent specimens per tape roll.

For Procedure H: After step 5, place entire test assembly inside 50°C oven, hold 10 minutes dwell time, then apply mass and record failure time at high temperature.

For E/F/G filament tape procedures: Use horizontal bent steel panel, bond 75 mm tape length flat on horizontal surface, hang 4.5 kg mass vertically over curved bend, hold continuous load for exactly 48 hours, then measure tape sliding distance to nearest 1 mm.

Industry & Practical Application Fields

ASTM D3654 is the core shear adhesion test for PSA tape manufacturing and downstream packaging industries:

Packaging Industry (Primary Application)

Carton sealing acrylic/bopp packaging tapes (Procedures B/C/D simulate fiberboard box closure shear stress during storage, transit stacking).

Filament strapping tapes (E/F/G) for heavy pallet bundling, load securement, shipping container reinforcement.

Label & Adhesive Product Manufacturing

Permanent removable self-adhesive labels, foam double-sided tapes used for assembly mounting.

Industrial Manufacturing & Automotive

Masking tapes, fixing tapes, foam bonding tapes for component assembly; Procedure H evaluates high-temperature storage resistance for automotive interior tapes.

Quality Control & Raw Material Inspection

Batch uniformity testing within one tape roll, cross-roll production consistency, lot-to-lot adhesive performance comparison.

Commercial Procurement & Buyer-Seller Compliance

Standardized acceptance testing to resolve disputes between tape suppliers and packaging end-users via Procedure D’s custom substrate testing.

Related Standards

ASTM D3654	Standard Test Methods for Shear Adhesion of Pressure-Sensitive Tapes
JIS Z 0237	Testing methods of pressure-sensitive adhesive tapes and sheets
ISO 29863	Self adhesive tapes — Measurement of static shear adhesion
GB/T 4851	Measurement of static shear adhesion for adhesive types
ISO 29862	Self adhesive tapes — Determination of peel adhesion properties
ASTM D3330	Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape

Keywords: UnitedTest ASTM D3654 shear adhesion tester, ASTM D3654 PSA tape holding power test machine, static shear resistance test equipment for pressure sensitive labels, eight-procedure packaging tape shear test bench, parallel constant load shear adhesion measurement for PSA tape, filament reinforced strapping tape high temperature aging shear test, real-world long-term sliding stress adhesive shear testing instrument.

Evaluate the full duration a sample stays adhered before slipping or complete detachment, delivering quantitative holding power data to predict long-term peeling failure risks in actual industrial applications. Standard ISO 29863, GB/T 4851-2014, ASTM D3654, JIS Z0237

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Q1: What is ASTM D3654 testing for?

A1: It is the global standard static shear adhesion (holding power) test for pressure-sensitive adhesive (PSA) tapes and labels. It evaluates how well tapes stay bonded under constant parallel shear load, simulating long-term sliding stress during storage, stacking, and shipping. It covers 8 distinct procedures for normal ambient, fiberboard substrates, filament strapping tapes, and high-temperature aging testing.

Q2: Why is ASTM D3654 shear adhesion test critical for PSA tape materials?

A2: It replicates real-world failure modes: Most packaging tape failures happen under sustained shear creep (stacked cartons, pallet tension), not instant peel force measured by peel tests.

It distinguishes two key failure modes: cohesive failure (weak adhesive internal strength) and adhesive failure (poor bonding to substrates), guiding adhesive formulation optimization.

It enables standardized cross-supplier batch comparison with unified substrates, rolling weight, load mass, and conditioning rules to eliminate lab-to-lab variability.

It supports quality control: Detects uneven adhesive coating within a roll, between rolls, and production lots.

Procedure H predicts high-temperature performance for warm climate logistics and automotive applications.

It serves as objective technical evidence for buyer-seller quality disputes and military procurement compliance.

Q3: What’s the difference between “shear” and “peel” tests for tapes?

A3:Shear (D3654) → load is parallelto the surface; tape is being slid off. Dominant mode for carton-sealing.

Peel → load is at an angle(usually 90° or 180°) pulling the tape away from the surface.

They test different things: shear = cohesive/anchoring strength; peel = interfacial bond.

Q4: How many replicate specimens are required per test per roll?

A4: Procedure A, E, H: Minimum 3 replicates

Procedure B, C, D, F, G: Minimum 5 replicates

Single specimen results are not acceptable as representative data; all raw failure time data must be log-transformed for statistical averaging before reporting final results.

Q5: Why do I need to discard 3–6 outer wraps from tape rolls before cutting samples?

A5: The outer tape layers contact dust, packaging plastic, and storage contaminants during transport. Removing outer wraps eliminates surface contamination that causes artificially low shear failure times and inconsistent test results. Tape unwinding speed shall be controlled at 500–750 mm/s for consistent sample preparation.

Q6: What is the specification of the standard rolling roller for lamination?

A6: Steel roller with 85 mm ±2.5 mm diameter, 45 mm width, 6 mm thick rubber coating (Shore A hardness 80±5). Total roller mass = 2040 g ±45 g. Rolling speed: 10 mm/s ±0.4 mm/s; roll twice forward and twice backward along the specimen lengthwise direction to remove air bubbles and form uniform bonding contact.

Q7: How do I calculate final average shear holding time for A/B/C/D/H results?

A7: Convert each raw failure time value to natural logarithm (ln), calculate the arithmetic mean of all log values, then convert the mean log value back to time via antilogarithm. Weibull distribution or lognormal statistical analysis is also permitted for batch performance evaluation. Raw average time without log transformation does not comply with standard calculation rules.

Q8: Why might my test results show large deviation between replicates?

A8: Common root causes:

Improper panel cleaning, surface scratches, stains or finger contamination

Uncontrolled rolling speed, uneven roller pressure, trapped air bubbles on bonding area

Non-standard fiberboard with inconsistent surface texture (Procedure D biggest risk)

Insufficient conditioning time (less than 24 h at 23°C/50% RH)

Wrong number of replicates (only 1–2 specimens tested)

Impact shock when hanging test mass

Tape samples cut from outer contaminated layers of the roll.

Q9: What is the difference between cohesive failure and adhesive failure in D3654 testing?

A9: Cohesive failure: The adhesive layer splits internally; residual adhesive remains on both the tape backing and substrate. It indicates weak adhesive internal strength.

Adhesive failure: Adhesive fully separates cleanly from the substrate surface, no residue left on panel/fiberboard. It indicates poor interfacial bonding between adhesive and substrate.

Both failure modes must be recorded in the final test report as critical performance indicators.

Q10: What's the importance of ASTM D3654 Shear Adhesion Test for PSA Tape Materials?

A10: Simulates Real-World Long-Term Service Stress

Most tape failure in packaging/assembly occurs under sustained sliding shear load (stacked cartons sagging, pallet tapes bearing constant weight). Peel tests only measure instant pull-off force, while D3654 evaluates long-duration creep resistance—the most critical real-world failure risk.

Quantifies Adhesive Cohesion & Interfacial Adhesion Balance

The test differentiates two key failure modes: cohesive split (weak adhesive internal strength) vs. interfacial detachment (poor bonding to substrate). Formulators use this data to adjust adhesive polymer crosslinking, tackifier dosage, and backing stiffness.

Enables Uniform Cross-Manufacturer Performance Comparison

Standardized substrates, roller weight, load mass, and conditioning eliminate test variability caused by inconsistent lab practices. Brands can benchmark tape suppliers using identical pass/fail criteria.

Guarantees Production Batch Consistency

Intra-roll, inter-roll, and lot-to-lot shear performance variation directly reflects coating uniformity of adhesive layers during tape production; D3654 provides objective QC data to reject out-of-spec batches before shipment.

Supports High-Temperature Application Design (Procedure H)

Many storage, logistics, and automotive environments experience elevated temperatures, which soften adhesives and drastically reduce holding power. Procedure H quantifies high-temperature shear degradation to avoid field failure in warm climate transit.

Establishes Legally Recognized Acceptance Benchmark for Commercial Contracts

As an ASTM consensus standard, D3654 test results serve as objective technical evidence for buyer-seller quality disputes, replacing subjective manual adhesion judgment.

Critical for Heavy-Duty Filament Tape Validation

Filament strapping tapes bear extreme static load for months; the 48-hour slippage measurement in E/F/G prevents costly cargo shifting and pallet collapse during shipping.

Facilitates Regulatory & Military Compliance

The standard is approved for U.S. DoD procurement, required for military packaging tape qualification to ensure stable storage performance under long-term static load.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
