ASTM D3528 Double Lap Shear Tester for Structural Adhesive Metal Joints | UnitedTest

UnitedTest produces precision ASTM D3528-compliant tensile testing machines engineered to perform double lap shear tests and characterize tensile shear strength of structural adhesive bonded metal assemblies for industrial R&D and production quality control.

ASTM D3528 — Standard Test Method for Strength Properties of Double Lap Shear Adhesive Joints by Tension Loading establishes a standardized double-lap shear testing procedure to quantify tensile shear strength of structural adhesives bonded to metal substrates.

This test method delivers unique benefits compared to conventional single-lap shear standards including ASTM D1002 and ASTM D3165. Its symmetric double-lap geometry nearly eliminates unwanted peel stress during loading, generating uniform adhesive stress distribution that accurately replicates low-peel structural joints widely used in real manufacturing applications. Test results deliver reliable baseline data for structural adhesive formulation screening, bonding process optimization, and structural component performance validation.

Key Advantage Over Single-Lap Tests

The double-lap symmetric configuration is the only lap-shear geometry that inherently cancels bending moments without requiring extremely thick adherends. This produces shear stress distributions that closely match real-world low-peel structural joints, making D3528 data more relevant for production joint specification than single-lap test data.

Test Principle

Symmetric Double-Lap Geometry for Peel Elimination: Three metal adherends are bonded into a symmetric double-overlap configuration. The central inner adherend is sandwiched between two outer adherends, creating two parallel adhesive bondlines. Under axial tensile loading, the symmetric arrangement cancels out bending moments and secondary peel stresses that plague single-lap specimens, producing a near-uniform pure shear state across both bondlines.

Dual Bondline Shear Loading: Tensile force pulls the two outer adherends in one direction and the central inner adherend in the opposite direction, placing both adhesive layers under simultaneous shear deformation. Total shear area equals twice the area of one bondline.

Complete Test Specimen Specifications

Parameter	Type A	Type B
Overall length	203 mm (8 in.)	218 mm (8.6 in.)
Width	25.4 mm (1 in.)	25.4 mm (1 in.)
Overlap length (each bond line)	12.7 mm ± 0.25 mm (0.5 in. ± 0.01 in.)	12.7 mm ± 0.25 mm (0.5 in. ± 0.01 in.)


Type A Sample	Type B Sample

Adherend Dimensions

Aluminum alloy: Recommended thickness 3.24 mm ± 0.125 mm (0.125 in. ± 0.005 in.)

Doubler thickness: Typically ~1.6 mm (as part of the double-lap configuration)

Bond faying surface roughness: Smooth, max rms 160

Adhesive extension beyond adherends: Limited to 1.62 mm ± 0.25 mm (0.064 in. ± 0.001 in.) to prevent excessive filleting

Recommended Adherend Metals: Aluminum and Aluminum-Alloy, Stainless and Heat-Resisting Chromium-Nickel Steel, Brass, Copper (CDA 110), Titanium and Titanium Alloy.

Standard Test Panel Specifications:

Type A Panel

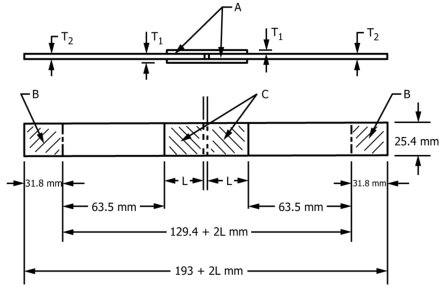

Panel width: 177.8 ±3.125 mm

Panel length: 190.6 + L mm

Yields 5 usable test specimens (top and bottom strips discarded to eliminate edge effects)

4 predrilled 2.4 mm diameter pinholes for alignment during bonding

90° ±1° typical cut angles

Bond faying surface smoothness: rms 160 max before surface treatment

Type B Panel

Panel length: 193 + 2L mm

Similar 5-specimen layout with top/bottom discard strips

4 predrilled pinholes for alignment

TFE-fluorocarbon filler recommended for adhesive flash control at the central gap

2L + 2.4 mm central gap between two bondlines

Number of Specimens:

Specimens must be selected from a minimum of 4 different test panels to account for inherent variations in adhesive properties due to process variables

Each test panel should be of sufficient width to yield at least 5 test specimens unaffected by panel joint edge variables

Test Equipment required for ASTM D3528 Adhesive Joints Double Lap Shear Test by Tension Loading:

Tensile testing machine

Load range selected so specimen breaking load falls between 15% and 85% of full-scale capacity

Capable of maintaining a constant loading rate of 8.27–9.65 MPa/min (1200–1400 psi/min); approximated by a free crosshead speed of ~1.27 mm/min (0.05 in/min)

Equipped with self-aligning grips that automatically center the specimen long axis with the applied pull direction once load is applied

Grip engagement length: 31.8 mm (1.25 in) of each specimen tail end.

Environmental Test Chamber

Sufficient size to accommodate test grips for preconditioning and thermal stability during testing

Temperature controlled to match test specification; calibrated using an instrumented dummy specimen with two thermocouples (one at bondline geometric center, one on external lap surface).

Specimen Cutting Equipment

Saw or machining tool capable of cutting bonded panels without overheating, coolant damage, or mechanical damage to bonded joints

Panel edges within lap joints must be free of burrs, deformation, and bevels.

Core Test Parameters

Loading Rate: 8.27–9.65 MPa/min (1200–1400 psi/min) shear stress rate; ~1.27 mm/min crosshead speed approximation

Preload Limit: Shall not exceed 350 kPa (50 psi) during final stabilization and soak

Grip Engagement: Terminal 31.8 mm (1.25 in) of each specimen end fully clamped

Minimum Replicates: Specimens from at least 4 different test panels, minimum 5 specimens per panel

Stress Reporting Precision: Calculated to nearest 0.06 cm² (0.01 in²) area, stress to third significant figure

Test Procedures of ASTM D3528 Adhesive Joints Double Lap Shear Test by Tension Loading

Step 1 Fabricate Bonded Test Panels

Cut metal sheets to panel dimensions; ensure lap joint edges are burr-free, undeformed, and unbeveled

Achieve faying surface smoothness of rms 160 max before surface treatment

Prepare bond surfaces per manufacturer's specification or approved process

Apply prime coat (if used) extending ~6 mm beyond lap area

Apply/position adhesive in bond area, limiting extension beyond adherends to 1.62 mm ±0.25 mm

Assemble with spacer sheets to prevent bondline deformation; use predrilled pinholes for alignment

Cure adhesive per specified process (temperature, pressure, time)

Step 2 Cut Standard Test Coupons

Cut panels into 25.4 mm wide strips perpendicular to the lap bondline

Discard top and bottom edge strips to eliminate edge-cure variables

Ensure cutting does not overheat or mechanically damage bonded joints

Measure and record specimen width and overlap length to nearest 0.25 mm for each coupon

Step 3 Mount Specimen in Tensile Machine

Place specimen in self-aligning grips so terminal 31.8 mm ends are firmly engaged

Align specimen long axis to coincide with pull direction through grip centerline

Remove all slack from test linkage; preload shall not exceed 350 kPa (50 psi) during final stabilization

Step 4 Load to Failure

Apply tensile load at constant rate of 8.27–9.65 MPa/min (~1.27 mm/min crosshead speed)

Continue loading until complete joint failure

Record maximum failure load value

Visually classify failure mode: cohesive (adhesive bulk), adhesive (interface), metal substrate failure

Step 5 Post-Test Calculations

Calculate total shear area = 2 × (specimen width × overlap length) (both bondlines combined)

Compute apparent shear strength = maximum failure load ÷ total shear area

Compile max, min, average, and coefficient of variation across all specimens.

Target Industrial Application Fields

ASTM D3528 is used across industries where structural metal-bonding adhesives require accurate shear strength characterization:

Industry	Applications
Aerospace	Structural adhesive qualification for aircraft metal-to-metal bonds; evaluating adhesives for low-peel production joints
Automotive	Body structure bonding, chassis components, metal-to-metal structural adhesive validation
Adhesive Manufacturing	R&D and quality control of structural adhesives; generating shear strength data for material datasheets
Composite Fabrication	Metal-to-composite adhesive joint qualification (using double-lap to minimize peel)
Civil Engineering	Steel-and-FRP composite beam adhesive evaluation

Related Stadard:

ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies.
ASTM D1002	Standard Test Method for Apparent Shear Strength of Single-Lap-Joint Adhesively Bonded Metal Specimens by Tension Loading (Metal-to-Metal)
ASTM D5573	Standard practice to classify FRP joint failure modes, mandatory for fracture analysis reporting in D5868 test reports;
SAE J1525	Automotive FRP adhesive lap shear test, shares identical FRP bonding test logic with ASTM D5868, targeted at automotive composite bonding applications.
ASTM D3163	Standard Test Method for Determining Strength of Adhesively Bonded Rigid Plastic Lap-Shear Joints in Shear by Tension Loading
ASTM D3165	Standard Test Method for Strength Properties of Adhesives in Shear by Tension Loading of Single-Lap-Joint Laminated Assemblies
ASTM D3528	Standard Test Method for Strength Properties of Double Lap Shear Adhesive Joints by Tension Loading
ASTM D5656	Standard Test Method for Thick-Adherend Metal Lap-Shear Joints for Determination of the Stress-Strain Behavior of Adhesives in Shear by Tension Loading
ASTM D5868	Standard Test Method for Lap Shear Adhesion for Fiber Reinforced Plastic (FRP) Bonding
ISO 11003-2	Adhesives — Determination of shear behaviour of structural bonds — Part 2: Thick-adherend tensile-test method

Keywords: UnitedTest ASTM D3528 tester, ASTM D3528 double lap shear tester, structural adhesive double lap shear test machine, metal adhesive joint tensile shear strength equipment, ASTM D3528 peel-free symmetric double lap shear test for metal adhesives, difference between ASTM D3528 double lap and ASTM D1002 single lap shear tester, low-peel production structural adhesive joint testing equipment, uniform adhesive stress distribution double lap shear analyzer, tensile loading double lap shear test machine for structural metal bonds

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is the primary objective of ASTM D3528 test?

A1: ASTM D3528 measures tensile shear strength of metal-to-metal structural adhesive joints via a symmetric double-lap specimen design. Its core advantage is an essentially peel-free geometry that creates uniform shear stress matching real low-peel structural joints, generating accurate shear data for adhesive specification compliance, production QC, and adhesive R&D.

Q2: What substrates does ASTM D3528 apply to? Can I test plastic/composites?

A2: The standard’s formal scope is limited to metal adherends only, including aluminum, steel, brass, copper, and titanium. It does not standardize testing for plastics, fiber composites, or non-metallic substrates.

Q3: What does “essentially peel-free” mean for double lap geometry?

A3: Single-lap joints bend under tension and create large secondary peel stress at bond edges. The symmetric 3-plate double-lap layout balances bending moments on both sides of the central adherend, nearly eliminating peel force and delivering pure, uniform shear across both adhesive bondlines.

Q4: What are the two specimen types (Type A & B) and their differences?

A4: Type A: Two thin outer adherends (T1=1.6 mm), one thick central doubler (T2=3.2 mm).

Type B: One thick central adherend (T2=3.2 mm), two thin outer adherends (T1=1.6 mm).

Both have 25.4 mm width, 12.7 mm standard overlap, dual shear planes, only total overall length differs. Either type is acceptable for comparative testing as long geometry stays consistent across test batches.

Q5: What mandatory tensile machine loading rate is specified?

A5: Constant shear stress loading rate of 8.27–9.65 MPa/min (1200–1400 psi/min), which approximates to a crosshead travel speed of 1.27 mm/min (0.05 in/min). Crosshead speed cannot be arbitrarily changed between comparative test groups.

Q6: What three failure modes do I need to classify after each test?

A6: Cohesive failure: Fracture entirely within the adhesive bulk (ideal result for evaluating adhesive intrinsic shear performance).

Adhesive (interfacial) failure: Clean separation between adhesive and metal substrate (indicates poor surface prep or weak adhesion).

Metal substrate failure: The metal plate yields or tears before the adhesive bond breaks (overlap length L is too long per the yield formula).

The test report must include estimated percentage of each failure type per batch.

Q7: How many replicate specimens do I need to test per adhesive batch?

A7: At minimum, specimens shall be sourced from 4 independent bonded panels, with at least 5 specimens cut from each panel (20 total minimum samples). Sample sizing guidance follows ASTM E122 statistical practice.

Q8: What is the key difference between ASTM D3528 and ASTM D1002 single lap shear?

Feature	ASTM D3528 (Double-Lap)	ASTM D1002 (Single-Lap)
Bond lines	2 (symmetric)	1
Peel stress	Essentially eliminated	Significant — eccentric loading
Stress distribution	Representative of low-peel structural joints	High peel concentration at bond line ends
Adherend configuration	Central adherend + 2 doublers	2 identical adherends
Aluminum thickness	3.24 mm ± 0.125 mm	~1.6 mm
Total shear area	Both bond lines combined	Single bond line
Output	Apparent tensile shear strength (both bonds)	Apparent shear strength (single bond)
Representativeness	Closely simulates real structural joints	Less representative due to peel interference
Use case	Structural adhesive qualification	Routine QC and adhesive screening

Q9: How is ASTM D3528 different from ASTM D5656 thick adherend shear test?

A9: Peel elimination method: D3528 uses symmetric double lap geometry to cancel bending; D565 uses ultra-thick 9.5 mm single adherends to restrict bending.

Output data: D3528 only delivers peak apparent shear strength at failure; D565 generates full shear stress-strain curves, shear modulus and yield point for finite element design.

Use case: D3528 for adhesive specification and production QC; D565 for intrinsic adhesive material characterization for structural FEA.

Q10: What differentiates ASTM D3528 from ASTM D3165 large single-lap panel test?

A10: Geometry: D3165 is single lap with peel stress; D3528 double lap is peel-free.

Panel size: D3165 uses huge 45.7 cm master laminates simulating wide production sheets; D3528 smaller bonded panels optimized for symmetric double-lap coupons.

Application: D3165 for finished large laminated panel QC; D3528 for structural joint adhesive performance testing.

Q11: Why is ASTM D3528 considered critical for structural metal adhesive testing?

A11: Peel-free uniform shear loading eliminates geometry-induced strength bias, delivering true adhesive shear performance instead of distorted single-lap results.

Stress distribution replicates low-peel industrial structural joints (aircraft, EV frames), so test data correlates closely with real component service performance.

Supports ambient and extreme high/low temperature testing with calibrated thermal chambers, critical for aerospace, defense and automotive temperature-cycled applications.

Standardized failure mode analysis pinpoints root defects: weak adhesive bulk vs poor metal surface adhesion vs substrate yielding.

Rigorous multi-panel sampling rule reduces batch-to-batch testing error for reliable production quality control and adhesive qualification audits.

Global industry acceptance for structural adhesive material specifications across aerospace, automotive and marine OEM supply chains.

Enables unbiased side-by-side comparison of adhesive formulations, surface treatments and curing cycles without peel stress confounding test results.

Q12: What industrial sectors rely most heavily on ASTM D3528 testing?

A12: Aerospace aircraft structural bonding (primary qualification test for aluminum structural adhesives)

Automotive lightweight body-in-white & electric vehicle battery tray adhesive validation

Marine aluminum hull and superstructure bonded assembly QC

Military defense load-bearing metal component adhesive qualification

Structural adhesive R&D laboratories for new formulation development & aging testing

Heavy industrial equipment metal bonded structural plate certification

Q13: What major limitations does ASTM D3528 have?

A13: No published interlaboratory precision data to confirm cross-lab result consistency.

Only measures peak failure shear strength; cannot capture shear modulus, plastic yield or full stress-strain curves (unlike D5656).

Scope limited exclusively to metal adherends; not standardized for plastic/composite bonding.

More complex specimen assembly (3-plate alignment with pinholes/spacers) than simple single-lap coupons, increasing fabrication labor.

Overlap length must be recalculated for every metal/adhesive combination to avoid substrate yielding, adding pre-test engineering steps.

Produces joint-specific apparent shear strength values, not intrinsic adhesive material constants for direct structural design simulation.

Q14: What mandatory data must be recorded in a full ASTM D3528 test report?

A14: Standard reference: ASTM D3528-96 (Reapproved 2024)

Full adhesive identification: type, form, batch, cured bondline thickness, application weight per unit area

Complete adherend data: metal grade, thickness, heat treatment, full surface preparation workflow

Bonding manufacturing parameters: adhesive application method, cure temperature/pressure/dwell time

Per-specimen dimensions: width, overlap length measured to ±0.25 mm

Pre-test conditioning environment and soak duration

Test temperature and thermal chamber calibration details

Total specimen count, number of independent bonded panels, Type A/B specimen geometry

Individual failure load values

Statistical outputs: average, maximum, minimum shear strength + coefficient of variation

Estimated percentage of cohesive, adhesive, and metal failure modes

Any test interferences (metal yielding, adhesive overflow, cutting damage)

Q15: What does "essentially peel-free" mean, and why does it matter?

A15: In a single-lap shear test, the eccentric loading creates a bending moment that introduces significant peel stress at the bond-line ends. The double-lap geometry is symmetrical — two outer adherends (doublers) are bonded to opposite sides of a central adherend — which eliminates this eccentric bending. This produces an adhesive stress distribution that is representative of a typical low-peel production-type structural joint, making the data far more relevant to real-world structural bonding applications.

Q16: Why is the "minimum 4 test panels" requirement so important?

A16: The standard mandates that specimens be selected from a minimum of 4 different test panels because of inherent variations in adhesive properties due to process variables. Using only one or two panels would fail to capture batch-to-batch and process-level variability, potentially producing misleadingly narrow (and unrepresentative) strength distributions. This multi-panel requirement ensures the data is statistically meaningful for process control and specification purposes.

Q17: When should I use D3528 vs. D1002 vs. D5656?

Need	Use This Standard
Structural adhesive qualification (metal bonding, low-peel joints)	ASTM D3528
Routine QC / high-throughput adhesive screening	ASTM D1002
Full shear stress-strain curve for FEA/CZM	ASTM D5656
Large-area laminated assemblies	ASTM D3165

Q18: What makes D3528 results more reliable than D1002 for structural applications?

A18: The symmetrical double-lap geometry eliminates the eccentric bending moment inherent in single-lap specimens. This means:

The adhesive is loaded in a state that is representative of a typical low-peel production-type structural joint

Peel stress interference is essentially removed

The measured strength more accurately reflects the intrinsic shear capability of the adhesive

Results correlate better with real-world structural joint performance.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
