ASTM D3165 Single-Lap Shear Test Machine UnitedTest Manufactured

ASTM D3165 is a recognized standard used to measure the comparative apparent shear strength of adhesives applied within single-lap-joint laminated assemblies.

Distinct from small laboratory test coupons specified in ASTM D1002, this method utilizes large master bonded panels that are later cut into multiple test strips. This design replicates full-scale production laminated joints, capturing real manufacturing variables including adhesive flow limitations, curing restraints, and volatile emission effects that miniature specimens fail to simulate. The standard works for metal adherends and can be adapted for plastic substrates with adjusted specimen preparation protocols.

Shear strength data from ASTM D3165 delivers practical reference for adhesive selection, lamination process optimization, and finished product quality verification. UnitedTest manufactures high-precision tensile testing machines capable of conducting ASTM D3165 single-lap shear tests for adhesive and laminated material laboratories.

Test Principle

Single-Lap Tensile Shear Loading: Two thin adherends overlap along a central bondline; tensile force pulls the two free ends in opposite directions, placing the sandwiched adhesive layer under combined shear + minor peel stress (thin adherends bend under load, creating edge peel tension at the lap ends).

Large Panel Simulation: Bonding large 45.7 cm × 45.7 cm master laminates mimics real industrial laminated assemblies, capturing process variables (gel time, entrapped volatiles, cure pressure distribution) that distort shear performance in tiny D1002 coupons.

Apparent Shear Strength Calculation: Divide maximum failure load by the total overlapping bond area to get apparent shear stress (MPa / psi).

Test Specimen Details

1, Adherend Materials

Metal	Specification	Grade/Temper
Aluminum	B209	Alclad 2024, T3 Temper, Mill Finish
Steel	A366/A366M	Regular Matte Finish
Copper	B36/B36M	Alloy 260 (6), Quarter-hard Temper
Corrosion-resisting steel	A167	Type 304, No. 2B Finish

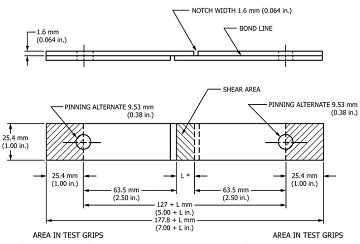

2, Recommended Specimen Size

Parameter	Preferred Value
Metal thickness	1.62 mm ± 0.125 mm (0.064 in. ± 0.005 in.)
Overlap length	12.7 mm ± 0.3 mm (0.5 in. ± 0.01 in.) — or not exceeding the value computed per Note 4
Distance jaw-end to lap start	63 mm (2.5 in.) (fixed)
Jaw engagement length	25.4 mm (1 in.) at each end
Edge finish	Flat, free of burrs, smooth (max rms 4.06 μm / 160 μin.)

3, Number of Specimens

At least 20 specimens shall be tested

Representing at least 4 different joints (i.e., bonded panels)

Each test joint should be made with sufficient area to provide at least 5 test specimens.

Test Equipment required for ASTM D5656 Thick-Adherend Metal Lap-Shear Test for Adhesive Shear Stress-Strain Behavior:

Tensile testing machine

Load range selected so specimen breaking load falls 15–85% of full machine scale

Controlled loading rate: 8.3–9.7 MPa/min shear stress ramp (~1.27 mm/min / 0.05 in/min constant crosshead speed)

Self-aligning wedge clevis grips that firmly clamp the outer 25.4 mm (1 in) of each specimen tail to evenly distribute tensile load.

ASTM D5868 Test Method for Lap Shear Adhesion for FRP Bonding

Precision Cutting Tool

Fine-tooth circular saw to cut master panels into uniform test strips; produces 1.6 mm (0.064 in) notches perpendicular to the lap bondline without scratching adherend surfaces.

Core Test Parameters

Loading Rate: 8.3–9.7 MPa/min shear stress rate (≈1.27 mm/min crosshead speed)

Standard Conditioning Atmosphere: 23°C ±3°C, 50 ±10% RH; specimens equilibrate 10–30 minutes prior to loading

Grip Engagement: Outer 25.4 mm of each specimen tail fully clamped by jaws

Minimum Replicates: 20 specimens from ≥4 independent bonded master panels

Calculation Basis: Failure load divided by overlap area (width × lap length) for apparent shear strength

Test Procedures of ASTM D3165 Single-Lap Shear Test for Laminated Assemblies

Step 1 Fabricate Master Laminated Panels

Clean, etch, and dry adherend sheets per applicable surface prep standard

Apply adhesive to faying surfaces following manufacturer instructions

Assemble two large sheets face-to-face, cure under specified pressure/temperature/time

Allow full cool-down to ambient temperature post-cure

Step 2 Cut Standard Test Coupons

Trim uneven border discard zones off the master panel

Use fine circular saw to cut 25.4 mm wide strips perpendicular to the lap bondline

Machine 1.6 mm notches at both ends of the overlap region

Measure and record overlap length, specimen width, bondline thickness for every coupon

Step 3 Pre-Test Conditioning

Place all finished coupons in controlled atmosphere chamber at 23°C / 50% RH for 10–30 minutes to stabilize adhesive mechanical properties.

Step 4 Tensile Machine Setup

Calibrate tester per ASTM E4

Set crosshead speed to 1.27 mm/min to hit the required shear stress loading rate

Align self-aligning grips to center specimen axial pull line

Step 5 Load Specimen to Failure

Insert each coupon so the outer 25.4 mm tail sections are fully seated in jaws; center lap overlap mid-way between grips

Initiate tensile pull at fixed constant rate until complete joint fracture

Record maximum peak failure load and visually classify all failure modes (cohesive adhesive, interfacial adhesion, substrate break, void-induced failure)

Repeat for all 20+ replicate specimens from separate master panels

Step 6 Post-Test Calculations

Calculate shear area = specimen width × overlap length

Compute apparent shear strength (MPa / psi) = maximum failure load ÷ shear area

Compile min, max, average shear strength values across all replicates

Quantify percentage of each failure mode observed in the test batch

ASTM D3165 vs. D1002 vs. D5656 — Quick Comparison

Feature	ASTM D3165	ASTM D1002	ASTM D5656
Focus	Large-area laminated joints	Small single-lap joints (QC)	Thick-adherend for stress-strain
Adherend thickness	1.62 mm ± 0.125 mm	~1.6 mm	9.5 mm
Overlap length	12.7 mm ± 0.3 mm	12.7 mm ± 0.25 mm	Full 229 mm panel
Output	Apparent shear strength	Apparent shear strength	Full shear stress-strain curve
Design data?	No (explicitly warned)	No	Yes (modulus, yield, failure strain)
Min. specimens	20 from ≥4 joints	5	3
Application	Laminated assemblies, QC	Routine adhesive screening	Structural adhesive design data
Plastic adherends?	Yes (with doublers/tabs)	No	No (aluminum only)

Target Industrial Application Fields

ASTM D3165 serves manufacturing sectors producing large laminated bonded panels where full-size curing constraints impact adhesive performance:

Aerospace Composite Laminates: Large aluminum honeycomb and skin laminated assemblies, batch process QC for structural adhesives

Automotive Lightweight Panels: Aluminum/multi-metal body laminated sheets, EV battery housing bonded laminates

Marine Aluminum Fabrication: Large hull and superstructure bonded plate assemblies

Architectural Metal Cladding: Decorative/structural laminated metal facade panels

Industrial Equipment Laminations: Heavy machinery bonded metal support plates

Adhesive Manufacturing R&D: Comparative screening of structural adhesives under large-area cure conditions

Mass Production Quality Control: Destructive sampling of finished laminated components to validate consistent seal/bond performance

Plastic Lamination Industry: Large rigid plastic composite sheet bonded assemblies.

Related Stadard:

ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies.
ASTM D1002	Standard Test Method for Apparent Shear Strength of Single-Lap-Joint Adhesively Bonded Metal Specimens by Tension Loading (Metal-to-Metal)
ASTM D5573	Standard practice to classify FRP joint failure modes, mandatory for fracture analysis reporting in D5868 test reports;
SAE J1525	Automotive FRP adhesive lap shear test, shares identical FRP bonding test logic with ASTM D5868, targeted at automotive composite bonding applications.
ASTM D3163	Standard Test Method for Determining Strength of Adhesively Bonded Rigid Plastic Lap-Shear Joints in Shear by Tension Loading
ASTM D3165	Standard Test Method for Strength Properties of Adhesives in Shear by Tension Loading of Single-Lap-Joint Laminated Assemblies
ASTM D3528	Standard Test Method for Strength Properties of Double Lap Shear Adhesive Joints by Tension Loading
ASTM D5656	Standard Test Method for Thick-Adherend Metal Lap-Shear Joints for Determination of the Stress-Strain Behavior of Adhesives in Shear by Tension Loading
ASTM D5868	Standard Test Method for Lap Shear Adhesion for Fiber Reinforced Plastic (FRP) Bonding
ISO 11003-2	Adhesives — Determination of shear behaviour of structural bonds — Part 2: Thick-adherend tensile-test method

Keywords: ASTM D3165 test, adhesive single lap shear test, laminated assembly shear strength test, ASTM D3165 single-lap-joint laminated assembly tensile tester, large panel adhesive shear strength testing machine, ASTM D3165 vs ASTM D1002 lap shear test, adhesive shear test equipment for metal and plastic laminates, production-scale laminated joint shear property testing instrument

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What core function does ASTM D3165 serve?

A1: It measures comparative apparent shear strength of adhesives using large-format laminated master panels cut into single-lap test strips. It replicates real large-area production bonding conditions to screen adhesives, validate bonding processes, and perform in-process QC for laminated metal/plastic assemblies. It only delivers comparative data, not intrinsic adhesive material constants for structural design.

Q2: What substrates can ASTM D3165 test?

A2: Primary scope is metal-to-metal bonded laminates (aluminum, steel, stainless steel, brass, copper, titanium). It also supports plastic adherends, but reinforcing doublers must be added to plastic specimens to prevent grip-region bearing failure during tensile loading.

Q3: What is the key difference between small lab coupons and D3165 large master panels?

A3: Small single-lap coupons (like D1002) cannot replicate curing constraints such as adhesive flow, trapped volatiles, uneven pressure distribution across wide panels. D3165’s 45.7 cm large panels mirror industrial lamination production conditions, producing test data closer to real finished part performance.

Q4: Can I use D3165 test values for structural joint design calculations?

A4: No. The standard explicitly warns apparent shear strength from D3165 must not be used as design allowable stress without extensive joint analysis per ASTM D4896. Thin adherends create edge peel stress that artificially lowers strength, and results are highly geometry-dependent.

Q5: What are the mandatory dimensions for test coupons?

A5: Standard width: 25.4 mm (1 in)

Recommended overlap length: 12.7 mm ±0.3 mm (0.5 in)

Fixed free tail length between grip edge and lap start: 63.5 mm (2.5 in) (cannot be altered)

Standard metal sheet thickness: 1.62 mm ±0.125 mm (0.064 in)

Notch width at lap boundaries: 1.6 mm (0.064 in)

Q6: How many specimens and bonded panels are required for a valid test batch?

A6: A minimum of 20 individual test specimens must be tested, sourced from at least 4 separate master laminated panels. Testing fewer panels risks biased data from uneven curing on a single large sheet.

Q7: How is apparent shear strength calculated per the standard?

A7: Shear area = specimen width × overlap length

Apparent shear strength (MPa / psi) = maximum failure load ÷ total shear area

Min, max, and average strength values across all 20 replicates must be computed and reported.

Q8: What failure modes do I need to record after each test?

A8: Four primary failure categories to classify and quantify by percentage for each batch:

Cohesive failure: split entirely within the adhesive layer

Adhesive (interfacial) failure: clean separation between adhesive and adherend surface

Substrate break: metal/plastic sheet tears before the bond fails

Void-induced failure: separation originating from air bubbles trapped during cure.

Q9: How does ASTM D3165 differ from ASTM D5656 thick-adherend shear?

A9: D3165 thin adherends create significant edge peel stress; D565 uses 9.53 mm ultra-thick aluminum to eliminate peel and achieve pure shear.

D3165 outputs only single-point apparent shear strength; D565 generates full shear stress-strain curves and shear modulus for structural FEA design.

D3165 serves production QC/comparative screening; D565 delivers intrinsic adhesive material properties for engineering joint simulation.

Q10: Why is ASTM D3165 testing critical for laminated bonded materials?

A10: Simulates real industrial large-panel curing variables (adhesive flow, trapped volatiles, uneven pressure) that small lab coupons cannot replicate, producing data representative of finished laminated parts.

Acts as a production in-process quality control tool: manufacturers destructively sample finished laminated assemblies to verify consistent bonding across production batches.

Enables fair side-by-side comparison of adhesives, surface treatments, and cure cycles under full-size joint boundary conditions.

Identifies root bonding defects (poor surface etching, incomplete crosslinking, air voids) via standardized failure mode classification.

Accepted by aerospace, automotive, and marine OEMs for laminated component batch validation audits.

Captures peel edge stress inherent to thin laminated panels, the primary failure driver in real-world bonded sheet assemblies.

Q11: What mandatory data must be included in a full ASTM D3165 test report?

A11: Standard reference: ASTM D3165-07 (Reapproved 2023)

Complete adhesive identification (grade, batch, mixing instructions)

Adherend details: material grade, sheet thickness, full surface preparation procedure

Bond manufacturing parameters: adhesive application method, cure temperature/pressure/time, cool-down cycle

Per-specimen geometry: width, overlap length, average bondline thickness

Pre-test conditioning temperature, humidity, hold duration

Tensile machine crosshead speed and shear stress loading rate

Total specimen count and number of independent master panels tested

Individual failure load for every coupon

Min, max, and average apparent shear strength values

Full breakdown of all failure modes with percentage estimates

Notes of test interferences (cutting damage, adherend yielding, uneven panel curing)

Q12: Is ASTM D3165 for small or large joints?

A12: It specifically targets large-area joints. The standard recognizes that adhesives respond differently in small versus large area joints — this variation is influenced by adhesive density, flow characteristics, cure rate, gel time, carrier composition, entrapped volatiles, and cure cycle variables (temperature, time, pressure, rise rate, cool-down rate, etc.).

Q13: Why is the "20 specimens from at least 4 different joints" requirement important?

A13: This statistical requirement ensures that the data captures both:

Within-panel variability (multiple specimens from the same bonded panel)

Between-panel variability (different joints/panels representing production batches)

This dual-level sampling is essential for quality control of laminated assemblies, where batch-to-batch variation in bonding conditions can significantly affect performance.

Q14: What is the significance of the fixed 63 mm jaw-to-lap distance?

A14: The distance from the end of the jaws to the beginning of the lap must be 63 mm (2.5 in.) in all tests and must not be varied. This geometric constraint ensures consistent bending and peel stress distribution across all specimens, enabling valid comparative data. Varying this distance would introduce uncontrolled variables that compromise data comparability.

Q15: What does "apparent shear strength" mean, and why "apparent"?

A15: The term "apparent" acknowledges that the single-lap configuration induces bending and peel stresses in addition to pure shear. The measured strength is therefore an apparent value — influenced by the eccentric loading geometry — not a pure shear property of the adhesive. This is precisely why the standard warns against using it directly for design: the true shear behavior of the adhesive requires the thick-adherend approach of ASTM D5656.

Q16: How should I interpret the failure mode data?

A16: The standard requires reporting the estimated percentages of:

Cohesion in adhesive — failure within the adhesive layer (ideal for measuring adhesive properties)

Contact failure — failure at the interface

Voids — failure due to porosity or incomplete bonding

Apparent adhesion to metal — interfacial failure at the adhesive-metal boundary

When evaluating adhesive properties, select a metal and surface preparation that produces cohesive failures. If the objective is to evaluate how the adhesive performs in a particular application, use the surface preparation and metal from that application and report the resulting failure mode.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
