ASTM D5656 Thick-Adherend Metal Lap-Shear Tester | UnitedTest

UnitedTest manufactures high-precision ASTM D5656 compliant lap-shear testing machines, specially engineered to analyze the shear stress-strain behavior of structural adhesives for industrial formulation research, material certification, and quality control testing.

ASTM D5656 Standard Test Method for Thick-Adherend Metal Lap-Shear Joints for Determination of the Stress-Strain Behavior of Adhesives in Shear by Tension Loading is a specialized industry standard focused on characterizing the true shear performance of structural adhesives. Unlike conventional lap shear tests that only measure joint-level strength, ASTM D5656 utilizes thick, rigid metal lap-shear adherends to eliminate substrate deformation interference.

This advanced testing method generates complete shear stress-strain curves and delivers accurate intrinsic shear material properties of adhesives, including shear modulus, yield knee point, linear elastic limit, and ultimate shear strength. It provides reliable fundamental adhesive performance data rather than simple apparent joint shear strength results, making it ideal for structural adhesive development, formula optimization, engineering design verification, and high-precision material performance evaluation.

ASTM D5656 Thick-Adherend Metal Lap-Shear Test for Adhesive Shear Stress-Strain Behavior

Test Principle

Minimize Peel Stress: Extremely thick, high-stiffness metal adherends (9.53 mm thick) resist bending under tensile load, nearly eliminating secondary peel forces within the bond overlap zone. This creates a nearly uniform pure shear state inside the adhesive layer, unlike thin lap-shear coupons that produce severe bending and uneven shear distribution.

Tensile Loading for Pure Shear: A tensile machine pulls the two thick metal tabs in opposite directions, placing the sandwiched adhesive layer under controlled shear deformation.

Dual Extensometer Correction: Two precision LVDT extensometers measure total specimen displacement. A separate solid metal reference bar test quantifies elastic deformation of the thick adherends, which is mathematically subtracted from total displacement to isolate only adhesive shear strain.

Full Stress-Strain Curve Capture: Continuous load-displacement data generates a complete shear stress-strain curve, capturing four critical characteristic points:

LL (Linear Limit): End of elastic linear deformation

KN (Knee): Onset of adhesive plastic yielding

UL (Ultimate Load): Peak load before adhesive fracture

Intrinsic Adhesive Property Output: Calculations produce true shear modulus, shear yield stress, and ultimate shear strength of the adhesive bulk material, independent of substrate bending artifacts.

Test Specimen Details

Two identical rigid metal plates: 228.6 mm × 228.6 mm × 9.53 mm thick (2024-T3 aluminum recommended)

Uniform adhesive layer sandwiched between full plate faces; metal wire shims (not glass beads) control consistent bondline thickness (glass beads skew shear modulus results per standard prohibition)

Machined Final Test Coupon

Base width: 25.4 mm (1 inch); rough cut 27.5 mm then milled down for clean edges

Machined central notches to position extensometer contact points on either side of the bond overlap

Drilled mounting holes with steel bushings at top/bottom tab ends for pin gripping

Standard overlap region where pure shear occurs

Critical dimensional measurements recorded per coupon:

Overlap length (±0.03 mm precision)

Overlap width (±0.03 mm precision)

Cured adhesive bondline thickness (±0.003 mm precision at multiple overlap locations)

Minimum sample quantity: 3 identical replicate coupons per adhesive formulation.

Test Equipment required for ASTM D5656 Thick-Adherend Metal Lap-Shear Test for Adhesive Shear Stress-Strain Behavior:

Tensile testing machine

Recommend UnitedTest testing machine.

Controlled constant loading rate of 2455 N/min (550 lbf/min); crosshead speed adjusted to hit this load rate;

Load range selection: Breaking load must fall 15–85% of full scale to maintain measurement accuracy;

Self-aligning clevis pin grips with steel bushings to center load on specimen holes and eliminate side bending.

ASTM D5868 Test Method for Lap Shear Adhesion for FRP Bonding

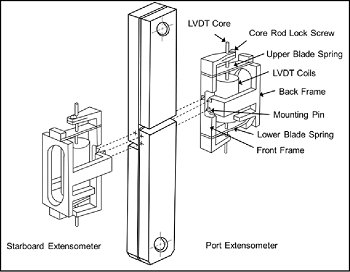

Dual Displacement Extensometers

Two three-point LVDT extensometers with resolution of 1 part per 1000 displacement

Signal amplifier that averages the two extensometer signals to eliminate specimen twist bias

Strip-chart recorder or digital data logger to record continuous load vs corrected displacement curves

ASTM D5656 Thick-Adherend Metal Lap-Shear Test for Adhesive Shear Stress-Strain Behavior

Core Test Parameters & Mandatory Stipulations

Loading Rate: Fixed constant load rate = 2455 N/min (550 lbf/min), not fixed crosshead speed

Extensometer Calibration Standard: 0.0254 mm sensor displacement equals 50.8 mm chart travel

Metal Correction Reference Test: Solid all-aluminum bar identical to coupon geometry cycled six times up to 4017 N to capture adherend elastic deformation offset.

Test Procedures of ASTM D5868 Test Method for Lap Shear Adhesion for FRP Bonding:

Stage 1: Measure Metal Adherend Elastic Deformation (Reference Bar Test)

Mount solid 2024-T3 aluminum reference bar matching coupon geometry into clevis pin grips

Attach dual extensometers to both sides centered on the bar midpoint

Load/unload six times up to 4017 N at 2455 N/min, record load-displacement curves each cycle

Extrapolate each curve to 4464 N, average six displacement values to create metal deformation correction offset for later adhesive strain calculation

Stage 2: Mount Bonded Test Specimen

Install machined lap-shear coupon via steel pins/bushings into machine clevis grips to ensure axial load alignment

Attach dual extensometers symmetrically to coupon sides, centered between the machined notches and straddling the adhesive overlap bondline

Zero machine crosshead load to remove specimen pre-tension

Stage 3: Run Destructive Shear Test

Activate tensile machine at fixed 2455 N/min loading rate

Continuously record averaged extensometer displacement vs applied load until full adhesive fracture (UL point)

Visually classify failure mode (cohesive within adhesive / adhesive interface separation)

Repeat full procedure for minimum three replicate specimens

Stage 4: Post-Test Data Reduction & Calculation

Subtract pre-measured metal elastic displacement from total measured displacement to isolate pure adhesive shear deformation

Calculate corrected shear strain: γ = (da − dm) / t (da = total displacement, dm = metal displacement offset, t = bondline thickness)

Calculate average shear stress at each curve point: σ = Load / (Overlap Length × Specimen Width)

Plot corrected shear stress vs corrected strain to generate the full adhesive stress-strain curve

Identify LL, KN, UL points by tangent line construction per standard graphical rules

Compute shear modulus (Gc) as slope of linear elastic segment between origin and LL

Parallel Lap-Shear Test Standards (Key Differences)

ASTM D1002: Conventional thin single-lap shear test (0.8–1.6 mm metal sheets). Major limitation: Thin adherends bend severely under load, creating uneven shear and large peel stress; outputs only apparent joint shear strength, not intrinsic adhesive stress-strain curves. D5656 shear modulus values are ~2× higher than D1002 due to eliminated bending bias.

ASTM D4896: Interpretive guide explaining limitations of D1002 thin coupons and recommending D5656 for accurate adhesive bulk property measurement.

ISO 11003 International Thick Adherend Shear Test: Global ISO equivalent of ASTM D5656 for international aerospace and automotive compliance, matching thick rigid adherend design and strain correction methodology.

ASTM D3983 / D4027: Alternative pure shear specimen designs (napkin ring, torsion block); more complex machining than D5656 and less widely adopted for metal structural adhesives.

ASTM F88 / ISO 11339 Peel Tests: Focus on peel resistance of flexible packaging/adhesive joints, no shear stress-strain characterization capability, unrelated to structural bulk adhesive shear performance.

Related Stadard:

ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies.
ASTM D1002	Standard Test Method for Apparent Shear Strength of Single-Lap-Joint Adhesively Bonded Metal Specimens by Tension Loading (Metal-to-Metal)
ASTM D5573	Standard practice to classify FRP joint failure modes, mandatory for fracture analysis reporting in D5868 test reports;
SAE J1525	Automotive FRP adhesive lap shear test, shares identical FRP bonding test logic with ASTM D5868, targeted at automotive composite bonding applications.
ASTM D3163	Standard Test Method for Determining Strength of Adhesively Bonded Rigid Plastic Lap-Shear Joints in Shear by Tension Loading
ASTM D3165	Standard Test Method for Strength Properties of Adhesives in Shear by Tension Loading of Single-Lap-Joint Laminated Assemblies
ASTM D3528	Standard Test Method for Strength Properties of Double Lap Shear Adhesive Joints by Tension Loading
ASTM D5656	Standard Test Method for Thick-Adherend Metal Lap-Shear Joints for Determination of the Stress-Strain Behavior of Adhesives in Shear by Tension Loading
ASTM D5868	Standard Test Method for Lap Shear Adhesion for Fiber Reinforced Plastic (FRP) Bonding
ISO 11003-2	Adhesives — Determination of shear behaviour of structural bonds — Part 2: Thick-adherend tensile-test method

Keywords: UnitedTest ASTM D5656 tester, ASTM D5656 lap shear tester, structural adhesive shear stress strain test machine, thick-adherend metal lap shear testing equipment, ASTM D5656 intrinsic adhesive shear property test, structural adhesive shear modulus and ultimate strength tester, thick rigid metal adherend lap shear testing machine, adhesive yield knee and linear limit performance test, tension loading shear stress strain curve analyzer for adhesives

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is the core purpose of ASTM D5656 test?

A1: This standard generates full shear stress-strain curves for structural adhesives using ultra-thick rigid aluminum adherends. It extracts intrinsic bulk adhesive shear properties (shear modulus, linear limit, yield knee, ultimate shear stress) instead of only apparent joint strength, for accurate structural joint design and finite element simulation.

Q2: What substrate material is ASTM D5656 validated for? Can I use steel or magnesium?

A2: The standard is only formally validated for 2024-T3 aluminum plates (9.53 mm thick). No standardized correction factors or validated data exist for steel, magnesium, or composite adherends; test results from other metals cannot be reliably used for engineering design.

Q3: What is the difference between bulk adhesive shear properties and joint apparent shear strength?

A3: Bulk shear properties are intrinsic material constants of the adhesive itself, independent of adherend bending geometry. Apparent shear strength (from thin lap shear like D1002) is a joint-specific value distorted by bending and peel stress artifacts, and cannot be input into FEA software for bonded structure simulation.

Q4: What does the term “knee (KN)” mean in the test curve?

A4: The knee is the inflection point on the load-displacement curve where adhesive plastic yielding begins to dominate deformation. It marks the threshold of permanent shear deformation in the adhesive, a critical design limit for load-bearing bonded assemblies.

Q5: Why must adherend plates be 9.53 mm thick instead of thin sheets like ASTM D1002?

A5: Extreme thickness maximizes substrate stiffness and nearly eliminates bending deformation under tensile load. This removes secondary peel stress within the overlap zone and creates a near-uniform pure shear state inside the adhesive layer, eliminating geometry-induced test bias.

Q6: Why ASTM D5656 Testing Is Critical for Structural Adhesive Materials

A6: Eliminates Bending & Peel Artifacts: Unlike thin lap-shear (D1002), thick rigid adherends minimize secondary peel stress, generating nearly uniform pure shear across the bond overlap. Data reflects the adhesive’s true bulk shear behavior, not joint geometry distortion effects.

Delivers Complete Stress-Strain Material Curves: Captures elastic linear region, plastic yield knee, and ultimate failure—critical input for finite element (FEA) bonded joint design software. Conventional lap-shear only provides a single peak load value with no yield or modulus data.

Enables Accurate Structural Engineering Design: Aerospace, automotive, and marine engineers rely on D5656 shear modulus, yield, and ultimate shear values to calculate load capacity, fatigue life, and crash performance of bonded metal assemblies. D1002 apparent strength cannot be safely used for structural simulation.

Standardized Adhesive Formulation Benchmarking: Creates repeatable, bias-free comparative data to evaluate new adhesive chemistries, curing cycles, and surface pretreatment improvements without substrate bending skewing results.

Supports Regulatory & Product Certification: Mandatory test method for aerospace OEM material qualification (AS9100) and automotive lightweight structural adhesive material datasheet documentation.

Separates Adhesive Bulk vs Interfacial Performance: The standard explicitly distinguishes cohesive bulk adhesive failure (valid for material property calculation) from adhesive interface separation (substrate adhesion issue, not adhesive shear performance).

Predict Long-Term In-Service Performance: The full stress-strain curve quantifies plastic yielding threshold, which predicts permanent deformation risk in bonded structures under sustained static or cyclic service loads.

Reproducible Cross-Laboratory Comparison: Thick adherend geometry drastically reduces test variability between labs compared to thin D1002 coupons, enabling consistent supplier-to-customer material qualification audits.

Q7: What's the main Test Application (Industry Fields)?

A7: ASTM D5656 is primarily used in industries where structural adhesive joints are designed using finite element analysis (FEA) and require accurate adhesive constitutive data:

Industry	Application
Aerospace	Characterization of aerospace-grade structural adhesives for aircraft structures; the thick-adherend design minimizes peel stress and provides data closest to pure shear
Automotive	Crash-resistant bonded structures, lightweight composite bonding
Civil Engineering	Bridge reinforcement, concrete-steel composite bonding
Defense	Military vehicle armor bonding, structural composite assemblies
Adhesive Manufacturing	R&D of new structural adhesives; generating shear stress-strain curves for material datasheets
Research & Development	Calibration of cohesive zone models (CZM) for adhesive joint simulation

Q8: Why do I need to sand cut edges with progressive fine grit paper?

A8: Saw/machining pushes metal shavings into the adhesive bondline, locally thinning the glue layer and skewing strain calculations. Sequential 240/320/400/600 grit sanding removes metal flash without damaging the adhesive layer.

Q9: What surface preparation method is specified for aluminum adherends?

A9: Follow ASTM D2651 Method G: solvent degreasing plus acid etching to fully remove aluminum oxide layers for consistent interfacial bonding quality across all test panels.

Q10: What mandatory loading rate does ASTM D5656 require?

A10: A constant load rate of 2455 N/min (550 lbf/min), not a fixed crosshead speed. Crosshead travel speed must be adjusted dynamically to maintain this consistent load ramp throughout testing.

Q11: Why are two separate LVDT extensometers required, not one single sensor?

A11: Dual symmetric extensometers eliminate measurement error caused by specimen twisting or side bending during loading. The amplifier averages both displacement signals to capture pure shear deformation across the full coupon width.

Q12: What is shear modulus (Gc), and why is it the most important output from D5656?

A12: Shear modulus is the linear elastic stiffness of the adhesive under shear, measured as stress divided by strain in the linear region. It is the primary input parameter required for finite element (FEA) bonded joint stress simulation software used by aerospace and automotive structural engineers.

Q13: What is the core difference between ASTM D5656 and the widely used D1002 single lap shear test?

A13: Adherend thickness: D5656 uses 9.53 mm rigid aluminum; D1002 uses thin 0.8–1.6 mm metal sheets that bend severely under load.

Output data: D5656 produces full shear stress-strain curves + modulus/yield data; D1002 only outputs a single peak apparent shear strength value.

Bias: D1002 results are distorted by large peel stress from substrate bending; D5656 nearly eliminates peel force for pure shear measurement.

Design usability: D5656 data is valid for structural FEA; D1002 apparent strength cannot be safely used for load-bearing joint design calculations.

Q14: Can I replace D5656 testing with D1002 for aerospace structural adhesive qualification?

A14: No. Aerospace OEMs and AS9100 certification standards require D5656 bulk shear modulus and stress-strain data for joint structural simulation; D1002 only serves as a quick comparative screening test for surface treatment or batch QC checks, not engineering design input.

Q15: What mandatory information must be included in a full ASTM D5656 test report?

A15: Full adherend details (2024-T3 aluminum thickness, surface prep method per D2651)

Complete adhesive identification: batch, mixing ratio, application method, curing time/temperature/pressure

Specimen geometry: overlap length/width, average bondline thickness, replicate count

Pre-test conditioning temperature, humidity and hold duration

Test environment conditions during loading

Tensile machine parameters, extensometer calibration data, solid bar metal deformation correction value (dm)

Per-specimen curve metrics: linear limit stress/strain, shear modulus, knee yield stress/strain, ultimate shear stress/strain

Failure mode classification (cohesive / adhesive interface failure) for every coupon

Averaged statistical results across all replicates

Notes of any test interferences (machining edge damage, extensometer drift, abnormal specimen twist)

Q16: Does ASTM D5656 measure how well an adhesive "sticks" to a substrate?

A16: No. The standard explicitly states: "This test method is not intended to determine adhesion characteristics of an adhesive to a particular substrate; rather this test method is intended to characterize the adhesive shear stress-strain properties that may be relevant for design considerations." It characterizes the bulk shear behavior of the adhesive itself — not interfacial adhesion.

Q17: What does research tell us about D5656's advantages?

A17: Studies demonstrate key advantages:

(1) Combining sandblasting with the FPL process as a method of aluminum surface treatment positively impacts the adhesive shear strength. Compared to sandblasting alone, after FPL treatment, the shear strength measured by D1002 and D5656 tests increased by 35% and 48%, respectively.

(2) FPL treatment improves joint uniformity. In both tests, the shear strength variation coefficient of FPL-treated samples was lower—2.13% in the D5656 test, compared to 5.94% for sandblasting alone.

(3) Comparing the D1002 and D5656 test methods, the latter gives higher values, closer to the theoretical shear strength of the adhesive. For sandblasted-only samples, the shear strength measured by D5656 was 91% higher than D1002; after FPL treatment, this difference reached 109%. The main reason is the greater aluminum thickness in D5656 samples, which provides higher stiffness, reduces joint bending, and makes the adhesive layer shear state more uniform.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
