ASTM D3410 Shear Loading compression Test for Polymer Matrix Composite Materials with Unsupported Gage Section

Share:

ASTM D3410 Shear Loading Compression Tester for Polymer Matrix Composites | UnitedTest

UnitedTest manufactures ASTM D3410 shear loading compression test machines, designed to measure in-plane compressive properties of high-modulus fiber-reinforced polymer matrix composites with unsupported gage sections using wedge grip shear loading.


ASTM D3410 Shear Loading compression Test Method for Compressive Properties of Polymer Matrix Composite Materials with Unsupported Gage Section.

ASTM D3410 measures in‑plane compressive properties for high‑modulus‑fiber‑reinforced polymer‑matrix composites through pure shear‑loading with wedge grips, featuring an unsupported gage section on the test coupon. This test method evaluates the in-plane compressive performance of polymer matrix composite materials reinforced by high-modulus fibers. It applies to composites manufactured from unidirectional tape, wet-tow placement, textile fabric, short fibers and similar product forms. Minor adjustments to the test procedure may be required for certain composite material formats. UnitedTest provides precision universal testing machines and dedicated ASTM D3410 test fixtures to deliver repeatable composite compression test results for material research, product certification and quality control.


Test Principle

Compressive force is transferred purely by interfacial friction/shear between wedge grips and specimen/tabs, instead of end‑face compression loading. The flat rectangular coupon has a free, unsupported gage length between two gripping zones. Wedge clamps squeeze both ends of the specimen; shear friction delivers compressive load into the test gage area. Back‑to‑back strain measurement monitors bending, Euler column buckling, and material strain responses during compression. The test derives stress‑strain curves to calculate compressive strength, modulus, ultimate strain, compressive Poisson’s ratio and transition strain for bilinear material behaviour.


Test Specimen Information

ShapeFlat strip, constant rectangular cross‑section
Width10 mm [0.5 in] for 0° unidirectional; 25 mm [1.0 in] for 90° unidirectional and specially orthotropic laminates
Gage length10–25 mm [0.5–1.0 in] (Table 3 covers 12, 20, 25 mm)
Tab length65 mm [2.5 in]
Tab thickness1.5 mm [0.06 in]
Overall length140–155 mm [5.5–6.0 in]
Minimum thicknessGiven by Eq 1 (Euler column‑buckling criterion, pinned‑end assumption, with an assumed through‑thickness shear modulus Gxz = 4 GPa [0.6 Msi], measurable by D5379/D5379M); tabulated in standard Table 3 vs. expected modulus and expected strength — the lower the modulus and higher the strength, the thicker the specimen must be
TabsNot mandatory, but recommended; typically 90° tab taper angle, steel or E‑glass/epoxy tab material; tab surfaces must be parallel and bonding must be rigor­ous
Ply orientation tolerance±0.5° relative to the reference axis (‑A‑)
SamplingAt least 5 specimens per test condition


Test equipment required for ASTM D3410 shear-loading compression test for polymer matrix composites

Universal Testing Machine (UTM)

Complies with ASTM E4 force calibration requirements, with movable cross‑head; load‑cell accuracy within ±1 % of indicated force over test range.

Spherical/hemispherical joint is recommended to mitigate angular misalignment.

D3410 Compression test fixture

(wedge‑grip assembly)

Rectangular wedge grip blocks, upper/lower housing blocks, clamping screws, optional end bars for specimen length equalization; polished, lubricated sliding wedge surfaces are mandatory.
Strain‑measuring system

Bonded resistance strain gages (preferred grid length ≤3 mm, 350 Ω recommended) or extensometers meeting ASTM E83 Class B‑2.

Back‑to‑back strain gages on opposite specimen faces are required for first five replicate specimens, to compute percent bending and detect Euler buckling.

Transverse‑direction gages are added for Poisson’s‑ratio measurement.

Measurement toolsMicrometers and calipers (thickness accuracy ±0.0025 mm; length/width ±0.025 mm).
Environmental chambersConditioning chamber following ASTM D5229/D5229M for moisture pre‑conditioning; thermal environmental chamber for elevated/low‑temperature testing.


Key Test Parameters

  1. Loading rate:

    • Strain‑controlled test: standard strain rate = 0.01 min⁻¹.

    • Cross‑head displacement control: 1.5 mm/min. Test duration to specimen failure shall fall between 1–10 minutes.

  2. Bending validity criterion: Calculated specimen percent bending By must be < 10 % both at chord‑modulus check‑point strain and at failure strain, otherwise data is deemed invalid. Excessive bending induces premature failure and wrong modulus values.

  3. Chord‑modulus calculation strain window: Typically 1000 με to 3000 με longitudinal strain; for low‑failure‑strain materials use 25 %–50 % of ultimate failure strain.

  4. Pre‑load limit: Pre‑seating compressive pre‑load shall not exceed 5 % of estimated ultimate failure force.


Properties, in the test direction, that may be obtained from this test method include:

1. Ultimate compressive strength,

2. Ultimate compressive strain,

3. Compressive (linear or chord) modulus of elasticity,

4. Poisson's ratio in compression, and

5. Transition strain.

ASTM D3410 Shear Loading compression Test for Polymer Matrix Composite Materials with Unsupported Gage SectionASTM D3410 Shear Loading compression Test for Polymer Matrix Composite Materials with Unsupported Gage Section


Test Procedures of ASTM D3410 shear-loading compression test for polymer matrix composites

  1. Pre‑test preparation:

    • Record material information; machine specimens according to drawing requirements, inspect for machining damage, delamination or notches.

    • Measure actual width and thickness at three positions on each coupon gage section, compute average cross‑sectional area A = w X h.

    • Apply strain gages on both faces of specimen gage section; install transverse gages if Poisson’s ratio will be measured.

    • Perform moisture/temperature conditioning (before or after gaging; document sequence).

  2. Fixture installation:

    • Inspect, polish and lubricate wedge‑grip sliding surfaces; check platens parallelism. Mount upper wedge housing block to machine cross‑head; place lower housing block on lower platen, centre assembly along load axis.

  3. Specimen insertion & alignment:

    • Use alignment jig to position specimen inside wedge grips, ensure equal gripped length on top and bottom ends. Close wedge clamping screws gently. Insert assembled grip‑specimen unit into fixture housing blocks. Apply small pre‑load for wedge seating, then remove pre‑load and zero force and strain channels.

  4. Mechanical loading:

    • Run compression test at specified rate; continuously record force, longitudinal strains, transverse strains versus time until specimen fractures.

  5. Post‑test evaluation:

    • Record maximum failure force; capture failure mode and assign three‑part failure‑identification code. Reject results from buckling, grip‑zone fracture or high‑bending (> 10 %) coupons.

  6. Calculation: Compute ultimate compressive strength (Fc=Pmax/A), average compressive strain, chord compressive modulus, compressive Poisson’s ratio, transition strain (for bilinear curves), sample mean, standard deviation and coefficient of variation for valid replicates.

Result:

Data for the following compressive properties tested are provided: ultimate compressive strength, ultimate compressive strain, compressive chord modulus of elasticity, compressive Poisson’s Ratio, and three-part failure identification codes.

ASTM D3410 Shear Loading compression Test for Polymer Matrix Composite Materials with Unsupported Gage Section


Related / Similar Standards

ISO 14126

Fibre-reinforced plastic composites — Determination of compressive properties in the in-plane direction

GB/T 5258Fibre-reinforced plastic composites.Determination of compressive properties in the in-plane direction
ASTM D3410Equivalent to ISO 14126 Method 1 (shear‑loading compression)ISO
ASTM D6641Correlates with ISO 14126 Method 2 (combined‑loading compression)ASTM Inter...
JIS K 7076, JIS K 7018Japanese national compression‑test standards referenced during drafting of ISO 14126ISO
ISO 604Compression test for rigid isotropic plastics, not for laminated composite in‑plane compressionNEN
ISO 20975‑1For composite through‑thickness (Z‑axis) compression, complementary standard to ISO 14126NEN
ISO 527‑4 / ISO 527‑5Composite tensile‑property standards, referenced for surface‑preparation and tabbing guidanceISO
prEN 2850, AITM 1‑0008Aerospace industry composite compression test methods influencing ISO 14126 contentISO
GB/T 3856Test method for compression properties of unidirectional fiber reinforced plastics
ASTM D5467Sandwich‑beam four‑point‑bending method to derive compressive properties of thin unidirectional composite skins, uses honeycomb sandwich structure specimen rather than flat coupon with wedge grips;
ASTM D5379V‑notched beam test for composite shear modulus (required input for D3410 minimum‑thickness buckling calculation).
TCVN 10593Fibre-reinforced plastic composites -- Determination of compressive properties in the in-plane direction
GB/T 3355Test method for in-plane shear response of polymer matrix composite materials


Industry fields and applications

  • Aerospace — principal use: generating compression design allowables and material qualification data for carbon/epoxy and glass/epoxy tape and fabric laminates (wing/fuselage skins, spars, stringers). Method is DoD‑approved.

  • Defense / space — qualification and acceptance of composite structures and materials.

  • Automotive and rail — lightweight structural composites, crash/load‑path design data.

  • Wind energy — spar caps, blade root and shell laminates (compression governs buckling‑driven design).

  • Marine, pressure vessels, sporting goods, industrial equipment — any high‑modulus‑fiber composite where compressive load cases exist.

  • Material suppliers, R&D, and QA — material specifications, batch release/quality assurance, process and layup development, and input data for structural analysis/FEA.


Keywords: ASTM D3410, composite shear loading compression tester, polymer matrix composite compression test, unsupported gage section compression, high modulus fiber composite, wedge grip compression fixture, carbon fiber composite compression tester, unidirectional composite test, textile reinforced composite, short fiber reinforced polymer, composite compressive strength, composite compressive modulus, composite laminate mechanical test, aerospace composite testing, composite material characterization, UnitedTest composite test machine, composite lab testing equipment, fiber reinforced polymer compression test, composite quality assurance test

Related products and device

ASTM D3410 shear-loading compression test machine for polymer matrix composites

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

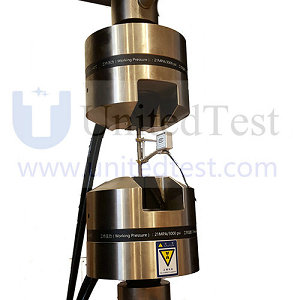

ASTM D3410 unsupported gage section compression, high modulus fiber composite

Hydraulic wedge test grips are a robust and versatile solution for tensile testing of high-strength materials. It can be used in both static and dynamic materials testing applications – from 20KN to 500 kN force capacity for dynamic tests, and up to 600 kN for static tests.

Related Standard

ISO 14126 In-Plane Compressive Test of Fiber-Reinforced Material –

ISO 14126 Compression test Fibre-reinforced plastic composites — Determination of compressive properties in the in-plane direction

ISO 14126 specifies how to determine in‑plane compressive properties (i.e. load applied parallel to the plane of lamination, in directions "1" and "2") of fibre‑reinforced plastic composites with thermosetting or thermoplastic matrices. Specimens are machined from a flat test plate or from finished/semi‑finished products.

ASTM D4716 In-Plane Flow Rate & Hydraulic Transmissivity Test –

ASTM D4716 Standard Test Method for Determining the (In-plane) Flow Rate per Unit Width and Hydraulic Transmissivity of a Geosynthetic Using a Constant Head

ASTM D4716 is a constant-head laboratory hydraulic test that measures how much water a geosynthetic can convey within its own manufactured plane (parallel to the sheet), while the specimen is squeezed under a normal compressive stress.

Primary use = index test (comparative / quality-control ranking).

Secondary use = performance test, when the user selects gradients and contact surfaces that model the actual field conditions (then the result can be used directly in design).

ASTM D3518 In-Plane Shear Test for Polymer Composites –

ASTM D3518 Standard Test Method for In‑Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate

ASTM D3518 determines the in-plane shear response of continuous-fibre polymer-matrix composites by pulling a balanced, symmetric ±45° laminate in uniaxial tension and converting axial/transverse strains into shear strain. It provides shear stress‑strain curves, chord shear modulus, maximum shear stress and offset shear strength for composite laminates.

ASTM D5448 Inplane Shear Test of Hoop Wound Polymer Composites –

ASTM D5448 Standard Test Method for Inplane Shear Properties of Hoop Wound Polymer Matrix Composite Cylinders

ASTM D5448 is a mechanical test for determining in-plane shear properties of hoop-wound (≈90°) polymer matrix composites reinforced with high-modulus continuous fibers.The specimen is a thin-walled cylindrical tube loaded in torsion to obtain shear-dominated material behavior in the fiber/transverse plane.It does not test a flat laminate coupon in rail/shear; it uses a cylindrical winding geometry representative of filament-wound structures.

ISO 12958-2 Performance Test​ for in-plane water flow capacity of geotextiles –

ISO 12958‑2 Geotextiles and geotextile‑related products — Determination of water flow capacity in their plane — Part 2: Performance test

ISO 12958‑2 specifies a constant-head, in-plane (within-the-plane) water flow capacity performance test using project-like boundary materials (soils, granular layers, rigid platens) and service-oriented conditions: soil confinement, low hydraulic gradients, seating times (creep exposure), and a range of normal compressive stresses.

ISO 12958-1 Geotextile in-plane water flow capacity index test –

ISO 12958-1 Geotextiles and geotextile-related products — Determination of water flow capacity in their plane — Part 1: Index test

ISO 12958-1 specifies a constant-head, in-plane (within the plane of the sheet) water flow capacity index test for factory-assembled geotextiles and geotextile-related products (geocomposites, drainage mats, cuspated sheets, etc.).

It measures how much water can flow parallel to the product’s plane under defined normal compressive stress and hydraulic gradient, at a reference water temperature of 20 °C.

It is an index test (not a full performance simulation). Performance under site-specific boundary conditions is covered by ISO 12958-2.

ASTM D4255 Rail Shear Test In-Plane of Polymer Matrix Composite Materials –

ASTM D4255 Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

ASTM D4255 is test method for measuring in‑plane shear properties of fiber‑reinforced polymer‑matrix composite materials using the rail‑shear fixture approach. It defines two distinct test configurations (Procedure A two‑rail shear, Procedure B three‑rail shear) to obtain shear stress‑strain curves, shear chord modulus, offset shear stress, and maximum in‑plane shear stress for composite laminates. The standard applies for continuous‑fiber, woven‑fabric, balanced‑symmetric laminates and randomly‑oriented short‑fiber polymer‑matrix composites. It notes that shear‑stress gradients and grip‑area stress concentrations may degrade reproducibility; D5379 and D7078 deliver more uniform pure‑shear stress states in gage sections.

ISO 14129 In-Plane Shear Stress/Shear Strain Response Test –

ISO 14129: Fibre-reinforced plastic composites - Determination of the in-plane shear stress/shear strain response, including the in-plane shear modulus and strength, by the +/- 45° tension test method

ISO 14129 in-plane shear strength for composites of ± 45° tension test is use tension test method to determine the shear strength, stress etc.,  tensile test of a ±45° laminate is used to determine the in-plane shear response of polymer matrix composite materials. Uniaxial tensile force is applied to a flat test specimen up to 5% shear strain to investigate the in-plane shear stress/strain response, and critical mechanical materials properties including shear modulus and shear strength. Composite materials addressed in this standard include thermoset and thermoplastic matrix laminates in the form of unidirectional layers or fabrics, with the fibres oriented at ± 45° symmetrical to the main specimen axis. The ± 45° in-plane shear test is performed by placing a test specimen in the grips of either a servohydraulic or an electromechanical testing machine and subjecting it to controlled tension load up to 5% shear strain. The specimen response can be measured with a contacting or non-contacting extensometer, or strain gages.


Test sample size: 250mm length, 25mm width, 2mm thickness.

Machine recommend: UnitedTest electronic Universal testing machine 50Kn, 100KN.

Test fxiture recommend: UnitedTest hydraulic wedge tensile grips.

ISO 22407 Fatigue testing Axial plane bending test –

ISO 22407 standard specifies the method for rotating bar bending fatigue testing of metallic materials. Tests are performed at room temperature or at elevated temperature in air by rotating the sample.

ISO 22407 specifies the conditions for conducting the plane bending fatigue test on an axial machine, constant-amplitude, force or displacement controlled, at room temperature (ideally between 10 °C and 35 °C) on metallic specimens, without deliberately introduced stress concentrations. This document does not include the reversed/partially loading test. The purpose of the test is to provide relevant results, such as the relation between applied stress and number of cycles to failure for a given material condition, expressed by hardness and microstructure, at various stress ratios.

FAQs for ASTM D3410 Composite Compression Test

Q1: What is ASTM D3410 test used for, and why is it important for polymer‑matrix fibre‑reinforced composites?

A: ASTM D3410 measures in‑plane compressive properties for specially‑orthotropic polymer‑matrix composites via pure shear wedge‑grip loading with an unsupported gage section. Compression failure (kink‑banding, micro‑buckling, delamination) occurs at far lower loads than tensile failure for fibre composites, and compressive data is critical for aerospace, wind‑energy and automotive structural design allowables, material qualification, incoming QA and laminate lay‑up optimisation. Unlike end‑loading tests, pure shear loading avoids end‑crushing artefacts to get genuine material compressive strength, modulus, ultimate compressive strain, Poisson’s ratio and transition strain for bilinear stress‑strain responses. It is formally approved for U.S. Department of Defense composite material qualification.


Q2: What is the core test principle of ASTM D3410? How is load transferred?

A: Compressive force is transferred purely by shear friction between wedge grips and specimen/tabs, no direct end‑face pushing (pure shear‑loading principle). The specimen has a free unsupported gage length between two gripped zones. Wedge clamps squeeze both specimen ends; shear friction injects compression load into the central gage region. Back‑to‑back strain gages on opposite coupon faces monitor specimen bending and detect Euler column buckling during compression.


Q3: What is the difference between ASTM D3410 and ASTM D6641?

A: ASTM D3410: Pure shear‑loading only, unsupported gage section, classic IITRI / Celanese wedge fixture; sensitive to alignment and tab quality; widely used for legacy aerospace specifications.

ASTM D6641 (CLC fixture): Combined shear + end‑face loading, mixed load transfer, less operator‑sensitive, popular for multi‑directional laminates. D3410 produces data from pure shear input while D6641 adds end‑thrust force; test results can differ for identical composite material systems.


Q4: Do I need specimen tabs for ASTM D3410 testing? When can I run untabbed specimens (Method B)?

A: Tabs are not mandatory in D3410 standard, but bonded tabs (E‑glass laminate / steel tabs) are strongly recommended for 0° unidirectional carbon fibre composites to avoid grip‑zone premature fracture. Untabbed Method B works for 90° unidirectional, cross‑ply [0/90]ₙₛ and woven‑fabric laminates. Abrasive cloth inserts between wedge jaws and coupon surfaces are often used to boost friction for untabbed specimens. If >50 % specimens break inside grip/tab area, your tab or gripping setup is invalid and needs adjustment.


Q5: Why does my specimen buckle (Euler buckling) during D3410 compression test? How to prevent it?

A: Buckling arises when gage length is too long or specimen thickness is too thin for your material modulus and compressive strength. Follow the standard’s formula and Table 3 for minimum required specimen thickness based on expected modulus / compressive strength values. Other triggers: poor fixture alignment, excessive bending (> 10 % bending percentage), loose wedge grip pre‑load. Back‑to‑back strain‑gage readings detect buckling: fast divergence of front‑/back strain signals indicates column buckling; such test data shall be discarded as invalid.


Q6: Can I use D3410 for short‑fibre composites or textile fabric laminates?

A: Yes, if the composite exhibits specially‑orthotropic elastic behaviour relative to test direction. Both continuous‑fibre and discontinuous‑fibre specially‑orthotropic materials fall under D3410 scope; some textile materials may need minor documented deviations from the standard geometry recommendations.


Q7. How does D3410 differ from D6641, D695, and D5467?

StandardLoad introductionSpecimen / feature
D3410/D3410MShear at wedge grips, unsupported gage sectionShort gage 12–25 mm; tabs usually used; rectangular wedge fixture (successor to the Celanese/IITRI conical-wedge design)
D6641/D6641M (CLC)Combined shear + end loadingCompact combined-loading fixture; often untabbed specimens
D695End loadingOriginally for rigid plastics; risk of end crushing / brooming
D5467/D5467MFour-point bending of a sandwich beamUnidirectional materials; avoids gripping, requires sandwich panel fabrication

Results are not interchangeable — the method must always be reported alongside the value.


Q8: What are the most common causes of invalid D3410 data?

A: Fiber misalignment during layup; poor tab bonding or non-parallel tabs; machining damage (notches, delaminations, undercuts); insufficient specimen thickness → Euler buckling; grip slip or grip-induced failures; excessive system bending (B_y ≥ 10 %); strain-gage installation damage (surface prep that cuts fibers); load-cell range too high for accurate modulus (the standard explicitly warns that simultaneous precision measurement of modulus and ultimate stress may require two load cells / separate tests); and testing outside the specified rate window.


Q9. Why are wedge-grip surface finish and lubrication so important?

A: The wedge mating surfaces undergo sliding contact under high load. They must be flat, polished, lubricated, and nick/corrosion-free; the standard cites an acceptable finish of 2–12 µin rms with a mean of 7 µin rms. Gripping faces are typically roughened — e.g. 7–8 serrations/cm serrations, or 100-grit thermal-sprayed tungsten carbide. Poor or damaged sliding surfaces cause stick-slip, unequal wedge travel, induced specimen bending, and premature grip failures.


Q10: Why choose UnitedTest ASTM D3410 Shear‑Loading Compression Test Fixture & Test System?

A: UnitedTest supplies ASTM D3410 compression test fixture & complete composite compression testing system for polymer‑matrix fibre‑reinforced composites. Measure compressive strength, modulus, Poisson’s ratio following ASTM D3410/D3410M‑16(Reapproved 2024) pure shear‑loading test method for aerospace, wind‑energy and automotive composite QA & R&D.


UnitedTest manufactures high‑precision ASTM D3410 / D3410M‑16(2024) compliant compression test fixtures and complete universal testing machine solutions for polymer‑matrix fibre‑reinforced composite materialsUnitedTest.

The ASTM D3410 standard defines the pure shear‑loading compression test method for measuring in‑plane compressive properties with unsupported gage section, widely used in aerospace defence, wind turbine blade R&D, advanced automotive composite qualification, composite material incoming quality control and research laboratory work. Our D3410 wedge‑grip compression fixture implements the IITRI / Celanese‑style rectangular wedge shear‑loading principle, transferring compressive force purely by wedge‑grip interfacial shear without end‑face compression load.


UnitedTest D3410 test fixture supports both tabbed‑specimen Method A and untabbed‑specimen Method B. It comes with specimen alignment jig, replaceable grip inserts (serrated or thermal‑sprayed tungsten‑carbide grip surfaces), polished sliding wedge components, and fits most standard electromechanical or servo‑hydraulic universal test frames.

With UnitedTest full ASTM D3410 composite compression testing solution, laboratories can accurately test ultimate compressive strength, ultimate compressive strain, compressive chord modulus of elasticity, compressive Poisson’s ratio and transition strain for unidirectional tape, wet‑tow lay‑up, woven textile fabric and specially‑orthotropic short‑fibre composite laminates.


Our system fully supports the standard requirements: back‑to‑back strain‑gage mounting, percent‑bending calculation, failure‑mode classification, environmental‑chamber compatibility for hot‑wet composite compression testing, and complete test‑report output aligned with ASTM D3410 reporting clauses.

Compare against related composite compression standards including ASTM D6641 (CLC combined‑loading compression), ASTM D695 end‑loading compression and ISO 14126. UnitedTest delivers ready‑to‑use hardware and technical guidance to minimise operator‑induced data scatter in challenging composite compression testing campaigns.
