ISO 14126 In-plane Compression Test Machine for Fibre-Reinforced Plastic Composites | UnitedTest

UnitedTest manufactures ISO 14126 composite compression testing machines for measuring in-plane compressive properties of fibre-reinforced plastic composites with thermosetting or thermoplastic matrices. Test specimens are machined from flat plates or finished composite products for material qualification and quality control.

ISO 14126 Compression test Fibre-reinforced plastic composites — Determination of compressive properties in the in-plane direction

ISO 14126 defines test procedures to measure in‑plane compressive properties, where load is applied parallel to the laminate plane along direction 1 and direction 2, for fibre‑reinforced plastic composites using thermosetting or thermoplastic matrices. Test specimens can be machined from a flat test plate or finished and semi‑finished composite parts. This standard supports composite material characterization, product specification validation and laboratory quality control. UnitedTest supplies reliable universal testing equipment and dedicated fixtures to perform ISO 14126 in-plane compressive tests accurately.

Test Principle

An axial compressive force is applied to the unsupported gauge length of a straight‑sided rectangular coupon held in an anti‑buckling loading/support fixture, while load and strain in that gauge length are monitored.

The decisive quality gate is: any fixture may be used, provided the specimen fails below 10 % bending strain (measured between 10 % and 90 % of maximum load) and fails in the prescribed manner and location. Only then may the result be treated as a genuine axial‑load material property rather than a buckling load.

Two ways of introducing load are permitted:

Method 1 — shear loading through the faces of the end tabs

Method 2 — combined loading — direct end loading plus shear through the tabs simultaneously

The standard warns that results from different method/specimen/fixture combinations are not necessarily comparable.

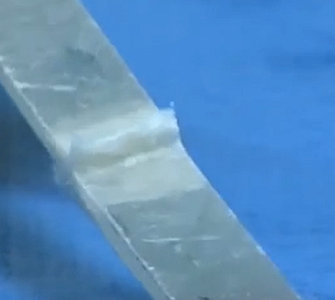

ISO 14126 In-Plane Compressive Test of Fiber-Reinforced Material

The two test methods

Method 1 —

Shear loading

Load enters purely as shear through the bonded end tabs, applied via flat wedge or "vee" action grips (aligned hydraulic grips in an aligned machine are also acceptable).

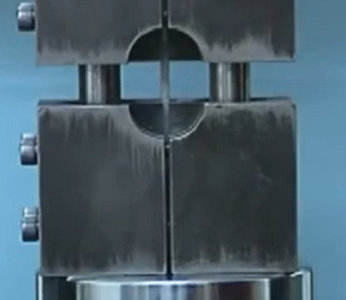

Typical fixture: ASTM D3410 Method B — the IITRI fixture (flat "back" wedge grips). The earlier Celanese design (conical back wedge grips) is noted as no longer included in ASTM D3410. Annex C also shows hydraulic grips.

Pros/cons: simple and well‑established, but not suited to very thick laminates — shear strains cause non‑uniform strain distribution through the thickness and tabs can shear off at high load.

Method 2 —

Combined loading

Load enters simultaneously by direct bearing on the specimen ends and by shear through the tabs (gripped/clamped support blocks also count as combined loading, since clamping transfers load by both paths).

Typical fixtures: Annex D shows the JIS K 7018 combined‑loading fixture, the ASTM D6641 CLC (Combined Loading Compression) fixture, and the Hydraulic Composites Compression Fixture (HCCF).

Pros/cons: overcomes the shear‑loading limitations and can be used for higher laminate thicknesses; the penalty is that the specimen ends must be machined to tight parallelism/squareness. Note Poisson expansion increases the transverse load on bolted clamps during the test.

Test specimens

Two main specimen categories, both rectangular coupon geometryISO:

Type A specimen: End‑tabbed, fixed‑thickness. Designed for aerospace‑grade unidirectional prepreg (ply thickness ~0.125 mm). For unidirectional materials, specimen cutting axis must be within 0.5° of mean fibre orientation.
Type B specimen: Two variants B1 and B2. May be untabbed or end‑tabbed.

B1: for heavy‑ply multi‑directional laminates.
B2: for non‑crimp fabric, woven textile, 3D‑fabric composite with coarser reinforcement structures.

End‑tab requirements

Tabs are typically glass‑fibre cross‑ply laminates (±45° relative to specimen axis), tab thickness from 0.5 mm‑2 mm. Adhesive bond‑line thickness must stay uniform. Annex B (normative) specifies bonding and machining rules. Specimens shall be free of twist, scratches, edge defects; defective coupons are rejected before testing.

Minimum number of replicates: at least five valid specimens for each test direction. Tests failing due to grip‑region rupture or excessive bending must be discarded and replaced by new specimens.

Test equipment required for ISO 14126 In-Plane Compressive Test of Fiber-Reinforced Material

Universal Testing Machine (UTM)	Conforms to ISO 7500‑1 and ISO 9513; kept in good condition; alignment checked regularly and after any part of the loading train is moved/reassembled
Load measurement	Force system to class 1 of ISO 7500‑1 → indicated load error ≤ ±1 %; continuous data logging throughout
Speed capability	Must hold the specified cross‑head speed
Strain measurement	Strain gauges, mechanical or optical extensometers, or DIC; indicated strain error ≤ ±1 % (ISO 9513). Measured on both faces (back‑to‑back) — or on the narrow side face if using DIC
Gauge length of sensors	Strain‑gauge elements < 3 mm for Type A and B1; B2 can take longer gauges (≥ 10 mm)
Micrometer / caliper	Reading to ≤ 0.01 mm; ~6 mm diameter flat faces (flat/polished) or hemispherical faces (other surfaces) for thickness
Loading fixture	Any design meeting the 10 % bending requirement and maintaining alignment; must be fully identified and described in the test report

Key Test Parameters

Cross‑head speed	1 mm/min ± 0.5 mm/min
Bending limit	≤ 10 % between 10 % and 90 % of Fmax
Installation pre‑strain	< 0.05 %
Face‑to‑face strain difference after grip tightening	< 150 µε
Chord‑modulus strain window	ε′ = 0.0005 → ε″ = 0.0025
Load accuracy	±1 % (ISO 7500‑1 class 1)
Strain accuracy	±1 % (ISO 9513)
Alignment verification	≤ 10 % bending at 1 000 µε axial strain, on a steel gauge with yield > 800 MPa, E ≈ 200 GPa
Replicates	≥ 5 per direction

Test Procedures of ISO 14126 In-Plane Compressive Test of Fiber-Reinforced Material

Prepare composite panels following ISO 1268 series; machine specimens with cooling to prevent thermal damage; inspect for surface and edge defects. Apply end‑tabs as required.
Condition specimens according to ISO 291 or material specification.
Measure specimen width (b, precision 0.1 mm) and thickness (h, precision 0.02 mm). For B2‑type, take measurements at three gauge‑length positions and use average values.
Mount strain‑measurement system (strain‑gauges or DIC). Install coupon into compression fixture; minimise pre‑strain (< 0.05 %). Check initial bending after clamping.
Set cross‑head speed to 1 mm/min, run compression test until fracture. Continuously record force and strain data.
Record maximum load, failure location and failure mode (in‑plane shear, through‑thickness shear, splitting, delamination, complex fracture).
Check test validity (bending‑strain criterion, failure location). Discard invalid replicates and retest new specimens.
Compute compressive strength, compressive secant modulus, compressive failure strain. Calculate mean value, standard deviation and 95 % confidence interval (ISO 2602).

Related / Similar Standards

ISO 14126	Fibre-reinforced plastic composites — Determination of compressive properties in the in-plane direction
GB/T 5258	Fibre-reinforced plastic composites.Determination of compressive properties in the in-plane direction
ASTM D3410	Equivalent to ISO 14126 Method 1 (shear‑loading compression)ISO
ASTM D6641	Correlates with ISO 14126 Method 2 (combined‑loading compression)ASTM Inter...
JIS K 7076, JIS K 7018	Japanese national compression‑test standards referenced during drafting of ISO 14126ISO
ISO 604	Compression test for rigid isotropic plastics, not for laminated composite in‑plane compressionNEN
ISO 20975‑1	For composite through‑thickness (Z‑axis) compression, complementary standard to ISO 14126NEN
ISO 527‑4 / ISO 527‑5	Composite tensile‑property standards, referenced for surface‑preparation and tabbing guidanceISO
prEN 2850, AITM 1‑0008	Aerospace industry composite compression test methods influencing ISO 14126 contentISO
GB/T 3856	Test method for compression properties of unidirectional fiber reinforced plastics
TCVN 10593	Fibre-reinforced plastic composites -- Determination of compressive properties in the in-plane direction
GB/T 3355	Test method for in-plane shear response of polymer matrix composite materials

Industry fields and applications

Aerospace — the primary driver. Type A + ~0.125 mm prepreg is exactly the aerospace unidirectional tape format; used for material qualification/allowables (see ISO 20144 SQP/RQP/EQP), batch acceptance, and laminate design data. Airbus AITM 1‑0008 is referenced for tab design.

Wind energy — spar caps and blade laminates (increasingly NCF → Type B2); compression governs the blade's suction‑side/root design.

Automotive & rail — CFRP/GFRP structural parts, crash and stiffness‑critical Members; Method 1 is the common European default.

Marine, pressure vessels, defence, sports equipment, civil/structural strengthening — any compression‑sized composite part.

Materials R&D & QC — resin/fibre development, process validation, incoming inspection, and generating the undamaged baseline strength needed for Compression‑After‑Impact (CAI) work.

Design & simulation input — E_c11/E_c22 and σ_c11 feed buckling, crippling and post‑buckling calculations for panels, stiffeners and shells, and orthotropic material cards for FEA.

Keywords: ISO 14126, composite compression tester, fibre reinforced plastic composite, in-plane compressive test, laminate compression property, carbon fiber composite compression test, glass fiber reinforced plastic, thermoset composite, thermoplastic composite, composite material testing machine, universal test machine, composite compressive strength, composite quality control, material mechanical testing, composite lab test equipment, UnitedTest composite tester, composite laminate test fixture, aerospace composite test, fiber reinforced polymer compression test

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

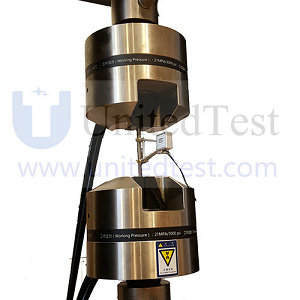

Hydraulic wedge test grips are a robust and versatile solution for tensile testing of high-strength materials. It can be used in both static and dynamic materials testing applications – from 20KN to 500 kN force capacity for dynamic tests, and up to 600 kN for static tests.
