ASTM D3029 Standard Test Methods for Impact Resistance of Flat, Rigid Plastic Specimens by Means of a Tup (Falling Weight)

ASTMD3029 is designed to determine the relative ranking of rigid plastic materials based on the energy required to crack or break them under specified impact conditions.

Test Principle

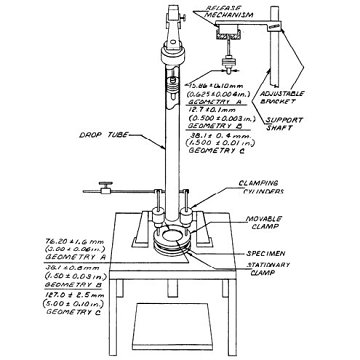

The core principle of this test is to drop a weighted "tup" (a dart or striker) onto a flat, rigid plastic specimen from a predetermined height.

Variable Control: The test can be performed using either a constant weight with variable height or a constant height with variable weight.

Bruceton Staircase Method (Up-and-Down): To efficiently determine the exact energy level that causes a 50% failure rate (Mean Failure Energy), the standard employs the Bruceton Staircase Method. This statistical approach concentrates testing around the mean failure threshold, significantly reducing the number of specimens required while maintaining precision.

Specific Test Methods

The standard outlines two distinct test methods:

Test Method F (Free-Falling Dart): A free-falling dart strikes the supported specimen directly. It allows for both fixed-weight/variable-height and fixed-height/variable-weight procedures.

Test Method G (Guide Tube): A fixed weight falls through a guide tube and strikes an impactor resting on top of the supported specimen. This method typically uses a constant-weight/variable-height procedure.

Both methods offer different geometries (e.g., FA, FB, FC for Method F; GA, GB, GC for Method G) to accommodate different material thicknesses and toughness levels, ranging from widely spaced support rings to punch-shear configurations.

Test Equipment/Device Required For ASTM D3029:

Falling-Dart Impact Tester	A structure capable of guiding the tup or allowing a free fall from the specified height (e.g., 0.660 m ± 0.008 m is the default drop distance).
Weights (Masses)	Cylindrical steel weights with a center hole to fit onto the tup shaft, accurate to ±1%.
Tup (Impactor)	Made of hardened tool steel (54 HRC or harder). The tup heads come in different diameters (12.7 mm, 15.86 mm, or 38.1 mm) and shapes (hemispherical or conical) depending on the selected geometry.
Specimen Clamp	A two-piece annular clamp to hold the specimen firmly in place. The clamp's internal diameter varies by geometry (ranging from 16.26 mm to 127.0 mm).
Measurement Devices	To measure specimen thickness, accurate to within 1% of the average thickness.

Test Specimen Information

Type: Flat, rigid plastic specimens; size large enough for firm clamping.

Dimension: For Method G, specimen width/diameter ≥25 mm larger than the support plate hole.

Thickness: Variation ≤5% of the average; machining to adjust thickness is prohibited.

Quality: No visible cracks/imperfections (for specification testing); production parts tested as-received.

Quantity: ~20 specimens for known mean failure energy; ≥6 additional specimens if unknown.

Key Test Parameters:

Item	Specification
Default drop height (Method F)	0.660±0.008 m
Tup/weight accuracy	±1%
Test environment	23±2 °C, 50±5% RH
Conditioning duration	≥40 h
Tup diameter (F-FA/FB/FC)	15.86 / 12.7 / 38.1 mm
Support ring inner dia (F-FA/FB/FC)	76.20 / 38.1 / 127.0 mm
Impactor diameter (G)	15.86 mm
Support plate hole dia (G-GA/GB/GC)	76.20 / 31.75 / 16.26 mm

Test Stipulations:

Clamping: Recommended for data precision; unclamped rigid specimens are allowed (show higher impact resistance).

Impact rule: Single impact per specimen; no repeated strikes.

Failure judgment: Permanent deformation alone is not failure; use dye for ambiguous cracks.

Calculation: Mean failure weight/height/energy, sample/mean standard deviation.

Reporting: Sample ID, geometry, clamping, thickness, MFE, failure mode, test conditions, operator/date.

Safety: No manual catching of rebounding tups; use cushioning/shielding to protect operators and equipment.

Test Procedures of ASTM D3029 Fall dart impact test:

Conditioning: Specimens are conditioned (usually at 23°C and 50% RH) to stabilize their mechanical properties.

Measurement: The exact thickness of each specimen is measured.

Setup: The correct geometry is selected, and the specimen is placed flat on the support anvil without clamping (unless specified).

Impact: The weight is raised to the desired height and released.

Evaluation: After impact, the specimen is removed and examined.

Failure Definition: A failure is defined as any crack, split, or hole visible to the naked eye under normal lighting. Permanent deformation (denting) alone is not considered a failure.

Staircase Progression: If the specimen fails, the next one is tested at a lower height. If it passes, the next is tested at a higher height. This continues until enough data points are collected around the 50% failure threshold.

Test Applications & Industry Fields

Packaging: Evaluating the drop durability of rigid plastic containers, lids, and blister packs.

Automotive: Testing interior trim, dashboards, and exterior components that must withstand road debris or minor collisions.

Consumer Goods & Electronics: Ensuring casings for power tools, appliances, and electronic devices resist breaking if dropped.

Construction & Piping: Assessing the impact strength of rigid PVC sheets, panels, and fittings.

Related Standards

ISO 6603‑2	Instrumented puncture impact testing (for force–deflection curves)
ISO 7765‑1 ISO 7765-2	Falling‑dart impact for plastic films and thin sheets.
ASTM D1709	Plastic film falling hammer impact test
ISO 6603-1	Plastics - Determination of the punching properties of rigid plastics - Part 1: Non-instrumented impact test
JIS K 7211	Plastics -- Determination of puncture impact behaviour of rigid plastics -- Part 1: Non-instrumented impact testing
ASTM D5420	Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimen by Means of a Striker Impacted by a Falling Weight (Gardner Impact)
ASTM D5628	Falling dart impact resistance of rigid plastics (similar principles but different striker geometry).
ASTM D3763	Standard Test Method for High Speed Puncture Properties of Plastics Using Load and Displacement Sensors
ASTM D1709	Standard Test Methods for Impact Resistance of Plastic Film by the Free-Falling Dart Method
ASTM D7136	Standard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event

Importance of the Test for Materials:

Plastics are viscoelastic materials, meaning their reaction to sudden stress (impact) is highly dependent on factors like temperature, geometry, and impact velocity. A material that performs excellently in a slow compression test might shatter instantly upon dropping. ASTM D3029 provides a standardized, reproducible way to:

Predict how a plastic part will behave in real-world accidental drop scenarios.

Compare the toughness of different plastic formulations or batches.

Serve as a critical quality control metric during manufacturing.

XJB-30E Heavy duty frame falling dart impact testing machine mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ISO 7765-1, ASTM D1709

XJB-30A Falling dart impact tester mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ISO 7765-1, ASTM D1709, GB 9639.

Q1: What is ASTM D3029?

A: ASTM D3029 is the Standard Test Methods for Impact Resistance of Flat, Rigid Plastic Specimens by Means of a Tup (Falling Weight). It determines the relative ranking of rigid plastic materials by measuring the energy required to crack or break them under controlled impact conditions.

Q2: Why is impact testing important for plastics?

A: Plastics are viscoelastic—their response to sudden stress (like a drop) differs greatly from slow loading. A material that performs well in static tests may shatter under impact. ASTM D3029 helps predict real‑world behavior, compare material toughness, and ensure quality control for parts that may experience accidental drops or collisions.

Q3: What are the two main test methods described?

A:Test Method F: A free‑falling dart (tup) strikes the specimen directly. It can use either a fixed weight with variable drop height or a fixed height with variable weight.

Test Method G: A fixed weight falls through a guide tube and strikes an impactor resting on the specimen. Typically uses a constant‑weight, variable‑height procedure.

Q4: How does the Bruceton Staircase Method work?

A: It is a statistical technique used to find the 50% failure energy efficiently. After each test, the weight or height is adjusted up or down based on whether the specimen failed or not. Testing concentrates around the mean failure threshold, reducing the number of specimens needed while maintaining precision.

Q5: How is “failure” defined?

A: Failure is the presence of any crack or split visible to the naked eye under normal laboratory lighting. Permanent deformation alone (e.g., a dent) is not considered failure. For difficult‑to‑see cracks (e.g., in glass‑reinforced polymers), a penetrating dye (like gentian violet) may be used to confirm cracking.

Q6: What are the different geometries (FA, FB, FC, GA, GB, GC)?

A: They define the tup diameter and support ring size to suit different materials:

FA/GA: 15.86 mm tup, 76.20 mm support ring (general purpose).

FB: 12.7 mm conical tup, 38.1 mm ring (higher stress concentration, good for tough/thick specimens).

FC: 38.1 mm tup, 127.0 mm ring (equivalent to ASTM D1709, used for extruded sheeting).

GB: 15.86 mm tup, 31.75 mm ring (similar to Gardner Impact Test).

GC: 15.86 mm tup, 16.26 mm ring (punch‑shear failure mode).

Q7: Is ASTM D3029 suitable for all plastics?

A: It is designed for flat, rigid plastics. Flexible films or highly elastic materials may not be appropriate; other standards (like ASTM D1709 for film) should be used instead. Additionally, some very tough specimens may require Method F with Geometry FB or FC to induce failure.

Q8: Why control temperature and humidity during testing?

A: Plastic impact properties are highly temperature-sensitive. Controlled conditions ensure repeatable, comparable data that reflects real-service environmental performance.
