ASTM D5628 Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimens by Means of a Falling Dart (Tup or Falling Mass)

ASTMD5628 specifies a falling‑dart/tup method to measure the threshold impact‑failure energy for flat rigid plastics. It uses the Bruceton Staircase (Up‑and‑Down) Method to determine the energy causing 50% of specimens to fail (mean‑failure energy, MFE).

Test Principle

The core principle of the ASTM D5628 test is to determine the threshold value of impact-failure energy required to crack or break a flat, rigid plastic specimen. A free-falling dart (tup) with a hemispherical or conical nose is dropped onto a supported specimen. By testing a series of specimens and adjusting the impact energy (via mass or height), the test statistically identifies the energy level that causes exactly 50% of the specimens to fail.

Specific Test Methods

The standard primarily employs the Bruceton Staircase Method (also known as the Up-and-Down Method) to efficiently converge on the 50% failure threshold

Constant Height - Variable Mass	The drop height is fixed, and the mass of the dart is varied between trials.
Constant Mass - Variable Height	The mass of the dart is fixed, and the drop height is varied.

Test Equipment Required For ASTM D5628:

Falling-Dart Tester	A machine with a guide tube or cage to ensure a straight, friction-minimized vertical fall, equipped with a reliable release mechanism.
Weights (Masses)	Calibrated weights with ±1% accuracy, attached to the tup shaft.

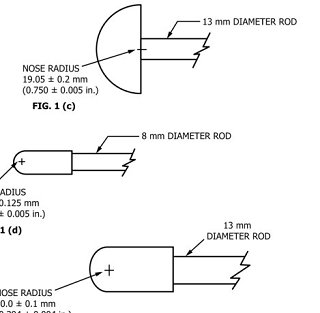

Striker (tup)	Interchangeable heads made of hardened tool steel (≥54 HRC). Five standard geometries are defined (FA, FB, FC, FD, FE) differing in diameter and shape (e.g., spherical, conical).
Specimen Clamp/Fixture	A two-piece annular clamp designed to hold the specimen firmly without inducing slip or excessive stress. The inside diameter of the clamp varies based on the tup geometry (ranging from 38 mm to 127 mm).
Measurement Devices	A micrometer (accurate to ±0.01 mm) for measuring specimen thickness, and calibrated weights accurate to ±1% of the total dart mass.

Test Specimen Information

Shape and Size: Specimens must be flat and rigid. They can be circular or square. The minimum required size depends on the chosen geometry (e.g., 89 mm for Geometry FA, 51 mm for Geometry FB) .

Thickness: The standard accommodates various thicknesses. However, within a single sample set, individual specimen thicknesses must not differ by more than 5% . For correlation with ISO 6603-1 (using Geometry FE), the specimen is typically 60 mm in diameter/square and 2 mm thick.

Quantity: ≥20 specimens for routine testing; ≥30 specimens for ISO 6603-1 equivalence.

Key Test Parameters:

Default drop height: 0.660±0.008m.

Failure definition: Any naked‑eye visible crack/split (penetrating dye may be used for confirmation).

Energy increment: ~0.5–2× the estimated standard deviation (or ~10% of expected mean‑failure mass/height).

Clamping: Recommended for better precision; unclamped is allowed for rigid samples.

Core result: Mean‑failure energy (MFE), reported in joules.

Test Stipulations:

Each specimen is impacted only once.

Permanent deformation alone is not failure.

Thickness variation >5% invalidates data for referee purposes.

Test results are not for direct structural design calculations.

The standard is not a referee method (no full precision/bias data from round‑robin studies).

Report must include geometry, clamping, specimen dimensions, MFE, failure type, and test conditions.

Test Procedures of ASTM D5628 Fall dart impact test:

Conditioning: Condition specimens in a controlled environment (e.g., 23°C and 50% RH) according to ASTM D618 or material-specific specs.

Measurement: Measure the thickness of each specimen accurately in the area where the impact will occur.

Setup: Secure the specimen in the annular clamp. Set the initial drop height (commonly 0.66 m if not specified) and select an initial dart mass expected to cause around 50% failure.

Execution: Release the dart. Catch the rebounding dart immediately to prevent secondary impacts.

Inspection: Remove the specimen and inspect it under normal lighting. Permanent deformation is notconsidered failure; only visible cracks or splits qualify as failure. (Note: For tricky materials like glass-reinforced polyester, a penetrating dye can be used to confirm micro-cracks).

Staircasing:

If the specimen failed, decreasethe dart mass (or height) by one increment for the next specimen.

If the specimen did not fail, increasethe dart mass (or height) by one increment for the next specimen.

Repetition: Continue this up-and-down process for at least 20 to 30 specimens to gather sufficient statistical data.

Test Applications & Industry Fields

The ASTM D5628 test is widely utilized across industries where rigid plastic components are subjected to sudden impact loads. Key industries include:

Automotive: For dashboards, interior trims, and protective casing evaluation.

Packaging: To assess the durability of rigid plastic containers, lids, and industrial pails against drops.

Consumer Goods & Electronics: For appliance housings, safety helmets, and protective casings.

Construction: Evaluating wall panels, piping, and safety glazing.

Aerospace: Testing interior composite panels and components.

Related Standards

ISO 6603‑2	Instrumented puncture impact testing (for force–deflection curves)
ISO 7765‑1 ISO 7765-2	Falling‑dart impact for plastic films and thin sheets.
ASTM D1709	Plastic film falling hammer impact test
ISO 6603-1	Plastics - Determination of the punching properties of rigid plastics - Part 1: Non-instrumented impact test
JIS K 7211	Plastics -- Determination of puncture impact behaviour of rigid plastics -- Part 1: Non-instrumented impact testing
ASTM D3763	Standard Test Method for High Speed Puncture Properties of Plastics Using Load and Displacement Sensors
ASTM D1709	Standard Test Methods for Impact Resistance of Plastic Film by the Free-Falling Dart Method
ASTM D7136	Standard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event

Importance of the Test for Materials:

Understanding a material's performance under impact is critical for product safety and durability. ASTM D5628 is important because :

Quality Control & Material Comparison: It provides a standardized, statistically significant metric (the 50% failure threshold energy) to compare different plastic formulations, batches, or suppliers.

Predicting Real-World Behavior: It simulates real-life accidental drops or collisions, helping engineers understand how a plastic part will behave under sudden, localized stress (cracking vs. shattering).

Geometry-Specific Insights: By offering five different tup and support ring geometries (FA through FE), the test allows engineers to simulate varying levels of stress concentration. For instance, Geometry FB is specifically designed to induce punch-shear failure in thick or tough plastics, while Geometry FE aligns with international standards (ISO 6603-1) for global material specifications.

XJB-30E Heavy duty frame falling dart impact testing machine mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ISO 7765-1, ASTM D1709

XJB-30A Falling dart impact tester mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ISO 7765-1, ASTM D1709, GB 9639.

Item	ASTM D5628-24	ISO 6603-1:2000
Full Name	Impact Resistance of Flat Rigid Plastics (Falling Dart/Tup)	Puncture Impact Behaviour of Rigid Plastics (Non-instrumented)
Core Principle	Falling-dart puncture impact (constant height/variable mass or reverse)	Same falling-dart puncture impact principle
Statistical Methods	Only Bruceton Staircase (one method)	Method A (Staircase, preferred) + Method B (Group, optional)
Equivalent Setup	Geometry FE (20 mm tup + 40 mm support)	Default (20 mm tup + 40 mm support)
Tup/Support Choices	5 geometries (FA/FB/FC/FD/FE)	2 combinations (20 mm+40 mm; 10 mm+100 mm)
Specimen Thickness	1–4 mm	1–4 mm
Specimen Count	≥20 (routine); ≥30 (for ISO match)	≥30 (Method A); ≥40 (Method B)
Clamping	Recommended for better precision	Default unclamped; clamp optional
Core Result	Mean-Failure Energy (MFE)	50% Impact-Failure Energy (E₅₀)
