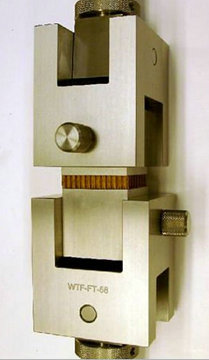

ASTM C297 Flatwise Tensile Strength Test of Sandwich Constructions

ASTM C297 Sandwich Construction Flatwise Tensile Strength Tester | UnitedTest

ASTM C297 test method measures flatwise through‑thickness tensile strength of sandwich panels, evaluating core material, core‑to‑facing adhesive bond and facing skins for foam, balsa wood and honeycomb core structures. UnitedTest supplies ASTM C297 compliant flatwise tensile testing machines for composite sandwich panel quality validation.

ASTM C297 is a widely‑adopted standard test method for evaluating flatwise, also known as through‑thickness, tensile strength of assembled sandwich construction panels. This test applies tensile load normal to the panel plane to quantify multiple critical performance indicators, including tensile strength of the core material, bonding integrity of core‑to‑facing adhesive joints, and mechanical strength of panel facing skins.

The standard accommodates two major core categories for sandwich structures: continuous‑bond cores such as foam and balsa wood, and discontinuous cellular cores represented by honeycomb. Test results reveal potential failure modes including core rupture, adhesive delamination, and skin fracture, delivering reliable data for material selection, adhesive formulation development, process optimization and incoming‑batch inspection. It is extensively deployed in aerospace, marine vessel manufacturing, railway transport, wind energy and lightweight composite construction industries.

UnitedTest develops and manufactures high‑performance ASTM C297 compliant flatwise tensile strength testing machines. Our test equipment provides accurate and repeatable through‑thickness tensile measurement for various sandwich panel assemblies, supporting R&D work, production quality control and third‑party laboratory certification for composite sandwich components.

Test Principle

A sandwich specimen is bonded on both faces to thick, stiff loading blocks. The assembly is mounted in a tensile testing machine and pulled apart along the panel thickness.

The force is transferred through the blocks into the sandwich. The goal is to create a nearly pure through-thickness tensile stress:

ASTM C297 Flatwise Tensile Strength Test of Sandwich Constructions

A valid test must fail inside the sandwich construction. Failure at the loading-block-to-specimen bond is invalid.

Test Specimen Specifications

Shape: Square or circular cross‑section, thickness equal to the original sandwich panel thickness.

Sample quantity: At least 5 replicates per test condition unless statistically justified fewer samples are used (reference ASTM E122 for sample‑size statistics)

Minimum area requirements:

- Continuous‑bond cores (foam, balsa): minimum facing area 625 mm² (1.0 in²), minimum block width 25 mm.

- Honeycomb / discontinuous cellular cores: specimen dimension depends on cell size, targeting minimum ~60 complete cells inside test area.

- Cell ≤3 mm: block W=25 mm, area=625 mm²

- 3‑6 mm cell: block W=50 mm, area=2500 mm²

- 6‑9 mm cell: block W=75 mm, area=5625 mm² (practical maximum area).

Required Test Equipment of ASTM C297 Flatwise Tensile Strength Test of Sandwich Constructions

Universal Testing Machine (UTM)	Complies with ASTM E4. Has stationary and movable crosshead; force readout accuracy within ±1 % of indicated value; controllable crosshead speed; low inertial lag at test rates.
Self‑aligning loading fixture & loading blocks	Blocks are 40‑50 mm thick, rigid flat plates. Dual‑pin connection / universal joint eliminates bending moment and eccentric load. Strict dimensional and parallelism tolerances apply to blocks.
Measurement tools	Micrometers / calipers with accuracy ±0.025 mm. Ball‑tip micrometer for irregular surfaces; flat‑anvil for smooth surfaces. Instrument resolution shall reach 1 % of specimen dimension.
Other	Bonding fixture for assembling specimen with loading blocks; precision cutting/machining tools (diamond saw, mill, grinding equipment) for specimen preparation ptional environmental chamber for temperature/humidity conditioning.

Mandatory Test Parameters & Stipulations:

1. Test speed: Adjust crosshead displacement so failure occurs within 3‑6 minutes. Suggested default rate: 0.50 mm/min (0.020 in/min)

2. Data acquisition: Sampling rate of 2‑3 Hz; minimum of 100 data points for each test record; record maximum force, rupture displacement, force‑displacement curves.

3. Alignment: Strict self‑alignment to eliminate bending; misalignment creates premature failure and high scatter. Alignment verification can reference ASTM D3039/D3039M.

Step by step Test Procedure of ASTM C297 Flatwise Tensile Strength Test of Sandwich Constructions

1. Pre‑test definition: Confirm sampling method, specimen geometry, conditioning scheme, required output properties, test environment, instrument selection.

2. Machine specimens from original sandwich panels, mark traceable identification codes. Measure dimension (length/width, thickness).

3. Bond specimen onto loading blocks with qualified adhesive under controlled temperature‑pressure, using alignment bonding fixture; wait for adhesive full cure.

4. Perform pre‑test conditioning as required, store specimens in conditioned environment until test start.

5. Re‑measure specimen dimensions after conditioning.

6. Mount bonded specimen‑block assembly into self‑aligning test fixture on universal test machine.

7. Set cross‑head test speed (target failure within 3‑6 min). Start continuous force‑displacement data logging.

8. Apply tensile load until full rupture of specimen. Record maximum force, displacement at failure.

9. Document failure mode and failure location for each specimen. Discard results if failure occurs at specimen‑loading‑block bond.

10. Compute flatwise tensile strength, average, standard deviation and CV for valid replicates.

Industrial Application Fields

Aerospace: Aircraft sandwich panels, satellite composite structures, quality verification for honeycomb components.

Wind‑energy: Wind‑turbine blade sandwich core‑skin bonding performance.

Marine industry: Composite hulls and superstructure panels.

Ground transportation: Rail, automotive lightweight composite sandwich components.

Architecture & building: Decorative and structural sandwich panels.

R&D and material qualification: Material specification validation, adhesive screening, core‑material comparison, production quality‑control inspection of bonded sandwich panels.

Related Test Standard:

ASTM C273	Shear properties of sandwich constructions.
ASTM C365	Flatwise compressive strength of sandwich cores.
ASTM C297	Standard Test Method for Flatwise Tensile Strength of Sandwich Constructions
GB/T 1452	Test method for flatwise tension strength of sandwich constructions
ASTM D1623	Standard Test Method for Tensile and Tensile Adhesion Properties of Rigid Cellular Plastics
EN 319	Particleboards and fibreboards; determination of tensile strength perpendicular to the plane of the board
DIN 53292	Testing of Sandwiches - Tensile Testing
ASTM D3354	Standard Test Method for Blocking Load of Plastic Film by the Parallel Plate Method

Keywords: ASTM C297 flatwise tensile strength tester,sandwich construction through‑thickness tensile test machine,composite sandwich panel core‑to‑facing bond test rig,honeycomb core flatwise tensile testing apparatus,foam balsa wood sandwich panel strength tester,sandwich panel adhesive delamination detection equipment,normal‑direction tensile test for composite panels,sandwich skin core bond integrity analyzer,lightweight composite material qualification test machine,aerospace marine sandwich panel performance tester,wind turbine composite component quality verification device,sandwich construction material mechanical property test instrument

Related products and device

ASTM C297 Sandwich Constructions Flatwise Tensile Strength Testing Machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

ASTM C297 Flatwise Tensile Strength Test fixture of Sandwich Constructions

UnitedTest nickel-plated two-square-platen bonding strength test fixture adopts separated upper and lower flat platens, applying uniform tensile/shear load to test adhesive bonding performance. Complete standard specifications, customizable platen sizes, meets ASTM, ISO standard.

foam balsa wood sandwich panel strength tester

Thin Plastic Film Tensile Testing Fixture is specially designed for tensile strength testing of flexible and soft plastic film specimens. Fully compliant with the ASTM D882 standard for thin film tensile testing, the fixture features premium rubber-coated jaws.

Related Standard

ISO 6383-2 Plastic film Elmendorf tear test –

ISO 6383-2 Plastics — Film and sheeting — Determination of tear resistance — Part 2: Elmendorf method

ISO 6383-2 specifies the Elmendorf pendulum method to measure the force required to propagate an existing pre-cut slit across thin flexible plastic film and sheeting under standardized loading conditions.

ASTM D1204 Plastic Films Dimensional stability testing at high temperature –

ASTM D1204 Standard Test Method for Linear Dimensional Changes of Nonrigid Thermoplastic Sheeting or Film at Elevated Temperature

ASTM D1204 is method to measure linear dimensional change (shrinkage or expansion) of nonrigid thermoplastic sheeting/film when exposed to a specified elevated temperature and time in air. Applies to nonrigid thermoplastic sheeting/film made by calender or extrusion processes, the heating medium is air (mechanical convection oven) — this points is the fundamental difference from ASTM D2732 (liquid bath).

ISO 527-3 Tensile Test on Plastic Film –

ISO 527-3 Plastics - TENSILE PROPERTIES - PART 3: FOR FILMS AND SHEETS

ISO 527-3 specifies the test conditions for determining the tensile properties of plastic films and sheets with a thickness less than 1 mm, based on the general principles of ISO 527-1. Provides standardized procedures to measure critical mechanical parameters including tensile strength, yield strength, elongation at break, and Young's modulus for thin plastic materials. It is critically important because thin films behave very differently under stress compared to rigid plastics; they are more prone to tearing, slipping, and deformation. By standardizing the test conditions, this document ensures that material specifications, quality control, and research data are globally comparable and reliable. Specimen created following ISO 527-3 can be used to determine the tensile properties of thin plastic sheets and films including the tensile modulus of elasticity and the tensile energy to break (TEB).

ISO 304 Surface tension test by drawing up liquid films, surface active agents –

ISO 304:1985 Surface active agents — Determination of surface tension by drawing up liquid films

The maximum force is measured which is necessary to act vertically on a stirrup or a ring, in contact with the surface of the liquid being examined placed in a measuring cup, in order to separate it from this surface, or on a plate with an edge in contact with the surface, in order to draw up the film that has formed. The surface tension of pure liquids or other solutions can also be measured by this method.

ASTM D1922 Elmendorf Tear Test for plastic films and thin sheeting tear resistance –

ASTM D1922: Standard Test Method for Propagation Tear Resistance of Plastic Film and Thin Sheeting by Pendulum Method.

ASTM D1922 defines a laboratory method to measure the average force required to propagate (continue) a tear through a plastic film or non-rigid thin sheeting, after the tear has already been started. The test uses an Elmendorf-type pendulum tearing tester. It is applicable to plastic film (arbitrarily defined as sheeting ≤ 0.25 mm / 0.010 in.) and thin non-rigid sheeting, and is equivalent to ISO 6383-2.

ASTM D1004 Tear Resistance (Graves Tear) of Plastic Film and Sheeting –

ASTM D1004: Standard Test Method for Tear Resistance (Graves Tear) of Plastic Film and Sheeting

ASTM D1004 is a test method that determines the tear strength of flexible plastic film and sheeting at very low rates of loading using a constant-rate-of crosshead-movement type tensile testing machine. Tearing is produced in a small area of stress concentration of the plastic film or sheeting specimen at controlled speeds below the rate encountered in real world applications in order to produce the most reliable data, which can be used to compare and analyze the tear resistance. Actual use of performance in tearing of certain plastics may not necessarily corralate with the data acquired from this test method. The specimen geometry of this test method produces a stress concentration in a small area of the specimen. The maximum stress, usually found near the onset of tearing, is recorded as the tear resistance in newtons (or pounds-force). The method is not applicable for film or sheeting material where brittle failures occur during testing or where maximum extension is greater than 101.6 mm (4 in.).

ISO 11502 Plastics Film and lamination blocking resistance test –

ISO 11502 Standard — Plastics, Film and Sheeting – Determination of Blocking Resistance

ISO 11502 evaluates blocking resistance (the tendency of flexible plastic films/sheets to stick together when stacked under heat and pressure) and provides two independent test methods: qualitative Method A and quantitative Method B.

ASTM D3354 Blocking load test for plastic film –

ASTM D3354 Standard Test Method for Blocking Load of Plastic Film by the Parallel Plate Method

ASTM D3354 defines a parallel plate test to quantitatively measure blocking load—the unwanted adhesion force between stacked plastic film layers, reported in grams for a fixed 100 cm² contact area. Blocking refers to self-sticking of smooth film surfaces when air is fully excluded during rolling, storage or processing, worsened by heat and compression. The test only quantifies existing adhesion strength, not a material’s inherent tendency to develop blocking over time, with a maximum measurable load limit of 200g.

FAQs for ASTM C297 Flatwise Tensile Test for Sandwich Constructions

Q1: What is ASTM C297 test used for, and why is it important?

A1: ASTM C297 measures flatwise (through‑thickness) tensile strength of assembled sandwich panels. It evaluates core material tensile performance, core‑to‑facing bond integrity, and facing skin tensile failure.

Sandwich structures gain high stiffness‑to‑weight ratio from skin‑core cooperation; weak through‑thickness bonding causes debonding, delamination and catastrophic structural failure under service load, even when in‑plane properties are excellent. This test delivers critical design input data, production QC check, adhesive qualification and material‑screening results for aerospace, wind‑energy, marine composite components.

Q2: What specimens does ASTM C297 cover? Can I test honeycomb, foam and balsa wood?

A2: Yes. It supports two core categories:

1. Continuous‑bond cores: foam, balsa wood; minimum specimen area = 625 mm² (1.0 in²).

2. Discontinuous cellular cores: aluminium / aramid honeycomb. Specimen size depends on cell dimension, to guarantee minimum ~60 complete honeycomb cells within test area. Square or circular cross‑section specimens are required; specimen thickness must match original sandwich panel thickness.

Q3: Why is failure at specimen‑to‑loading‑block bond considered invalid?

A3: The test objective is to measure failure inside the sandwich assembly (core, core‑facing adhesive, facings). If fracture occurs between specimen and loading block, you are testing block‑specimen adhesive instead of target sandwich properties. All such data must be discarded. You need to improve surface preparation, select higher‑strength bonding adhesive, optimize curing temperature/pressure, and check fixture alignment before retesting.

Q4: Can I reuse loading blocks for multiple specimens?

A4: Yes, but you must fully remove old adhesive residue, grit‑blast or clean bonding surface for every new specimen to guarantee good adhesive wet‑out. Check block flatness and parallelism regularly; discard deformed or scratched blocks.

Q5: What cross‑head speed should I run for ASTM C297 test?

A5: Target specimen rupture shall happen within 3 min‑6 min. Recommended default displacement rate: 0.50 mm/min (0.020 in/min). If you cannot predict failure load, perform preliminary trials to adjust speed accordingly. Too‑fast loading brings dynamic over‑reading; too‑slow speed may introduce creep influence for polymer‑based cores and adhesives.

Q6: Why is self‑aligning fixture so critical for ASTM C297? What risk comes with poor alignment?

A6: Bending / eccentric load from misalignment creates premature fracture and large data scatter, resulting in unrealistically‑low tensile‑strength values. The fixture needs dual‑pin / universal‑joint self‑alignment design to eliminate bending moments on specimens. If machine alignment is uncertain, perform alignment verification referenced to ASTM D3039/D3039M standard.

Q7: What common mistakes cause high‑scatter test results?

A7: Major error sources:

1. Specimen machining damage: notches, delamination, uneven cutting edges; use water‑cooled diamond saw/milling tools.

2. Poor bonding between specimen and loading blocks: contamination, improper curing temperature/pressure.

3. Fixture misalignment introducing bending moment.

4. Incorrect honeycomb specimen size: too small area contains insufficient honeycomb cells.

5. Ignoring environmental influence: test temperature/humidity strongly affects polymer adhesive and foam‑core strength.

6. Wrong cross‑head speed leading to non‑static failure behaviour.

Q8: Why choose ASTM C297 Flatwise Tensile Testing Machine & Fixture from UnitedTest?

A8: UnitedTest supplies complete ASTM C297 / C297M‑16 flatwise tensile testing solutions for sandwich composite panels, honeycomb, foam and balsa‑wood cores. Self‑aligning test fixture, universal testing machine and test software for aerospace, wind‑energy, marine composite quality control & R&D.

UnitedTest is professional manufacturer for ASTM C297 standard flatwise tensile strength test equipment for sandwich constructions. Our complete test system evaluates through‑thickness tensile performance of honeycomb, foam, balsa‑wood and multi‑material sandwich panels, verifying core strength, core‑to‑facing bond quality and facing‑skin failure for composite R&D, incoming‑material inspection, production quality‑control and component‑qualification projects.

Our ASTM C297 test solution includes high‑precision universal testing machine, dedicated self‑aligning dual‑yoke flatwise‑tensile fixture, interchangeable rigid loading blocks, measuring tools and dedicated composite‑testing software. The self‑aligning fixture eliminates eccentric bending moment to avoid premature specimen failure and noisy scattered test data, fully complying with requirements from ASTM C297/C297M‑16 (Reapproved 2024).

Key features for UnitedTest ASTM C297 testing setup:

1. Self‑aligning dual‑pin joint fixture strictly following standard design, minimising bending stress during flatwise tension test.

2. Interchangeable loading‑block sizes: compatible for small foam/balsa specimens (25 mm), medium honeycomb (50 mm), large honeycomb cell specimens (75 mm).

3. UTM force‑measurement accuracy reaches ±1 % of indicated reading, satisfying ASTM E4 machine‑calibration requirements.

4. Test software pre‑loaded with ASTM C297 calculation template: auto‑calculates ultimate flatwise tensile strength, mean value, standard deviation and coefficient‑of‑variation (CV); records force‑crosshead‑displacement curves and supports full‑standard‑compliant test‑report export.

5. Expandable configuration: can add temperature‑humidity environmental chamber for conditioned‑environment testing as required by ASTM D5229/D5229M.

6. Custom service: custom fixture dimensions and special‑load‑range frames for non‑standard large or thin sandwich specimens.

The UnitedTest ASTM C297 tester is widely deployed for composite laboratories, aerospace component manufacturers, wind‑turbine blade factories, marine‑structure composite producers and material‑certification institutions. Test target materials include aluminium honeycomb, Nomex honeycomb core, PVC / PET / PMI foam core, balsa‑wood‑cored sandwich panels, carbon‑fiber‑ and glass‑fiber‑skin sandwich constructions.

Besides ASTM C297 flatwise tension test equipment, UnitedTest also supplies related sandwich‑structure test fixtures for ASTM C273 shear test, ASTM C365 flatwise compression test, covering full‑range mechanical‑performance evaluation needs for sandwich composite panels.

< Previous: ASTM C158 Flexural Bend Testing for Glass

> Next: ASTM C473 Testing of Gypsum Panel Products (Flexural strength, Nail pull resistance
