ASTM C1265 Insulating Glass Edge Seal Tensile Tester | UnitedTest

UnitedTest manufactures ASTM C1265 compliant testing machines for structural glazing insulating glass edge seals. ASTM C1265 tests tensile strength, elastic stiffness and adhesion failure mode of secondary structural sealant on insulating glass units for structural sealant glazing (SSG).

ASTM C1265 Standard Test Method for Determining the Tensile Properties of an Insulating Glass Edge Seal for Structural Glazing Applications. ASTM C1265 simultaneously measures three core parameters for insulating glass (IG) edge seal designed for structural sealant glazing (SSG): tensile strength, stiffness or nominal elastic modulus of the joint, and adhesion performance assessed through failure mode analysis. The tested edge seal refers to the secondary structural sealant that bonds two glass lites and edge spacer together into a monolithic IG unit. This secondary seal retains the outer glass lite against wind pressure and gravity loads while securing the spacer in position. Widely used for silicone structural sealant qualification, curtain wall glazing R&D, factory batch quality control and building material certification. UnitedTest supplies reliable ASTM C1265 tensile test equipment for insulating glass manufacturers, sealant producers and construction material laboratories.

Core Test Principle

This test physically replicates the real‑world edge‑seal assembly of structural glazing insulating‑glass units. It applies uniaxial tensile pulling force to complete IG edge‑seal specimens (containing glass lites, edge spacer, primary vapor sealant and secondary structural silicone sealant) at a constant slow displacement rate. It records load‑elongation responses to quantify tensile strength, joint stiffness, adhesion‑cohesion failure modes, and load‑sharing behaviour between primary IG vapor seal and secondary structural sealant under tension.

Test Equipment required of ASTM C1265 Insulating glass edge seal tensile test

Tensile testing machine

Capable of constant displacement rate of 5.0 ± 0.5 mm/min; load measurement accuracy ±4 N;

equipped with fixed/movable cross‑members, gripping system, swivel/universal joint for alignment, and specimen fixture to ensure purely perpendicular tensile loading (minimizing eccentric force).

Substrates & assembly hardware

Glass substrates matching project glass type (reference size: 6.3 mm × 25 mm × 76 mm); coated glass shall retain or delete edge coatings exactly as in real‑world IG production.

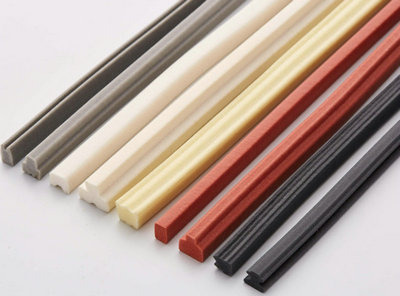

IG edge spacer (identical material, cross‑section, surface finish to project design).

Non‑structural primary IG vapor sealant / sealant tape for IG unit vapor sealing.

Non‑bonding assembly spacers / end‑blocks (TFE‑fluorocarbon or equivalent) to maintain joint geometry during specimen curing.

Hand tools

Spatula for sealant tooling; caulking gun for sealant extrusion from cartridges

Test Specimen Information:

Quantity: Minimum of five replicate specimens per sealant‑substrate‑joint‑geometry combination; five additional specimens for each alternate environmental exposure condition.
Core geometry: Sealant cavity nominal length L = 50.8 mm (2 in); glass piece nominal dimension 76.2 mm × 25.4 mm × 6.3 mm; bond width W and spacer set‑back S replicate actual project IG edge‑seal design.
Specimen composition: Each specimen simulates full IG edge construction: two glass lites, IG edge spacer, primary vapor seal beads, and injected secondary structural silicone sealant. All component positioning, primary‑seal geometry must duplicate real IG manufacturing practice.

Test Parameters & Stipulations

Crosshead speed	5 mm ± 0.5 mm (0.2 ± 0.02 in.) per minute
Replicates	5 per combination (5 more per added exposure condition)
Data recording	Continuous load–elongation plot, or readings at 0.5 mm (0.02 in.) intervals up to 10 % elongation
Mandatory load points	10 %, 25 %, 50 %, 100 % elongation; plus maximum load and elongation at maximum load; plus the initial load peak (primary seal failure)
Failure mode	Cohesive or adhesive, reported as % cohesive failure
Observations	Elongation at primary seal failure; visible trapped air bubbles
Deviations	Any deviation in curing, spacer removal timing, or environmental condition must be recorded and reported

Test Procedures for ASTM C1265 Insulating glass edge seal tensile test

Specimen preparation

Clean glass substrates and IG edge spacers strictly per IG manufacturer procedure; use isopropyl‑alcohol wipe method if no factory procedure exists, allow full air‑dry before assembly.
Mount primary sealant beads onto IG edge spacer; assemble glass, spacer and primary seal inside non‑bonding assembly spacer fixture; hand‑press glass then apply clamping angles to compress primary seal to project‑matching geometry.
Inject secondary structural sealant into cavity, tool surface for full cavity wetting, strike sealant flush with glass edges; cure according to specified duration and environmental conditions.
Dismantle non‑bonding assembly spacers after curing (keep functional IG edge spacer in specimen).
Measure actual specimen dimensions L (bond length), W (bond width), S (spacer set‑back) to 0.5 mm precision for calculation use.

Testing operation

Mount specimen in tensile machine grips to achieve purely perpendicular tensile load, use swivel joint for alignment correction to avoid eccentricity.
Activate tensile machine at 5 mm/min pulling speed under 23 ± 2 °C condition, pull specimen until final failure of secondary structural sealant.
Continuously capture load‑elongation curve; mark the initial load peak when primary IG seal ruptures; record loads at 10 %,25 %,50 %,100 % elongation, maximum‑load magnitude and corresponding elongation.
Document failure mode: percentage cohesive failure vs adhesive failure; record sealant voids or other visible specimen defects.

Industry Application Fields

ASTM C1265 serves the architectural curtain‑wall structural sealant glazing (SSG) industry, insulating‑glass unit manufacturing, silicone‑sealant product qualification, and building facade engineering design.

It evaluates complete IG edge‑seal assemblies for SSG facades, where negative‑wind (suction) tensile loads transfer across the IG edge joint between inner and outer glass lites; the secondary silicone seal must resist tension to retain the outer glass lite and hold spacer in‑place under wind and gravity load.
It supports project‑specific performance verification for custom IG edge‑seal configurations, comparing different spacer types, set‑back distances, cleaning processes and secondary‑sealant products.
It complements product‑specification standards for structurally glazed IG secondary sealants (ASTM C1369) to assess system‑level tensile behaviour beyond pure material‑level sealant tests.

ASTM C1265 Insulating glass edge seal tensile test

Related Stadard:

ISO 8339	Building construction - Sealants - Determination of tensile properties (Extension to break)
ASTM C1135	Standard Test Method for Determining Tensile Adhesion Properties of Structural Sealants
ISO 8340	Building construction - Sealants - Determination of tensile properties at maintained extension
ISO 7389	Building construction - Jointing products - Determination of elastic recovery of sealants
ASTM C1265	Standard Test Method for Determining the Tensile Properties of an Insulating Glass Edge Seal for Structural Glazing Applications
GB/T 13477.8	Test method for building sealants—Part 8：Determination of tensile properties
ISO 10590	Building Construction Sealants Determination of Tensile Properties of Sealants at Maintained Extension After Immersion in Water
ISO 19862	Buildings and civil engineering works — Sealants — Durability to extension compression cycling under accelerated weathering
ASTM C719	Standard Test Method for Adhesion and Cohesion of Elastomeric Joint Sealants Under Cyclic Movement (Hockman Cycle)
ASTM C794	Adhesion-in-peel — screening test for sealant/primer/substrate adhesion, incl. adhesion to the spacer
ISO 20492‑4	Glass in buildings‑Insulating glass, physical test methods for IG edge seals

Keywords: ASTM C1265,insulating glass edge seal tensile tester,structural sealant glazing test,IG unit secondary sealant tensile test,glass edge seal adhesion test,sealant joint elastic modulus test,curtain wall insulating glass test,structural silicone sealant tensile test,insulated glass seal failure mode test,wind gravity load glazing seal test,UnitedTest sealant tensile testing machine,structural glazing material lab tester,IG spacer bonding performance test,building facade glazing sealant test,insulating glass unit quality control tester

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

UnitedTest supplies ISO 8339 compliant tensile test fixture for building construction sealants. Standard sealant joint specimen grips for UTM, test elongation at break & secant modulus, lab certified, custom substrate holders available.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

ASTM C1265 Test Machine — Insulating Glass Edge Seal Tensile Testing Equipment

An ASTM C1265 test machine is a universal testing machine configured to pull an insulating glass (IG) edge seal specimen apart at 5 mm/min while measuring load to ±4 N. It delivers the three numbers the standard requires — tensile strength per unit length, nominal elastic stiffness at 10 % elongation, and percent cohesive failure — for structural sealant glazing (SSG) quality control.

UnitedTest builds and configures electromechanical universal testing machines, grip fixtures and test software for ASTM C1265, ASTM C1135 and ISO 8339 sealant tensile testing.

1. What is ASTM C1265?

ASTM C1265-22, Standard Test Method for Determining the Tensile Properties of an Insulating Glass Edge Seal for Structural Glazing Applications, is a laboratory procedure that quantitatively measures the tensile strength, stiffness and adhesion of an IG unit edge seal intended for structural sealant glazing. Current edition: C1265-22 (approved 1 June 2022); maintained by ASTM Committee C24 on Building Seals and Sealants, Subcommittee C24.30 on Adhesion.

2. Why is the ASTM C1265 test important?

Because in SSG the edge seal, not a metal clip, holds the outer lite on the building. The test converts a life-safety question — will the outer glass stay attached under negative wind load and self-weight? — into three measurable numbers: force per unit length, joint stiffness, and percent cohesive failure. It also protects against a common specification error: a sealant that passes a generic tensile-adhesion test can still perform badly in a specific edge construction, because cleaning, spacer profile, setback and primary seal dominate the result.

3. How is ASTM C1265 different from ASTM C1135?

ASTM C1135 pulls a simple sealant block between two flat substrates (12.7 × 12.7 × 50.8 mm), with no spacer and no primary seal, at 50.8 mm/min. ASTM C1265 pulls a complete IG edge assembly at 5 mm/min — one tenth of the speed — and includes the spacer, both primary seals and the setback geometry. C1135 characterises the sealant material; C1265 characterises the edge seal as actually built. That is why C1265 also reports joint stiffness and primary-seal load sharing, and why its results are valid only for the specific assembly tested.

4. What does the specimen consist of?

A 50 mm-long sealant cavity built from: two glass substrates of the same type used in production (nominally 6.3 × 25 × 76 mm; coated glass tested as used, edge-deleted if it is edge-deleted in practice); the production IG edge spacer, identical in material, cross-section and surface finish; both primary IG edge seals at their production thickness, width and position; and the secondary structural sealant under test, tooled immediately and struck off flush with the glass edges. Non-bonding TFE-fluorocarbon assembly spacers hold dimensions during assembly and are removed before testing.

5. Is there a pass/fail criterion in ASTM C1265?

No. C1265 is a test method, not a specification. It tells you how to generate and report the numbers; the acceptance thresholds come from the project specification, from ASTM C1369 (which requires, for example, ≥345 kPa tensile strength under standard, high-temperature, low-temperature and water-immersion conditions) or from the sealant manufacturer's data sheet. In practice, most specifications require a minimum percent cohesive failure — commonly 100 %, or a high cohesive percentage — alongside the strength and stiffness values.

6. What are the most common sources of poor repeatability?

Inconsistent substrate and spacer cleaning; inaccurate placement of the spacer or primary seal during assembly; trapped air bubbles in the sealant; eccentric loading from grips without a self-aligning joint; testing an under-cured specimen; removing assembly spacers before the end of the cure period without recording it; and measuring L, W and S coarsely, since they feed directly into both reported results.

7. What should I look for when buying an ASTM C1265 test machine?

Speed stability at 5 mm/min (a machine specified only for 50–500 mm/min will drift at one tenth of that); a load cell sized so that ±4 N resolution is meaningful; a self-aligning grip fixture machined for the IG specimen rather than generic wedge jaws; software that extracts the load at 10, 25, 50 and 100 % elongation and flags the initial primary-seal load peak and maximum load automatically; compliance with ASTM E4 / ISO 7500-1 for force and ASTM E83 / ISO 9513 for strain; and optional environmental chamber and multi-station capability if you run exposure conditioning.

8. Why choose UnitedTest ASTM C1265 Insulating Glass Edge Seal Tensile Testing System?

UnitedTest manufactures ASTM C1265‑22 compliant tensile testing machine for insulating glass edge seal tensile properties evaluation. Complete test fixture package for structural sealant glazing IG unit secondary silicone seal strength, stiffness and adhesion testing. Ideal for construction labs, IG glass factories and sealant manufacturers.

UnitedTest is a professional manufacturer supplying fully‑compliant testing machines and custom fixtures for ASTM C1265‑22 — Standard Test Method for Determining the Tensile Properties of an Insulating Glass Edge Seal for Structural Glazing Applications.

Our ASTM C1265 test system is purpose‑built for laboratories, insulating‑glass (IG) factories, silicone sealant producers and third‑party building‑material test institutes performing structural sealant glazing (SSG) facade safety qualification tests.

Why Choose UnitedTest ASTM C1265‑22 Test Machine?

✅ Fully meets ASTM C1265‑22 mandatory requirements: test speed 5 mm/min ±0.5 mm/min; high‑precision load sensor ±4 N accuracy; perpendicular tensile loading with built‑in swivel alignment joint to eliminate eccentric specimen loading.

✅ Complete ready‑to‑use fixture kit: custom IG specimen holding jigs, non‑bonding assembly spacer sets, glass substrate mounting accessories matching standard C1265 specimen geometry.

✅ Dedicated FastTest test software pre‑configured for ASTM C1265: auto‑record load‑elongation curves at 10 %, 25 %,50 %,100 % elongation; capture primary IG seal failure peak load; automatically calculate force per unit length, nominal elastic stiffness; output editable test report template matching ASTM C1265 reporting requirements.

✅ Wide load‑range selection: from low‑force single‑column model to heavy‑duty dual‑column universal tensile machine, support small lab R&D and high‑volume QC testing.

✅ Custom service: we design bespoke fixtures for non‑standard IG spacer profiles, varied spacer set‑back dimensions and special coated‑glass test specimens according to your project drawings.

What tests can you perform on UnitedTest ASTM C1265‑22 system?

Measure tensile strength of assembled insulating‑glass edge seal for structural glazing
Evaluate secondary silicone structural sealant stiffness under tension
Assess cohesive / adhesive failure mode of IG edge‑seal assembly
Analyze load sharing between primary IG vapor seal and secondary structural sealant
Project‑level qualification for custom SSG insulating‑glass unit edge‑seal designs

Target Users & Application Scenarios

Third‑party construction material testing laboratories for facade product certification
Insulating glass unit manufacturers for new product development & incoming material QC
Silicone structural sealant manufacturers for product performance verification
Curtain‑wall / architectural engineering firms for project‑specific seal assembly validation

Note: UnitedTest ASTM C1265 test system works together with other sealant test standards including ASTM C1135, ASTM C1369, to deliver comprehensive structural sealant performance data for building glazing projects. Contact UnitedTest sales team for machine specification sheet, fixture drawing and quotation.
