ASTM C1018 uses third-point four-point beam bending to measure first-crack strength, toughness indices and residual strength factors of fiber-reinforced concrete (FRC). UnitedTest manufactures ASTM C1018 compliant flexural testing machines for FRC post-crack energy absorption evaluation and civil material quality control.
ASTM C1018‑97 specifies a four-point, also called third-point, bending test method for fiber-reinforced concrete (FRC). This standard quantifies critical performance metrics including first-crack strength, toughness indices, and residual-strength factors calculated from the area beneath load-deflection curves. These parameters describe the post-crack energy-absorbing capability of FRC beams subjected to static flexural loading.
It is important to note that absolute toughness values rely heavily on specimen geometry. In contrast, toughness indices are dimensionless and unit-independent, making them ideal for direct material-to-material performance comparison. This test method is widely used for FRC mix design optimization, fiber dosage evaluation, structural material qualification, batch inspection, and research in civil engineering and infrastructure construction.
UnitedTest designs and manufactures high-precision ASTM C1018 compliant flexural testing machines fitted with four-point bending fixtures. Our test systems capture complete load-deflection curves reliably, supporting accurate calculation of first-crack strength, toughness indices and residual strength factors for FRC laboratories, concrete producers and third-party construction material certification bodies.
Core Test Principle
A simply‑supported concrete beam is loaded under third‑point bending.

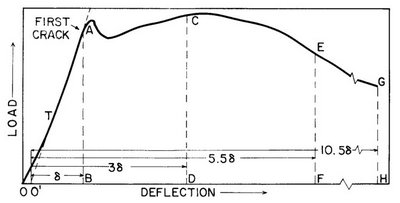

1. First crack: Identified as the initial non‑linear departure point on load‑deflection curve, representing matrix cracking onset.
2. Toughness = area under load‑deflection curve, representing absorbed flexural energy.
3. Toughness indices: Dimensionless ratios: total energy up to specified deflection ÷ energy up to first‑crack deflection.
I5: energy up to 3.0× first‑crack deflection / first‑crack energy
I10: energy up to 5.5× first‑crack deflection / first‑crack energy
I20: energy up to 10.5× first‑crack deflection / first‑crack energy.
4. Residual‑strength factors: derived from indices to reflect average retained post‑crack load as percentage of first‑crack load:
R5,10=20(I10-I5)
R10,20=10(I20-I10)
Reference ideal performance: I5=5.0, I10=10.0, I20=20.0 correspond to elastic‑perfect‑plastic behaviour (linear‑elastic before first crack, constant load after cracking).

Specimen Information
Preferred standard dimension: 14 × 4 × 4 in (350 × 100 × 100 mm) molded square‑section beam
imensional rules:
- Specimen length ≥ 3 × beam depth + 2 in (50 mm), minimum 14 in (350 mm).
- Beam width and depth ≥ 3 × maximum fiber length; limited waiver allowed for long fibers (50‑75 mm) to use 6 in (150 mm) cross‑section.
Specimen types: molded laboratory/field‑cast beams, or sawn beams drilled/cut from existing hardened concrete structures
At least 3 replicate specimens per sample. Curing complies with ASTM C31 or C192.
Special mounting rule: thick‑section molded specimens are rotated onto their casting side for testing; thin‑section / shotcrete panels are tested in as‑cast orientation without rotation.
Testing Equipment Required for ASTM C1018 flexural performance of fiber-reinforced concrete (FRC)
| Closed‑loop servo‑controlled testing machine | Recommend UnitedTest Fiber reinforced concrete (FRC) Flexural Testing Machine: must operate under mid‑span net‑deflection control. Stroke‑control or load‑control machines are unsuitable for capturing post‑crack softening curve of FRC |
| Deflection measuring assembly | electronic transducers / digital displacement gages for net mid‑span deflection, eliminating support seating and twisting deformation. Two permitted configurations: - Three transducers: one at mid‑span, two at supports; subtract average support deflection from mid‑span reading. - Rectangular clamping jig fixed to beam supports, paired transducers on two beam sides for mid‑span deflection averaging. |
| Data acquisition | X‑Y plotter or high‑speed digital data‑acquisition system (sampling at least once per second) to record continuous load‑deflection curve. Appropriate scales are required for accurate area calculation of load‑deflection diagram. |
| Auxiliary tools | planimeter / numerical computation tools (Simpson’s rule, square‑counting) for calculating areas under load‑deflection curve. |
Key Test Parameters & Stipulations
| First‑crack load | Load at onset of non‑linearity on load‑deflection curve |
| First‑crack deflection | Mid‑span deflection at first‑crack point |
| First‑crack strength | Rupture‑modulus stress calculated per ASTM C78 formula |
| First‑crack toughness | Area under curve up to first‑crack deflection |
| Toughness indices I5,I10,I20 | Dimensionless energy‑ratio indices at multiples of first‑crack deflection |
| Residual‑strength factors R5,10, R10,20 | Percentage of retained average post‑crack load |
| Peak load | Maximum load recorded on load‑deflection curve (optional) |
Loading‑rate requirement for standard 350 × 100 × 100 mm beam: net mid‑span deflection rate 0.05‑0.10 mm/min (0.002‑0.004 in/min). For other sizes, adjust rate so first crack occurs 30‑60 s after test start.
Span length: greater value between 3 × specimen depth or 12 in (300 mm).
Test termination: continue test until deflection sufficient for computing at least I10; extend further deflection for calculating I20 when required by purchaser.
Invalid test rejection criterion: fracture occurs outside middle‑third of beam span by >5 % span length, discard this specimen result.
Stipulations:
1. Fibre‑alignment effect: preferential fibre alignment (from mould walls, external vibration) will increase toughness‑index values; internal vibration produces less fibre orientation bias. Test results from small‑size specimens may not directly represent full‑scale structural member performance because of fibre‑alignment differences.
2. Net deflection must exclude support settlement and beam twisting effects. Validate deflection readings periodically by comparing experimental first‑crack deflection with elastic theoretical deflection formula.
3. Distinguish real first‑crack non‑linearity from minor electronic noise or mechanical ripples on load‑deflection plot. Two correction schemes for initial‑curve shape (concave‑upward or convex‑upward) to define corrected virtual origin O' for area integration calculations.
Standard Test Procedures of ASTM C1018 flexural performance of fiber-reinforced concrete (FRC)
1. Prepare specimens, cure, conduct surface grinding/capping if needed for full contact on loading supports.
2. Install beam onto third‑point bending fixture; set correct span length. Mount deflection transducers for net mid‑span deflection measurement.
3. Configure closed‑loop servo‑machine to control test by net mid‑span deflection at specified rate. Set up data acquisition or X‑Y recorder.
4. Start test; continuously record load‑net‑mid‑span‑deflection curve until target termination deflection is achieved.
5. After test completion: measure actual beam width and depth near fracture, record fracture position along tension face. Discard test if crack lies outside permitted middle‑third zone.
6. Process load‑deflection curve: identify first‑crack point and construct corrected virtual origin O' for area computation.
7. Compute: first‑crack strength, first‑crack toughness, toughness indices I5,I10,I20 and residual‑strength factors R5,10,R10,20. Round indices to nearest 0.1.
Industrial & Engineering Application Fields
Laboratory research & concrete‑mix proportioning comparison for fiber‑reinforced concrete (steel‑fiber, synthetic‑fiber concrete).
Quality‑control acceptance for precast FRC, shotcrete linings, pavement overlays, industrial floor slabs.
Evaluate in‑situ hardened concrete performance from drilled/sawn cores from existing structures.
Compare post‑crack performance of different fiber types, fiber dosages and matrix formulations.
Caution: standard‑size‑beam test outcomes shall be interpreted considering preferential fiber‑alignment effect; thin‑section engineering projects shall adopt matching‑thickness test specimens for more realistic assessment.
Related Test Standard:
| ASTM C1550 | Standard Test Method for Flexural Toughness of Fiber Reinforced Concrete (Using Centrally Loaded Round Panel) |
| EN 14488-5 | Testing sprayed concrete - Part 5: Determination of energy absorption capacity of fibre reinforced slab specimens |
| ASTM C78 | Third‑point bending test for ordinary plain concrete flexural strength; shares beam loading fixture design but lacks servo‑deflection‑control and post‑crack residual‑strength evaluation for fibers. |
| ACI 544.4R‑18 | ACI design guide for fiber‑reinforced concrete, which adopts C1609 parameters as core material inputs |
| ASTM C1018 | Flexural toughness via third-point loaded notched/unnotched rectangular beams (uniaxial bending, residual strength index-based toughness, widely used for cast FRC slabs). |
| ASTM C1609 | Residual flexural strength of FRC using beam specimens (replaced parts of C1018, focuses on post-crack residual load capacity rather than total energy absorption). |
| ASTM C1399 | Average residual strength of FRC beams under repeated loading. |
| Rilem TC 162-TDF | Test and design methods for steel fibre reinforced concrete - Bending test |
Keywords: ASTM C1018 FRC flexural toughness tester,fiber reinforced concrete third point four point bending test machine,FRC first crack strength test rig,concrete beam load deflection curve measurement equipment,FRC post crack energy absorption tester,toughness index residual strength factor test apparatus,dimensionless concrete toughness comparison test device,civil infrastructure fiber concrete quality control machine,FRC mix design and fiber dosage validation tester,static flexural loading concrete beam test system,construction material certification test instrument,reinforced concrete mechanical performance analyzer
Related products and device
Related Standard
ASTM C1550 Standard Test Method for Flexural Toughness of Fiber Reinforced Concrete (Using Centrally Loaded Round Panel)
ASTM C1550 determines the flexural toughness of fiber‑reinforced concrete (FRC) by measuring the energy absorbed in the post‑crack range of a round panel that is simply supported on three symmetrically arranged pivots and loaded by a central point load.
The test does not measure first‑crack flexural strength in the usual sense. It quantifies how much energy the material can absorb after cracking – i.e. the ability of fibers to bridge cracks and redistribute stress. Toughness is reported as the area under the load‑vs‑central‑deflection curve up to a specified deflection (5 mm, 10 mm, 20 mm, or 40 mm), expressed in joules.
ASTM C1609 Standard Test Method for Flexural Performance of Fiber-Reinforced Concrete (Using Beam With Third-Point Loading)
ASTM C1609 evaluating the flexural performance of fiber‑reinforced concrete (FRC) using simply‑supported square‑section beams under third‑point (four‑point) bending loading with closed‑loop servo‑controlled testing equipment. It characterizes both pre‑cracking and post‑cracking flexural response via complete load‑net‑deflection curves, rather than only obtaining a single ultimate rupture strength value as for ordinary concrete beams.
EN 14488-5 Testing sprayed concrete - Part 5: Determination of energy absorption capacity of fibre reinforced slab specimens
EN 14488-5 measure the post-crack energy absorption capacity (biaxial flexural toughness) of fibre-reinforced shotcrete via a fully edge-supported square slab under central concentrated square block loading. It is the primary biaxial panel test for sprayed concrete, widely used for tunnel, mining and ground support shotcrete quality acceptance, the key post‑crack property of fibre‑reinforced sprayed concrete (FRS).
ASTM C78 is the standard method for determining the flexural strength (modulus of rupture) of concrete specimens using a simple beam subjected to third-point loading. It is mainly applied to concrete for slabs and pavements.
A plain concrete beam of specified dimensions is supported near its ends. Two equal loads are applied at the third points of the span (i.e., at points one-third of the span length from each support). This configuration creates a region of constant maximum moment and zero shear in the middle third of the span. The test continues until the beam fractures. The flexural strength is calculated from the maximum load at failure, the span length, and the beam's cross-sectional dimensions.
ASTM C39 / C39M : Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens
ASTM C39 determines the compressive strength of cylindrical concrete specimens such as molded cylinders and drilled cores. It is limited to concrete having a unit weight in excess of 50 lb/ft3 (800 kg/m3).
A compressive axial load is applied to molded cylinders or cores until failure occurs. The compressive strength of the specimen is calculated by dividing the maximum load achieved during the test by the cross-sectional area of the specimen. The results of this test method are used as a basis for quality control of concrete.
ASTM C1399 Standard Test Method for Obtaining Average Residual-Strength of Fiber-Reinforced Concrete
ASTM C1399 measure the Average Residual Strength (ARS) of fiber‑reinforced concrete (FRC). It evaluates post‑cracking flexural performance of concrete beams after matrix cracking. It uses a beam bent in third-point loading, first cracked in a controlled way with a steel plate, then reloaded after the plate is removed. The result is the Average Residual Strength (ARS).
