ASTM C1609 Flexural Test of Fiber Reinforced Concrete

Share:

ASTM C1609 Fiber-Reinforced Concrete Flexural Performance Tester | UnitedTest

ASTM C1609 evaluates pre-cracking and post-cracking flexural performance of fiber-reinforced concrete (FRC) via third-point four-point beam bending tests with closed-loop servo control. UnitedTest manufactures ASTM C1609 compliant flexural testing machines for concrete structural performance analysis and construction quality control.


ASTM C1609 is the authoritative industrial standard for determining the flexural performance of fiber-reinforced concrete (FRC) using simply supported square-section concrete beams under third-point, also known as four-point, bending loading conditions. Uniquely designed for advanced concrete mechanical testing, this standard requires closed-loop servo-controlled testing equipment to capture full load-net-deflection curves throughout specimen failure progression.


Unlike conventional concrete beam tests that only record ultimate rupture strength, ASTM C1609 characterizes complete pre-cracking stiffness behavior and post-cracking residual flexural response, delivering comprehensive data on toughness, ductility, residual strength, and energy absorption capacity of fiber-reinforced concrete materials. It serves as the primary testing benchmark for structural concrete research, building material certification, infrastructure quality inspection, and FRC mix design optimization across civil engineering and construction industries.


UnitedTest designs and manufactures high-precision ASTM C1609 compliant flexural testing machines equipped with professional four-point bending fixtures and servo control systems. Our testing equipment ensures stable, accurate, and repeatable FRC flexural performance measurements, supporting laboratory material R&D, factory batch verification, and third-party structural concrete compliance certification.


Core Test Principle

The test subjects a square‑cross‑section FRC beam specimen to third‑point static flexural loading. A closed‑loop servo system controls loading rate based on net mid‑span deflection (excluding support seating, twisting and machine deformation) instead of stroke or load control. The full load‑net‑deflection curve is recorded throughout loading. From this curve, pre‑crack, peak, post‑crack residual loads and absorbed energy (area under curve) are extracted. Modulus‑of‑rupture‑based formulas convert measured loads into engineering flexural strengths. Residual strength is an engineering stress calculated on gross uncracked section properties, not true material stress.

Two typical curve patterns:

1. First‑peak load equals peak load: load drops sharply right after initial cracking then maintains residual capacity from fiber bridging.

2. Peak load exceeds first‑peak load: concrete matrix cracks first, then fibers further carry load to a higher maximum before gradual softening.


Specimen Information

Preferred standard sizes

- 100 × 100 × 350 mm beam, span length = 300 mm

- 150 × 150 × 500 mm beam, span length = 450 mm

ASTM C1609 Flexural Test of Fiber Reinforced Concrete

1. Square cross‑section with dimension tolerance ±2 %. Beam width and depth shall be at least three times the maximum fiber length (waiver allowed for 150 mm specimens with 50‑75 mm long fibers at specifier’s discretion).

2. Specimen length ≥3 × beam depth and minimum 350 mm; span is three times beam depth or 300 mm whichever is larger.

Minimum three replicate specimens for each test batch. Test shall be discarded if fracture occurs outside the middle‑third span region.

For molded beams: test on specimen side face (rotated 90° from casting orientation); shotcrete specimens maintain original shooting‑direction loading orientation.


Testing Equipment Required for ASTM C1609 Flexural Test of Fiber Reinforced Concrete

Closed‑loop servo‑controlled testing machine

Recommend UnitedTest Fiber reinforced concrete (FRC) Flexural Testing Machine

Deflection‑feedback control is mandatory. Stroke‑control or load‑only‑control machines are not acceptable for capturing post‑first‑peak behaviour.

Roller supports shall freely rotate and comply with ASTM C1812/C1812M; loading blocks follow ASTM C78/C78M requirements. Machine force verification shall meet ASTM E4.

ASTM C1609 Flexural Test of Fiber Reinforced Concrete

Data acquisition system

Digital sampling frequency ≥2.5 Hz before deflection reaches L/900; minimum 2 Hz after L/900. X‑Y plotters are permitted with properly scaled axes for accurate curve reading and area calculation.

Net‑deflection measuring assembly

A rigid clamping jig mounted directly above supports holds two electronic displacement transducers on both beam sides at mid‑span.

Average of two transducers outputs gives true net deflection, eliminating support seating and twisting artifacts


Standard Test Procedures & Stipulations of ASTM C1609 Flexural Test of Fiber Reinforced Concrete

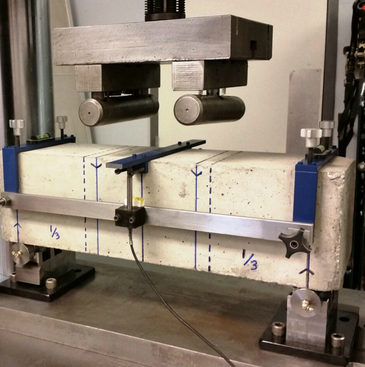

1. Mount specimen on rotating roller supports with third‑point loading geometry; grind or cap contact surfaces if full contact is not achieved.

2. Apply deflection‑controlled loading with specified rates:

   - For 100 mm‑size beam: ≤L/900 deflection: 0.025‑0.075 mm/min; after L/900: 0.05‑0.20 mm/min.

   - For 150 mm‑size beam: ≤L/900 deflection: 0.035‑0.10 mm/min; after L/900: 0.05‑0.30 mm/min.

   Rate increments shall not exceed 0.05 mm/min and minimum 30 s apart between rate changes. If deflection control becomes unstable, initial rate can be reduced to 50 % of standard values.

3. Terminate test normally at net deflection = L/150; specifier may require larger end‑point deflection.

4. After fracture, measure actual average width and depth at fracture plane. Discard test result if crack lies outside middle‑third of span.

5. Extract all load‑deflection characteristic points, compute strengths, toughness and equivalent‑strength ratio per formulas.

6. Report specimen geometry, span, all load‑strength‑deflection‑toughness values, test age, curing condition, deflection‑rate history, abnormalities and full load‑deflection curves.


Industrial & Engineering Application Fields

1. Mixture comparison & R&D: Compare flexural performance of different fiber types, fiber dosages, concrete matrix formulations for FRC material development.

2. Quality control and project‑specification compliance: Verify FRC batch quality for ground slabs, industrial floors, pavements, shotcrete tunnel linings, precast FRC components, UHPC elements. Residual‑strength parameters are widely adopted in project specifications for fiber‑reinforced concrete slabs‑on‑ground.

3. Obtain design‑relevant material inputs: Provide pre‑crack and post‑crack flexural parameters referenced in ACI 544.4R‑18 for structural design of FRC members under pure‑bending conditions.

4. Evaluate in‑situ hardened concrete performance: Test cores/sawn beams sampled from existing structures to assess in‑service FRC quality.


Related Test Standard:

ASTM C1550

Standard Test Method for Flexural Toughness of Fiber Reinforced Concrete (Using Centrally Loaded Round Panel)

EN 14488-5

Testing sprayed concrete - Part 5: Determination of energy absorption capacity of fibre reinforced slab specimens

ASTM C78Third‑point bending test for ordinary plain concrete flexural strength; shares beam loading fixture design but lacks servo‑deflection‑control and post‑crack residual‑strength evaluation for fibers.
ACI 544.4R‑18ACI design guide for fiber‑reinforced concrete, which adopts C1609 parameters as core material inputs
ASTM C1018Flexural toughness via third-point loaded notched/unnotched rectangular beams (uniaxial bending, residual strength index-based toughness, widely used for cast FRC slabs).
ASTM C1609Residual flexural strength of FRC using beam specimens (replaced parts of C1018, focuses on post-crack residual load capacity rather than total energy absorption).
ASTM C1399Average residual strength of FRC beams under repeated loading.
Rilem TC 162-TDFTest and design methods for steel fibre reinforced concrete - Bending test


Why ASTM C1609 Is Important?

Plain concrete is strong in compression but weak in tension. Fibers do not primarily increase compressive strength—they improve post-crack ductility, energy absorption, and residual load capacity.

ASTM C1609 is important because:

Measures post-crack performance, not just peak strength.

Provides residual strength, which is the property engineers design with for FRC.

Enables performance-based specification instead of “kg/m³ of fibers.”

Allows comparison of steel vs synthetic vs hybrid fibers.

Supports replacement of mesh/rebar in slabs, pavements, and shotcrete.

Gives reproducible toughness and equivalent strength values for QC and R&D.

Links laboratory beam results to structural design through ACI, TR34, and similar guidelines.
