ASTM C1550 Flexural Toughness Testing of Fiber Reinforced Concrete

Share:

ASTM C1550 Fiber Reinforced Concrete Round Panel Flexural Toughness Tester | UnitedTest

UnitedTest manufactures precision ASTM C1550 compliant testing machines engineered to evaluate flexural toughness of fiber-reinforced concrete for civil engineering laboratories and construction material quality control.


ASTM C1550 Standard Test Method for Flexural Toughness of Fiber Reinforced Concrete (Using Centrally Loaded Round Panel) outlines a standardized test procedure to characterize the flexural toughness of fiber-reinforced concrete (FRC). The method measures post-crack energy absorption of a round FRC panel specimen, which is simply supported on three symmetrically arranged pivots and subjected to concentrated central point loading.


This test is not designed to calculate conventional first-crack flexural strength. Instead, it quantifies the energy absorption capacity of FRC after initial cracking, reflecting the effectiveness of internal fibers to bridge cracks and redistribute internal stress. Flexural toughness results are calculated as the area under the load-versus-central-deflection curve up to predefined deflection thresholds of 5 mm, 10 mm, 20 mm or 40 mm, with final values recorded in joules. Test data supports fiber mix design optimization, incoming material verification and performance certification for fiber reinforced concrete structures.


Core Test Principle

1. A circular panel specimen is simply supported on three 120° spaced pivots, loaded at its geometric center by a hemispherical piston, generating **biaxial bending** (radial + tangential stress) that replicates real-world plate/shell structural behavior (tunnel linings, slabs) better than uniaxial beam tests.

2. Flexural toughness is defined as the total energy absorbed by the specimen, equal to the integrated area under the corrected load-net central deflection curve from zero load up to specified deflection thresholds (5 mm, 10 mm, 20 mm, 40 mm).

3. Pre-crack behavior is dominated by elastic flexure; after matrix cracking, load resistance shifts to fiber pull-out, fiber deformation and tensile membrane action, which accounts for most energy dissipation. Only specimens developing ≥3 radial cracks (≥0.5 mm average width) produce valid data; single-crack beam-type failure results are discarded.


Specimen Information

- Standard target size: 800 mm diameter, 75 mm thickness

- Acceptable dimensional tolerance:

  - Diameter: 790 mm ~ 810 mm (average measured at 3 support locations; discard if out of range)

  - Thickness: 70 mm ~ 90 mm average; thickness standard deviation ≤3.0 mm (discard test if SD exceeds limit).

Production: Cast FRC panels are cast; shotcrete panels are sprayed – the method must approximate the actual placement technique (spraying is preferred because fiber orientation in shotcrete is better represented).

Mould: Rigid non‑reactive metal or coated plywood; internal depth 75 mm so the surface can be screeded to the required thickness.

Sampling: At least three panels per batch; a valid sample requires ≥ 2 successful tests (a “successful” test shows ≥ 3 radial cracks averaging > 0.5 mm wide). Single‑crack “beam‑like” failures are discarded.


Testing Equipment Required for ASTM C1550 Flexural Toughness Test of Fiber Reinforced Concrete

Servo-Controlled Displacement-Controlled Testing Machine

Recommend UnitedTest Fiber reinforced concrete (FRC) Flexural Testing Machine ASTM C1550

- Mandatory closed-loop servo control (displacement feedback from actuator or specimen center); load-controlled hydraulic machines without electronic feedback are prohibited.

- Machine system stiffness must exceed specimen stiffness to guarantee stable post-crack response after cracking.

- Load sensor resolution: ±50 N, maximum bearing capacity ≥100 kN central load.

- Loading piston: Hemispherical steel head, hemisphere radius R80±5 mm, shaft radius R50±5 mm.

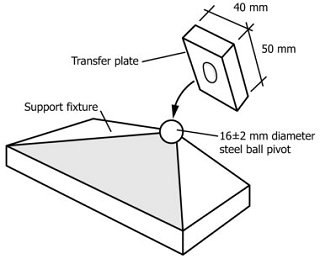

Three-Pivot Support Fixture

- Three ball pivots evenly spaced at 120°±0.5°, pitch circle radius to pivot ball center: 375±2 mm.

- Pivot ball dimension: 16±2 mm diameter steel ball.

- Transfer plate at each support: 40 mm × 50 mm steel plate with 4 mm deep spherical seat to hold ball pivot; vertical distance between panel bottom and pivot ball center: 20±2 mm.

- Rigidity requirements: Radial/circumferential displacement of supports ≤0.5 mm under 100 kN peak load up to 40 mm central deflection; pivots allow free rotation of broken panel fragments after cracking.

ASTM C1550 Flexural Toughness Testing of Fiber Reinforced Concrete

Deflection Measuring System

Direct specimen tensile surface LVDT measurement via yoke anchored to three transfer plates (preferred): automatically excludes machine load train deformation, only needs correction for concrete crushing offset.

Displacement transducer resolution: ±0.05 mm; probe width ~20 mm to avoid crack-induced deflection distortion.


Test Parameters:

Support subtended angle120° ± 0.5°
Loading rate4.0 mm/min ± 1.0 mm/min (displacement‑controlled)
Minimum central deflection recorded≥ 45 mm (test may be extended beyond)
Deflection reporting points5 mm, 10 mm, 20 mm, 40 mm
Typical first‑crack deflection≈ 0.5 mm (for normal‑strength 75‑mm panel)
Acceptable thickness range70 mm – 90 mm
Acceptable diameter range790 mm – 810 mm


Standard Test Procedures Step-by-Step of ASTM C1550 Flexural Toughness Testing of Fiber Reinforced Concrete

1. Specimen Mounting: Place molded face of panel onto three transfer plates, perfectly center the panel relative to central piston and triangular support layout.

2. Dimension Measurement: Measure panel diameter at three support positions (average diameter checked against 790–810 mm limit). After test failure, measure thickness at 10 locations (3 per crack surface + center) to calculate average thickness and thickness standard deviation; discard specimen if out of thickness limits or SD>3.0 mm.

3. Calibration & Data Logging Setup: Install LVDT deflection measurement system, activate synchronized load-deflection digital recording.

4. Displacement-Controlled Loading: Run piston at steady 4.0 mm/min rate until central deflection ≥45 mm, continuously record load-deflection curves throughout the full test duration.

5. Post-Test Crack Inspection: Remove broken panel fragments, count valid radial cracks (≥0.5 mm width). Discard single-crack beam-mode test results.

6. Raw Data Correction:

a. Subtract load train compliance deformation from raw deflection if using crosshead displacement data.

b. Extrapolate linear elastic pre-crack curve to horizontal axis to eliminate concrete crushing deflection offset, obtain corrected true load-deflection origin.

7. Toughness Calculation: Integrate area under corrected load-net deflection curve at specified deflection values (5/10/20/40 mm) to get uncorrected absorbed energy W’. Apply dimensional correction formulas to output standardized W (corrected toughness energy).

8. Report Compilation: Document all mandatory reporting items (specimen type, fiber dosage, dimensions, crack count, raw/corrected peak load and energy, load-deflection curve, curing age, test anomalies).

ASTM C1550 Flexural Toughness Testing of Fiber Reinforced Concrete
ASTM C1550 Flexural Toughness Testing of Fiber Reinforced Concrete


Industrial & Engineering Application Fields

1. Underground Civil Engineering (Primary Application)

   - Railway/highway tunnel permanent shotcrete linings: Evaluate 5 mm deflection energy absorption for watertight crack control under low deformation.

   - Mine tunnel temporary shotcrete, swelling ground support: Evaluate 40 mm deflection energy absorption for large deformation ductility and rock burst resistance.

2. Shotcrete Slope Stabilization, Mining Ground Support: Biaxial bending matches multi-directional stress in sprayed ground support layers, better than uniaxial beam tests.

3. Cast Fiber Reinforced Concrete Slabs, Thin Plate Structures: Quality control of macro/micro synthetic fiber, steel fiber concrete ductility.

4. Construction Material Quality Assurance & Batch Acceptance: Low within-batch test variability delivers consistent, repeatable results for factory or on-site production inspection.

5. Fiber Product R&D & Performance Ranking: Compare post-crack energy absorption of different fiber types, dosages, lengths for new FRC/shotcrete formulations.

Key advantage over beam tests: Round panels eliminate sawing operations required to prepare beam specimens for shotcrete, and show far lower test result scatter (coefficient of variation) between replicate samples.


Related Test Standard:

ASTM C1550

Standard Test Method for Flexural Toughness of Fiber Reinforced Concrete (Using Centrally Loaded Round Panel)

EN 14488-5

Testing sprayed concrete - Part 5: Determination of energy absorption capacity of fibre reinforced slab specimens

ASTM C1018Flexural toughness via third-point loaded notched/unnotched rectangular beams (uniaxial bending, residual strength index-based toughness, widely used for cast FRC slabs).
ASTM C1609Residual flexural strength of FRC using beam specimens (replaced parts of C1018, focuses on post-crack residual load capacity rather than total energy absorption).
ASTM C1399Average residual strength of FRC beams under repeated loading.
Rilem TC 162-TDFTest and design methods for steel fibre reinforced concrete - Bending test


Keywords: UnitedTest ASTM C1550 tester, ASTM C1550 FRC flexural toughness tester, fiber reinforced concrete round panel test machine, concrete post-crack energy absorption testing equipment, ASTM C1550 centrally loaded round panel fiber concrete test, three pivot supported FRC flexural toughness testing, load vs deflection curve toughness measurement for fiber reinforced concrete, post-crack crack bridging performance test for concrete fibers, joule-based flexural toughness evaluation laboratory equipment

Related products and device

ASTM C1550 Fiber reinforced concrete (FRC) Flexural Testing Machine

Fiber reinforced concrete (FRC) Flexural Testing Machine can according ASTM C1550 determines the flexural toughness of fiber-reinforced concrete. Flexural toughness is the maximum stress (put) onto a specimen before it cracks or breaks.

Related Standard

EN 14488-5 Square Slab Energy Absorption Test for Fibre Reinforced Sprayed Concrete

EN 14488-5 Testing sprayed concrete - Part 5: Determination of energy absorption capacity of fibre reinforced slab specimens

EN 14488-5 measure the post-crack energy absorption capacity (biaxial flexural toughness) of fibre-reinforced shotcrete via a fully edge-supported square slab under central concentrated square block loading. It is the primary biaxial panel test for sprayed concrete, widely used for tunnel, mining and ground support shotcrete quality acceptance, the key post‑crack property of fibre‑reinforced sprayed concrete (FRS).

ASTM C78 Flexural Strength of Concrete Beams

ASTM C78 is the standard method for determining the flexural strength (modulus of rupture) of concrete specimens using a simple beam subjected to third-point loading. It is mainly applied to concrete for slabs and pavements.

A plain concrete beam of specified dimensions is supported near its ends. Two equal loads are applied at the third points of the span (i.e., at points one-third of the span length from each support). This configuration creates a region of constant maximum moment and zero shear in the middle third of the span. The test continues until the beam fractures. The flexural strength is calculated from the maximum load at failure, the span length, and the beam's cross-sectional dimensions.

ASTM C39 Compressive Strength Test of Cylindrical Concrete Specimens

ASTM C39 / C39M : Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens

ASTM C39 determines the compressive strength of cylindrical concrete specimens such as molded cylinders and drilled cores. It is limited to concrete having a unit weight in excess of 50 lb/ft3 (800 kg/m3).

A compressive axial load is applied to molded cylinders or cores until failure occurs. The compressive strength of the specimen is calculated by dividing the maximum load achieved during the test by the cross-sectional area of the specimen. The results of this test method are used as a basis for quality control of concrete.

FAQs for ASTM C1550 Round Panel Flexural Toughness Test

Q1: What is ASTM C1550 used to measure, and why is this test critical for fiber-reinforced concrete (FRC)/shotcrete?

A: ASTM C1550 quantifies **post-crack flexural toughness via total energy absorption (Joules)** of fiber-reinforced concrete and fiber-reinforced shotcrete (FRS) using a 3-point supported round panel under central concentrated load.

It is vital for three core reasons:

1. It generates biaxial bending + tensile membrane action, matching real multi-directional stress in tunnel linings, mine ground support and thin slabs, while beam tests only simulate uniaxial flexure.

2. Symmetric 120° pivots create consistent multi-radial crack failure modes, delivering far lower test variability (lower coefficient of variation) than beam tests for batch quality control.

3. Energy absorption directly measures fiber bridging, pull-out and deformation—the key ductility mechanism that prevents catastrophic collapse after concrete matrix cracking, a non-negotiable safety metric for underground construction.


Q2: Why use a round panel instead of standard beam tests like ASTM C1609 / C1018?

A: Four key advantages of C1550 round panels:

1. Realistic biaxial stress state: Tunnel linings and sprayed ground support bear radial + tangential loads; beams only produce one-way bending, which cannot replicate tensile membrane action after cracking.

2. Simpler shotcrete specimen fabrication: No sawing/cutting of sprayed panels is required, eliminating fiber alignment distortion introduced during beam cutting.

3. Superior repeatability: Fixed 3-pivot layout guarantees uniform radial crack patterns, reducing single-operator test variation to 10.1% for energy absorption vs higher scatter in beam tests.

4. Large deformation capacity: Evaluates toughness up to 40 mm central deflection, matching severe rock convergence in mining tunnels, while beam tests terminate at much smaller deflection limits.


Q3: What's the difference between "peak load" and "energy absorption" in this test?

A: Peak load is the maximum resistance the panel offers before or after cracking (corrected for dimensions, reported in Newtons). Energy absorption is the total work done—the integral of load over deflection—representing the material's cumulative ability to absorb energy through crack opening and fiber pull-out. Peak load tells you about strength; energy absorption tells you about toughness/ductility.


Q4: Why use a round panel instead of a beam?

A: Several reasons:

Biaxial stress state: A centrally loaded round panel experiences biaxial bending, which better simulates real slab and tunnel-lining behavior than a uniaxial beam.

No sawing required: Beam tests (like ASTM C1609) require saw-cutting specimens, which disturbs fiber orientation. Round panels are cast or sprayed directly to size, preserving the in-place fiber alignment—especially critical for shotcrete.

Low variability: The three-pivot arrangement produces a consistent, determinate crack pattern (three radial cracks), giving much lower within-batch variability (CV ≈ 10%) compared to beam tests.


Q5: Why exactly three supports? Why not four or a ring?

A: Three symmetrically arranged pivots create a statically determinate support condition before cracking. More importantly, this geometry reliably forces the development of three radial cracks, producing repeatable post-crack behavior. Laboratory and field experience confirm this configuration yields the lowest within-batch variability. The subtended angle must be 120° ± 0.5°, and the pitch-circle diameter is 750 mm.


Q6: How many replicate specimens are required per concrete/shotcrete batch?

A: Minimum 3 panels per batch as standard sampling.

- Valid batch data needs at least 2 successful tests (≥3 radial cracks ≥0.5 mm width).

- Exception: Only 2 specimens are acceptable if both pass the multi-radial crack failure mode and thickness standard deviation ≤3.0 mm.


Q7: Why do some test panels get discarded after testing even if dimensions are within limits?

A: Results are invalid if the specimen fails with fewer than 3 valid radial cracks (only one transverse crack, beam-like failure). This failure mode has artificially low energy absorption and does not represent the biaxial structural response the standard aims to simulate.


Q8: Can I use a regular load-controlled hydraulic testing machine for ASTM C1550?

A: No. Load-only machines without electronic servo displacement feedback are strictly prohibited.

Only closed-loop servo-controlled displacement machines are allowed, because post-crack FRC loses stiffness rapidly—load-controlled machines will experience sudden, unstable collapse after matrix cracking and cannot record full post-crack load-deflection curves accurately.


Q9: What deflection measurement method is preferred, and why?

A: Direct LVDT measurement via a yoke anchored to the three support transfer plates (measuring tensile surface centre deflection relative to supports) is the preferred method.

This setup automatically excludes machine load train deformation, requiring only minor correction for local concrete crushing at supports. Measuring actuator crosshead displacement requires complex load train compliance correction calculations, increasing data error risk.


Q10: What is load train compliance (CLT) and when do I need to calculate it?

A: Load train compliance quantifies elastic deformation of the test machine frame, load cell and fixtures under load, with units mm/kN.

Calculation per mandatory Annex A1 is required only if deflection is measured via machine actuator crosshead displacement. Direct specimen LVDT measurement eliminates this correction step.


Q11: What is the mandatory loading displacement rate and minimum termination deflection?

A: Constant piston advance speed = 4.0 ±1.0 mm/min.

Test must run to a minimum net central deflection of 45 mm (exceeding the standard 40 mm evaluation threshold). Users may extend testing beyond 45 mm for advanced large-deformation research.


Q12: What are the standard deflection points used to report toughness/energy absorption?

A: The standard defines four primary evaluation thresholds: 5 mm, 10 mm, 20 mm, 40 mm net central deflection.

- 5 mm: Low deformation, watertight permanent tunnel linings

- 40 mm: Severe deformation, mine temporary ground support

Engineers can specify intermediate deflection values for custom project service limit states.


Q13: How do I calculate flexural toughness (energy absorption) from test data?

A: Toughness = total area under the **corrected load-net deflection curve** from zero load to the specified central deflection (integrated load-deflection area, output in Joules). Raw deflection data must first be adjusted to remove:

1. Load train elastic deformation (if crosshead displacement is used)

2. Offset from local concrete crushing at loading piston and support plates


Q14: How do I judge if a radial crack counts toward valid failure mode?

A: A crack is counted only if its average width exceeds 0.5 mm after test unloading. Fine microcracks absorb negligible energy and are ignored for validity checks. Minimum 3 such cracks are required for valid test results.


Q15: What happens if my panel is too thick or too thin?

A: If the average thickness is less than 70 mm or greater than 90 mm, the test result is discarded. Between 70–90 mm, correction factors are applied. Note that grinding or sawing an overly thick panel down to 75 mm is possible but may affect surface concrete properties.


Q16: Why must the test continue past 40 mm if the specified deflection is 40 mm?

A: Two reasons:

(1) Extraneous deformations from local concrete crushing may not become fully apparent until after the test, requiring the load-deflection curve to be translated to a corrected origin.

(2) The standard requires a minimum recorded deflection of 45 mm to ensure reliable correction and data quality.


Q17: Can ASTM C1550 test both steel fiber and synthetic macro-fiber concrete/shotcrete?

A: Yes, the standard is material-agnostic. It provides a uniform energy absorption metric to directly compare steel, polypropylene, basalt, blended fiber systems for fiber selection and dosage optimisation.


Q18: Why is C1550 more representative for shotcrete than beam tests?

A: Shotcrete has strong directional fiber alignment from spraying nozzles. Round panels can be manufactured by direct spraying (matching field construction), while beam specimens require cutting sprayed panels, which disrupts natural fiber orientation and distorts post-crack performance results.


Q19: What is the difference between ASTM C1550 and EN 14488-5?

A: Both are biaxial panel tests for fiber shotcrete, but with distinct geometry:

- ASTM C1550: 800 mm diameter circular panel, 3-point triangular support, evaluate at 40 mm deflection

- EN 14488-5: Square panel, different support layout, primary evaluation at 25 mm deflection

They produce non-interchangeable energy absorption values and cannot be directly cross-referenced without conversion factors.
