IEC 61851-1 is the general-requirements standard for electric vehicle conductive charging systems. About the mechanical tests of EV supply equipment — impact strength, cable strain relief, cable management, IP protection, marking durability and component endurance.

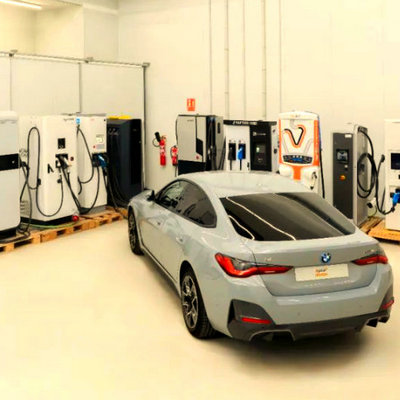

IEC 61851-1 Mechanical Test of Electric vehicle conductive charging system

Mechanical test matrix at a glance

Clause	Test	Key parameter	Method standard	Test equipment
12.11	Mechanical strength / impact	IK08 = 5 J (Mode 2)	IEC 62262, IEC 60068-2-75	IK hammer rig (pendulum / spring / vertical)
11.6	Strain relief (cable anchorage)	Pull 160–500 N, torque 0.6–11 Nm	IEC 62196-1, 60309-1, 60884-1	Cable pull and torque test machine
11.6	Cable flexing (non-detachable)	Weight, angle, cycles per accessory rating	IEC 62196-1, 60309-1 Cl. 24.4	Cable flexing / bending machine
11.7	Cable management and storage	Height 0.5–1.5 m, free length ≤ 7.5 m	IEC 61316:1999 Cl. 22	Reel mechanical strength rig, dimensional gauges
12.4	IP degrees	IP41 indoor / IP44 outdoor; IP21–IP44 interfaces	IEC 60529	Test probes, dust chamber, water spray rig
16.5	Durability of marking	15 s water + 15 s petroleum spirit	IEC 61851-1 (self-contained)	Cloths + specified solvent
12.2.5	Relay endurance	50 000 cycles, contact category CC 2	IEC 61810-1	Relay endurance / load cycling bench
6.3.2.3	Retaining / latching / locking	Three prevention levels	IEC 62196-1	Accessory mechanical test fixtures

Details instroduction of the IEC 61851-1 Mechanical Test of Electric vehicle conductive charging system

1, Mechanical strength test	Verify the external enclosure mechanical robustness of Mode 2 EV supply equipment against mechanical impact; ensure safety functions, IP rating, creepage/clearance will not degrade after impact.
Test Equipment	IK impact test apparatus per IEC 62262.
Test Specimen info	Complete Mode 2 EV supply equipment unit.
Mandatory Stipulations	Minimum impact protection grade IK08. After test: - IP degree shall remain compliant; - No loose / displaced / deformed components impairing safety; - Strain‑relief, creepage & clearance distances shall still satisfy requirements; - No increased risk of electric shock or fire hazard.
Test requirement	This requirement applies specifically for Mode 2 equipment; other modes have no mandatory IK rating defined in this clause.
2, IP ingress protection test	Validate enclosure and connector mating/un‑mated conditions against dust and water intrusion for different usage environments (indoor / outdoor).
Test Equipment	IP test chamber / test apparatus defined in IEC 60529.
Test Specimen info	Complete EV supply equipment including enclosures, socket‑outlets, vehicle connectors / inlets. For case‑C equipment, permanently‑attached cable assembly is treated as part of test specimen.
Mandatory Stipulations	- Enclosure minimum IP: indoor ≥IP41; outdoor ≥IP44. - Interface (vehicle connector / socket‑outlet) minimum IP values differ for mated / unmated, indoor / outdoor scenarios (e.g. outdoor unmated connector ≥IP24; outdoor mated connector ≥IP44). - IPX4 may be achieved by combined assembly of connector + lid/cap + equipment housing.
Test requirement	Some national regulations (US, CA) require UL articulated finger probe instead of standard IP probe.
3, Strain‑relief test for cables & connectors	Verify cable strain‑relief performance inside vehicle‑connector, EV‑plug, standard‑plug and equipment housing (Case‑C). Prevent cable conductor disconnection from terminals under pulling / bending stress.
Test Equipment	Tensile testing machine with Pull‑force test fixture.
Test Specimen info	Cable assemblies with plugs / vehicle‑connectors; for Case‑C, test strain‑relief at EV supply‑equipment side.
Mandatory Stipulations	Follow strain‑relief requirements from corresponding accessory standards (IEC 62196‑1, IEC 60309‑1, IEC 60884‑1).
Test requirement	No cable shall suffer displacement inside connector housing; no conductor terminal loosening.
4, Cable management & storage mechanical	Check mechanical storage means for permanently‑attached cable assemblies (Case‑C). Prevent mechanical damage, cable over‑heating during storage.
Test Equipment	Cable reel test apparatus per IEC 61316:1999.
Test Specimen info	Complete Case‑C EV supply‑equipment together with full cable assembly.
Mandatory Stipulations	- Stored vehicle‑connector height above ground: 0.5 m ~ 1.5 m. - If cable >7.5 m, dedicated cable‑management system is required; unused free cable length ≤7.5 m. - Ensure no over‑heating risk for stored / partially‑stored cable.
Test requirement	National codes may impose different maximum cable‑length limits.
5, Latching / retaining / locking mechanism mechanical assessment	Evaluate mechanical performance of retaining means, latching device and locking mechanism. Prevent unintentional / intentional live disconnection of vehicle coupler.
Test Equipment	Mechanical endurance / pull‑out test fixtures for couplers.
Test Specimen info	Vehicle coupler assemblies (vehicle‑connector + vehicle‑inlet), EV socket‑outlet.
Mandatory Stipulations	- Retaining means: prevent unintentional withdrawal; - Latching device: prevent both unintentional and intentional withdrawal; - Locking mechanism: resist tampering and unauthorized removal. - Interlock requirement: power contacts shall not become live before proper full engagement; power contacts shall be de‑energized before disconnection.
Test requirement	Three protection levels defined in IEC 62196‑1. Some national standards mandate anti‑unintentional‑disconnect functions.
6, Marking durability test	Check mechanical abrasion resistance of equipment marking / labels. Ensure markings remain legible during product service life.
Test Equipment	Cloth soaked in water; cloth soaked in petroleum spirit (hexane‑based solvent).
Test Specimen info	Finished EV supply‑equipment with original production marking / labels. Moulded / engraved markings are exempted from this rubbing test.
Mandatory Stipulations	Rub marking manually 15 seconds with water‑wet cloth, then another 15 seconds with petroleum‑spirit‑soaked cloth. After rubbing, marking shall remain legible without magnification; labels shall not curl or be easily peeled off.
Test requirement	This is a mechanical‑abrasion test for safety‑critical labelling information (ratings, IP grade, manufacturer, warnings).

Keywords: IEC 61851-1 mechanical test, IEC 61851-1 test equipment, IK08 impact test, IEC 62262 IK code tester, IEC 60068-2-75 hammer test, EV charger mechanical strength test, IEC 62196-1 cable anchorage test, charging cable pull and torque test machine, EV charging station IP test, marking durability abrasion test

UnitedTest manufactures IK vertical impact testing machine complying with IEC 62262, IEC 60068-2-75 Test Ehc vertical hammer. For IK rating test, IK01-IK10 enclosure mechanical impact resistance test, with standard fixtures, calibration, lab & certification testing. Get IK vertical drop hammer impact tester details.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Q1. What mechanical tests does IEC 61851-1 actually specify?

IEC 61851-1:2017 Edition 3.0 contains one fully specified mechanical test in the body of the standard plus a set of delegated ones. Fully specified: Clause 16.5 durability of marking (15 s rub with water, 15 s rub with petroleum spirit) and Clause 12.4 IP degrees. Delegated to other standards: Clause 12.11 mechanical strength (impact, IK code) to IEC 62262, Clause 11.6 strain relief to IEC 62196-1 / IEC 60309-1 / IEC 60884-1, and Clause 11.7 cable management to Clause 22 of IEC 61316:1999. There is no vibration test, no drop test and no connector insertion/withdrawal endurance test in Part 1.

Q2. Which hammer is used for an IK08 5 joule impact test?

IEC 62262 permits any of the three hammers of IEC 60068-2-75 provided the required 5 J energy is delivered: the pendulum hammer (Eha), the spring hammer (Ehb) and the vertical drop hammer (Ehc). All use a steel striking element with a defined hemispherical tip. For 5 J and above, laboratories normally use the pendulum or vertical hammer, because the spring hammer is generally limited to lower energies.

Q3. How many impacts are applied per surface in an IK test?

The number of blows is defined by IEC 62262 and by the referencing product standard. The widely applied rule is three impacts on each exposed face when the largest dimension of the surface does not exceed 1 m, and five impacts on each exposed face when it exceeds 1 m, distributed as evenly as possible over the surface. Enclosure components such as locks and hinges are normally excluded. Always confirm the count in the product standard you are certifying against.

Q4. Does IEC 61851-1 require an IK rating for Mode 3 and Mode 4 charging stations?

No. Clause 12.11 only covers Mode 2 EV supply equipment. For Mode 3 and Mode 4 assemblies the mechanical impact verification is inherited from IEC TS 61439-7 and IEC 61851-23, which classify assemblies by mounting method and mechanical resistance and add verification of resistance to impact by sharp objects. Market practice for public charging stations is commonly IK10, but the binding value comes from the applicable product or procurement specification.

Q5. What pull force and torque are used for EV charging cable anchorage tests?

The values are set by the accessory standard and by the rating of the accessory. Cable anchorage rigs for electric-vehicle accessories are commonly specified with pull steps of 160 N, 200 N, 240 N, 250 N and 500 N and torque steps of 0.6 Nm, 0.7 Nm, 1.2 Nm, 1.5 Nm, 2.3 Nm and 11.0 Nm, selected according to rated current and cable size (for example the GB/T 20234.1 / IEC 62196-1 anchorage test table). The torque is applied through a torque wheel of about 200 mm diameter.

Q6. Is there a cable flexing or bending test for charging cables?

Yes, but it is not written into Part 1. The flexing test for non-detachable cable assemblies is defined in IEC 62196-1 (and, for industrial accessories, in IEC 60309-1 Clause 24.4). The cable is clamped in a flexing machine, loaded with a defined weight and swung through a defined angle for a defined number of cycles while carrying current; the sample then has to pass the dielectric and continuity checks. UnitedTest flexing machines cover the cable outer diameters used for AC and DC charging cables.

Q7. What is the difference between IEC 61851-1 and IEC 62196-1 in mechanical testing?

IEC 61851-1 is the system-level standard: it covers the EV supply equipment as a whole, the charging modes and the general requirements. IEC 62196-1 is the component-level standard for plugs, socket-outlets, vehicle connectors and vehicle inlets. In practice IEC 61851-1 tells you which safety goal must be met and IEC 62196-1 gives you the mechanical test procedure — cable anchorage pull and torque, flexing of non-detachable cables, retaining means, latching and locking devices, and the mechanical strength of the accessory itself.

Q8. Does IEC 61851-1 include a vibration test or a drop test?

No. IEC 61851-1:2017 contains no vibration test and no free-fall drop test for EV supply equipment. Mechanical robustness is covered through the IK impact test of Clause 12.11, the delegated strain relief and flexing tests of Clause 11.6, the cable reel mechanical strength of Clause 11.7, the IP verification of Clause 12.4 and the endurance requirements of Clause 12.2. If a customer asks for vibration or drop testing, it normally comes from IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-31, a national standard or an OEM specification.
