EN 1277 Plastics piping systems - Thermoplastics piping systems for buried non-pressure applications - Test methods for leaktightness of elastomeric sealing ring type joints

EN 1277 specifies test methods for assessing the leaktightness of elastomeric sealing ring type joints used in buried, non‑pressure thermoplastics piping systems, such as those for drainage and sewerage. The standard defines three test pressures (partial vacuum, low hydrostatic pressure, and higher hydrostatic pressure) and four test conditions (with or without diametric and/or angular deflection). It is referenced by product standards (e.g., EN 1401, EN 13476) to validate joint performance under simulated installation and service conditions. The standard ensures consistent, repeatable testing to prevent leakage, which could lead to environmental contamination or structural failure.

Test Principle:

The core principle is to subject a joint assembly to a sequence of pressures while optionally applying diametric and/or angular deflections that mimic installation stresses. The test piece is first exposed to a partial vacuum (p₁) to detect air leakage. It is then filled with water and pressurized sequentially to p₂ and p₃. During each pressure stage, the joint is monitored for leakage (e.g., drops in pressure or visible water escape). The test evaluates whether the elastomeric seal maintains integrity under combined mechanical and pressure loads.

The sequential approach ensures that any seal damage from one pressure step does not mask failure in subsequent steps. The standard assumes that the referring product standard defines exact pressure values and deflection magnitudes, as these depend on pipe material, diameter, and application.

Specific Test Methods:

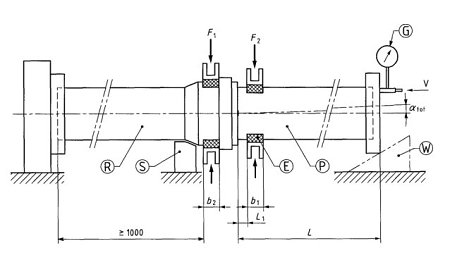

EN 1277 outlines three basic test pressures and four test conditions, which are selected by the referring product standard:

Test Method	Purpose	Key Parameters
Method 1 (P₁)	Basic leaktightness verification	Initial internal hydrostatic pressure (P₁); short duration to confirm no leakage under service conditions
Method 2 (P₂)	Performance validation (higher pressure)	Subsequent higher pressure (P₂ > P₁); assesses joint integrity under elevated stress
Method 3 (P₃)	Extended service simulation	Long-duration pressure holding (P₁ or P₂); evaluates long-term sealing stability
Four Test Conditions	Applied to simulate field deformation	A: No deflection; B: Diametric deflection; C: Angular deflection; D: Combined angular + diametric deflection

Test Equipment for EN 1277 Leak testing for thermoplastic pipe joints:

Recommend UnitedTest Piping System Joints Leak Tightness Tester, enable precise application of pressures, deflections, and measurements, consisting of:

Leaktightness Test (LTT) Frame	Capable of applying deflections and pressures, resisting forces from water mass and hydrostatic pressure.
End Sealing Cap	Seal non‑jointed ends without exerting longitudinal forces on the joint during positive pressure.
Pressure Sources	Hydrostatic (for p2/p3) and negative air (for p1) sources, connected to seal devices or the test piece.
Diametric Deflection Devices	Mechanical or hydraulic beams that compress the spigot and socket. Beam widths vary with pipe diameter (e.g., 100 mm for spigot beams up to 710 mm diameter). For pipes ≥400 mm, beams may be elliptically shaped to match expected deflection.
Angular Deflection Mechanism	Allows rotation of the pipe/fitting to specified angles (e.g., 2° for dn ≤315 mm).

Test Specimen information:

The test piece consists of at least one elastomeric sealing ring joint assembled from pipe sections and/or fittings.

Assembly: Must follow manufacturer’s instructions.

Dimensions: Pipe length ≥ external diameter (de) or ≥1000 mm, whichever is greater.

Single Assembly: The same test piece is used for all specified pressure and deflection stages.

Internal Volume Reduction: A sealed mandrel or pipe may be inserted to reduce water volume, provided it does not support the joint or affect deformation.

Fittings: When testing fittings, the pipe section is replaced by the fitting, fixed to the rig and plugged appropriately.

Test Application (Industry Field)

EN 1277Core use cases in civil engineering, water/wastewater, and utility infrastructure:

Water Supply Networks: Buried non-pressure thermoplastic pipes (PE, PVC) for potable water distribution.

Sewerage & Drainage: Stormwater, sewage, and effluent pipelines (e.g., PVC-M, PP pipes).

Telecommunication & Electrical Conduits: Buried thermoplastic conduits with elastomeric joints for cable protection.

Agricultural Irrigation: Low-pressure buried pipes for farm irrigation systems.

Industrial Non-Pressure Pipelines: Chemical/industrial waste lines (resistant to corrosive fluids).

Test Procedure of EN 1277 Leak testing for thermoplastic pipe joints:

Specimen Preparation	Secure the test piece in the apparatus with sealed ends.
Deflection	Diametric: Compress spigot and socket to calculated distances (l_sp, l_so) based on percentage deflections (default: 10% for spigot, 5% for socket). Position clamps at specified distances from the socket mouth (L₁). Angular: Rotate the joint to the specified angle (α) based on nominal diameter (dn). Tolerance: +0.2°.
Pressure Application and Monitoring	Vacuum Test (p1): Apply negative pressure gradually over ≥5 min.Stabilize for ≥5 min, then isolate and record initial pressure. After 15 min, measure pressure again. Calculate loss of vacuum; default limit is ≤10% of p₁.
	Low Hydrostatic (p2): Fill assembly with water, bleed air, and allow temperature equalization (≥5 min for dn <400 mm; ≥15 min for larger). Raise pressure gradually over ≥5 min to specified level, maintain ≥15 min, check for leaks.
	High Hydrostatic (p3): Fill assembly with water, bleed air, and allow temperature equalization (≥5 min for dn <400 mm; ≥15 min for larger). Raise pressure gradually over ≥5 min to specified level, maintain ≥15 min, check for leaks.
Repetition	If multiple parameter sets are required, allow ≥24 h rest between tests.

Related Standard:

ISO 13254	Thermoplastics piping systems for non-pressure applications. Test method for watertightness
ISO 13255	Thermoplastics piping systems for soil and waste discharge inside buildings. Test method for airtightness of joints
ISO 13844	Plastics piping systems — Elastomeric-sealing-ring-type socket joints for use with plastic pipes — Test method for leaktightness under negative pressure, angular deflection and deformation
ASTM D4161	Standard Specification for “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe Joints Using Flexible Elastomeric Seals
ISO 13259	Thermoplastics piping systems for underground non-pressure applications. Test method for leaktightness of elastomeric sealing ring type joints.

Piping System Joints Leak Tightness Tester it is used to determine the maximum negative pressure value of thermoplastic pipe and composite pipe, and is a necessary testing equipment for plastic pipe manufacturers and testing institutions.

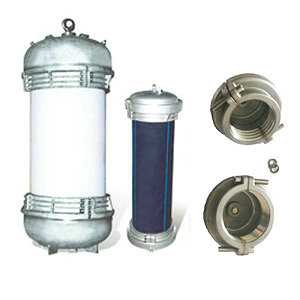

Stainless Steel End Caps For Pipe Hydrostatic Pressure and Burst Testing are designed for internal hydrostatic pressure testing of pipes and fittings. It is used to seal the sample in order to generate internal pressure in the sample, with the characters: ISO 1167 Type A structure.
