ISO 13259 Leak tightness test Thermoplastics piping for underground non-pressure stipulated determining method of the leak tightness of elastomeric sealing ring type joints buried thermoplastics piping. This standard specifies three basic test pressures for determining the leaktightness of elastomeric sealing ring type joints for buried thermoplastics non-pressure piping systems.

ISO 13259: Thermoplastics piping systems for underground non-pressure applications. Test method for leaktightness of elastomeric sealing ring type joints

Test Principle of ISO 13259:

The core principle involves subjecting a test assembly (pipes/fittings with an elastomeric sealing ring joint) to sequential pressure and deflection stresses, then monitoring for leakage.

The test piece is first exposed to negative air pressure (p1) to check for vacuum-induced leaks.

Next, it undergoes low hydrostatic pressure (p2) followed by higher hydrostatic pressure (p3) to assess resistance to fluid penetration under increasing loads.

During testing, the joint may be subjected to diametric/angular deflection (as per Condition B/C/D) to mimic soil settlement or thermal expansion effects.

Leakage is monitored throughout each pressure phase (minimum 15 minutes per pressure), with results validated against criteria in the referring standard.

Specific Test Methods:

ISO 13259 defines three basic test pressure regimes and four deflection conditions to assess joint integrity comprehensively

1), Pressure Regimes

Pressure	Description	Typical Value	Purpose
p₁	Internal negative air pressure (partial vacuum)	-0.3 bar ±5%	Simulates external soil pressure and vacuum conditions in drainage systems
p₂	Low internal hydrostatic pressure	Typically 0.05 bar	Simulates normal service conditions
p₃	Higher internal hydrostatic pressure	Typically 0.5 ~ 0.55 bar	Simulates surge or overload conditions

2), Deflection Conditions

Condition	Description	Application
A	No additional diametric or angular deflection	Baseline performance check
B	Diametric deflection (intentional deformation of joint diameter)	Tests resistance to ground movement-induced deformation
C	Angular deflection (intentional bending of the joint)	Tests joint flexibility under misalignment
D	Simultaneous angular and diametric deflection	Most severe condition, mimicking complex ground movements

Test Equipment required for ISO 13259 leaktightness testing for plastic pipes and fittings:

Recommend UnitedTest Piping System Joints Leak Tightness Tester, enable precise application of pressures, deflections, and measurements, consisting of:

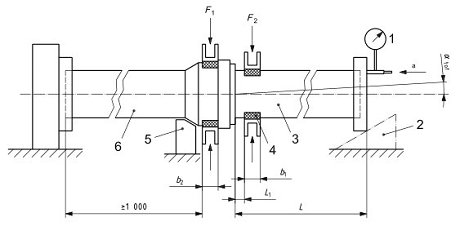

Leaktightness Test (LTT) Frame	A jig or arrangement to apply diametric/angular deflection, apply/maintain test pressures (positive/negative), hold the assembly in position, and resist forces from water weight and pressure. It must not support the joint against internal pressure.
End Sealing Cap	Seal non-jointed ends without exerting longitudinal forces on the joint.
Pressure Sources	Hydrostatic (for p2/p3) and negative air (for p1) sources, connected to seal devices or the test piece.
Diametric Deflection Devices	Mechanical systems with beams to apply compressive forces (F1/F2) to the spigot (male end) and socket (female end). Beam widths (b1 for spigot, b2 for socket) depend on pipe outer diameter (de): b1: 100 mm (de ≤710 mm), 150 mm (710 < de ≤1000 mm), 200 mm (de >1000 mm). b2: 30 mm (de ≤110 mm), 40 mm (110 < de ≤315 mm), 60 mm (de >315 mm).
Angular Deflection Mechanism	Applies rotational stress (default: 2° for dn ≤315 mm, 1.5° for 315 < dn ≤630 mm, 1° for dn >630 mm; tolerance ±0.2°).

Test Specimen information:

The test piece comprises an assembly of at least one elastomeric sealing ring joint with pipe sections and/or fittings.

Pipe-form specimens have lengths L≥1000mm; fittings replace corresponding ends in the setup and are fixed/plugged appropriately.

A sealed pipe or mandrel may be inserted to reduce water volume, provided it is 100% leak-tight and does not support deformation.

The same assembly is used for all test phases (p1→p2→p3) to ensure consistency.

Test Application (Industry Field)

ISO 13259 is critical for the plastic pipe industry, specifically for:

Municipal Infrastructure: Drainage, sewerage, and stormwater systems using PVC, PE, PP, and other thermoplastics

Industrial Applications: Chemical waste, process water, and non-pressure fluid transport systems

Building Services: Underground drainage for commercial and residential developments

Infrastructure Projects: Road construction, land development, and urban renewal initiatives requiring reliable non-pressure piping.

Test Procedure of ISO 13259 leaktightness test for plastic pipes and fittings:

Specimen Preparation

Cut pipe sections to required length and prepare joint surfaces;

Assemble joint with elastomeric sealing ring according to manufacturer's specifications;

Mount end closures and ensure all connections are leak-free.

Mounting and Deflection Setup

Install test assembly on LTT frame

Apply specified diametric and/or angular deflection (Conditions B, C, or D)

Secure assembly to prevent movement during testing.

$l_{s p} = d_{e m} \cdot (1 - X /100)$ (spigot deflection; $d_{e m}$ : mean spigot outer diameter; $X$ : nominal deflection, default 10%).

l_so=d_em_,so− (d_em⋅Y/100) (socket deflection; d_em,so: mean socket outer diameter; Y: nominal deflection, default 5%).

Pressure Application and Monitoring

Vacuum Test (p1):

Gradually apply -0.3 bar over ≥5 minutes, stabilize for ≥5 minutes, close the source, and measure vacuum loss after 15 minutes (max 10% loss allowed).

Low Hydrostatic (p2):

Fill with water (bleed air), wait 5–15 minutes (by size), then ramp to 0.05 bar over ≥5 minutes, hold 15+ minutes, monitor leaks.

High Hydrostatic (p3):

Ramp to 0.5–0.55 bar over ≥5 minutes, hold 15+ minutes, monitor leaks.

Repetition

If multiple parameter sets are required, rest for ≥24 hours (dispute cases) before retesting. perform tests in ascending order (p₁ → p₂ → p₃)

Maintain deflection condition throughout all pressure stages

Related Standard:

ISO 13254	Thermoplastics piping systems for non-pressure applications. Test method for watertightness
ISO 13255	Thermoplastics piping systems for soil and waste discharge inside buildings. Test method for airtightness of joints
ISO 13844	Plastics piping systems — Elastomeric-sealing-ring-type socket joints for use with plastic pipes — Test method for leaktightness under negative pressure, angular deflection and deformation
ASTM D4161	Standard Specification for “Fiberglass” (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe Joints Using Flexible Elastomeric Seals
EN 1277	Plastics piping systems - Thermoplastics piping systems for buried non-pressure applications - Test methods for leaktightness of elastomeric sealing ring type joints

Piping System Joints Leak Tightness Tester it is used to determine the maximum negative pressure value of thermoplastic pipe and composite pipe, and is a necessary testing equipment for plastic pipe manufacturers and testing institutions.

Stainless Steel End Caps For Pipe Hydrostatic Pressure and Burst Testing are designed for internal hydrostatic pressure testing of pipes and fittings. It is used to seal the sample in order to generate internal pressure in the sample, with the characters: ISO 1167 Type A structure.

Q1: Why is ISO 13259 important for underground thermoplastics piping systems?

A: ISO 13259:2010 is critical because it standardizes procedures to evaluate the leaktightness of elastomeric sealing ring joints in buried thermoplastics piping systems for non-pressure applications(e.g., drainage, irrigation, telecom conduits). These joints are vulnerable to fluid ingress/egress due to soil settlement, thermal expansion, or material degradation. The standard ensures consistent, reliable testing to prevent failures that could compromise infrastructure integrity, public safety, or environmental protection.

ISO 13259 is critical for material and system performance for several reasons:

Joint Integrity Validation: The elastomeric sealing ring is the weakest point in non-pressure piping systems; this test ensures it maintains leaktightness under service stresses

Installation Reliability: Tests joint performance under deflections common during installation (misalignment, ground settlement)

Long-Term Durability: Evaluates resistance to creep, material relaxation, and environmental stress cracking that can cause joint failure over time

Q2: How is leakage assessed, and what are acceptance criteria?

A: Leakage is monitored during each pressure phase (≥15 minutes):

Vacuum test (p1): Measure vacuum loss after 15 minutes—default acceptance is ≤10% loss of initial vacuum.

Hydrostatic tests (p2/p3): Record any visible leakage; "no leakage" is passing.

The referring product standard specifies final acceptance criteria.

Q3: Can the same test assembly be reused for multiple tests?

A: No—the same assembly shall be used for the entire test regime (p1→p2→p3). Reusing assemblies across different tests is prohibited to avoid altering joint properties. If multiple parameter sets are required, a ≥24-hour rest period (mandatory in disputes) is needed before retesting.

Q4: Why is deflection included in the test?

A: To simulate real burial conditions: ground settlement, installation misalignment, soil movement. Joints must seal even when deformed.

Q5: Is ISO 13259 for pressure pipes?

A: No. It is only for non-pressure buried systems. Pressure piping uses different standards (e.g., hydrostatic pressure tests for pressure pipes).

Q6: Can I skip deflection for a simpler test?

A: No. Deflection is required by ISO 13259; without it, the test does not reflect real service conditions and results are invalid.
