ISO 15024 describes the double cantilever beam (DCB) test to measure Mode I interlaminar fracture toughness GIC of unidirectional fibre-reinforced plastic composites. UnitedTest manufactures ISO 15024 compliant DCB test machines for composite delamination resistance evaluation.


ISO 15024 establishes the double‑cantilever‑beam (DCB) test method for determining Mode I interlaminar fracture toughness GIC of unidirectionally fibre-reinforced plastic composites. GIC, also known as critical energy release rate with units J/m², characterizes a composite material’s ability to resist opening-mode delamination crack initiation and crack propagation between composite laminate plies. This test is essential for assessing the interlaminar bonding quality and damage tolerance of fibre composite laminates.


It is widely used in aerospace, automotive, wind energy and advanced composite R&D laboratories for material screening, laminate formulation optimization and structural component qualification. UnitedTest designs and manufactures high-precision ISO 15024 DCB testing machines, delivering stable loading and accurate crack growth monitoring for fibre-reinforced composite specimens.


Test Principle

A DCB specimen contains a thin non-adhesive starter film (≤ 13 µm) at the laminate mid-plane, simulating an initial delamination.

An opening (mode I) load is applied perpendicular to the delamination plane, through load blocks, piano hinges (or insert hinges), under displacement control at constant rate.

The specimen is loaded until the first increment of crack growth from the insert, then unloaded — this creates a sharp mode I precrack (the as-moulded film tip is too blunt to give a representative value).

It is then re-loaded and the stable delamination growth is monitored; load, displacement and delamination length are recorded at defined points.

Data reduction gives initiation values (from the insert and from the precrack) and propagation values, plotted as a delamination-resistance curve (R-curve): GIC vs. delamination length a. The standard explicitly notes that fibre bridging is the main cause of the rising R-curve shape and may not be representative of the composite itself.


Two Specific Test Methods

Two authorised calculation approaches convert load‑displacement‑crack‑length data to GIC: Corrected Beam Theory (CBT, Method A) and Modified Compliance Calibration (MCC, Method B). Both apply large‑displacement correction factor F; load‑block correction factor N applies for load‑block fixtures (N=1 for piano hinges).

Three characteristic initiation points are defined on load‑displacement traces:

NL point: Deviation‑from‑linearity point

VIS point: Visually‑observed delamination‑onset point

5 %/MAX point: Whichever occurs first: 5 % compliance increase or maximum load point

PROP points: Discrete stable crack‑propagation points for R‑curve construction (minimum 15 valid PROP points required).


Test Specimen Specifications

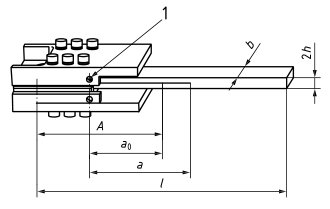

Preferred specimen dimensions

ParameterCarbon‑fibre compositeGlass‑fibre compositeTolerance
Width b20 mm20 mm± 0.5 mm
Total length l, minimum125 mm125 mm—
Total thickness h3 mm5 mm± 0.1 mm

Insert tip must be ≥ 45 mm from the near end of the load block/hinge; insert length measured on both edges

Minimum 5 valid specimens (invalid ones replaced); 6 recommended when testing a new material or an inexperienced operator.


Required Test Equipment of ISO 15024 DCB Mode I Interlaminar Fracture Toughness (GIC) Testing of Fibre-reinforced plastic composites


Constant-speed Universal Testing Machine (UTM)

Displacement‑controlled, force‑measurement meets ISO 7500‑1 Class 1; displacement‑measurement meets ISO 9513 Class 2;

cross‑head speed tolerance ±20 %; machine‑compliance compensation is needed when using cross‑head displacement signal.

Loading fixtures

Three loading alternatives are permitted:

- Load blocks (max block length l3=15mm;

- Piano hinges;

- New flat insert‑hinge fixture (Refer Annex D, no adhesive bonding to specimen)

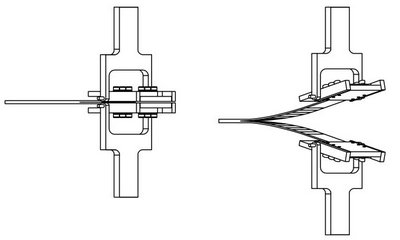

ISO 15024 DCB Mode I Interlaminar Fracture Toughness (GIC) Testing of Fibre-reinforced plastic composites

Fixtures must allow free rotation of the specimen end and align with the machine loading axis.

Consumables & auxiliary equipment

Non‑adhesive starter‑insert polymer film (max thickness 13 μm; PTFE for cure < 180 °C; polyimide for cure > 180 °C);

Desiccator, release agent, cyanoacrylate / two‑component room‑temperature epoxy adhesive, solvent (acetone / ethanol), ≥ 500‑grit abrasive paper, water‑soluble white marking fluid for specimen edges

Video non-contact extensometer
0–200 mm travel, magnification ≤ ×70, readable to 0.05 mm (can be automated with a position sensor)


Key Test Parameters & Mandatory Stipulations:

1. Displacement‑rate settings:

   Initial loading: 1–5 mm/min (displacement‑controlled).

   Unloading rate: maximum 25 mm/min.

   Re‑loading rate: same 1‑5 mm/min as initial loading.

2. Crack‑growth control:

   Initial pre‑crack growth: stop initial loading after delamination extends 3–5 mm beyond starter‑film tip.

   Re‑loading propagation requirement: delamination must propagate ≥ 45 mm past pre‑crack tip (total 50 mm maximum beyond pre‑crack tip).

   Crack‑length measurement accuracy: at least ± 0.5 mm.

   Validity warning: discard result if delamination migrates away from laminate mid‑plane; report if crack‑tip positions on two specimen edges differ > 2 mm (indicates asymmetric loading).


Step by step Test Procedure of ISO 15024 DCB Mode I Interlaminar Fracture Toughness (GIC) Testing of Fibre-reinforced plastic composites

  1. Specimen preparation: Fabricate composite plate with mid‑plane non‑adhesive insert‑film; machine DCB coupons; measure dimensions; mark edges for crack‑length reading; bond load‑blocks / piano‑hinges (Annex A).

  2. Conditioning: Dry coupons, short‑term desiccator storage before test.

  3. Test setup: Mount specimen on test‑machine fixture under ISO 291 standard laboratory atmosphere.

  4. Initial loading: Apply displacement‑controlled loading (1‑5 mm/min); record continuous load‑displacement; visually track delamination growth; capture VIS‑point; stop loading after stable 3‑5 mm pre‑crack extension; unload at ≤ 25 mm/min; mark pre‑crack tip positions on both specimen edges.

  5. Re‑loading: Re‑load at same 1‑5 mm/min cross‑head speed without intermediate stops; synchronously record load, displacement and delamination‑length at every marked position (dense 1‑mm sampling for first 5 mm and final 5 mm propagation, 5‑mm steps in‑between). Continue until delamination extends to 45‑50 mm past pre‑crack tip; unload; mark final crack‑tip positions.

  6. Data processing: Identify NL, VIS, 5 %/MAX initiation points and stable PROP propagation points. Compute GIC by either CBT or MCC with correction factors F and N. Generate R‑curve of GIC against delamination length. Calculate mean, standard deviation and coefficient‑of‑variation for initiation‑point values across replicate specimens.

ISO 15024 DCB Mode I Interlaminar Fracture Toughness (GIC) Testing of Fibre-reinforced plastic composites

      Before starting                    Condition of constant opening


Industrial Application Fields

  • Aerospace — primary user: G_IC is a material qualification and design-allowable property for damage-tolerance analysis of CFRP structures; OEMs run their own variants (Airbus AITM 1-0005, Boeing BSS 7273 — both using an area method rather than CBT/MCC).

  • Wind energy — delamination resistance of blade laminates and bondlines; root/spar-cap and adhesive-joint development.

  • Automotive, rail, marine, pressure vessels/pipes — CFRP/GFRP toughness screening; referenced by EN ISO 23936-4 for composites in oil & gas service.

  • Materials R&D and QC — quantifying the effect of fibre sizing/surface treatment, matrix toughening (thermoplastic particles, interlayers), fibre volume fraction, processing/cure, moisture and temperature; batch release and supplier comparison.


Related Test Standard:

ISO 15024Fibre-reinforced plastic composites. Determination of mode I interlaminar fracture toughness, GIC, for unidirectionally reinforced materials
ASTM D5528

The primary US‑standard DCB Mode‑I test for unidirectional composites, functionally analogous to ISO 15024.

Differences: ASTM D5528 uses Compliance‑Calibration (CC) as main evaluation method, whereas ISO 15024 provides CBT and MCC calculation options;

ISO 15024 includes mandatory pre‑cracking load‑unload cycle and defines NL‑VIS‑5 %/MAX multiple initiation criteria

GB/T 28891Fibre-reinforced plastic composites - Determination of mode Ⅰinterlaminar fracture toughness GⅠC for unidirectionally reinforced materials
ISO 15114Fibre-reinforced plastic composites - Determination of the mode II fracture resistance for unidirectionally reinforced materials using the calibrated end-loaded split (C-ELS) test and an effective crack length approach
GB/T 39484Fibre-reinforced plastic composites—Determination of the mode Ⅱ fracture resistanc for unidirectionally reinforced materials using the calibrated end-loaded split(C-ELS) test and an effective crack length approach
ISO 25217

DCB‑based Mode‑I test for structural adhesive joints (adhesive fracture energy, for bonded joints, not composite interlaminar delamination)

ASTM D7905Mode II using the End-Notched Flexure (ENF) test with compliance calibration
ASTM D6671Mixed-mode I/II interlaminar toughness via Mixed-Mode Bending (MMB); also uses NL and 5 %/Max definitions
ASTM D6115Mode I fatigue delamination-growth onset (G–N curve) using the same DCB specimen
JIS K 7086Japanese DCB method for interlaminar fracture toughness of CFRP (modified compliance method)


Keywords: ISO 15024 DCB tester,Mode I interlaminar fracture toughness test machine,GIC critical energy release rate tester,fibre reinforced plastic composite delamination tester,double cantilever beam test equipment,unidirectional composite laminate fracture test rig,composite ply crack growth resistance tester,FRP interlaminar bonding strength analyzer,advanced composite damage tolerance test apparatus,aerospace composite material testing machine,wind turbine composite quality control tester,polymer composite mechanical property test system,laminated composite delamination test machine,composite material R&D laboratory tester

Related products and device

ISO 15024 DCB Mode‑I GIC Tensile Testing Machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

ISO 15024 Video extensometer / Non-contact extensometer

Video extensometer, is a non-contact real-time high-precision strain measurement system, which is based on a separate camera and real-time image processing algorithm, by taking images of the experimental process, analyzing image characteristic changes, dynamically measuring the strain changes.

double cantilever beam test equipment

Thin Plastic Film Tensile Testing Fixture is specially designed for tensile strength testing of flexible and soft plastic film specimens. Fully compliant with the ASTM D882 standard for thin film tensile testing, the fixture features premium rubber-coated jaws.

Related Standard

ASTM D5528 Mode-I Interlaminar Fracture Toughness DCB Test –

ASTM D5528 Standard Test Method for Mode I Interlaminar Fracture Toughness of Unidirectional Fiber-Reinforced Polymer Matrix Composites

ASTM D5528 is standard test method for Mode‑I (opening‑mode) interlaminar fracture toughness GIc of unidirectional fiber‑reinforced polymer‑matrix composite laminates, using Double Cantilever Beam (DCB) specimens. It quantifies the critical strain‑energy release rate for delamination initiation and growth between composite plies.


ASTM D3518 In-Plane Shear Test for Polymer Composites –

ASTM D3518 Standard Test Method for In‑Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate

ASTM D3518 determines the in-plane shear response of continuous-fibre polymer-matrix composites by pulling a balanced, symmetric ±45° laminate in uniaxial tension and converting axial/transverse strains into shear strain. It provides shear stress‑strain curves, chord shear modulus, maximum shear stress and offset shear strength for composite laminates.

ASTM D5448 Inplane Shear Test of Hoop Wound Polymer Composites –

ASTM D5448 Standard Test Method for Inplane Shear Properties of Hoop Wound Polymer Matrix Composite Cylinders

ASTM D5448 is a mechanical test for determining in-plane shear properties of hoop-wound (≈90°) polymer matrix composites reinforced with high-modulus continuous fibers.The specimen is a thin-walled cylindrical tube loaded in torsion to obtain shear-dominated material behavior in the fiber/transverse plane.It does not test a flat laminate coupon in rail/shear; it uses a cylindrical winding geometry representative of filament-wound structures.

ASTM D3479 Tension-Tension Fatigue of Polymer Matrix Composites –

ASTM D3479 — Standard Test Method for Tension-Tension Fatigue of Polymer Matrix Composite Materials

ASTM D3479 determines the fatigue behavior of polymer matrix composite materials subjected to tensile cyclic loading. It answers the question with quantitative, reproducible data that when polymer matrix composites (PMCs) replace metals in aircraft wings, wind turbine blades, automotive structures, and sporting goods, engineers face a critical question: how many millions of tensile load cycles can a composite laminate survive before fatigue failure?

ASTM D7078 V-Notched Rail Shear Test for Composite Materials –

ASTM D7078 V‑Notched Rail Shear Test for Composite Materials

ASTM D7078 determines shear properties of high‑modulus fibre‑reinforced composite materials by clamping a V‑notched specimen between two pairs of loading rails and pulling the rails in tension. The rails transmit shear forces through the faces of the specimen (face‑loading), which allows higher shear forces to be applied than in edge‑loaded methods.

ISO 527-4, ISO 527-5 Tensile Test on fibre-reinforced Composites –

ISO 527-4 and ISO 527-5 are two key standards within the ISO 527 series for determining the tensile properties of fibre-reinforced plastic composites.

ISO 527-4 covers the general principles and tests for isotropic and orthotropic materials. ISO 527-5 provides specific procedures for testing unidirectional fiber-reinforced composites.


These standards are critically important because they provide a unified, reliable method to measure fundamental mechanical properties (like tensile strength, modulus, and strain) which are essential for material selection, quality control, structural design, and R&D in aerospace, automotive, wind energy, and sports equipment industries.


ASTM D4255 Rail Shear Test In-Plane of Polymer Matrix Composite Materials –

ASTM D4255 Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

ASTM D4255 is test method for measuring in‑plane shear properties of fiber‑reinforced polymer‑matrix composite materials using the rail‑shear fixture approach. It defines two distinct test configurations (Procedure A two‑rail shear, Procedure B three‑rail shear) to obtain shear stress‑strain curves, shear chord modulus, offset shear stress, and maximum in‑plane shear stress for composite laminates. The standard applies for continuous‑fiber, woven‑fabric, balanced‑symmetric laminates and randomly‑oriented short‑fiber polymer‑matrix composites. It notes that shear‑stress gradients and grip‑area stress concentrations may degrade reproducibility; D5379 and D7078 deliver more uniform pure‑shear stress states in gage sections.

ASTM D5379 Shear Test of Composite by the V-Notched Beam methods –

ASTM D5379 Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method

ASTM D5379 used for characterizing the shear behavior of advanced fiber‑reinforced composites. Often referred to as the Iosipescu shear test. It quantifies both in-plane shear (1-2 plane) and interlaminar shear (1-3, 2-3 planes) of fiber-reinforced polymer composites, covering continuous unidirectional laminates, woven fabric laminates, balanced symmetric panels, and random short-fiber molded composites (SMC). This testing method measures shear stress/strain, ultimate strength and strain, as well as shear string elastic modulus.

ASTM D3410 Shear Loading compression Test for Polymer Matrix Composite Materials with Unsupported Gage Section –

ASTM D3410 Shear Loading compression Test Method for Compressive Properties of Polymer Matrix Composite Materials with Unsupported Gage Section.

ASTM D3410 measuring in‑plane compressive properties for high‑modulus‑fiber‑reinforced polymer‑matrix composites using pure shear‑loading via wedge grips, with an unsupported gage section on the test coupon. Test method determines the in-plane compressive properties of polymer matrix composite materials reinforced by high-modulus fibers. It is applicable to composites made from unidirectional tape, wet-tow placement, textile (for example, fabric), short fibers, or similar product forms. Some product forms may require deviations from the test method.

ISO 527-1, ISO 527-2 Tensile Test of Plastics Composites & plastics –

ISO 527-1 covers the test procedures for determining tensile properties of plastics and plastic composites. Tensile properties of plastics that are determined through the practices of ISO 527-1 include tensile strength, tensile modulus and other properties related to stress strain characteristics of plastic materials.

ISO 527-2 specifies the test conditions for determining the tensile properties of moulding and extrusion plastics, based upon the general principles given in ISO 527-1. The methods described in ISO 527-2 are selectively suitable for use with the following range of materials: rigid and semi-rigid thermoplastics moulding, extrusion and cast materials, including compounds filled and reinforced by, for example, short fibres, small rods, plates or granules but excluding textile fibres (see ISO 527-4 and ISO 527-5).

FAQs for ISO 15024 (DCB Mode‑I GIC Test for Composites)

ISO 15024 Mode‑I Interlaminar Fracture Toughness GIC Test for Unidirectional Fibre‑Reinforced Composites | UnitedTest DCB Test Machine


Q1: What is ISO 15024 test?

A: ISO 15024:2023 is an international standard test method that uses a Double Cantilever Beam (DCB) specimen to measure Mode‑I interlaminar fracture toughness G_IC (critical energy release rate, unit J/m²) for unidirectional fibre‑reinforced polymer‑matrix composites. It evaluates a composite’s resistance to opening‑mode delamination crack initiation and crack propagation between laminate plies.


Q2. Why this test matters for the material?

A: Delamination is the dominant life-limiting failure mode of laminates. A composite laminate has essentially no through-thickness reinforcement, so its interlaminar (matrix-dominated) strength is orders of magnitude lower than its in-plane fibre-dominated strength. Impact, ply drops, free edges, bolt holes and manufacturing defects all translate into delaminations that can grow under out-of-plane opening (mode I) — the most damaging and most common driving mode.

G_IC is a geometry-independent material property (J/m²), unlike a strength value, so it can be used directly as a design allowable and as a failure criterion in damage-tolerance and durability analyses, and compared across materials, processes and suppliers.

It is the standard metric for matrix and interface development. Matrix toughening, thermoplastic interlayers, z-pinning/stitching, fibre sizing and cure cycle changes are all judged primarily by the G_IC initiation value they deliver; the R-curve reveals the fibre-bridging contribution that raises apparent toughness with crack length.

It feeds simulation. Cohesive-zone and VCCT delamination models require G_IC (and G_IIC, G_IIIC / mixed-mode data from ISO 15114 and ASTM D6671) as direct inputs — without measured values, virtual testing of impact and compression-after-impact behaviour is not credible.

It is moisture- and temperature-sensitive, which is exactly why the standard mandates drying/conditioning and ISO 291 test atmospheres — guaranteeing that the number reported for a material means the same thing in every laboratory.

Certification and supply-chain control. Aerospace and wind OEM qualification plans, material datasheets and batch acceptance testing all require a standardized, reproducible G_IC — which is why ISO 15024 exists alongside ASTM D5528 and the OEM-specific methods.


Q3: What materials does ISO 15024 apply to? Are multi‑directional laminates allowed?

A: This standard only applies for 0° unidirectional composite laminates with even ply counts, including carbon‑fibre / glass‑fibre thermoset and thermoplastic composites. Multi‑angle / multi‑directional lay‑ups are NOT recommended. Multi‑directional laminates cause anti‑clastic bending and crack branching away from mid‑plane, making test results invalid.


Q4: What starter insert film shall I select?

A: Max thickness ≤ 13 μm.

  • Curing temperature below 180 °C (epoxy thermoset): use PTFE film.

  • Curing temperature above 180 °C (polyimide, bismaleimide, high‑temp thermoplastic): use polyimide (Kapton‑type) film. For polyimide film, apply PTFE‑type mould‑release agent and bake twice before embedding into laminate (5.5, Annex B.2).


Q5: How many specimens need to be tested for ISO 15024 test?

A: Minimum 5 valid specimens. Invalid specimens (delamination deviates from mid‑plane, fixture bond failure, asymmetric crack tip > 2 mm difference on two edges) shall be discarded and replaced by new coupons.


Q6: What displacement rate should I run for ISO 15024 DCB test?

A: Loading / re‑loading displacement rate: 1–5 mm/min (displacement‑controlled). Unloading rate maximum 25 mm/min


Q7: What is Mode‑I pre‑cracking? Can I use wedge pre‑cracking?

A: Standard pre‑cracking procedure: initial loading until delamination grows 3‑5 mm beyond starter‑film tip → unload → mark pre‑crack tip → then re‑load for propagation measurement. This is mandatory for ISO 15024. Wedge pre‑cracking is atypical alternative, NOT recommended. If wedge pre‑cracking is used, you must report this deviation explicitly; off‑mid‑plane pre‑crack will invalidate results.


Q8: Two calculation methods: CBT and MCC, which one to choose?

A: ISO 15024 permits either Method A: Corrected Beam Theory (CBT) or Method B: Modified Compliance Calibration (MCC); both produce equivalent results. You need to stick with one method for a complete test batch. Both require large‑displacement correction factor F; load‑block correction factor N applies for load‑block fixtures (N=1 for piano hinges). If F<0.9, note this in your final test report.


Q9: Why does my R‑curve keep rising? Is that abnormal?

A: Rising R‑curve is very common for unidirectional DCB test, mainly caused by fibre‑bridging inside delamination crack. Fibre bridging is test‑induced artefact rather than intrinsic material property. The R‑curve normally rises and plateaus at larger delamination length.


Q10: My specimen shows unstable stick‑slip delamination growth. What to do?

A: Stick‑slip (sudden fast crack jump together with sharp load drop) shall be noted in test report. You cannot collect valid PROP points during unstable crack jump. If most propagation data is lost, the specimen will be invalid.


Q11. What is the difference between ISO 15024 and ASTM D5528?

A: Both use the same DCB specimen and mode I principle, but differ in initiation criteria and data reduction: ISO 15024 reports NL, VIS and 5 %/MAX and reduces data by CBT or MCC; ASTM D5528 uses Compliance Calibration (CC) as its main method and, in its current edition, only the 5 %/MAX compliance criterion for initiation.

Other differences: ISO 15024:2023 adds the flat insert hinge option (Annex D) and requires force to ISO 7500-1 class 1 and displacement to ISO 9513 class 2. In practice most laboratories can satisfy both standards on the same machine with the same fixture set, provided the software can run CBT, MCC and CC. Aerospace OEM methods — Airbus AITM 1-0005 and Boeing BSS 7273 — use a further variant, the area method.


Q12: Can the same machine test mode II and mixed-mode delamination?

A: Yes. ISO 15024 shares the same universal testing machine and DCB-style specimen preparation as the other delamination tests — adding the appropriate fixtures lets one frame cover ISO 15114 / ASTM D7905 (mode II) and ASTM D6671 (mixed-mode I/II).

In detail: That is why a modular frame with interchangeable fixtures, a low-capacity load cell and software supporting several data-reduction schemes is the most economical configuration for a composites laboratory. UnitedTest frames are configured this way.


Q13. What capacity of testing machine do I need for ISO 15024?

A: Delamination loads are normally below 500 N, so a 1 kN or 2 kN electromechanical frame fitted with a 100 N–1 kN load cell is the right size. Oversizing the load cell is the most common cause of noisy GIC data.

What matters more than capacity is resolution and control: constant crosshead speed held within ±20 % over 1–5 mm/min, plus unloading at up to 25 mm/min; force accuracy to ISO 7500-1 class 1; displacement to ISO 9513 class 2; and low machine compliance (or compliance compensation) so the recorded opening displacement is trustworthy.


Q14: Why choose UnitedTest ISO 15024 DCB Test Machine, Mode‑I Interlaminar Fracture Toughness G_IC Tester for Unidirectional Fibre‑Reinforced Composites?

A: UnitedTest is professional manufacturer of ISO 15024:2023 DCB (Double Cantilever Beam) test system for measuring Mode‑I interlaminar fracture toughness G_IC of unidirectional CFRP / GFRP composites. Complete DCB fixtures: load‑blocks, piano‑hinges and flat insert‑hinge set, built‑in CBT / MCC calculation algorithm for R‑curve generation, ideal for aerospace, wind‑energy composite lab R&D & QC.


UnitedTest supplies complete turn‑key ISO 15024 DCB test machine for determining Mode‑I interlaminar fracture toughness G_IC, critical energy release rate) for unidirectional fibre‑reinforced polymer composites (carbon‑fibre CFRP, glass‑fibre GFRP thermoset & thermoplastic laminates).


Our composite DCB test system fully complies with latest ISO 15024 international standard, supports three loading configurations: load‑blocks, piano‑hinges and the newly‑added flat insert‑hinge fixture. It can run the full DCB workflow including initial loading, mandatory Mode‑I pre‑cracking, re‑loading crack‑propagation test, synchronous recording load‑displacement and delamination‑length data.

Key Features

✅ Pre‑integrated CBT (Corrected Beam Theory) and MCC (Modified Compliance Calibration) calculation algorithms, automatically compute NL / VIS / 5 %/MAX initiation G_IC values and PROP propagation values; auto‑generate R‑curve (delamination‑resistance curve) and export ISO‑compliant test‑report template.

✅ High‑accuracy force sensor meets ISO 7500‑1 Class 1; displacement resolution satisfies ISO 9513 Class 2; supports machine‑compliance compensation.

✅ Complete ISO‑15024 fixture kit: interchangeable load‑blocks, piano‑hinge assembly, flat insert‑hinge set, specimen marking tools; fixture guarantees free‑rotation of DCB specimen end.

✅ Optional travelling microscope / video crack‑tracking module for accurate delamination‑length measurement (± 0.05 mm reading).

✅ Configurable cross‑head speed range (0.1‑500 mm/min): strictly follows 1‑5 mm/min loading rate requirement of ISO 15024.

✅ Statistical output: mean value, standard deviation, coefficient‑of‑variation CV for replicate specimens, supports batch‑test processing for minimum 5‑specimen‑test requirement.

Application Fields

UnitedTest ISO 15024 DCB test equipment serves composite R&D labs, third‑party testing institutes, aerospace material qualification labs, wind‑turbine blade manufacturers, automotive lightweight composite departments. It is widely used for composite material formulation screening, incoming‑material QC, environmental ageing research and finite‑element‑simulation parameter acquisition for delamination damage modelling.

Compatible comparative standard: also supports ASTM D5528 DCB Mode‑I G_IC test. UnitedTest can customize fixture and software functions according to your laboratory requirement.
