ASTM D5528 Mode-I Interlaminar Fracture Toughness DCB Test

Share:
ASTM D5528 Mode I Interlaminar Fracture Toughness Tester | DCB Composite Test | UnitedTest
ASTM D5528 standard covers Mode I opening-mode interlaminar fracture toughness GIc testing for unidirectional fiber-reinforced polymer composite laminates via DCB specimens. UnitedTest manufactures ASTM D5528 compliant composite delamination testing machines for precise GIc measurement.
ASTM D5528 is the authoritative industrial standard dedicated to evaluating Mode I opening-mode interlaminar fracture toughness (GIc) of unidirectional fiber-reinforced polymer matrix composite laminates. Adopting the classic Double Cantilever Beam (DCB) specimen configuration, this standardized test method accurately measures the critical strain-energy release rate that governs interlaminar delamination initiation and progressive crack growth between composite material plies.


As a core mechanical testing procedure for advanced composite materials, ASTM D5528 quantifies delamination resistance, interlaminar bonding integrity and structural damage tolerance under opening-mode loading conditions. Test data provides reliable technical support for composite material formulation optimization, laminate structural design, batch quality inspection, and aerospace, automotive and wind energy component qualification.


UnitedTest designs and manufactures high-precision ASTM D5528 DCB testing machines fully compliant with standard test protocols. Our professional composite fracture toughness test equipment delivers stable tensile loading, accurate crack propagation monitoring and precise GIc data calculation, perfectly suited for polymer composite laboratories, new material R&D institutions and industrial quality control departments.


Test Principle

Mode‑I opening load pulls the two arms of DCB specimen apart, driving inter‑ply delamination along the pre‑inserted starter crack.

Strain‑energy release rate:

G = dU / (b·da)

Where dU = change in elastic strain energy; b = specimen width; da = incremental delamination advance.

GIc is the critical value of strain‑energy release rate at onset of stable delamination growth. Linear‑elastic fracture mechanics is assumed; damage zone size at crack tip must be small relative to specimen thickness. Correction terms F (large displacement) and N (loading‑block/hinge stiffening effect) eliminate geometrical errors from specimen rotation and fixture geometry.


Test Specimen Specifications

Lay-upUnidirectional, even number of plies, delamination grows in the 0° direction
Length L≥ 140 mm [5.5 in.] in the 2021 revision (≥125 mm in earlier editions)
Width bNominally 25 mm [1.0 in.] (20–25 mm [0.8–1.0 in.] previously); round-robin showed width is not critical
Thickness hNormally 3–5 mm; thickness variation along one specimen ≤ 0.1 mm
InsertNon-adhesive film at mid-plane, thickness ≤ 13 µm (0.0005 in.); total insert length ≈ 76 mm [3.0 in.] (−21) / ≈63 mm (older), giving an initial delamination length a₀ ≈ 50 mm from the load line
Insert materialPTFE for matrices cured ≤177 °C; polyimide film (with mould release) for BMI/polyimide/thermoplastic matrices cured higher
Load introductionPiano hinges or loading blocks bonded with adhesive; must carry the maximum expected load
Number of specimensAt least 5 per condition (unless a designed experiment justifies fewer); Practice E122 for statistics
Edge markingFirst 5 mm marked at 1 mm intervals, then 5 mm intervals; often white coating to improve crack visibility
PrecrackSpecimens should not be precracked before testing (keeps initiation free of fibre bridging); wedge precracking is a discouraged, reportable alternative


ASTM D5528 Mode-I Interlaminar Fracture Toughness DCB Test

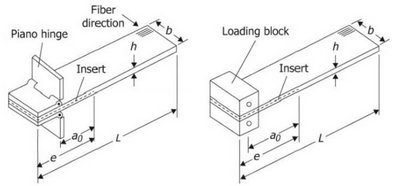

     with piano hinges    with loading blocks

Double Cantilever Beam (DCB)


Required Test Equipment of ASTM D5528 Mode-I Interlaminar Fracture Toughness DCB Test


Constant-speed Universal Testing Machine

(UTM)

with force calibration/verification to ASTM E4, operated in displacement control; low-force capacity (≈1–2.5 kN is typical) with an appropriate load cell.

Force‑measuring transducer: Accuracy ±1 % of indicated force within working range;

Displacement measurement: External gauge if machine frame deformation exceeds 2 % of opening displacement; accuracy ±1 % of reading.

Loading fixtures

holding the hinges/loading blocks by pins so the arms open without inducing bending or slip.

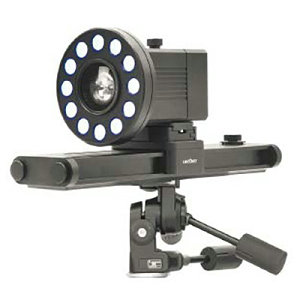

Video non-contact extensometer

Travelling optical microscope (magnification ≤ 70×) or equivalent, able to locate the delamination front to ±0.5 mm; a mirror on the far side is recommended.

Video/DIC or crack gauges are permitted if equivalent accuracy is proven .


Key Test Parameters & Mandatory Stipulations:

  1. Cross‑head loading rate: 1‑5 mm/min for loading; unloading rate up to 25 mm/min.

  2. Data‑sampling frequency: ≥5 Hz.

  3. Pre‑crack generation: First loading creates 3‑5 mm stable delamination growth, then full unloading to obtain PC pre‑crack.

  4. Marking on specimen edges: 1 mm intervals for first 10 mm crack growth, then 2‑4 mm intervals; delamination must propagate at least 30 mm past the starter insert tip.

  5. Pre‑conditioning (optional): Moisture equilibrium following ASTM D5229/D5229M; if not specified, specimens are tested “unconditioned”.

  6. Acceptance rule: If permanent beam‑arm deformation exists after unloading, specimen data shall be discarded. Delamination‑front mismatch on two edges >2 mm indicates misalignment; such data points are excluded from analysis.


Step by step Test Procedure of ASTM D5528 Mode-I Interlaminar Fracture Toughness DCB Test

  1. Specimen preparation: Measure width, thickness, geometric parameters t and L'. Coat specimen edges with correction fluid for crack visibility, mark reference lines for insert tip and crack intervals; record initial delamination length a0.

  2. Mount specimen: Align specimen centred on load line; optional temporary support for far end.

  3. Set observation equipment: Position travelling microscope to track delamination front on specimen edge.

  4. First loading (NPC measurement): Load at constant cross‑head speed, continuously record force‑displacement. Halt loading when stable delamination extends 3‑5 mm past insert tip. Record unstable crack‑jumping (“run‑arrest”) if observed.

  5. Unload for pre‑crack creation: Unload, pause unloading near 50 % peak force to measure pre‑crack length a1 (PC starting crack). Mark pre‑crack tip positions on both specimen edges; complete unloading to zero force.

  6. Re‑loading (PC and propagation measurement): Re‑load with same cross‑head rate. Record force‑displacement data at every visually‑observed delamination‑length increment until crack propagates ≥30 mm from insert tip.

  7. Final unload and post‑test inspection: Unload completely. Check delamination‑front edge mismatch, permanent beam‑arm bending, insert‑tip condition. Reject specimens with arm permanent deformation.

  8. Data reduction: Apply displacement offset to eliminate fixture‑induced initial nonlinearity; calculate compliance values; perform least‑squares regression for CC / MBT / MCC methods; compute NPC‑GIc, PC‑GIc, propagation‑GIc and statistical outputs.



Industrial Application Fields

  • Aerospace: primary and secondary composite structures — damage-tolerance and durability analysis, material qualification, design allowables (Airbus AITM 1-0005 and Boeing BSS 7273 are the OEM equivalents) .

  • Wind energy / tidal blades: ranking glass- and carbon-fibre epoxy systems for delamination resistance .

  • Automotive, marine, rail, pressure vessels, sports equipment: material selection and process comparison.

  • R&D: quantifying effects of fibre surface treatment, fibre volume fraction, resin toughening, interleaves, processing, and hygrothermal/ageing environments; screening batches .

  • Simulation: G_Ic is the direct input for cohesive-zone and VCCT delamination models in FE codes .

  • Additive manufacturing: now also applied to characterise interlayer bonding of printed continuous-fibre thermoplastic laminates.


Related Test Standard:

ISO 15024Fibre-reinforced plastic composites. Determination of mode I interlaminar fracture toughness, GIC, for unidirectionally reinforced materials
ASTM D5528

The primary US‑standard DCB Mode‑I test for unidirectional composites, functionally analogous to ISO 15024.

Differences: ASTM D5528 uses Compliance‑Calibration (CC) as main evaluation method, whereas ISO 15024 provides CBT and MCC calculation options;

ISO 15024 includes mandatory pre‑cracking load‑unload cycle and defines NL‑VIS‑5 %/MAX multiple initiation criteria

GB/T 28891Fibre-reinforced plastic composites - Determination of mode Ⅰinterlaminar fracture toughness GⅠC for unidirectionally reinforced materials
ISO 15114Fibre-reinforced plastic composites - Determination of the mode II fracture resistance for unidirectionally reinforced materials using the calibrated end-loaded split (C-ELS) test and an effective crack length approach
GB/T 39484Fibre-reinforced plastic composites—Determination of the mode Ⅱ fracture resistanc for unidirectionally reinforced materials using the calibrated end-loaded split(C-ELS) test and an effective crack length approach
ISO 25217

DCB‑based Mode‑I test for structural adhesive joints (adhesive fracture energy, for bonded joints, not composite interlaminar delamination)

ASTM D7905Mode II using the End-Notched Flexure (ENF) test with compliance calibration
ASTM D6671Mixed-mode I/II interlaminar toughness via Mixed-Mode Bending (MMB); also uses NL and 5 %/Max definitions
ASTM D6115Mode I fatigue delamination-growth onset (G–N curve) using the same DCB specimen
JIS K 7086Japanese DCB method for interlaminar fracture toughness of CFRP (modified compliance method)


Keywords: ASTM D5528 fracture toughness tester,Mode I interlaminar fracture test machine,composite DCB testing equipment,unidirectional fiber reinforced polymer tester,GIc critical strain energy release rate rig,polymer matrix composite delamination tester,composite ply crack growth resistance apparatus,advanced composite structural damage tolerance test machine,aerospace composite quality control tester,carbon fiber laminate interlaminar strength analyzer,wind energy composite material testing device,automotive composite mechanical property tester,laboratory composite fracture test system,composite material R&D verification equipment

Related products and device

ASTM D5528 DCB Mode‑I GIC Tensile Testing Machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

ISO 15024 Video extensometer / Non-contact extensometer

Video extensometer, is a non-contact real-time high-precision strain measurement system, which is based on a separate camera and real-time image processing algorithm, by taking images of the experimental process, analyzing image characteristic changes, dynamically measuring the strain changes.

GIc critical strain energy release rate rig

Thin Plastic Film Tensile Testing Fixture is specially designed for tensile strength testing of flexible and soft plastic film specimens. Fully compliant with the ASTM D882 standard for thin film tensile testing, the fixture features premium rubber-coated jaws.

Related Standard

ISO 15024 DCB Mode I Interlaminar Fracture Toughness (GIC) Testing of Fibre-reinforced plastic composites –

ISO 15024 Fibre-reinforced plastic composites. Determination of mode I interlaminar fracture toughness, GIC, for unidirectionally reinforced materials

ISO 15024 specifies the double‑cantilever‑beam (DCB) test for measuring Mode‑I interlaminar fracture toughness GIC (critical energy release rate, unit: J/m²), which quantifies material resistance to opening‑mode delamination crack initiation and growth between composite plies.

ASTM D3518 In-Plane Shear Test for Polymer Composites –

ASTM D3518 Standard Test Method for In‑Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate

ASTM D3518 determines the in-plane shear response of continuous-fibre polymer-matrix composites by pulling a balanced, symmetric ±45° laminate in uniaxial tension and converting axial/transverse strains into shear strain. It provides shear stress‑strain curves, chord shear modulus, maximum shear stress and offset shear strength for composite laminates.

ASTM D5448 Inplane Shear Test of Hoop Wound Polymer Composites –

ASTM D5448 Standard Test Method for Inplane Shear Properties of Hoop Wound Polymer Matrix Composite Cylinders

ASTM D5448 is a mechanical test for determining in-plane shear properties of hoop-wound (≈90°) polymer matrix composites reinforced with high-modulus continuous fibers.The specimen is a thin-walled cylindrical tube loaded in torsion to obtain shear-dominated material behavior in the fiber/transverse plane.It does not test a flat laminate coupon in rail/shear; it uses a cylindrical winding geometry representative of filament-wound structures.

ASTM D3479 Tension-Tension Fatigue of Polymer Matrix Composites –

ASTM D3479 — Standard Test Method for Tension-Tension Fatigue of Polymer Matrix Composite Materials

ASTM D3479 determines the fatigue behavior of polymer matrix composite materials subjected to tensile cyclic loading. It answers the question with quantitative, reproducible data that when polymer matrix composites (PMCs) replace metals in aircraft wings, wind turbine blades, automotive structures, and sporting goods, engineers face a critical question: how many millions of tensile load cycles can a composite laminate survive before fatigue failure?

ASTM D7078 V-Notched Rail Shear Test for Composite Materials –

ASTM D7078 V‑Notched Rail Shear Test for Composite Materials

ASTM D7078 determines shear properties of high‑modulus fibre‑reinforced composite materials by clamping a V‑notched specimen between two pairs of loading rails and pulling the rails in tension. The rails transmit shear forces through the faces of the specimen (face‑loading), which allows higher shear forces to be applied than in edge‑loaded methods.

ISO 527-4, ISO 527-5 Tensile Test on fibre-reinforced Composites –

ISO 527-4 and ISO 527-5 are two key standards within the ISO 527 series for determining the tensile properties of fibre-reinforced plastic composites.

ISO 527-4 covers the general principles and tests for isotropic and orthotropic materials. ISO 527-5 provides specific procedures for testing unidirectional fiber-reinforced composites.


These standards are critically important because they provide a unified, reliable method to measure fundamental mechanical properties (like tensile strength, modulus, and strain) which are essential for material selection, quality control, structural design, and R&D in aerospace, automotive, wind energy, and sports equipment industries.


ASTM D4255 Rail Shear Test In-Plane of Polymer Matrix Composite Materials –

ASTM D4255 Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

ASTM D4255 is test method for measuring in‑plane shear properties of fiber‑reinforced polymer‑matrix composite materials using the rail‑shear fixture approach. It defines two distinct test configurations (Procedure A two‑rail shear, Procedure B three‑rail shear) to obtain shear stress‑strain curves, shear chord modulus, offset shear stress, and maximum in‑plane shear stress for composite laminates. The standard applies for continuous‑fiber, woven‑fabric, balanced‑symmetric laminates and randomly‑oriented short‑fiber polymer‑matrix composites. It notes that shear‑stress gradients and grip‑area stress concentrations may degrade reproducibility; D5379 and D7078 deliver more uniform pure‑shear stress states in gage sections.

ASTM D5379 Shear Test of Composite by the V-Notched Beam methods –

ASTM D5379 Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method

ASTM D5379 used for characterizing the shear behavior of advanced fiber‑reinforced composites. Often referred to as the Iosipescu shear test. It quantifies both in-plane shear (1-2 plane) and interlaminar shear (1-3, 2-3 planes) of fiber-reinforced polymer composites, covering continuous unidirectional laminates, woven fabric laminates, balanced symmetric panels, and random short-fiber molded composites (SMC). This testing method measures shear stress/strain, ultimate strength and strain, as well as shear string elastic modulus.

ASTM D3410 Shear Loading compression Test for Polymer Matrix Composite Materials with Unsupported Gage Section –

ASTM D3410 Shear Loading compression Test Method for Compressive Properties of Polymer Matrix Composite Materials with Unsupported Gage Section.

ASTM D3410 measuring in‑plane compressive properties for high‑modulus‑fiber‑reinforced polymer‑matrix composites using pure shear‑loading via wedge grips, with an unsupported gage section on the test coupon. Test method determines the in-plane compressive properties of polymer matrix composite materials reinforced by high-modulus fibers. It is applicable to composites made from unidirectional tape, wet-tow placement, textile (for example, fabric), short fibers, or similar product forms. Some product forms may require deviations from the test method.

ISO 527-1, ISO 527-2 Tensile Test of Plastics Composites & plastics –

ISO 527-1 covers the test procedures for determining tensile properties of plastics and plastic composites. Tensile properties of plastics that are determined through the practices of ISO 527-1 include tensile strength, tensile modulus and other properties related to stress strain characteristics of plastic materials.

ISO 527-2 specifies the test conditions for determining the tensile properties of moulding and extrusion plastics, based upon the general principles given in ISO 527-1. The methods described in ISO 527-2 are selectively suitable for use with the following range of materials: rigid and semi-rigid thermoplastics moulding, extrusion and cast materials, including compounds filled and reinforced by, for example, short fibres, small rods, plates or granules but excluding textile fibres (see ISO 527-4 and ISO 527-5).

ASTM D5528 (DCB Mode‑I Interlaminar Fracture Toughness Test) Frequently Asked Questions

Q1: What is ASTM D5528 test used for?

A: ASTM D5528 is the global standard test method to measure Mode‑I (GIc) interlaminar fracture toughness of unidirectional fiber‑reinforced polymer‑matrix composites by the Double Cantilever Beam (DCB) specimen. It quantifies critical strain‑energy release rate for delamination initiation and crack propagation between composite plies, generating R‑curve (delamination resistance curve) data for composite laminates.


Q2: Why is ASTM D5528 test important for composite materials?

A: Delamination (inter‑ply separation) is one of the most dangerous failure modes for laminated composites, triggered by impact, thermal stress, fatigue or manufacturing defects, and often has little visible surface warning.

GIc gives quantitative material resistance to opening‑mode delamination.

Supplies input parameters for damage‑tolerance design, finite‑element simulation and structural design allowables.

Distinguishes crack initiation (NPC) and sharp pre‑crack propagation (PC) performance matching real‑world service defect scenarios.

Provides standardized, round‑robin‑validated test protocol for cross‑lab material comparison, batch quality screening and new material formulation development.


Q3: What are NPC and PC GIc mentioned in ASTM D5528?

A: NPC (Non‑Pre‑Cracked) GIc: Toughness value when delamination starts directly from the embedded non‑adhesive starter insert, simulating manufacturing‑type embedded defects.

PC (Pre‑Cracked) GIc: Toughness measured after deliberately extending the crack 3‑5 mm from insert tip to create a sharp pre‑crack front, representing growth of an existing sharp delamination flaw in‑service. Both values are required for full test reporting.


Q4: What common test invalid conditions shall I watch out for?

A: Test data shall be discarded if:

Permanent bending / deformation occurs on DCB beam arms after unloading.

Delamination front mismatch between two specimen edges > 2 mm (indicates fixture misalignment).

Delamination branches away from laminate mid‑plane or specimen arm fractures (not pure inter‑ply delamination).

Starter insert has tears, folds or wrinkles; or propagation GIc is lower than initiation NPC‑GIc.


Q5: What loading rate should I set for ASTM D5528 DCB test?

A: Loading cross‑head speed: 1‑5 mm/min under displacement control. Unloading rate maximum 25 mm/min. Data sampling frequency ≥5 Hz, minimum 500 data points for each loading cycle.


Q6: Can I run ASTM D5528 test for woven fabric composite or 3D‑reinforced composite?

A: The primary scope is limited to unidirectional carbon‑fiber / glass‑fiber single‑phase matrix laminates. Woven composites will produce high scatter and abnormal R‑curves. 3‑D reinforced or metal‑matrix composites may fail by beam‑arm fracture instead of inter‑ply delamination. You can test those materials, but test report must note deviations from standard scope.


Q7. What exactly does GIc mean?

A: GIc is the critical strain energy release rate — the amount of elastic strain energy released per unit of newly created delamination area when a crack opens between two plies. It quantifies how much energy a laminate absorbs to resist delamination growth.


Q8. What is a DCB specimen?

A: DCB = Double Cantilever Beam. It is a rectangular, uniform-thickness unidirectional laminate with a thin non-adhesive insert film placed on the mid-plane at one end. The two "arms" are pulled apart like two cantilever beams, opening the crack in pure Mode I.


Q9. How is the load introduced?

A: Either piano hinges or bonded loading blocks (with adhesive) attached to the delaminated end. They must be strong enough to sustain the maximum expected load — hinge/block debonding is one of the most common causes of a wasted specimen.


Q10. How is the crack length measured?

A: A travelling optical microscope (magnification ≤ 70×) or equivalent device capable of locating the delamination front to ±0.5 mm. A mirror on the opposite edge helps detect asymmetry. Digital video, DIC (digital image correlation), or bonded crack gauges are permitted if equivalent accuracy is demonstrated.


Q11. What dimensional measuring tools are required?

A: Micrometers readable to about ±2.5 µm for thickness and ±25 µm for width, with a ball anvil for bag-side (irregular) surfaces and a flat anvil for machined edges.


Q12. Why is the specimen loaded, unloaded, and reloaded?

A: The first loading (to 3–5 mm of crack growth) creates a natural, sharp Mode I precrack ahead of the blunt insert. After unloading, the second loading produces the propagation data. This gives two separate results: the non-precracked (NPC) value from the insert and the precracked (PC) value from the natural crack.


Q13. How far must the crack be grown?

A: Record the load/displacement at onset of movement from the precrack, then at every 1 mm for the first 5 mm, then at every 5 mm until the crack has grown at least 45 mm from the precrack tip, and again at every 1 mm for the final 5 mm — i.e. 50 mm of total propagation past the precrack tip.


Q14. How is the initiation value defined?

A: D5528 uses the compliance criterion: the point at which specimen compliance has increased by 5 %, or the maximum force, whichever occurs first. (ISO 15024 additionally allows NL — onset of non-linearity — and VIS — visually observed onset.)


Q15. What is an R-curve and why is it reported?

A: The R-curve is G_Ic plotted against delamination length. Most composites show a rising R-curve because fibre bridging develops behind the crack tip as the crack extends. Since bridging is considered an artefact of the DCB geometry, the standard prefers the initiation value from the insert for design purposes, while the R-curve documents propagation behaviour.


Q16: Why choose ASTM D5528‑21 Mode‑I Interlaminar Fracture Toughness DCB Test Machine from UnitedTest?

A: UnitedTest supplies fully‑compliant ASTM D5528‑21 DCB double‑cantilever‑beam test machines for measuring Mode‑I interlaminar fracture toughness G_Ic of unidirectional carbon‑fiber / glass‑fiber reinforced polymer composite laminates. Complete hardware kits including piano hinges / loading blocks, optical crack observation module, automated data‑reduction software for CC / MBT / MCC calculation and R‑curve plotting. Ideal for aerospace composite labs, wind‑energy R&D, automotive lightweight composite quality control and material certification.

For composite laminates, delamination resistance is critical for damage‑tolerance performance and structural safety. ASTM D5528 is the most‑widely‑adopted global standard for Mode‑I opening‑mode interlaminar fracture toughness G_Ic measurement using Double Cantilever Beam (DCB) specimens.


UnitedTest is professional manufacturer of ASTM D5528‑compliant composite fracture toughness test systems, delivering turn‑key DCB test solutions for research laboratories, composite manufacturers, aerospace suppliers, wind‑turbine blade factories and third‑party testing institutes.

Our universal servo test system runs under displacement‑control mode, fully meeting ASTM D5528 requirements: cross‑head speed adjustable from 0.5‑5 mm/min, high‑precision force transducer with ±1 % reading accuracy, high‑frequency data acquisition ≥5 Hz.

Complete ASTM D5528 Test Kit Options from UnitedTest

  1. DCB loading fixtures: metal piano‑hinge assembly or end‑loading‑block set matching standard geometry requirements.

  2. Optical crack‑tracking unit: travelling microscope or digital video observation module to monitor delamination‑front position with ±0.5 mm measurement accuracy.

  3. Dedicated composite fracture‑toughness software:

    • Supports three official calculation algorithms: Compliance Calibration (CC, default), MBT and MCC methods.

    • Automatically applies large‑displacement correction factor F and loading‑fixture correction factor N.

    • Computes NPC‑G_Ic, PC‑G_Ic, propagation G_Ic and generates R‑curve (delamination resistance curve).

    • Auto‑calculates mean value, standard deviation, coefficient of variation for test reports, compatible with Annex A1 standard reporting sheet format.

  4. Optional environmental temperature‑humidity chamber for conditioned composite specimen testing per ASTM D5229.

Typical Application Scenarios

✅ Aerospace unidirectional prepreg composite material qualification

✅ Wind‑turbine blade composite laminate inter‑ply performance evaluation

✅ Automotive lightweight fiber‑reinforced composite R&D and batch screening

✅ Matrix‑toughening, fiber‑surface‑treatment and interleaving‑film research

✅ Composite damage‑tolerance simulation input‑parameter acquisition

✅ Third‑party lab composite material certification test


UnitedTest’s ASTM D5528 DCB test system also supports related composite interlaminar tests including ASTM D7905 Mode‑II fracture toughness and ASTM D6671 mixed‑mode I‑II fracture toughness with fixture replacement. Contact UnitedTest for your customized composite mechanical‑testing solution.

< Previous: ASTM D5514 Large-Scale Hydrostatic Puncture Testing of Geosynthetics

> Next: ASTM D5596 Test of Dispersion of Carbon Black in Polyolefin Geosynthetics

Require More Customized Solutions?

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
Customize Now

Beijing United Test Co., Ltd.
