ISO 12958‑1 Geotextile In‑Plane Water Flow Capacity Tester | UnitedTest
ISO 12958‑1 constant‑head index test measures in‑plane water flow capacity for geotextiles, geocomposites and drainage mats under compressive stress and hydraulic gradient at 20 °C reference temperature. UnitedTest provides ISO 12958‑1 compliant geotextile drainage performance testing machines for civil engineering labs.
ISO 12958‑1 sets out a constant‑head index test method for determining the in‑plane water flow capacity of factory‑produced geotextiles and geotextile‑related products, including geocomposites, drainage mats and cuspated sheets. This test evaluates water flow parallel to the sheet plane under controlled normal compressive stress and defined hydraulic gradient, with measurements referenced to a standard water temperature of 20 °C.
As an index laboratory test rather than full‑scale site‑performance simulation, ISO 12958‑1 delivers comparative baseline data for material screening and quality control. Site‑specific real‑world performance assessment is addressed in the companion standard ISO 12958‑2. Test results are widely used for material qualification in road construction, landfill engineering, retaining wall drainage and ground reinforcement projects.

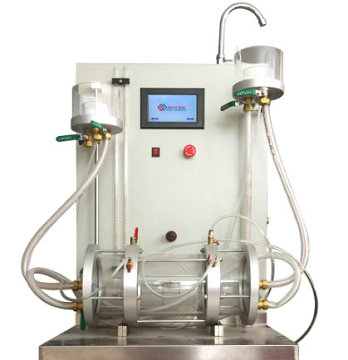

UnitedTest manufactures precision‑built ISO 12958‑1 compliant geotextile in‑plane water flow capacity testing equipment. Our test system maintains stable constant‑head conditions, adjustable compressive stress and accurate temperature control, delivering repeatable index flow capacity data for geotextile manufacturers, civil engineering research institutes and third‑party geosynthetic testing laboratories.
Test Principle:
A flat specimen is placed between two contact surfaces (foam rubber or smooth rigid HDPE), subjected to a normal compressive stress (σ) perpendicular to the plane, and water is passed through its plane under a hydraulic gradient (i).
The volume (or rate) of water collected over time is measured and converted to in-plane flow capacity per unit width, qp [(L/s)/m], corrected to 20 °C via viscosity factor RT.
Flow is assumed laminar for correction purposes; gradients of 0.1 and 1.0 are standard.

Testing equipment required for ISO 12958-1 Geotextile in-plane water flow capacity index test:

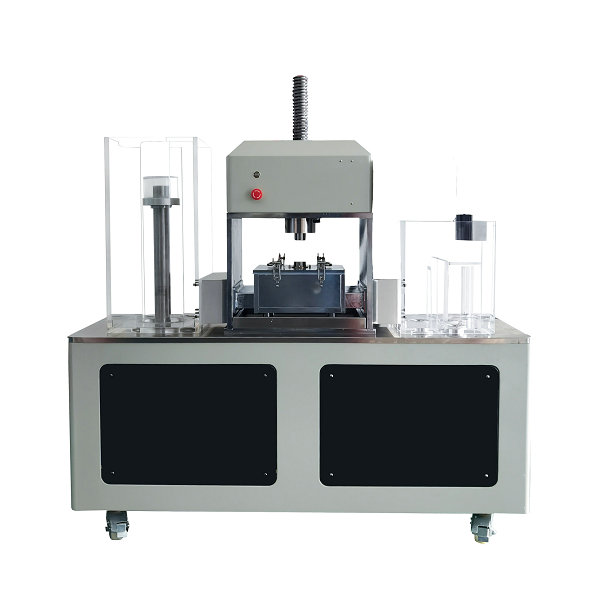

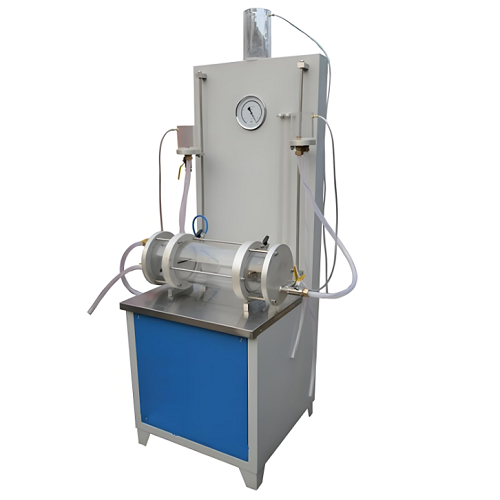

| Geotextile horizontal permeability tester | Recommend UnitedTest Fully Automatic Geotextile horizontal permeability tester which consist of: 1. Main test cell / apparatus: constant‑head flow‑cell device. Minimum internal width ≥ 0.2 m, minimum net hydraulic flow length ≥ 0.3 m; maximum specimen thickness up to 50 mm; basically leak‑tight. Apparatus leakage shall not exceed 5 % of actual test flow value under identical test conditions. 2. Loading mechanism: applies normal compressive stress, maximum permissible error ± 5 % of applied stress. 3. Boundary contact materials (three boundary combinations allowed: F/F soft‑soft; R/F soft‑rigid; R/R rigid‑rigid); - F: closed‑cell foam rubber, complying with compression‑deflection envelope given in Figure 1 of standard; foam thickness is selected according to specimen thickness. Discard foam when thickness deformation > 10 % under 2 kPa pressure (ISO 9863‑1). - R: smooth rigid 2‑mm HDPE liner without surface damage. 4. Water supply system: de‑aerated / stilled filtered water; water temperature 18 °C‑22 °C; dissolved oxygen ≤ 10 mg/kg (ISO 5813); avoid mixing hot‑cold tap water (risk of gas release and air‑blockage). |
| Measuring instruments | - Stopwatch (max error 0.1 s) - Thermometer (max error 0.5 °C) - Flow‑volume / flow‑rate device (max error 2 %) - Head‑measurement device (max error 1 mm) - Dissolved‑oxygen meter complying with ISO 5813 - Thickness measuring equipment following ISO 9863‑1. |
Test Specimen:
Specimen dimensions: flow‑direction length ≥ 0.3 m; cross‑flow width ≥ 0.2 m. If product native width < 0.2 m, modify apparatus and test full product width. Seal specimen edges if needed. Use actual specimen width in calculations.
Specimen quantity:
3 specimens along machine direction; 3 specimens along cross‑machine direction for general continuous‑structure products.
For single‑sided drainage geocomposites: prepare six specimens with one face sealed.
For discrete‑element drainage geocomposites: three specimens containing one draining element, three specimens taken from carrier zones between draining elements.
Key Test Parameters and stipulations:
Normal compressive stresses: 20 kPa (seating 2–10 kPa), then 100 kPa, 200 kPa (minimum set).
Hydraulic gradients i: 1.0 and 0.1 (primary); others by agreement.
Temperature: 18–22 °C water, corrected to 20 °C using
Dissolved oxygen: ≤10 mg/kg at inlet (ISO 5813) to prevent air clogging.
Flow measurement: collect ≥0.05 L over ≥5 s (up to 600 s for very low flow); 3 readings averaged.
Apparatus leakage check is mandatory. Preferential edge‑flow along specimen boundaries must be eliminated; re‑seat or discard specimen if edge‑flow occurs.
Maintain constant normal stress during test; readjust stress if creep‑induced stress decay occurs.
Collected water volume ≥ 0.05 L, collection time ≥ 5 s (max 600 s for low‑flow materials); take three flow replicates for each test condition and average them.
Test Application (Industry Fields)
Geosynthetics industry: geotextile manufacturers, drainage composite producers.
Civil engineering: road/highway edge drains, retaining wall drainage, landfill leachate collection layers, tunnel drainage, green roof drainage mats.
Environmental engineering: landfill basal drainage, cap drainage.
Rail & transport: track-bed lateral drainage geocomposites.
Used by specifiers, QC labs, certification bodies to compare products on a common index basis.
Details test procedure of ISO 12958-1 Geotextile in-plane water flow capacity index test
1. Measure specimen thickness under 20 kPa pressure according to ISO 9863‑1.
2. Saturate specimens in surfactant‑added water for minimum 12 hours to remove trapped air.
3. Select proper thickness of foam/rigid liner contact materials according to specimen thickness.
4. Assemble lower contact layer, specimen, upper contact layer inside test cell; install loading platen.
5. Apply seating stress (2‑10 kPa). Fill inlet reservoir and flush air out of specimen; eliminate edge‑flow paths.
6. Adjust normal stress to 20 kPa and hold for 360 seconds.
7. Set inlet water level for hydraulic gradient 1.0. Flush trapped air bubbles; stabilize flow for 120 ± 5 s.
8. Collect outflow volume/time, record water temperature. Repeat measurement three times and average.
9. Keep stress unchanged, adjust hydraulic gradient to 0.1, repeat flow‑measurement step.
10. Raise hydraulic gradient back to 1.0; increase normal stress to 100 kPa, hold for 120 s before flow measurement; measure both gradients 1.0 and 0.1.
11. Repeat for stress 200 kPa (gradients 1.0 and 0.1).
12. Complete the full test sequence for every replicate specimen.
13. Compute temperature‑corrected index in‑plane water‑flow capacity; plot curves of flow capacity vs normal compressive stress for both gradients.
14. Compile full test report following clause 9 requirements of ISO 12958‑1.
Related Test Standard:
| ISO 12958-1 | Geotextiles and geotextile-related products — Determination of water flow capacity in their plane — Part 1: Index test |
| ISO 12958‑2 | the companion “performance test” part of the same series. ISO 12958‑1 is index test with standardized foam/rigid boundaries; ISO 12958‑2 uses real‑soil contact boundaries to simulate actual field confinement, longer creep‑holding time, for performance‑oriented assessment. |
| ISO 18325 | Test method for prefabricated vertical drains (special‑purpose drainage geosynthetic test). |
| GB/T 17633 | Geotextiles and geotextile-related products-Determination of water flow capacity in their plane |
| ASTM D4716 | Standard Test Method for Determining the (In-plane) Flow Rate per Unit Width and Hydraulic Transmissivity of a Geosynthetic Using a Constant Head |
Keywords: ISO 12958‑1 geotextile in‑plane water flow capacity tester, constant‑head geotextile drainage index test machine, geocomposite drainage mat flow capacity test rig, cuspated sheet planar water flow testing apparatus, geotextile compressive stress flow performance analyzer, 20°C reference temperature geosynthetic index test equipment, ISO 12958‑1 vs ISO 12958‑2 geotextile test system, landfill road construction geotextile drainage tester, geosynthetic planar water transmission measurement device, civil engineering geotextile quality control test instrument, geotextile‑related product flow capacity evaluation machine, retaining wall ground reinforcement geotextile lab testing equipment
Related products and device
Related Standard
ISO 12958‑2 Geotextiles and geotextile‑related products — Determination of water flow capacity in their plane — Part 2: Performance test
ISO 12958‑2 specifies a constant-head, in-plane (within-the-plane) water flow capacity performance test using project-like boundary materials (soils, granular layers, rigid platens) and service-oriented conditions: soil confinement, low hydraulic gradients, seating times (creep exposure), and a range of normal compressive stresses.
ASTM D4751 Standard Test Methods for Determining Apparent Opening Size of a Geotextile
ASTM D4751 test methods cover the determination of the apparent opening size (AOS) of a geotextile either by drysieving glass beads through a geotextile (Method A) or by using a capillary porometer (Method B).
ISO 12956 specifies a method for the determination of the characteristic size of the openings of a single layer of a geotextile or geotextile-related product using the wet-sieving principle.
ISO 12956 wet-sieving method geotextile opening size test machine Test principle: With the untensioned single-layer geotextile and its related product samples as a screen, under the specified vibration frequency and amplitude, the sample and graded granular material are sprayed with water, so that the granular graded material passes through the sample. The effective pore size of the specimen is indicated by the passing particle material and the specific particle size.
FAQs for ISO 12958‑1 In‑Plane Water Flow Capacity (Index Test)
Q1: What is ISO 12958‑1:2020 test for?
A: ISO 12958‑1 is an index laboratory test to measure in‑plane water flow capacity (transmissivity index) of factory‑assembled geotextiles and drainage geocomposites. It measures how much water flows parallel to the material plane under controlled normal compressive stress and hydraulic gradient under constant‑head conditions. It cannot directly simulate full‑site field performance.
Q2: Why is ISO 12958‑1 test important for geotextiles / drainage geocomposites?
A: Many geocomposites are designed for lateral drainage, not only through‑plane filtration.
1. It quantifies how drainage capacity drops under overburden compressive stress (20 kPa /100 kPa /200 kPa), simulating soil load in real projects.
2. Delivers repeatable lab data for factory quality‑control, product comparison, datasheet values and engineering input parameters.
3. Prevents project risks: insufficient in‑plane flow may cause pore‑water pressure build‑up, embankment instability, landfill leachate ponding or retaining‑wall drainage failure.
4. Makes boundary‑condition effect explicit; soft‑soft / rigid‑rigid / soft‑rigid boundaries produce different test results and must be reported.
Q3: What is the difference between ISO 12958‑1 (index test) and ISO 12958‑2 (performance test)?
A: ISO 12958‑1 (Index test): uses standardized foam or HDPE rigid boundaries; short holding times; for factory QC and material ranking; only for factory‑assembled products.
ISO 12958‑2 (Performance test): uses real soil as contact boundaries; longer creep hold time; closer to real‑site conditions.
Critical note: Results from Part‑1 and Part‑2 cannot be directly compared even with similar stress and gradient settings.
Q4: What boundary‑condition combinations are allowed in ISO 12958‑1?
A: Three combinations are permitted:
1. F/F soft‑soft (closed‑cell foam rubber on both sides)
2. R/R rigid‑rigid (2 mm smooth HDPE liner both sides)
3. F/R soft‑rigid (one foam side, one rigid side)
The boundary type must be clearly recorded in the test report, as boundary selection strongly affects measured flow capacity. Foam rubber must be discarded when thickness deformation > 10 % under 2 kPa pressure.
Q5: What are the mandatory test stress and hydraulic gradient points?
A: - Normal compressive stress: 20 kPa, 100 kPa, 200 kPa
- Hydraulic gradient for every stress level: 0.1 and 1.0
Each condition runs three replicate flow measurements to get average flow volume / flow rate.
Q6: How many specimens are required for standard test?
A: - Normal continuous‑structure geotextile / geocomposite: 3 specimens in machine direction, 3 specimens in cross‑machine direction. Flow‑direction length ≥ 0.3 m, width ≥ 0.2 m.
- For geocomposites with discrete draining elements: three specimens containing one drain element + three specimens taken from carrier zones between drains.
- Single‑sided drainage products: six specimens with one face sealed for separate‑side testing.
Q7: What are common test errors that invalidate ISO 12958‑1 results?
A: 1. Apparatus leakage > 5 % of measured flow value (leakage test is mandatory before formal testing).
2. Edge preferential flow along specimen perimeter (re‑seat or discard specimen if observed).
3. Re‑using aged foam rubber beyond deformation limit.
4. Insufficient specimen saturation (minimum 12 h soaking with non‑ionic surfactant to remove entrapped air).
5. Forgetting temperature correction RT.
6. Stress decay due to compression creep without continuous readjustment of applied normal load during measurement.
7. Missing documentation of boundary‑condition type.
Q8: Can ISO 12958‑1 results be directly used for final civil‑engineering design calculation?
A: Not directly. ISO 12958‑1 delivers index‑level short‑term lab values. Real‑world long‑term performance involves creep, soil intrusion, biological clogging, chemical ageing. Engineers need to apply reduction factors for site design; ISO 12958‑2 performance test or further long‑term tests may be required for critical projects.
Q9: Why choose UnitedTest ISO 12958‑1 geotextile in‑plane water flow capacity tester?
A: UnitedTest is professional manufacturer of geosynthetic testing instruments. Our ISO 12958‑1 test machine complies fully with ISO 12958‑1:2020 / BS EN ISO 12958‑1:2020 standard for determining in‑plane water flow capacity (index transmissivity) of geotextiles and geotextile‑related factory‑assembled drainage products.
This geocomposite in‑plane flow tester performs constant‑head flow measurement under controlled normal compressive stress and hydraulic gradients 0.1 & 1.0. It supports three boundary‑condition configurations: soft‑soft (F/F foam), rigid‑rigid (R/R HDPE liner), soft‑rigid (F/R). The equipment covers mandatory test stress levels: 20 kPa, 100 kPa, 200 kPa, meets apparatus dimension requirements (≥0.2 m width, ≥0.3 m hydraulic length, max specimen thickness 50 mm), and includes leakage‑check function, temperature monitoring, timing & volumetric‑flow acquisition.
Our ISO 12958‑1 test rig is widely adopted by geosynthetic manufacturing QC laboratories, third‑party material‑testing labs, university research institutes and civil‑engineering material‑qualification facilities. It generates raw experimental data supporting Annex B calculation template, outputs temperature‑corrected index in‑plane flow capacity qpindex for test reports.
