ASTM D4716 Geosynthetic In-plane Flow Rate & Hydraulic Transmissivity Tester | UnitedTest

UnitedTest supplies ASTM D4716 constant head test equipment for measuring in-plane flow rate per unit width and hydraulic transmissivity of geosynthetics under compressive normal stress, for QC ranking and geotechnical design validation.

ASTM D4716 is a constant-head laboratory hydraulic test that measures how much water a geosynthetic can convey within its own manufactured plane (parallel to the sheet), while the specimen is squeezed under a normal compressive stress. It serves primarily as an index test for comparative evaluation and quality-control ranking of geosynthetic materials. It can also act as a performance test when test gradients and contact surfaces replicate real field conditions, allowing the measured hydraulic transmissivity data to be directly adopted for geotechnical engineering design.

UnitedTest manufactures professional ASTM D4716 compliant testing machines for geosynthetic hydraulic property laboratory measurement.

Test Principle:

A specimen is placed between (optionally) substrate/superstrate layers in a watertight rigid base and loaded with a constant normal compressive stress.

A constant head is maintained: water level in the inlet reservoir is fixed, and an outflow weir on the downstream side fixes the outlet level above the specimen surface. This creates steady, uniform, saturated laminar flow in-plane through the specimen.

The volume of water discharged in a measured time gives the flow rate; dividing by specimen width gives the flow rate per unit width.

Dividing by the hydraulic gradient gives the hydraulic transmissivity θ (L²T⁻¹, e.g. m²/s) — the material property independent of gradient.

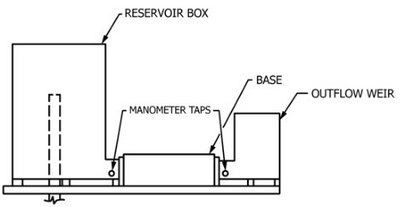

ASTM D4716 In-Plane Flow Rate

Testing equipment required for ASTM D4716 In-Plane Flow Rate & Hydraulic Transmissivity Test

Geotextile horizontal permeability tester

Recommend UnitedTest Fully Automatic Geotextile horizontal permeability tester which consist of:

1. Base: Rigid watertight metal base; rubber lining for geotextile testing to prevent leakage.

2. Reservoir box: Full‑width water reservoir, adjustable constant water elevation.

3. Loading mechanism: Applies normal compressive stress 10 kPa‑500 kPa with ±1 % accuracy (dead weights, pneumatic bellows or piston loading).

4. Outflow weir: Rectangular/V‑notch weir to maintain constant downstream water level.

5. Outflow collection trough: Collects discharge for volume‑time measurement.

6. Manometers / pressure transducers: Measure upstream‑downstream head difference; transducers recommended for gradient < 0.10 (accuracy ±1 mm).

Measuring instruments/ tools

1. Thermometer: Measures water temperature to ±0.2 °C.

2. Calipers: Measure specimen width (±1 mm).

3. Optional accessories: Rubber substrate/superstrate (simulate soil contact), dial‑gauge thickness monitoring sensors, thickness‑measurement sensors for optional thickness‑controlled transmissivity test.

4. Calibration blocks: Rigid open‑channel blocks for mandatory apparatus calibration.

Test Specimen:

Geonets

Acceptance: 2 specimens per unit, longer dimension parallel to the direction tested (machine or cross-machine), normally taken one-third in from each edge.

Performance: number chosen by user, normally from centre; alternate locations must be reported. Width 305 mm; length ≥ 350 mm, or enough to extend 25 mm into reservoir and weir, whichever is greater.

Geocomposites

If manufactured width < 305 mm, use full product width;

if ≥ 305 mm, specimen width = 300 mm (unless cutting would alter product structure).

Length per the 350 mm / 25 mm rule (350 mm is the standard length).

Key Test Parameters and stipulations:

Contact surfaces (substrate / superstrate)

Index test: as prescribed by the material specification; in absence of one, use rigid sub- and superstrates to minimise variables.

Performance test: model the field — rigid platen for concrete/stiff geomembrane contact; rubber membrane or representative soil where intrusion into the drainage core is expected. Site-specific soils recommended when end use is known; long-term soil clogging must be considered.

Hydraulic gradient

Index: three gradients chosen from 0.05, 0.10, 0.25, 0.50, 1.0.

Performance: gradient appropriate to end use plus at least two lesser gradients;

max i = 1.0 suggested to model gravity flow;

max i = 0.1 suggested to model pressure flow.

Normal compressive stress

Index: a minimum of three stresses from 10, 25, 50, 100, 250, 500 kPa [1.45, 3.63, 7.26, 14.51, 36.28, 72.55 psi].

Performance: minimum three stresses, spanning the design value (at least one above and one below); a single stress may suffice only when the design stress is known and the specifier accepts it.

Other parameter:

Seating platen load: 5–10 kPa [0.73–1.45 psi] during saturation.

Minimum seating period: 15 min at the minimum stress (extend for creep-prone products).

At least three flow-rate measurements per stress/gradient combination.

Test Application (Industry Fields)

Landfills & waste containment: leachate collection layers (geonet/geocomposite over geomembrane), leak-detection layers, final cover drainage, side-slope drainage .

Civil / transportation geotechnics: retaining wall and bridge abutment drainage, road and railway subgrade/sub-ballast drainage, tunnel drainage layers, basement and foundation wall drainage.

Mining: heap leach pad drainage, tailings storage, closure covers.

Water & earth structures: dam and reservoir drainage blankets, slope stabilization drainage.

Manufacturing & construction QA: raw material development, Manufacturing Quality Control/Assurance (MQC/MQA), product certification, commercial shipment acceptance (index test), and design-level performance testing with site-specific soils, stresses and gradients.

Product types tested: biplanar/triplanar geonets, geotextile–geonet composites, cuspated/ dimpled drainage cores, geocomposite edge drains, wick/strip (fin) drains.

Details test procedure of ASTM D4716 In-Plane Flow Rate & Hydraulic Transmissivity Test

1. Assemble substrate, install trimmed specimen, remove wrinkles, seal side leakage paths, place superstrate if used.

2. Apply small seating stress (5‑10 kPa), fill reservoir, saturate specimen fully, perform pre‑flush to remove entrapped air until no air bubbles appear at outlet.

3. Apply target minimum normal compressive stress and hold seating period (minimum 15 min or extended for creep‑prone materials).

4. Adjust reservoir water level to establish target hydraulic gradient. Record water temperature.

5. After steady‑flow condition stabilizes, collect outflow volume; obtain at least three replicate flow‑rate measurements for each stress‑gradient combination. Ensure at least 0.5 L water passes before recording data.

6. Increase normal compressive stress step‑by‑step, repeat seating and flow‑measurement steps until maximum target stress is reached.

7. Check against apparatus calibration curve; discard test data if equipment‑originated gradient exceeds 5 % of specimen gradient.

8. Repeat full procedure for remaining replicate specimens.

Related Test Standard:

ISO 12958-1	Geotextiles and geotextile-related products — Determination of water flow capacity in their plane — Part 1: Index test
ISO 12958‑2	the companion “performance test” part of the same series. ISO 12958‑1 is index test with standardized foam/rigid boundaries; ISO 12958‑2 uses real‑soil contact boundaries to simulate actual field confinement, longer creep‑holding time, for performance‑oriented assessment.
ISO 18325	Test method for prefabricated vertical drains (special‑purpose drainage geosynthetic test).
GB/T 17633	Geotextiles and geotextile-related products－Determination of water flow capacity in their plane
ASTM D4716	Standard Test Method for Determining the (In-plane) Flow Rate per Unit Width and Hydraulic Transmissivity of a Geosynthetic Using a Constant Head
ASTM D6574	Determines in‑plane hydraulic transmissivity by radial‑flow method. Better suited for geotextiles with low transmissivity (< 2 × 10⁻⁴ m²/s); D4716 is preferred for higher‑transmissivity geonets and geocomposites with directional flow properties.
ASTM D4491	Water permeability of geotextiles by permittivity — cross-plane (through-thickness) flow; also the reference for deaired water preparation.

Keywords: ASTM D4716 tester, geosynthetic in-plane flow rate test, hydraulic transmissivity tester, constant head test equipment, geosynthetic hydraulic property test, geotextile flow rate per unit width, geosynthetic compression hydraulic test, geosynthetic drainage performance test, geotechnical lab test machine, geosynthetic quality control test, geosynthetics index test, geosynthetic design performance test, geocomposite drainage tester,geosynthetic in-plane flow rate,hydraulic transmissivity test, constant head permeability test, geonet transmissivity, geocomposite drainage test, in-plane permeability geosynthetic, normal stress hydraulic test, geosynthetic flow capacity, index test geosynthetic, performance test geosynthetic, UnitedTest geosynthetic testing machine, drainage geosynthetic flow rate, laboratory geosynthetic permeability, ASTM D4716 test equipment, geosynthetic channel flow test, constant head geosynthetic apparatus, transmissivity under confining stress, geosynthetic drainage characterization, civil engineering geosynthetic test machine

Geotextile horizontal permeability tester specially developed for testing the in-plane water flow capacity and hydraulic transmissivity of various geotextiles and geocomposite drainage materials. Conform with standard of ISO 12958-1, ASTM D4716.

Geotextile Horizontal Permeability Tester is a specialized laboratory instrument engineered by UnitedTest to measure the in-plane water flow capacity, horizontal permeability coefficient (kₕ), and transmissivity (θ) of geotextiles and geotextile-related products under constant head flow.

Geotextile Characteristic Opening Size Test Apparatus is used for the determination of effective aperture of geotextile products, and its performance meets the requirements of ISO 12956:2019 Geotextiles and geotextile-related products — Determination of the characteristic opening size.

Q1: What is ASTM D4716 test, and why is this test important for geosynthetic materials?

A: ASTM D4716/D4716M‑22 is a constant‑head laboratory test to measure in‑plane flow rate per unit width and hydraulic transmissivity of geonets, drainage geocomposites and geosynthetic edge drains under controlled normal compressive stress.

In‑plane drainage capacity drops significantly under soil/embankment overburden stress in real‑world projects. Zero‑stress lab data cannot reflect real‑site performance. This test delivers design‑critical transmissivity data for civil engineers, supports product quality acceptance, material comparison and helps avoid geotechnical failures caused by insufficient drainage, excess pore‑water pressure or slope instability. It can run as index test (product ranking/shipment acceptance) or performance test (simulate actual field boundary conditions).

Q2: What materials can be tested with ASTM D4716? Are there material limitations?

A: Suitable for geonets, geocomposites, edge‑drain core products with continuous directional in‑plane flow channels parallel to test flow direction.

It is not preferred for low‑transmissivity geotextiles; ASTM D6574 (radial‑flow method) is recommended for geotextiles (transmissivity ≤ 2 × 10⁻⁴ m²/s).

Cannot test geosynthetics without continuous planar flow pathways.

Q3: What is the difference: ASTM D4716 vs ASTM D6574?

A: ASTM D4716: Linear constant‑head flow, best for high‑transmissivity, direction‑dependent drainage products (geonets, geocomposites). Can test machine‑direction and cross‑machine‑direction separately.

ASTM D6574: Radial flow test, for low‑transmissivity, near‑isotropic geotextiles; cannot capture directional flow differences of geonets/geocomposites.

Q4. Can one machine cover both ASTM D4716 and ISO 12958?

A: In most cases yes — the two methods use essentially similar apparatus. The practical differences are the boundary condition (ISO prefers soft closed-cell foam) and the stress range (ISO 20–200 kPa vs. D4716 10–500 kPa). A machine supplied with both rigid platen sets and foam/soft-boundary kits, plus software templates for both standards, covers both.

Q5. What are the most common sources of error?

A: Side leakage along the specimen edges (critical for geotextiles), trapped air in the specimen, preferential boundary flow paths, wrong flow length (using total length instead of loaded length), uncorrected water temperature, and insufficient seating time for creep-prone products.

Q6. Why is in-plane flow testing so critical for drainage geosynthetics?

A: Because drainage capacity is the function of the product. Unlike mass, thickness or tensile strength, in-plane flow cannot be inferred from any other property — it must be measured. It is the single input that determines whether a leachate collection layer, wall drain or subgrade drain will actually remove water at the required rate.

Q7. Why must the specimen be tested under compressive stress?

A: Field drains are always buried under overburden. Compression thins the core and forces the adjacent geotextile to intrude into the flow channels, which can cut flow by 20–80 % compared with the unconfined value. Testing across a stress range (e.g. 10 → 500 kPa) produces the θ-versus-stress curve the designer interpolates at the real field load.

Q8. Why test at several hydraulic gradients?

A: Because flow is not linear with gradient. Gravity-flow service may reach i ≈ 1.0, while pressure-flow service is nearer i ≈ 0.1. At higher gradients flow becomes turbulent and the apparent transmissivity drops — so a single-gradient result is not transferable to another project condition. "Transmissivity" is strictly valid only for saturated, laminar flow.

Q9. What is the "5 % rule" and why is it so important?

A: The apparatus itself must never restrict the flow. Using rigid open-channel calibration blocks, a flow-rate-versus-gradient curve is generated. If, at a given flow rate, the calibration-block gradient is more than 5 % of the corresponding geosynthetic gradient, the test data are invalid — the device, not the specimen, was controlling flow.

Q10. Why is direction of testing important?

A: Drainage geosynthetics are anisotropic — machine direction (MD) and cross-machine direction (CMD) can differ substantially, and the weaker direction usually governs design. D4716 requires specimens cut with the long dimension parallel to the direction being evaluated, and both directions should be reported.

Q11. Why is long-term behaviour (creep) part of the discussion?

A: Under sustained load, drainage cores creep and some core-type composites can collapse after initial loading, progressively reducing flow. This is why seating period matters, why the standard points to creep data (D7361 SIM, D7406), and why GRI-GC8 applies a creep reduction factor on top of a 100-hour seated transmissivity test.

Q12: Why choose ASTM D4716 Geosynthetic In-Plane Flow Rate & Hydraulic Transmissivity Testing Machine from UnitedTest?

A: UnitedTest manufactures ASTM D4716/D4716M‑22 constant‑head in‑plane flow tester for geonets, geocomposites and drainage geosynthetics. Measure flow rate per unit width and hydraulic transmissivity under variable normal compressive stress. Fully compliant with ASTM D4716‑22 and ISO 12958 for civil‑engineering lab QC and third‑party geosynthetic testing.

UnitedTest is a professional manufacturer of geosynthetic hydraulic‑property testing instruments, supplying fully‑compliant ASTM D4716/D4716M‑22 constant‑head in‑plane transmissivity test machines for geonet, drainage geocomposite, edge‑drain core material testing, widely adopted by geosynthetic manufacturers, civil‑engineering laboratories, third‑party certification institutes and geotechnical research centers globally.

Our D4716 test system measures flow rate per unit width and hydraulic transmissivity under adjustable normal compressive stress (10 kPa‑500 kPa). The equipment simulates real‑world overburden load and constant‑head boundary conditions to replicate both index‑test and performance‑test workflows defined in ASTM D4716‑22. It supports configurable hydraulic gradients, optional soft rubber substrate/superstrate fixtures for soil‑contact simulation, manometer/pressure‑transducer head‑measurement, water‑temperature monitoring and automatic data calculation with viscosity correction. Mandatory apparatus‑calibration with rigid calibration‑blocks can be performed on our machine to satisfy Annex A1 requirements.

Our test machines can generate standard result plots: flow‑rate‑per‑unit‑width vs hydraulic gradient, flow‑rate‑per‑unit‑width vs normal compressive stress, transmissivity vs normal stress. Optional thickness‑monitoring sensors are available to implement Appendix X2 thickness‑controlled accelerated transmissivity testing together with ASTM D7361 creep test data.

Target test materials include HDPE geonets, geotextile‑geonet geocomposites, prefabricated edge drains and other planar drainage geosynthetics used in landfill, retaining‑wall backfill, road sub‑base, tunnel drainage and slope‑stabilization projects.
