ISO 12236 Static Puncture Test (CBR test) for Geosynthetics

ISO 12236 Geosynthetics — Static puncture test (CBR test)

ISO 12236 specifies a method for the determination of the puncture resistance by measuring the force required to push a flat-ended plunger through geosynthetics.

ISO 12236 puncture test (CBR test) is the principal international standard for measuring the static puncture resistance of geosynthetics using a 50-mm plunger. Its results are a key indicator of a material's performance in applications requiring resistance to localized, sustained pressure. While functionally identical in principle to ASTM D6241, the difference in test speed means the standards are not technically interchangeable. Compliance with ISO 12236 is often a requirement for projects following European (EN) norms and is fundamental for CE marking of geosynthetics in the EU.

Test Principle:

A circular specimen of the geosynthetic is securely clamped between circular rings without any initial tension. A cylindrical plunger with a flat, 50-mm diameter end and a 45° chamfer (bevel) is driven perpendicularly through the center of the specimen at a constant speed. The maximum force recorded during this process is the static puncture (CBR) strength.

Materials Commonly Tested with ISO 12236:

ISO 12236 is primarily designed for, and most applicable to, thick, nonwoven geotextiles. Its use extends to a range of geosynthetic products where puncture resistance is a key performance indicator:

Nonwoven Geotextiles (Needle-Punched or Heat-Bonded), Woven Geotextiles, Geocomposites, Geomembranes (thicker varieties):

Material Category	Typical Examples	Application Scenarios	Core Test Purpose
Woven Geotextiles	Polypropylene (PP) woven fabrics, polyester (PET) woven fabrics	Roadbed reinforcement, embankment filtration, landfill drainage	Verify penetration resistance under gravel extrusion in road engineering
Nonwoven Geotextiles	Needle-punched PET nonwovens, heat-bonded PP nonwovens	Slope protection, tunnel waterproofing, sewage treatment	Evaluate resistance to puncture by soil particles and construction debris
Geocomposites	Geotextile-geomembrane composites, geotextile-geogrid composites	Hazardous waste landfill liners, coastal reclamation projects	Test the integrated puncture resistance of multi-layer composite structures
Geotextile-related Products	Geotextile bags, geotextile tubes	River bank protection, soft soil foundation reinforcement	Assess structural integrity under static load penetration

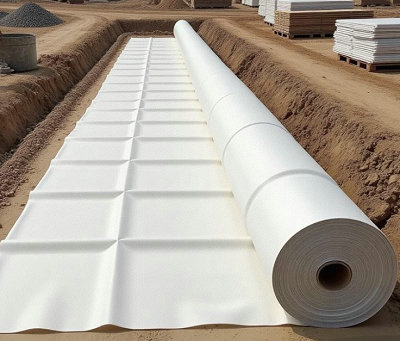

ISO 12236 Static Puncture Test (CBR test) for Geosynthetics

Common Challenges and Troubleshooting in ISO 12236 Testing:

During laboratory testing, deviations in operation, equipment, or specimens often lead to invalid data. Below are key challenges and targeted solutions:

Challenge Phenomenon	Root Causes	Troubleshooting Measures
Jaw or Probe Damage	Testing very stiff or reinforced products can cause excessive wear or even damage to the clamping rings or the plunger itself.	Use clamping rings and a plunger made of sufficiently hard and durable steel. Perform regular visual inspections for deformation or damage.
Improper Probe Alignment or Worn Probe	If the 50-mm plunger is not perfectly perpendicular to the specimen plane or is not centered, it can cause an uneven, skewed puncture and inconsistent results. A worn or damaged chamfer edge can also alter results.	Regularly verify the alignment of the plunger and clamping assembly. Inspect the plunger's chamfer and flat surface for nicks, corrosion, or wear, and refurbish or replace as needed. Calibration should include physical verification of plunger dimensions.
Specimen Slippage > 5 mm (invalid test)	Insufficient clamping force Smooth clamping surfaces (no anti-slip structure) Specimen not centered in the clamping ring	Adjust clamping force to 80–120 N using a torque wrench Install rubber O-rings or replace with serrated clamping plates Mark the center of the specimen and clamping ring to ensure alignment.
Premature Rupture at Clamping Edge	Excessive clamping force causes edge damage Specimen edge fraying during cutting Uneven clamping stress distribution	Reduce clamping force appropriately (not below 80 N)2. Use a sharp cutter to trim frayed edges or re-cut specimens Adopt uniform torque application (tighten bolts symmetrically in sequence)
Large Data Discrepancy Between Specimens	Non-random sampling (e.g., all samples from roll head) Uneven material properties (e.g., non-uniform fiber density) Plunger not vertically aligned with specimen center	Re-sample per standard rules (cover roll head, middle, tail) Increase the number of specimens (to 8–10) for statistical averaging. Calibrate plunger verticality (deviation ≤ 0.5°) using a level gauge
No Clear Peak Force on Force-Dis. Curve	Plunger edge wear (radius > 0.5 mm deviation) Slow test speed (lower than 45 mm/min) High material ductility (e.g., PP woven geotextiles)	Replace worn plungers (recheck edge radius after replacement) Adjust test speed to 50 ± 5 mm/min Define the "plateau force" as the puncture strength for ductile materials (as per ISO 12236 Annex A)
Environmental Interference with Test Results	Conditioning time insufficient (< 24 hours) Laboratory temperature/humidity beyond standard range Specimen contaminated by oil or dust	Extend conditioning time to 48 hours for moisture-sensitive materials. Install a constant temperature and humidity system in the laboratory. Clean specimens with a dry cloth before testing; avoid direct hand contact.

ISO 12236 Equipment and Sample Preparation:

1, Equipment: The test requires specialized, precisely machined components to ensure reproducibility. Key equipment includes:
Universal Testing Machine	A calibrated universal testing machine (UTM) capable of a constant crosshead displacement rate of 50 ± 5 mm/min, accurate force measurement (within ±1%) Crosshead travel ≥ 100 mm. Rupture force of specimen must fall within 10%–90% of load cell full scale; avoid over-range or under-range measurement.
CBR Plunger	The core component. It is a solid, rigid steel cylinder with a 50 ± 0.5 mm diameter flat end. The edge is chamfered at a 45° angle to a thickness of 1.0 ± 0.5 mm. The surface must be smooth. Material: Stainless steel (hardness ≥ HRC 40, corrosion-resistant).
Clamping Assembly	A two-part ring system to hold the specimen without slippage or pre-tension. Lower Support Rin: Fixed to the base of the UTM. It has an internal diameter of 150 ± 0.5 mm. Upper Clamping Ring: Places on top of the specimen. It has an internal diameter of 150 ± 0.5 mm, creating a 150-mm diameter exposed test area. Outer diameter 250mm. The two rings are bolted together to clamp the specimen.
Data Acquisition System	To record the continuous force-displacement curve, identifying the peak puncture force (F_max).
2, Sample Preparation: Proper preparation is critical for valid results.
Sampling	Obtain a representative sample from the roll, avoiding the outer wraps and edges (at least 100 mm from the selvedge).
Cutting	Cut a minimum of ten square or circular specimens—five for the machine direction (MD) and five for the cross-machine direction (CD). Each specimen must be large enough to be securely clamped by the 150-mm internal diameter ring; a common and safe size is 230 mm x 230 mm.
Conditioning	Condition all specimens in a standard laboratory atmosphere (e.g., 20 ± 2°C, 65 ± 5% relative humidity) for a minimum of 24 hours prior to testing, as per ISO 554. This ensures moisture equilibrium.

Related products and device

ISO 12236 Puncture Test Universal Testing Machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

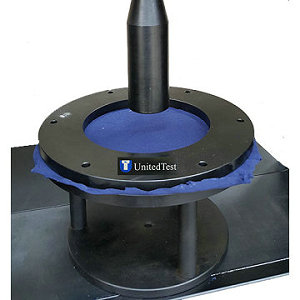

Geotextile sample punch test fixure ISO 12236

Geotextile puncture test fixture is suitable for the CBR puncture strength test of geosynthetics. It uses a flat-ended plunger to measure the CBR puncture strength of geosynthetics, which is the force recorded when the plunger penetrates the sample at a constant displacement rate. It is used for geotextiles, geomembranes, and their composite products, but is not suitable for materials with apertures larger than 10mm.

Related Standard

ASTM D6241 Puncture Testing for Geotextiles –

ASTM D6241 Standard Test Method for Static Puncture Index Strength of Geotextiles and Geotextile-Related Products Using a 50 mm Probe.

Puncture resistance is a critical property of geotextiles used in various civil engineering applications, such as soil reinforcement, erosion control, and drainage systems. ASTM D6241 is an index test method for measuring the static puncture strength of geotextiles and geosynthetic - related products using a 50 - mm diameter cylindrical probe, also known as the CBR (California Bearing Ratio) puncture test, which is widely used for product acceptance testing and engineering quality control.

ASTM D4595 Tensile Test of Geotextiles by the Wide-Width Strip –

ASTM D4595 Standard Test Method for Tensile Properties of Geotextiles by the Wide-Width Method

ASTM D4595 covers the measurement of tensile properties of geotextiles using a wide-width strip specimen tensile method. This test method is applicable to most geotextiles that include woven fabrics, nonwoven fabrics, layered fabrics, knit fabrics, and felts that are used for geotextile application.

ASTM D4632 Grab Breaking Load and Elongation test of Geotextile –

ASTM D4632 / D4632M: Standard Test Method for Grab Breaking Load and Elongation of Geotextiles

ASTM D4632 grab test is used for geotextile fabrics to determine the breaking load (grab strength) and elongation (grab elongation). The grab test is a tensile test where the central part of the specimen's width is tested in the grips, which establishes the “effective strength” of the fabric. The effective strength is the strength of the material in a specific width, together with the additional strength contributed by adjacent material.

ASTM D4533 Trapezoid Tearing Strength Test of Geotextiles –

ASTM D4533 test used to measure the force required to continue or propagate tearing in woven or non-woven geotextiles, using the trapezoidal method for testing. The trapezoidal tearing method is a test that generates tension along a reasonably defined path, allowing the tear to propagate across the width of the specimen. The trapezoidal tear strength of woven fabrics is mainly determined by the characteristics of the yarns clamped in the fixture.

ASTM D4751 Geotextile apparent Opening Size Test of Dry sieving method –

ASTM D4751 Standard Test Methods for Determining Apparent Opening Size of a Geotextile

ASTM D4751 test methods cover the determination of the apparent opening size (AOS) of a geotextile either by drysieving glass beads through a geotextile (Method A) or by using a capillary porometer (Method B).

ASTM D4491 Water Permeability Testing of Geotextiles by Permittivity –

ASTM D4491 test standard specification discusses the methods for measuring water flow through geotextiles in the laboratory. This is an important characteristic, as it may be a crucial factor in determining the suitability of geotextiles for filtration, such as water flow into drainage layers.

The main testing methods are 'vertical water flow' and 'permeability', which are similar but not identical. Broader information regarding the behavior of filter geotextiles is included in the technical specification titled 'Geotextile Filtration'. The vertical water flow measurement method, which measures vertical water flow (i.e., water flow perpendicular to the plane), is defined by EN ISO 11058, which is almost identical to ASTM D4491.

ISO 10319 Geotextile Wide Width Strip tensile testing –

ISO 10319: Geosynthetics -- Wide-width tensile test

ISO 10319 describes an index test method for the determination of the tensile properties of geosynthetics (polymeric, glass, and metallic), using a wide-width strip. It is applicable to most geosynthetics, including woven geotextiles, nonwoven geotextiles, geocomposites, knitted geotextiles, geonets, geomats, and metallic products. It is also applicable to geogrids and similar open-structure geotextiles, but specimen dimensions might need to be altered. It is not applicable to polymeric or bituminous geosynthetic barriers, while it is applicable to clay geosynthetic barriers.

ISO 10319 specifies a tensile test method that covers the measurement of load elongation characteristics and includes procedures for the calculation of secant stiffness, maximum load per unit width and strain at maximum load. Singular points on the load-extension curve are also indicated.

ISO 13426-1 Geotextiles Strength of internal structural junctions –

ISO 13426-1:2019 Geotextiles and geotextile-related products — Strength of internal structural junctions — Part 1: Geocells

ISO 13426-1 test describes index test methods for the determination of the strength of internal structural junctions of geocells under different loading conditions.

Splitting test procedure:

All test methods are performed at a constant strain rate of 20 mm/min.

At the beginning of the test, adjust the distance between the jaws to ±3mm of the required specimen length.

The specimen is mounted in the center of the jaws. Note that the length of the specimen should be parallel to the direction of the force.

Start the pull machine and continue until the sample is destroyed. Stop the device, record and report the maximum load with an accuracy of 2% of the full-scale reading. Reports the corresponding displacement in millimeters, with one decimal place reserved.

ISO 12960 geotextile acid and alkali resistance testing of Screening test methods –

ISO 12960:2020 Geotextiles and geotextile-related products — Screening test methods for determining the resistance to acid and alkaline liquids

ISO 12960 standard specifies a testing method for the acid and alkali liquid resistance of geotextiles and related products. The primary aim of this standard is to evaluate the resistance of geotextiles and related products to acid and alkali liquids to determine their durability and reliability in specific environments.

It specifies methods for screening the resistance of geotextile and geotextile-related products to liquids while not subjecting them to external mechanical stress. It is applicable to all geotextiles and geotextile-related products. Method A applies particularly to polyamides and method B to polyesters and polyamides. The test results are intended to be interpreted in the context of site conditions.

This test applies to all types of geotextiles and related products, including but not limited to non-woven fabrics, woven fabrics, needle-punched non-woven fabrics, www.unitedtest.com. composite materials, and coated materials.The standard requires testing with both acid and alkali liquids.

ISO 12956 Wet-sieving method geotextile opening size test –

ISO 12956:2019 Geotextiles and geotextile-related products — Determination of the characteristic opening size

ISO 12956 specifies a method for the determination of the characteristic size of the openings of a single layer of a geotextile or geotextile-related product using the wet-sieving principle.

ISO 12956 wet-sieving method geotextile opening size test machine Test principle: With the untensioned single-layer geotextile and its related product samples as a screen, under the specified vibration frequency and amplitude, the sample and graded granular material are sprayed with water, so that the granular graded material passes through the sample. The effective pore size of the specimen is indicated by the passing particle material and the specific particle size.

ISO 11058 Geotextile water permeability test –

ISO 11058 test specifies two test methods for the water permeability characteristics of a single layer of geotextile or geotextile-related product normal to the plane: the constant head method; and the falling head method.

ISO 11058:2019 Geotextiles and geotextile-related products — Determination of water permeability characteristics normal to the plane, without load.

Water Flow through a Geotextile: Measuring Perpendicular Water Flow and Permittivity

FAQs About ISO 12236 (Static Puncture Test for Geosynthetics)

Q1: Why is the ISO 12236 (CBR Puncture) test so important for geosynthetics?

A1: It provides a critical, standardized index of a material's ability to resist localized, static point loads—a common failure mode in the field. This test is a key performance indicator for a geosynthetic's protection function. It helps engineers select the right product to prevent puncture from sharp stones, uneven subgrades, or construction debris, thereby ensuring the long-term integrity of structures like landfill liners, pond liners, and road bases.

Q2: How many specimens do I need to test, and why test in both directions?

A2: The standard requires a minimum of five valid tests. It is industry best practice to test five specimens in the machine direction (MD) and five in the cross-machine direction (CD), for a total of ten. Many geosynthetics have different strength properties in different directions due to their manufacturing process (anisotropy). Testing both directions provides a complete picture of the product's in-plane puncture resistance.

Q3: How does clamping force affect ISO 12236 test results? What is the optimal clamping force range?

A3: Clamping force is a critical parameter that directly impacts test validity:

Insufficient clamping force: Causes specimen slippage (> 5 mm, per standard limits), leading to lower measured puncture strength than the actual value (invalid test data).

Excessive clamping force: Damages the specimen edge, resulting in premature rupture at the clamping ring rather than the center (non-representative of actual puncture resistance).

The optimal clamping force range specified by ISO 12236 is 80–120 N, which should be applied using an adjustable torque wrench to ensure uniform force distribution across the clamping ring.

Q4: What do the results tell me, and how are they used in design?

A4: The primary result is the CBR puncture strength in kN (or N). This is primarily an index property used for:

Quality Control/Assurance: Verifying product consistency against factory specifications.
Product Comparison: Objectively comparing different products from various suppliers.
Empirical Design: While not a direct design parameter, the value is often used in conjunction with safety factors in protection layer design methods (e.g., for geomembrane protection) to select a product with adequate strength for the expected stresses.

Q5: Can I use this test for all geosynthetics, like geogrids or drainage geocomposites?

A5: It is suitable for most continuous sheet products. It works very well for nonwoven and woven geotextiles, as well as many geocomposites. However, it is not suitable for open structures like some geogrids or drainage nets where the 50-mm plunger can push through the apertures without engaging the material's structure. The standard notes that the test may not be applicable to very stiff products.

Q6: How is ISO 12236 different from the "Index Puncture" test (like ASTM D4833 or ISO 13433)?

A6: They are fundamentally different tests measuring different properties:

ISO 12236 (CBR): Uses a large, 50-mm plunger to simulate a blunt object (e.g., a rock). It measures "bulk" or "composite" puncture resistance, where many fibers or yarns are engaged.
Index Puncture (e.g., 8-mm probe): Uses a small, 8-mm diameter probe. It simulates a sharper object and measures more of a "tear initiation" or "punching shear" resistance. The two tests do not correlate directly, and CBR values are typically 5-10 times higher than index puncture values for the same material.

Q7: How does ISO 12236 relate to other geosynthetic test standards?

A7: ISO 12236 is part of a comprehensive system of geosynthetic test standards, with key correlations:

Conditioning: ISO 291 (standard temperature/humidity conditioning for plastics) is mandatory for specimen preparation.

Equipment calibration: ISO 7500-1 (metallic materials—calibration of force-measuring instruments) specifies testing machine accuracy requirements.

Complementary tests: ISO 13433 (ball burst test) evaluates bursting resistance of nonwovens, while ASTM D4833 (cone puncture test) simulates sharp object penetration—these tests are often used together with ISO 12236 for a full performance assessment.
