ISO 10333-1 Full-Body Harness PFAS Testing Machine | UnitedTest

UnitedTest manufactures professional ISO 10333-1 compliant universal tensile and dynamic testing machines for safety gear factories, third-party safety certification labs, and fall protection product quality inspection. Our test equipment fully supports all mandatory performance verification procedures for full-body harnesses specified under ISO 10333-1.

ISO 10333-1 Personal fall-arrest systems — Part 1: Full-body harnesses is the core international safety standard that establishes comprehensive technical specifications, standardized test methods, user operation guidelines, product marking rules, packaging requirements and long-term maintenance protocols for full-body harnesses (FBH) used in personal fall-arrest systems (PFAS).

The primary performance verification objective of ISO 10333-1 testing is to validate that certified full-body harnesses restrict the peak fall arresting force to no more than 6 kN when integrated into a complete PFAS assembly. This critical force limit prevents severe or fatal bodily injury during accidental free falls, while the harness design must also sustain a stable, ergonomic suspended posture for users after a fall is arrested. Test data from our ISO 10333-1 testing instruments supports new harness product development, batch production QC, factory certification audits and cross-border safety equipment compliance inspections for construction, tower climbing and industrial high-altitude operations.

Test Principle and methods:

The underlying principle of ISO 10333-1 testing is to subject the harness to worst-case mechanical stresses that simulate a real fall event and its aftermath:

Dynamic shock loading — replicating the high-energy impact of a free fall stopped by the harness.

Static overload verification — confirming the harness can sustain forces well beyond the 6 kN working limit (a safety factor is applied → 15 kN).

Post-fall suspension evaluation — ensuring the wearer remains in a safe, upright, breathable posture after the fall is arrested.

Durability & integrity checks — corrosion resistance of metal parts, buckle security, and webbing/stitching integrity.

Buckle Shake Test	Principle: Simulate repeated workplace jostling, vibration and strap tugging to test buckle anti-slip and accidental release resistance. Parameters & Procedure: Adjustment buckles: Mark webbing-buckle alignment, 25 rapid alternating forward/back strap shake cycles. Fastening buckles: Fully latch buckle per design, 25 rapid alternating strap shake cycles. Pass Stipulation: Adjustment buckle webbing slippage ≤25 mm; fastening buckles cannot separate/unlatch unintentionally.
Static Strength Test	Principle: Apply sustained extreme tensile load to all designated harness attachment elements to validate webbing, stitching, buckles and D-ring ultimate load capacity. Parameters & Procedure: Mount fitted harness on static torso dummy; mark all buckle webbing alignment. Ramp tensile force up to 15 kN over 4±1 minutes, hold constant 15 kN load for 3 minutes, pull between each attachment element and dummy upper/lower eyebolts separately. Repeat for fall-arrest, descent, confined-space attachment points individually with new harness specimens each time. Pass Stipulation (Zero Tolerance Failures): No webbing tearing, complete sewing joint separation, full/partial buckle fracture, accidental buckle opening. Strap asymmetric shifting forbidden; adjustment buckle slip limited to ≤25 mm.
Dynamic Performance Drop Tests	Two sequential drop scenarios replicate real fall orientations: (1) Feet-First Dynamic Drop Test (5.7.1) Principle: Simulate vertical feet-first free fall, measure harness load distribution, post-fall suspended posture and structural survival. Parameters: 1.0 m free fall distance, dummy horizontal offset ≤300 mm from anchorage vertical axis, 100 kg dynamic dummy mass. Pass Stipulation: No webbing rupture, primary strap stitch tear, buckle breakage or accidental unlatching. Post-drop torso back-to-test lanyard angle ≤45°, dummy remains suspended upright for minimum 10 minutes after arrest without slipping free. (2) Head-First Inverted Drop Test (5.7.2) Principle: Worst-case inverted head-down fall scenario, verify back Class A D-ring does not slide down the spine during impact. Parameters: Same 1.0 m free fall and horizontal offset limit as feet-first test, dummy pre-positioned upside down pre-release. Pass Stipulation: Same structural failure prohibitions as feet-first test; back fall-arrest D-ring must not slide downward on dummy torso during inverted impact.

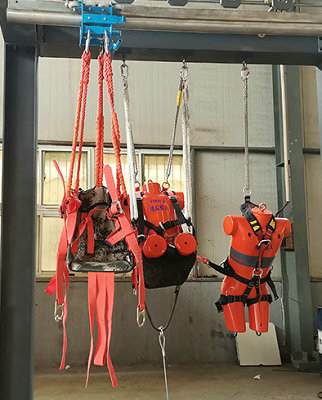

Human Static Suspension Ergonomic Test	Principle: Evaluate long-suspension ergonomics to prevent circulatory shock, nerve compression or breathing restriction post-fall rescue delay. Parameters: Human test subjects suspended feet just clear of ground (gap ≤100 mm) via each fall-arrest attachment element sequentially. Pass Stipulation: No metal hardware contacting groin, inner thighs or armpits. No direct harness pressure on genitals, head or neck. No severe pain reported; unobstructed normal breathing. Test terminated immediately if any volunteer experiences extreme discomfort.
Confined-Space Static Suspension Angle Test	Principle: Verify dual shoulder confined-space attachment elements maintain near-upright rescue posture for confined-space rescue operations. Parameters: Harness mounted on dynamic dummy, suspended via paired shoulder E attachment elements for 3 minutes static hold. Pass Stipulation: Torso back-to-test yoke rope angle ≤10°

Test Equipment required for ISO 10333-1 Full-body harnesses personal fall-arrest testing

Equipment	Specification

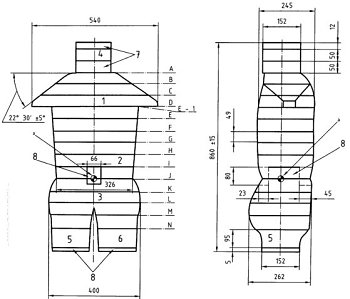

Torso test mass (static)	Hardwood/plastics; suspension eyebolts Ø40 mm bore, ≤16 mm cross-section
Torso test mass (dynamic)	Rigid material, 100 ± 1 kg; hard wood surfaces;
Test lanyard	9.5 mm dia. 7×19 stainless steel aircraft cable (Type 302); length 2400 ± 25 mm under 44 N tension; with snap hooks
Rigid anchorage structure	Natural frequency ≥ 100 Hz vertically; deflection < 1 mm under 20 kN; anchorage ring Ø20 ± 1 mm bore, 15 ± 1 mm cross-section
Test frame / winch / hydraulic puller	Sufficient traverse to load the torso test mass to 15 kN
Force-measuring instrumentation	Range 1.2–20 kN, accuracy ±2%, withstands 50 kN; sampling ≥ 1000 Hz with continuous 100 Hz band
Quick-release device	Compatible with torso eyebolt; ensures zero initial velocity on release
Test yoke	200 mm bar with two ≥ 300 mm ropes terminating in connectors; central attachment point
Salt spray chamber	Per ISO 9227

Test Specimen Requirements

Harness specimen: Production-representative FBH, correctly adjusted per manufacturer's instructions for a snug fit on the torso dummy.

Webbing material: Virgin high-tenacity filament or multi-filament synthetic fibres with known breaking strength ≥ 0.5 N/tex.

Strap widths: Primary straps ≥ 40 mm; secondary straps ≥ 20 mm.

Sewing thread: Physically compatible with webbing, comparable quality, and of a different colour from the webbing for visual inspection.

Total mass limit: Harness validated for users up to 100 kg total mass (user + clothing + tools). Beyond this, the manufacturer must advise on suitability/additional testing.

Industrial Application Fields

ISO 10333-1 certified full-body harnesses are mandatory PPE for all work-at-height sectors globally:

Construction industry: High-rise building erection, scaffolding work, roof maintenance, bridge engineering.

Energy sector: Wind turbine service, power transmission tower inspection, offshore oil/gas platform operations, solar panel installation.

Utilities & telecommunications: Overhead line maintenance, cell tower climbing, pipeline elevated repair.

Confined space operations: Sewers, storage tanks, underground vaults, silo entry (Class E harness required).

Rope access & industrial abseiling: Window cleaning, building facade maintenance (Class D descent harness required).

Mining, shipbuilding, aviation aircraft maintenance, railway elevated track repair.

Emergency rescue teams: Height rescue, confined-space recovery operations.

Related & Similar Standards

ISO 10333-1	Personal fall-arrest systems - Part 1: Full-body harnesses
EN 361	Personal protective equipment against falls from a height - Full body harnesses
ANSI/ASSP Z359.11	Full-body harness requirements; tests higher weight capacities (up to 140 kg); 22 kN webbing strength; 6 ft free-fall dynamic test
AS/NZS 1891.1	Manufacturing requirements for full-body, lower-body, and combination harnesses
GB/T 6096	Fall protection— Performance test methods for fall protection systems
ISO 10333-2	Lanyards and energy absorbers (connecting components paired with FBH)
ISO 10333-3	Self-retracting lifelines
ISO 10333-4	Vertical rails and sliding fall arresters
ISO 10333-5	Self-locking fall arrest connectors (all harness hardware connectors must comply)
ISO 10333-6	Complete PFAS system integrated performance testing (assesses compatibility between ISO 10333-1 harness and other components)
ISO 9227	Salt spray corrosion testing (normative reference for metal fitting corrosion test)

Keywords: UnitedTest ISO 10333-1 tester, ISO 10333-1 full-body harness test machine, personal fall-arrest system PFAS testing equipment, safety harness peak fall arresting force tester, ISO 10333-1 6kN peak fall arresting force test for full body harnesses, PFAS full-body harness dynamic safety testing machine, industrial high-altitude fall protection harness compliance tester, full-body harness suspended posture performance test equipment, ISO 10333-1 safety gear certification laboratory tensile testing instrument

Suitable for comprehensive mechanical testing of Buckle uncoupling and slippage, Static strength of FBL, Falling dynamic performance of FBH, safety ropes, hanging devices, slings, etc. Full-Body Harnesses (FBH) Safety tester meet standard ISO 10333-1 standard.

Q1: What is ISO 10333-1 test, and what core goal does it achieve?

A: ISO 10333-1 is the mandatory test suite for full-body harnesses (FBH) under the global Personal Fall-Arrest System standard series. All tests verify that a harness can integrate into a PFAS and cap peak fall-arrest force at ≤6 kN, prevent fatal trauma during falls, and maintain a safe upright suspended posture after arrest. It unifies global testing rules for design, material, hardware, dynamic shock, ergonomics and durability of fall protection harnesses.

Q2: Why are ISO 10333-1 tests so critical for harness materials and finished products?

A: Prevent catastrophic structural failure: Static 15 kN tensile tests validate webbing, stitching and metal hardware can withstand extreme overloads from human falls; dynamic drop tests expose brittle materials that fail under sudden impact shock.

Eliminate unsafe low-grade raw materials: Enforces minimum webbing width (40 mm primary / 20 mm secondary), high-tenacity synthetic fibre strength ≥0.5 N/tex, and contrasting inspection thread to stop substandard textiles from entering height workplaces.

Guarantee long-term hardware durability: Salt spray corrosion testing rules out uncoated rust-prone metal fittings that fatigue in marine, chemical or outdoor construction environments.

Avoid fatal suspension trauma: Human static suspension tests validate padding and strap geometry to eliminate nerve compression, restricted breathing or groin pressure that causes circulatory shock post-fall.

Global regulatory compliance: Almost all national workplace safety codes require ISO 10333-1 test evidence before harnesses can be legally used for work-at-height; untested harnesses create employer liability and worker fatality risks.

Q3: What industries rely on products passing ISO 10333-1 tests?

A: All height-safety sectors: commercial construction, wind energy tower maintenance, offshore oil & gas platforms, telecom cell tower climbing, window rope access abseiling, confined-space tank/sewer entry, bridge engineering, mining, shipbuilding, and emergency height rescue teams.

Q4: What weight limit does ISO 10333-1 apply to, and what if the user’s total mass exceeds it?

A: The standard only covers single-user harnesses with a total combined mass (person + clothing + tools) ≤100 kg. If total mass exceeds 100 kg, standard tests are insufficient; manufacturers must conduct custom supplementary load and dynamic drop testing to validate heavy-user suitability before release.

Q5: Are waist belts or chest-only harnesses covered by ISO 10333-1 tests?

A: No. Waist belts and chest harnesses are explicitly excluded from the standard scope, as they cannot safely distribute fall arrest forces and are prohibited for primary fall-arrest use. Only full-body harnesses with shoulder, pelvic and thigh straps are subject to ISO 10333-1 testing.

Q6: Do I need a brand-new harness specimen for every ISO 10333-1 test?

A: Yes. Each attachment point test (static strength, feet-first/head-first dynamic drop) requires an unused, undamaged full harness specimen. Previously tested harnesses with micro-cracks, stretched webbing or deformed hardware cannot produce valid pass/fail results.

Q7: What is the difference between static and dynamic torso test masses required for testing?

A: Static test dummy: Hardwood/plastic rigid torso (Shore hardness >90 kg), standardized curved body geometry, used only for slow, sustained static tensile loading.

Dynamic drop dummy: Segmented rigid unit with hardwood frames, lead weighted limbs and steel hardware, fixed total mass of 100±1 kg and 22.5°±5° shoulder angle to replicate real human biomechanics during free fall impact.

Q8: What rigid anchorage frame specifications are mandatory for dynamic drop testing?

A: The anchorage point must have vertical natural vibration frequency ≥100 Hz, maximum deflection ≤1 mm under 20 kN load, and sufficient vertical height to prevent the 100 kg dummy striking the ground during 1 m free fall drops. The anchor ring has a 20±1 mm bore and 15±1 mm cross-section diameter.

Q9: What is the pass rule for the buckle shake test?

A: Two separate evaluations:

Adjustment buckles: After 25 rapid shake cycles, webbing slippage cannot exceed 25 mm from the pre-test alignment mark.

Fastening buckles: Must not unlatch or separate unintentionally after 25 shake cycles simulating workplace vibration and jostling.

Q10: What are the critical pass criteria for the 15 kN static strength test?

A: Zero tolerance for any of these failures during the 3-minute hold at 15 kN tensile load:

Webbing tearing

Full/partial separation of sewn joints

Fracture of any buckle (adjustment or fastening)

Accidental opening of fastening buckles

Asymmetric strap shifting away from original fitted positions

Adjustment buckle slip is capped at maximum 25 mm.

Q11: Why are two separate dynamic drop tests (feet-first + head-first inverted) required?

A: They replicate the two most common real-world fall orientations:

Feet-first drop: Simulates typical vertical slip off scaffolding/roofs; post-drop torso-to-lanyard angle must not exceed 45°, dummy remains upright suspended for 10 minutes minimum.

Head-first inverted drop: The worst-case failure scenario; verifies the Class A back fall-arrest D-ring does not slide down the wearer’s spine during upside-down impact, which would cause fatal neck/chest compression injuries. Both use a 1.0 m controlled free fall distance.

Q12: What is the corrosion test procedure for metal hardware, and what counts as a failure?

A: Metal fittings undergo alternating salt spray exposure per ISO 9227: 24 h salt spray → 1 h air drying → second 24 h salt spray cycle. The test fails if any red rust or base metal corrosion is visible to the naked eye; thin white oxide scaling is permitted as harmless surface oxidation.

Q13: What is the human static suspension test and what disqualifies a harness?

A: A minimum of 3 human volunteers (1.6–1.9 m height) are suspended feet just clear of the ground (<100 mm gap) to assess ergonomic safety. The harness fails if:

Metal hardware touches groin, inner thighs or armpits;

Straps apply direct pressure to genitals, head or neck;

The subject reports severe pain or restricted normal breathing. Medical supervision is mandatory during testing per the Helsinki Declaration.

Q14: What does Class A mean, and is every compliant FBH required to pass Class A tests?

A: Class A is the mandatory base classification for all ISO 10333-1 certified harnesses, dedicated to primary fall arrest. Every FBH must pass all Class A static, dynamic and suspension tests, and carry a central back shoulder-blade fall-arrest D-ring marked with a minimum 3 cm tall letter “A” and directional arrow marking. Harnesses cannot be certified without Class A compliance.

Q15: Can Class P work-position side waist D-rings be used for fall arrest, and do they undergo the same dynamic drop tests?

A: No. Side waist Class P attachment points are only for work positioning and are explicitly forbidden for PFAS fall arrest connections. They pass separate static 15 kN tensile testing but are exempt from the critical feet-first and head-first dynamic drop shock tests reserved for Class A fall-arrest points.

Q16: What extra test applies to Class AE dual-purpose confined-space harnesses?

A: Class AE harnesses require the static suspension angle test. The paired shoulder E attachment points must hold the dummy torso with a back-to-test yoke rope angle ≤10° after 3 minutes of static suspension, ensuring a near-upright rescue posture inside narrow confined spaces.

Q17: If a harness passes all ISO 10333-1 tests once, does it need re-testing periodically?

A: Two separate re-test rules apply:

Manufacturer batch production: Every new production batch of harnesses must complete full ISO 10333-1 testing to maintain certification.

In-service inspection (not lab testing): End-users must visually inspect harnesses before each use, and a competent inspector completes full annual hardware/webbing audits. Any harness that has arrested a fall must be immediately removed from service and discarded, even if no visible damage appears.

Q18: What mandatory marking must be present on a harness that has passed ISO 10333-1 tests?

A: Permanent indelible labels must include:

Standard reference ISO 10333-1 + harness classification (e.g. A, ADP, AE);

Manufacturer brand, batch/serial traceability number and production year;

Fibre material identity of load-bearing webbing;

Special “A” marking (3 cm height letter + 5 cm directional arrow) on shoulder straps pointing to the Class A back fall-arrest D-ring;

Clear warnings to read user maintenance instructions.

Q19: What if a worker's total mass exceeds 100 kg?

A: The standard's validation is limited to 100 kg. For heavier users, the manufacturer must be consulted — additional testing may be required to confirm suitability. The harness's markings and instructions will specify its certified capacity.

Q20: What is the significance of the 15 kN static strength test?

A: The 15 kN static load (applied for 3 minutes) serves as a safety factor verification. While the actual arresting force in use must not exceed 6 kN, the 15 kN test accounts for:

Material aging and degradation

UV exposure and abrasion wear

Batch-to-batch manufacturing variation

Dynamic peak forces that can momentarily exceed the 6 kN average

If a harness survives 15 kN without webbing tearing, buckle fracture, or seam separation, it has adequate safety margin for real-world use.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
