ISO 4012 Concrete Compressive Strength Tester | UnitedTest

ISO 4012 specifies the uniaxial compression test method for hardened concrete specimens to calculate compressive strength using maximum load and loaded area. This standard has been replaced by ISO 1920‑4. UnitedTest supplies concrete compression testing machines compliant with ISO 1920‑4 and legacy ISO 4012 requirements for concrete laboratories.

ISO 4012 is the former international standard defining the procedure for determining compressive strength of hardened concrete test specimens through uniaxial compression crushing. The compressive strength value is calculated by dividing the maximum failure load recorded during the compression test by the loaded cross-sectional area of the concrete specimen. It is important to note that ISO 4012 has been superseded and replaced by ISO 1920‑4 for modern concrete compressive strength testing.

UnitedTest manufactures high-performance concrete compression testing machines compatible with legacy ISO 4012 test protocols and the updated ISO 1920‑4 standard. Our test systems deliver stable uniaxial compressive loading for hardened concrete samples, ideal for material research, concrete batch quality inspection and civil engineering material verification.

The test principle:

The test measures the ultimate uniaxial compressive resistance of hardened concrete specimens. A continuously increasing compressive load is applied perpendicularly to the specimen’s load‑bearing surfaces until fracture. Compressive strength is calculated by dividing the maximum failure load by the loaded cross‑sectional area of the specimen:

F_cc = F / A_c

Where:

F_cc compressive strength N/mm².
F: maximum failure load (N);
A_c: loaded cross‑sectional area mm².

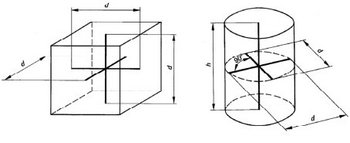

Test Specimen Information:

Cubes, cylinders, half‑prisms are permitted

Cubes – measure lateral dimension d

Cylinders – measure diameter d and height h

Half‑prisms – measure minimum length, height and width; length must exceed both other dimensions

ISO 4012 Concrete Compression Testing - Cube, Cylinder

Test Equipment associated with ISO 4012 Concrete Compression Testing - Cube, Cylinder & Prism

Compression Testing Machine	A compression testing machine for stiff brittle materials with the following specifications: Load range: failure load shall exceed 1/10 of the machine’s full measuring range. Load‑reading accuracy: ± 1 % for reference testing; ± 3 % allowed only for rough production quality control.



Steel loading platens	Rockwell hardness ≥ 55 HRC, hardened‑layer depth approx. 5 mm. Platen size ≥ specimen loaded face. Auxiliary platens minimum thickness 25 mm are allowed. Contact‑surface flatness tolerance: 0.02 mm per 100 mm of specimen edge/diameter; re‑machine platens when flatness drifts beyond this value.
Spherical seating	the sphere centre must lie at the platen surface or within 1/200 of platen diagonal/diameter away from it, ensuring uniform load distribution.

Key Test Parameters

Stress increase rate: continuous uniform loading without shock, stress rise rate: 0.6 ± 0.4 N/(mm²·s) (Mpa/s) . Use lower rates for low‑strength concrete and higher rates for high‑strength concrete. Stop manual rate adjustment once rapid pre‑failure deformation starts and let failure proceed under existing strain rate.
Centring tolerance: specimen centring error ≤ 1/100 of specimen edge length or diameter.
Result rounding: report compressive strength to the nearest 0.5N/mm².

Test Procedure of ISO 4012 Concrete Compression Testing - Cube, Cylinder & Prism:

Clean loading platens and specimen bearing surfaces.
Place the specimen on platens/auxiliary platens, centre it within allowed centring error.
Lower upper platen until first contact; adjust spherical seating for even contact across the bearing face.
Apply compressive load continuously at the specified stress rate, selecting suitable rate according to concrete strength grade.
When obvious rapid deformation occurs before collapse, cease manual rate tuning and maintain existing strain rate.
Keep loading until specimen fractures, capture and document the maximum failure load value.
Calculate compressive strength with the formula F_cc = F / A_c, round result to nearest 0.5N/mm². Compute apparent density from measured mass and dimensions.
Complete the full test report covering specimen identification, curing history, specimen type, test age, moisture state, apparent density, compressive strength and other observations.

Related standard

BS EN 12390	Testing hardened concrete-Compressive strength of test specimens
ASTM C39 / C39M	Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens
AS 1012.9	Methods of testing concrete, Method 9: Compressive strength tests - Concrete, mortar and grout specimens
ASTM C513	Standard Test Method for Obtaining and Testing Specimens of Hardened Lightweight Insulating Concrete for Compressive Strength
UNE-EN 12390-6	Testing hardened concrete - Part 6: Tensile splitting strength of test specimens
ISO 4012	Concrete — Determination of compressive strength of test specimens
ISO 4013	flexural strength test of concrete specimens;
ISO 4108	splitting tensile strength test;
ISO 1920‑4	Testing of concrete — Part 4: Strength of hardened concrete
KS F 2405	Method of test for compressive strength of concrete
JIS A 1108	Method of test for compressive strength of concrete
JIS A 1113	Method of test for splitting tensile strength of concrete
IS 516	Methods of Tests for Strength of Concrete
ACI 363.2R-11	Guide to Quality Control and Assurance of High-Strength Concrete

Industry Application:

The test supports any sector using structural concrete:

Buildings / commercial and residential construction

Bridges, highways, pavements, airports

Precast and prestressed concrete plants

Ready‑mixed concrete quality control

Dams, tunnels, marine and offshore concrete structures

Industrial floors, foundations, retaining structures

Certification, third‑party materials testing laboratories, regulator/code compliance

Research and mix‑design development

It is used for batch acceptance, 7/28‑day (or other age) strength verification, curing evaluation, formwork stripping decisions and long‑term quality records.

Importance of this Test for Concrete Material

Compressive strength is the primary performance indicator for structural concrete, because concrete is predominantly used to resist compressive force in buildings, bridges and infrastructure.

1. Structural‑safety basis: compressive strength defines the load‑bearing capacity of concrete structural members; test results verify whether concrete satisfies design safety requirements.

2. Mix‑design feedback: test outcomes evaluate the performance of concrete mix proportions (water‑cement ratio, cement type, admixtures), guiding mix optimisation.

3. Quality‑control tool: for factory precast concrete and cast‑in‑situ concrete, the test confirms production consistency and detects non‑conforming batches.

4. Reference for material‑property correlation: compressive strength correlates indirectly with other concrete properties including tensile strength, elastic modulus and durability; it provides fundamental laboratory data for concrete‑material research.

5. Standardised test methods enable comparable, repeatable test results among different laboratories worldwide for concrete quality acceptance and technical communication.

Keywords: ISO 4012 concrete compressive strength tester,ISO 1920-4 concrete compression test machine,hardened concrete uniaxial compression test rig,concrete specimen crushing tester,concrete lab compressive strength equipment,civil engineering concrete quality control machine,concrete material mechanical test apparatus,concrete cube and cylinder compression tester,concrete strength verification system,construction material testing machine,concrete batch performance tester,hardened concrete mechanical property analyzer

UnitedTest Hydraulic Compression Strength Testing Machine to test cement, brick and concrete is offered by United Test. Use hydraulic power driving, intelligent measuring and control meter to collect and process data, consist of frame, oil source, control system, test fixture. Accuracy class 1, max. test load 2000KN, 3000KN.

YES series Compressive Strength Testing Equipment to test cement, brick and concrete is offered by United Test. Range 1000KN, 2000KN, and 3000KN, these strength testing equipment are extremely handy and are easy to use for testing cement, concrete and mortar cubes.

Q1: What is ISO 4012‑1978 and why is this concrete compression test important?

A: ISO 4012‑1978 is the historic international standard for measuring compressive strength of hardened‑concrete test specimens (cubes, cylinders, half‑prisms). Compressive strength is the primary performance indicator for structural concrete, as concrete mainly bears compressive loads in buildings, bridges and infrastructure. The test verifies whether concrete meets design strength requirements, ensures structural safety, supports concrete mix design optimisation, and enables consistent quality control for ready‑mix and precast concrete. Without this standardized compression test, labs would produce incomparable strength results.

Q2: What specimen types are allowed under ISO 4012? Can I test damaged concrete cubes?

A: Permitted specimens are concrete cubes, cylinders and half‑prisms. Specimens must comply with ISO 1920 (geometry tolerances) and ISO 2736 (sampling, moulding and curing). Any specimen damaged after demoulding cannot be tested. Surface unevenness can be fixed by grinding or capping; angular deviation must only be corrected by cutting and grinding.

Q3: What is the mandatory loading rate specified in ISO 4012?

A: The standard requires continuous shock‑free loading with a stress increase rate of 0.6 ± 0.4 N/(mm²·s). Use lower rates for low‑strength concrete and higher rates for high‑strength concrete. Once the specimen shows rapid pre‑failure deformation, stop adjusting loading speed and let failure happen under the existing strain rate. Wrong loading speed will cause large deviation of strength test values.

Q4: What are key requirements for compression test machines under ISO 4012?

A: 1) Load‑indicating accuracy: ±1 % for formal tests; ±3 % is only permitted for rough production control. 2) Hardened steel platens ≥55 HRC hardness. 3) Spherical seating (preferably upper platen) for uniform load distribution. 4) Flatness tolerance of contact surfaces: 0.02 mm per 100 mm of specimen edge/diameter. 5) The failure ultimate load must be greater than 1/10 of the machine measuring range.

Q5: What rules apply to capping (levelling layer) on specimen bearing surfaces?

A: Capping material must bond firmly to concrete. Its compressive strength at test time shall not be less than expected concrete strength. The capping layer thickness cannot exceed 2 % of specimen lateral dimension or diameter. Angular deviation cannot be fixed by capping — only cutting‑and‑grinding is allowed for angle correction.

Q6: What common mistakes cause unreliable ISO 4012 concrete compression results?

‑ Testing demould‑damaged specimens;

‑ Ignoring platen flatness or spherical‑seating maintenance;

‑ Too fast / too slow loading rate;

‑ Poor specimen centring;

‑ Over‑thick or low‑strength capping layers;

‑ Failure to record specimen moisture condition and actual test age.

Q7: Why choose ISO 4012 Concrete Compressive Strength Test Machine from UnitedTest?

A: UnitedTest is professional manufacturer of ISO 4012‑1978 / ISO 1920‑4 compliant concrete compression testing machines for hardened‑concrete cube, cylinder and half‑prism compressive‑strength test. High‑precision hydraulic compression testers for construction labs, ready‑mix concrete plants, precast factories, ISO/IEC 17025 laboratories.

Concrete compressive‑strength test per ISO 4012‑1978 is one of the most fundamental laboratory tests for hardened concrete in civil‑engineering and building‑material quality control. Even though ISO 4012‑1978 is superseded by ISO 1920‑4, many construction‑material labs, concrete precast plants and third‑party test institutes still follow its classic test workflow for concrete cube, cylinder and half‑prism specimen compression testing.

UnitedTest is a trusted manufacturer of concrete compression testing machines fully compliant with ISO 4012‑1978 requirements and the updated ISO 1920‑4 standard. Our YES‑series hydraulic concrete compression testers meet the machine specification requirements including load‑measurement accuracy, hardened steel platens, spherical seating, flatness tolerance and adjustable constant stress loading rate for concrete compressive‑strength determination.

Our concrete strength testing equipment is widely used for: ‑ Quality‑control testing for ready‑mixed concrete and precast‑concrete components ‑ Concrete mix‑design laboratory research ‑ Construction‑material third‑party testing labs with ISO/IEC 17025 accreditation ‑ Education & research institutes for concrete‑material study ‑ Production‑line routine inspection for building‑material factories

UnitedTest compression test machines support test specimens: concrete cubes, cylindrical specimens and half‑prisms. The system can capture maximum failure load automatically, helping lab technicians calculate concrete compressive strength following the standard formula F_cc=F/A_c. Operators can set loading rate within ISO‑specified stress‑increase range 0.6 ± 0.4 N/(mm²·s).
