Concrete Compression Testing Machine

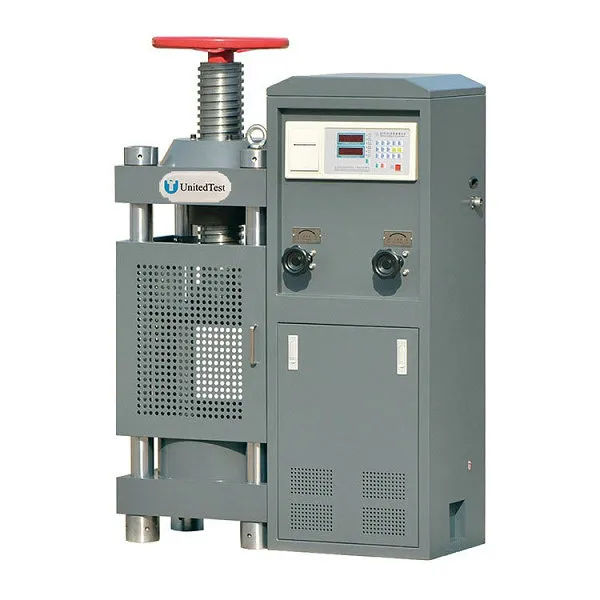

ASTM C39 Compression Test for Concrete Cylinders

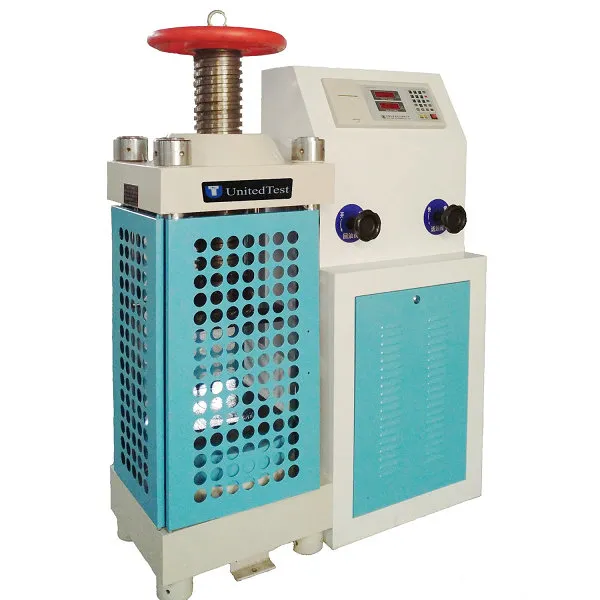

concrete compress test equipment

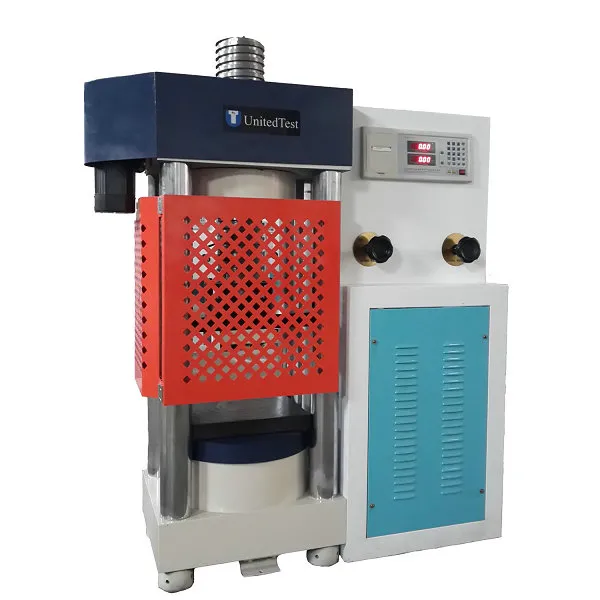

3000KN Concrete Compressive Strength Testing Machine

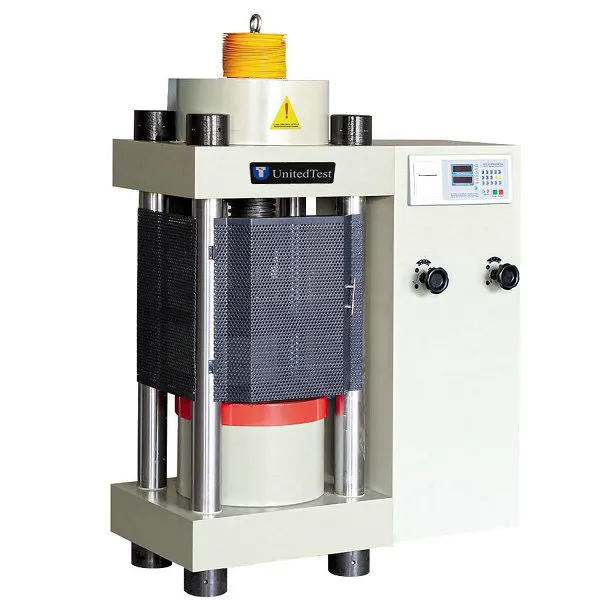

Concrete Compression Testing Machine

Model: YES-2000/2000A

YES series Compressive Strength Testing Equipment to test cement, brick and concrete is offered by United Test. Range 1000KN, 2000KN, and 3000KN, these strength testing equipment are extremely handy and are easy to use for testing cement, concrete and mortar cubes. We lay utmost importance on equipment design and construct with emphasis on ease of operation.

Conform with test standard ASTM C39, this test method consists of applying a compressive axial load to molded cylinders or cores at a rate which is within a prescribed range until failure occurs. The compressive strength of the specimen is calculated by dividing the maximum load attained during the test by the cross-sectional area of the specimen.

General Introduction

YES series Compressive Strength Testing Equipment to test cement, brick and concrete is offered by United Test. Range 1000KN, 2000KN, and 3000KN, these strength testing equipment are extremely handy and are easy to use for testing cement, concrete and mortar cubes. We lay utmost importance on equipment design and construct with emphasis on ease of operation.

Conform with test standard ASTM C39, this test method consists of applying a compressive axial load to molded cylinders or cores at a rate which is within a prescribed range until failure occurs. The compressive strength of the specimen is calculated by dividing the maximum load attained during the test by the cross-sectional area of the specimen.

Key Features

  • Features
  • Standard

1), High performance load frame, with high stiffness and stability;
2), Hydraulic loading, wide speed adjusting range.
3), Digital display testing load, speed, peak value etc;
4), YES-2000/1000 is manual screw to adjust test space, YES-2000A/1000A is motorized to adjust test space.
5), Test space can enlarge to 360mm to meet long concrete cube requirement;
6), Data transfer to PC optional, add software CD and data transfer port, cable.

ASTM C39 "Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens“

ISO 679:2009 "Cement -- Test methods -- Determination of strength"

GB/T 17671, GB/T 50081, GB/T2611, GB/T16826 etc.,

Main Technical Specification

ModelYES-1000/YES-2000YES-1000A/YES-2000A
Max. load1000KN/2000KN1000KN/2000KN
Accuracy of testing force±1% of indicated value
Load resolution0.01kN
Upper compression platen dia.220mm*250mm
Lower compression platen dia.220mm*250mm
Distance between two platens320mm (Can enlarge to 360mm)
Piston diameterφ250mm
Piston stroke40mm
Power supply380V,50Hz, 3 phase / 220V, 50HZ, 1 phase
220V, 60HZ, 3 phase / 110V, 60HZ, 1 phase
Dimension980×500×1240mm1100×740×1400mm
Weight650Kg750Kg
Test space adjustingHand wheel manuallyMotor automaic
Safety coverYes
Standard AccessoriesLoadframe, oil pressure sensor, digital meter, compression platen, English operation manual


UnitedTest can recommend a suitable YES series configuration based on your specimen dimensions, expected maximum load, testing standards and data management requirements.


Main Accessories

Loadframe,

oil pressure sensor,

digital meter,

compression platen,
English operation manual


Selecting the YES Series for Concrete Compression Testing

Selecting a concrete compression testing machine requires matching the rated test force, specimen dimensions and operating configuration with the laboratory's testing requirements.

Test Load Selection

The required machine capacity depends on the expected compressive strength and the loaded cross-sectional area of the specimen. A preliminary estimate of the maximum test force can be calculated using:

Required Test Force (kN) = Compressive Strength (MPa) × Loaded Area (mm²) ÷ 1,000

The YES series offers 1000 kN and 2000 kN configurations in the published technical specifications. The appropriate capacity should be selected according to the expected specimen failure load, applicable test method and required operating range.

Specimen Dimensions and Testing Space

Specimen geometry directly affects machine configuration. The YES series features 220 × 250 mm compression platens and a standard platen spacing of 320 mm, which can be extended to 360 mm. Before selecting a configuration, verify the specimen diameter, height and required testing accessories against the available testing space.

Manual or Motorized Test-Space Adjustment

The YES-1000 and YES-2000 models use manual handwheel adjustment, while the YES-1000A and YES-2000A models feature motorized test-space adjustment. Both configurations use hydraulic loading and digital test-load display. Optional PC data transfer is available for laboratories requiring electronic test data handling.

ASTM C39 Concrete Cylinder Testing

For laboratories performing ASTM C39/C39M tests, specimen preparation, end condition, alignment with the loading axis and loading rate must follow the applicable standard. ASTM C39 covers molded concrete cylinders and drilled concrete cores; cube testing requires the corresponding applicable test method. The required platen arrangement and specimen accommodation should be confirmed for the selected machine configuration.

For additional compression testing solutions, explore our Compression Test Equipment.


Standard

ISO 1920-4 Hardened Concrete Strength Test - Compressive, Flexural & Tensile Splitting –

ISO 1920-4 Testing of concrete — Part 4: Strength of hardened concrete

ISO 1920‑4 measuring mechanical strength of hardened concrete. It consolidates three core strength‑testing procedures: compressive strength, flexural strength, and tensile splitting strength of hardened concrete. covers specimens, apparatus, testing procedures, calculation formulas, failure assessment, precision data and complete test‑report requirements.

ISO 4012 Concrete Compression Testing - Cube, Cylinder & Prism –

ISO 4012 Concrete‑Determination of compressive strength of test specimens

ISO 4012 define method for crushing hardened concrete specimens in uniaxial compression and calculating strength from maximum load divided by loaded area. it was replaced by ISO 1920‑4.

ASTM C39 Compressive Strength Test of Cylindrical Concrete Specimens –

ASTM C39 / C39M : Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens

ASTM C39 determines the compressive strength of cylindrical concrete specimens such as molded cylinders and drilled cores. It is limited to concrete having a unit weight in excess of 50 lb/ft3 (800 kg/m3).
A compressive axial load is applied to molded cylinders or cores until failure occurs. The compressive strength of the specimen is calculated by dividing the maximum load achieved during the test by the cross-sectional area of the specimen. The results of this test method are used as a basis for quality control of concrete.

ASTM C133 Cold Crushing Strength and Modulus of Rupture of Refractories Test –

ASTM C133 determines the cold crushing strength and the modulus of rupture (MOR) of dried or fired refractory shapes of all types. This test method determines room temperature flexural strength in 3-point bending for cold modulus of rupture and compressive strength for cold crushing strength. This method is useful in research, design, manufacturing, and developing purchasing specifications.

Strength is one of the most widely used parameters for evaluating refractories. Strength can be measured at room temperature or at any temperature for which suitable test equipment exists. ASTM C133 Refractory CCS & MOR Testing Machine

YES-2000 vs. YES-2000A: Manual or Motorized Test Space Adjustment

The YES series concrete compression testing machines are available with different test-space adjustment configurations to suit laboratory operating preferences.

YES-1000 / YES-2000

These models use a manual handwheel to adjust the test space between the upper and lower compression platens. They are suitable for laboratories that prefer manual mechanical adjustment when accommodating different specimen heights.

YES-1000A / YES-2000A

The A-series models feature motorized test-space adjustment, reducing the manual effort required when changing the testing space for different specimen configurations.

Both configurations feature hydraulic loading and digital display of test load, loading speed and peak force. Optional PC data transfer is available for laboratories requiring electronic test data handling.

The main difference is the test-space adjustment mechanism, rather than the rated compression capacity or an automatic loading control function. The appropriate configuration can be selected according to specimen handling requirements and laboratory workflow.
