ASTM D6381 Asphalt Shingle Uplift Resistance Tester | Seal Bond Strength Test | UnitedTest

ASTM D6381 standard measures seal-bond uplift resistance of factory and field-sealed asphalt roofing shingles via controlled time-temperature laboratory testing. UnitedTest manufactures ASTM D6381 compliant testing machines for accurate shingle bond strength and roof wind resistance evaluation.

ASTM D6381 is a specialized industry test method dedicated to measuring the mechanical uplift resistance and seal-bond strength of asphalt roofing shingles used in residential and commercial roof construction. This standardized laboratory procedure quantifies the maximum force required to break the sealant bond between overlapping asphalt shingle layers, after samples undergo precise controlled time and temperature conditioning to simulate real-world sealing curing conditions.

Applicable to both factory-applied and field-applied sealant systems, ASTM D6381 delivers accurate, repeatable bond strength data that directly reflects roof wind uplift resistance, shingle layup stability, and long-term roofing system durability. The test results serve as critical quality benchmarks for asphalt shingle manufacturing quality control, new product formulation development, roof material performance certification, and wind resistance safety assessment for building roofing systems.

UnitedTest designs and manufactures high-precision ASTM D6381 asphalt shingle uplift resistance testing machines, fully compliant with standard testing and temperature curing protocols. Our professional test equipment ensures stable force measurement and standardized sample conditioning, supporting reliable seal bond strength detection for roofing material laboratories and shingle production factories.

Test Principle

Pre‑fabricated overlapping shingle specimens are sealed under controlled time‑temperature conditions to simulate real‑world sealant activation. A constant‑rate tensile machine applies mechanical pulling force until the inter‑shingle seal bond fractures. The peak force to break the seal is recorded as mechanical uplift resistance. Two loading modes exist: edge‑lifting loading (Procedure A) and pure perpendicular pulling loading (Procedure B). The test directly measures sealant bond strength, which correlates to wind‑driven uplift performance of installed shingles.

Two Test Methods

Item	Procedure A — Edge Lift	Procedure B — Perpendicular Pull
Loading mode	Lifts the exposed/leading edge of the top piece	Pulls straight up, normal to the shingle plane
Reported value	Edge-lift load	Perpendicular load
How force is applied	Specially designed clamp apparatus grips the top piece and lifts	An aluminium "T" section bonded to the weather surface, pulled through a free-swinging chain bridle
Typical specimen	Top 95 × 114 mm (3¾ × 4½ in.); Bottom 95 × 178 mm (3¾ × 7 in.)	Top 38 × 95 mm (1½ × 3¾ in.); Bottom 102 × 152 mm (4 × 6 in.)
Restraint	Clamps (upper + lower)	Aluminium mask 102 × 152 mm, 3 mm thick, with a central 44 × 102 mm opening
Typical magnitude	Lower (round-robin average ≈ 5.0 kg / 11.2 lbf)	Higher (round-robin average ≈ 22.2 kg / 48.9 lbf)
Precision (95 %)	Repeatability 1.0 kg (2.2 lb); Reproducibility 1.7 kg (3.7 lb)	Repeatability 2.4 kg (5.3 lb); Reproducibility 4.5 kg (9.9 lb)

Test Specimen Details

Sampling: Samples shall follow sampling rules defined in ASTM D228/D228M. Ten replicate specimens shall be tested for each test condition. Specimens must represent original shingle geometry, thickness, and sealant coverage ratio (linear coverage, dot pattern etc.) matching field installation conditions.
Dimension requirements:

Procedure A: bottom piece 95 mm × 178 mm; top piece 95 mm × 114 mm. Dimension tolerance ±3 mm. Overlap dimension “A” must replicate real‑world installation overlap distance.
Procedure B: bottom piece 102 mm × 152 mm; top piece 38 mm × 95 mm. Dimension tolerance ±3 mm. The sealant zone shall sit centrally within the specimen assembly.

Multi‑layer shingles: cut top pieces at locations with minimum number of layers. Specimens are laid overlapping as per manufacturer installation instructions, no stacking during thermal sealing conditioning.

Test Equipment required for ASTM D6381 Asphalt Shingle Mechanical Uplift Resistance Test

Tensile testing machine	Constant-rate-of-extension (CRE) type, Recommend UnitedTest WDW series UTM.
Special test fixtures	Fixture for Procedure A: purpose‑built clamping apparatus for edge gripping of shingle tabs. Fixture for Procedure B: modified fastener pull‑through fixture matching ASTM D3462; includes 3 mm‑thick aluminium mask with central cut‑out, aluminium T‑section (95 mm length), paired 127 mm chains plus S‑hook bridle for self‑aligning vertical pull.
Temperature‑controlled chambers	one for specimen sealing conditioning (temperature tolerance ±1.5 °C / ±2.5 °F); a second environmental chamber for non‑ambient‑temperature specimen testing
Cutting tools	heavy‑duty paper cutter, steel rule, templates for cutting standard specimen dimensions.
Adhesive (epoxy or urethane)	for bonding aluminium T‑section onto Procedure‑B specimens; metal epoxy‑bonded connector (optional alternate attachment for Procedure A).

Core Test Parameters & Mandatory Stipulations

Specimens per condition	10
Crosshead speed	2 mm/s [5 in./min]
Gage length	Set to accommodate the fixture without putting any strain on the sealant joint
Sealing temperature	Selected temperature, ±1.5 °C [±2.5 °F]
Sealing time	Selected time, ±2 %
Conditioning after sealing	At the test temperature ±1.5 °C, for at least 1 h, without disturbing the specimens
Zeroing — Proc. A	Zero the tester with the top clamp assembly hanging freely
Zeroing — Proc. B	Zero with the chain bridle, hooks and "T" section (with a typical top piece glued on) hanging freely — a tare, without bottom piece and mask
Force recording	Maximum force to the nearest 1.0 N [0.2 lbf]
Reported result	Average of the 10 specimens, to the nearest 1.0 N [0.2 lbf]
Sealing/test combinations	Any range of sealing time–temperature and test temperature is permitted to simulate field conditions, but must be stated in the report

Test Procedures of ASTM D6381 Asphalt Shingle Mechanical Uplift Resistance Test

Procedure A

Prepare ten overlapped specimens with correct “A” overlap dimension, horizontally place in temperature‑controlled chamber for sealant activation.
After sealing, condition specimens for ≥1 h at target test temperature.
Open fixture clamps; carefully insert conditioned specimen. Align sealant centre‑line with apparatus vertical centre‑line, avoid disturbing specimen temperature or seal bond.
Operate top clamp assembly to grip underneath the overlapping top piece. Run tensile tester; record maximum force to break seal to 1.0 N precision.
Repeat for all ten replicates; mark zero value for specimens whose seal already fractures during clamping installation; replace mishandled specimens.

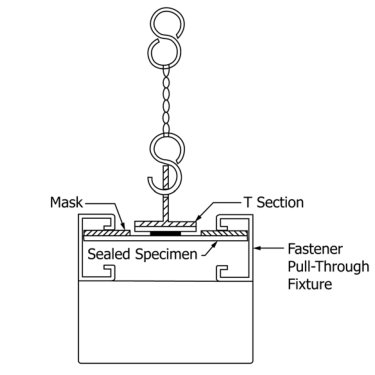

Procedure B

Prepare ten overlapped specimens, thermally seal in horizontal orientation inside chamber.
After sealing is finished, bond aluminium T‑section flat face fully onto upper specimen’s weather surface with epoxy/urethane adhesive; keep T‑web perpendicular to shingle plane; cure adhesive completely.
Condition assembled specimens ≥1 h under target test temperature.
Place specimen assembly into test fixture; position T‑section centred within the mask rectangular opening. Attach chain bridle hooks into holes of T‑section web.
Start tensile machine; capture maximum perpendicular break‑seal force.
Replace specimen if T‑section debonds from shingle due to glue failure. Record zero value for specimens with pre‑broken seal upon fixture insertion; discard mishandled samples.

Industry Applications

Asphalt roofing shingle manufacturing — R&D, formulation and QC of sealant strips and shingle designs.
Steep-slope roofing / building envelope industry — product qualification and certification.
Wind-resistance classification — D6381 is the resistance half of the ASTM D7158 wind-resistance classification; without it you cannot assign a wind class.
Code compliance & specification — supports ASCE 7-based wind design and IBC/IRC roof covering requirements; ARMA and manufacturers use it as the basis of published wind ratings.
Third-party/laboratory testing, forensic and warranty investigation — e.g. evaluating whether shingles sealed poorly after cold-weather installation.
Not applicable to: shingles that resist wind without sealant (interlocking designs, geometry- or rigidity-dependent products). Those are explicitly out of scope.

Related Stadard:

ASTM D5801	Standard Test Method for Toughness and Tenacity of Asphalt Materials
ASTM D113	Standard Test Method for Ductility of Asphalt Materials
ASTM D7158	Test Method for Wind Resistance of Asphalt Shingles (Uplift Force/Uplift Resistance Method).
ASTM D6381	Standard Test Method for Measurement of Asphalt Shingle Mechanical Uplift Resistance
ASTM D6648	Standard Test Method for Determining the Flexural Creep Stiffness of Asphalt Binder Using the Bending Beam Rheometer (BBR)
ASTM D3462	Specification for Asphalt Shingles Made from Glass Felt and Surfaced with Mineral Granules; shares the base fixture design for Procedure B of D6381 (fastener pull‑through fixture)
ASTM D3161	Wind Resistance of Asphalt Shingles (Fan-Induced Method)
ASTM D7405	Standard Test Method for Multiple Stress Creep and Recovery (MSCR) of Asphalt Binder Using a Dynamic Shear Rheometer
UL 2390	Wind-resistant shingle test/classification developed alongside D7158 from the same ARMA-sponsored wind-engineering research.
ASCE 7 (+ IBC/IRC)	Supplies the wind speeds, exposure categories and load factors that give the D6381 force value its engineering meaning.

Keywords: ASTM D6381 tester,asphalt shingle uplift resistance test machine,shingle seal bond strength tester,roofing shingle bond breaking force equipment,factory sealed asphalt shingle test rig,field applied sealant resistance analyzer,roof wind uplift performance tester,asphalt roofing material quality control machine,building roof shingle durability test device,shingle layer bonding strength measurement instrument,roofing system wind resistance certification equipment,asphalt shingle formulation testing machine,construction roofing material lab tester,shingle curing condition performance analyzer

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Q1: What is ASTM D6381 test, and why is this test important for asphalt shingles?

A: ASTM D6381 is a laboratory mechanical test measuring seal‑bond uplift resistance of factory‑sealed or field‑sealed asphalt roofing shingles. Wind suction can lift shingle tabs and blow off roof coverings; the inter‑shingle sealant bond is the main defence. This standard quantifies sealant bond strength under controlled lab conditions, provides objective numerical data for wind‑resistance calculation under ASTM D7158, supports R&D, batch quality control and product compliance for residential steep‑slope roofing materials.

Q2: What is the difference between Procedure A and Procedure B in ASTM D6381? When should I pick each one?

Procedure A (Edge‑lift test): Clamps and pulls the overlapping shingle edge, simulates peeling edge‑loading. It gives relatively lower uplift‑force results, fits flexible, thin shingle designs where edge peeling dominates real‑world failure.
Procedure B (Perpendicular pull test): Bonds an aluminium T‑section onto shingle surface to apply pure vertical pull force, delivering higher measured uplift values. It suits rigid, multi‑layer laminated asphalt shingles. User shall select procedure based on shingle geometry, rigidity and sealant layout. Some engineering assessments need running both procedures for complete wind‑load calculation.

Q3: Which shingle products are NOT covered under ASTM D6381 scope?

A: ASTM D6381 only applies to asphalt shingles with factory‑applied or field‑applied sealant. Shingles that purely rely on physical geometry, interlocking profile and construction (no sealant strip) are out‑of‑scope. Those shingles resist wind without adhesive sealant; D6381 does not define test rules for them.

Q4: What is the link between ASTM D6381 and ASTM D7158?

A: ASTM D6381 outputs mechanical seal uplift‑resistance data. ASTM D7158/D7158M uses D6381 test results as core input parameter to compute theoretical wind‑speed rating for asphalt shingle assemblies. You need to choose Procedure A / B following guidance in D7158 Section 12.2 for valid wind‑speed calculation.

Q5: Can a standard universal testing machine be used, or do I need a dedicated tester?

A: A standard CRE universal testing machine is exactly what the standard calls for — the dedicated part is the fixture. Fitting the Procedure A clamp set or the Procedure B mask / "T" section / bridle set to a UTM lets one machine perform both procedures and, with other grips, many other ASTM tests.

Q6: What load cell capacity is appropriate?

A: Round-robin data averaged about 5.0 kg (≈ 49 N) for Procedure A and 22.2 kg (≈ 218 N) for Procedure B. A 500 N or 1 kN load cell therefore gives ample capacity with far better resolution at the seal-break peak than a large-capacity cell. Always leave margin for unusually strong sealants.

Q7: What is the "A" dimension and why is it critical?

A: In Procedure A it is the distance from the leading edge of the sealant to the leading edge of the top piece — effectively how far the top piece overlaps the sealant. It must equal the overlap used in the specified field application. If it is wrong, the specimen no longer represents how the shingle is actually installed, and the measured force is meaningless.

Q8: How is the machine zeroed before testing?

A: Procedure A — zero the tester with the top clamp assembly hanging freely. Procedure B — zero (tare) with the chain bridle, hooks and "T" section carrying a typical glued top piece, hanging freely, without the bottom piece and mask. Skipping this step biases the result by the weight of the fixture.

Q9: What should I do if the seal breaks while I am clamping the specimen?

A: That specimen is counted and entered as a zero value — it is not discarded. Only specimens that were mishandled (dropped or twisted) are replaced with another sealed and conditioned specimen. In Procedure B, if the "T" section debonds because the adhesive failed, that specimen is also replaced.

Q10: Why choose ASTM D6381 Asphalt Shingle Mechanical Uplift Resistance Tester from UnitedTest?

A: UnitedTest manufactures full‑set ASTM D6381 / D6381M‑15 asphalt shingle mechanical uplift resistance testing machine with complete Procedure‑A edge‑lift fixture and Procedure‑B aluminium T‑section & mask assembly. Designed for roofing material laboratories, shingle manufacturers and third‑party certification labs to test sealant bond uplift strength for asphalt roofing shingles per ASTM D6381 standard.

UnitedTest supplies professional complete‑solution ASTM D6381 asphalt shingle mechanical uplift resistance testing machine, fully complying with requirements for both Procedure A edge‑lift test and Procedure B perpendicular pull test for asphalt roofing shingle seal‑bond strength measurement.

Our test system is built based on constant‑rate‑of‑extension (CRE) tensile framework, with factory‑calibrated high‑precision force sensor, configurable cross‑head speed fixed at standard‑required 2 mm/s (5 in/min). We supply all mandatory custom fixtures: Procedure A special edge‑clamping apparatus, Procedure B aluminium T‑section, 3 mm‑thick aluminium mask, chain bridle and S‑hook assembly as defined in ASTM D6381 drawings. The system supports connection with external temperature‑controlled environmental chambers for sealing conditioning and low‑ / high‑temperature specimen testing according to standard tolerance ±1.5 °C.

This shingle tab uplift tester measures maximum force to break factory‑applied or field‑applied sealant bond between overlapping asphalt shingle specimens. Test output data can feed directly to ASTM D7158 wind‑resistance engineering calculation, supporting residential steep‑slope roofing product R&D, incoming‑material quality control, third‑party certification and code compliance testing for hurricane‑prone high‑wind‑zone roofing products.

UnitedTest’s ASTM D6381 testing equipment comes with PC test software, automatically recording peak breaking force, exporting test reports with all required standard‑mandated fields including average uplift resistance for ten specimens. Optional accessories include alternate metal connector kits for Procedure A brittle‑sealant specimens.

Related standards our machine supports: ASTM D6381‑15R20, ASTM D7158, ASTM D228, ASTM D3462.

Search‑friendly bullet points for product listing:
✅ Fully compliant ASTM D6381 / D6381M‑15 Reapproved 2020
✅ Complete fixture kit for both Procedure A (edge‑lift) and Procedure B (T‑section perpendicular pull)
✅ CRE tensile system, fixed cross‑head speed: 2 mm/s (5 in/min)
✅ High‑resolution force acquisition down to 1 N / 0.2 lbf
✅ Software auto‑generates ASTM‑compliant test report
✅ Interfaces with temperature‑controlled chamber for thermal conditioning
✅ Test seal‑bond uplift resistance for factory‑applied & field‑applied shingle sealant
✅ Output data compatible for ASTM D7158 wind‑speed rating calculation

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
