ASTM D5801 Asphalt Toughness & Tenacity Tensile Tester | UnitedTest

UnitedTest manufactures ASTM D5801-compliant uniaxial tensile testing machines engineered to measure toughness and tenacity of asphalt binders for road construction laboratories, asphalt production QC and pavement material research institutes.

ASTM D5801 Standard Test Method for Toughness and Tenacity of Asphalt Materials defines a standardized uniaxial tensile testing workflow that quantifies two vital mechanical performance metrics: asphalt toughness and tenacity. The test is most widely used for elastomer and polymer-modified asphalt binders, and it also supports performance testing of conventional unmodified neat asphalt.

Unlike conventional asphalt lab tests that only evaluate stiffness or viscosity, ASTM D5801 uniquely captures energy absorption throughout the specimen deformation process. This core data directly reflects an asphalt binder’s anti-cracking capacity and deformation resistance under mechanical stress, serving as an indispensable benchmark to predict pavement durability and long-term road surface integrity. Test results guide modified asphalt formula adjustment, raw binder screening, and pavement engineering material qualification for highway and municipal road projects.

Test Principle

The core principle of D5801 is based on mechanical energy absorption during tensile deformation.

Toughness reflects the total energy absorbed by the asphalt during complete separation of the tension head — a measure of crack resistance.

Tenacity measures the energy required to stretch the material beyond the initial peak resistance — indicating the presence and quantity of elastomeric components (e.g., rubber or polymer additives).

Elastomer-modified asphalts exhibit superior elasticity and resilience. High tenacity suggests the material can absorb energy without fracturing — a key trait for reducing cracking in cold climates or under traffic loads.

Test Specimen Details

Sample Mass	36 ± 0.5 g per container
Container Size	Diameter: 54.0 mm (2.12 in), Depth: 35 mm (1.38 in)
Sample State	Must be fully homogeneous and free of air bubbles
Preparation	Stirred thoroughly without introducing air bubbles; if bubbles exist, gently brush with soft flame (butane lighter) for a few seconds

Test Equipment required for ASTM D5801 Toughness and Tenacity Test of Asphalt Materials

Tensile testing machine

Constant pulling speed accuracy ≤±2% at 20 in./min

Basic load capacity ≥100 lb (45.4 kg); for oven-aged asphalt binders (RTFOT/TFOT conditioned), minimum capacity 200 lb (90.7 kg) is recommended

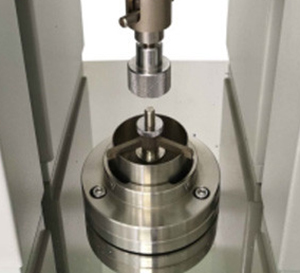

Equipped with rigid sample cup clamping fixture and automatic force-displacement curve recording system (digital acquisition or analog chart recorder).

ASTM D5801 Toughness and Tenacity Test of Asphalt Materials

Sample Container

Cylindrical seamless metal tin cup, nominal inner diameter 2 1/8 in. (54.0 mm), depth 1 3/8 in. (35 mm), 3 oz volume capacity for holding asphalt specimens.

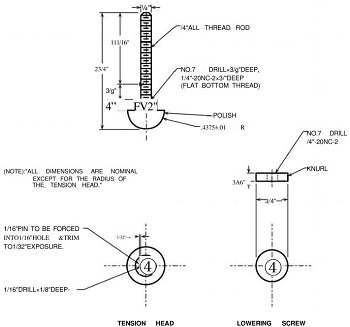

Tension Head Assembly

Hemispherical polished metal head: radius 0.4375±0.01 in. (11.1 mm), only brass/stainless steel allowed (aluminum scratches, carbon steel rusts)

Integral threaded stem (1/4 in. diameter, ~52.4 mm length) with knurled lowering screw for height adjustment; a 1/16 in. anti-twist pin is installed on the stem

Centering Spider Support:

Three 120° equally spaced support arms with notches to lock onto the sample cup lip, central cylinder guides tension head stem vertical movement and locks the anti-twist pin to prevent rotation during height adjustment.

ASTM D5801 Toughness and Tenacity Test of Asphalt Materials

Core Test Parameters & Mandatory Stipulations

Tensile Pull Speed	20 in./min (50 cm/min), speed tolerance ≤2%
Oven Conditioning Temperature & Time	325±10 °F (162.8±5.6 °C), hold for 15 minutes
Cooling Period Post-Oven	75±5 minutes natural room-temperature cooling
Maximum Allowed Time from Bath Removal to Test Start	≤3 minutes (to avoid surface temperature loss)
Minimum Machine Load Capacity	≥100 lb (45.4 kg); aged asphalt ≥200 lb (90.7 kg)
Single Specimen Asphalt Weight	36±0.5 g

Test Procedures of ASTM D5801 Toughness and Tenacity Test of Asphalt Materials:

Step 1 Sample Homogenization & Casting

Heat raw asphalt until fully fluid, stir gently to eliminate air bubbles without aeration, then accurately weigh and pour 36±0.5 g molten asphalt into each of three metal sample cups. Remove surface bubbles with a clean lint-free cloth if visible.

Step 2 Fixture Embedding

Immediately mount the tension head into the centering spider frame, lower the assembled fixture into each filled asphalt cup, adjust the tension head depth preliminarily to submerge the hemispherical head in liquid asphalt.

Step 3 High-Temperature Oven Conditioning

Place all sample cups with fixtures into a 325±10 °F oven for exactly 15 minutes to eliminate casting surface irregularities and ensure full contact between tension head and asphalt matrix.

Step 4 Level Adjustment & Natural Cooling

Take specimens out of the oven, readjust tension head height so asphalt liquid surface aligns exactly with the equatorial diameter of the hemispherical head. Leave all samples stationary at room temperature for 75±5 minutes to solidify and cool uniformly.

Step 5 Water Bath Temperature Soaking

Transfer solidified specimens to a temperature-controlled water bath stabilized at 77±5 °F (25±3 °C) for thermal equilibrium before testing.

Step 6 Tensile Test Execution

Remove one sample cup from the water bath, remove the centering spider, firmly clamp the cup onto the tensile tester base within 3 minutes maximum.

Start the tensile machine to pull the tension head upward at constant 20 in./min speed, simultaneously record the full force-versus-elongation curve continuously.

Terminate pulling automatically when the asphalt tensile filament breaks, measured load falls to zero, or the machine reaches maximum extension stroke.

Repeat the full test workflow for the remaining two replicate specimens.

Step 7 Calculation & Data Reporting

Compute toughness as total area under the complete force-elongation curve; calculate tenacity via tangent line segmentation of the curve as defined in Clause 8.

Average valid toughness and tenacity values from acceptable replicates, report final results in official inch-pound units only.

Industry Applications

Road Pavement Engineering (Core Field): Quality inspection of polymer-modified asphalt binders (SBS, SBR, EVA elastomer modified asphalt) for highway, urban road, bridge deck and airport pavement construction.

Asphalt Binder Manufacturing & R&D: Factory incoming raw material inspection, modifier formulation development, and finished modified asphalt product quality control.

Transportation Material Testing Laboratories: Third-party accredited testing agencies verifying asphalt compliance with highway construction specifications (referenced under ASTM D3666 lab qualification standards).

Asphalt Aging Performance Research: Evaluate toughness/tenacity degradation after TFOT (D1754) and RTFOT (D2872) thermal oxidative aging to predict long-term pavement cracking resistance.

Bitumen Petrochemical Industry: Performance comparison of crude base asphalt and different elastomeric modifier blends.

Related Stadard:

ASTM D5801	Standard Test Method for Toughness and Tenacity of Asphalt Materials
ASTM D113	Standard Test Method for Ductility of Asphalt Materials
SH/T 0735	Standard test method for toughness and tenacity of bitumen
ASTM D6648	Standard Test Method for Determining the Flexural Creep Stiffness of Asphalt Binder Using the Bending Beam Rheometer (BBR)
ASTM D7405	Standard Test Method for Multiple Stress Creep and Recovery (MSCR) of Asphalt Binder Using a Dynamic Shear Rheometer

Why This Test Is Important for Asphalt Materials

Predicts Crack Resistance	High toughness and tenacity correlate directly with reduced cracking under dynamic loading.
Identifies Polymer Content	Tenacity is sensitive to elastomeric additives — allowing quantification of modification levels.
Improves Longevity of Pavements	Materials with high energy absorption resist fatigue and thermal cracking, extending pavement life.
Supports Sustainable Design	Enables selection of durable, low-maintenance materials, reducing lifecycle costs.
Enables Performance-Based Specifications	Allows engineers to specify asphalt performance based on mechanical behavior rather than just viscosity or penetration.

Keywords: UnitedTest ASTM D5801 tester, ASTM D5801 asphalt toughness tenacity tester, polymer modified asphalt tensile test machine, asphalt binder energy absorption testing equipment, ASTM D5801 uniaxial tensile test for modified asphalt binders, asphalt crack resistance toughness tenacity lab tester, polymer elastomer modified asphalt pavement performance analyzer, asphalt deformation energy absorption test equipment, neat unmodified asphalt binder tensile property testing machine

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Q1: What is ASTM D5801 used for, and why is this test critical for asphalt binders?

A: ASTM D5801 measures two mechanical energy indexes—toughness and tenacity—of asphalt, with primary focus on elastomer/polymer-modified asphalt (SBS, SBR, EVA modified binders).

It quantitatively verifies whether asphalt contains effective elastic polymer modifiers; unmodified neat asphalt has negligible tenacity, while qualified modified asphalt shows high tenacity values.

Toughness represents total energy absorption capacity, directly predicting pavement resistance to fatigue cracking, thermal cracking and rutting under traffic and temperature cycles.

Tenacity quantifies post-yield elastic recovery, the core index to avoid brittle fracture of pavements in cold regions.

It provides objective numerical work-area data instead of subjective elongation-only results (e.g., ductility), supporting factory QC, road construction acceptance and long-term aging durability evaluation.

Q2: What is the difference between “toughness” and “tenacity” as defined in D5801?

A: Toughness: Total mechanical work to fully separate the hemispherical tension head from asphalt; equal to the full area under the complete force-elongation curve. It reflects overall tensile energy dissipation of the asphalt.

Tenacity: Post-peak elastic stretching work after overcoming initial maximum load. Draw a tangent line along the descending curve segment from peak force until it intersects the zero-elongation axis; the curve area to the right of this tangent equals tenacity. It specifically reflects the elastic polymer stretch performance unique to modified asphalt.

Q3: Can ASTM D5801 test unmodified neat asphalt, or only polymer-modified asphalt?

A: The standard covers all asphalt types (modified and unmodified), but the test is intended and most useful for elastomer-modified binders. Unmodified asphalt will produce very low tenacity values and short elongation curves, and the standard’s precision limits do NOT apply to neat asphalt—only to polymer-modified products.

Q4: What materials are allowed for the tension head, and why are aluminum/regular steel prohibited?

A: Only polished brass or stainless steel is permitted for tension heads. Aluminum scratches easily during contact with asphalt, and plain carbon steel rusts; both defects will distort force readings and ruin test repeatability (Note 2 of D5801-24). The hemispherical head must have a strictly controlled radius of 0.4375±0.01 in.

Q5: What is the required sample mass for each specimen cup, and what unit is mandatory?

A: Each metal container requires exactly 36±0.5 g molten asphalt. Unlike most parameters where inch-pound units are official, sample mass (grams) is the sole mandatory standard unit; no imperial mass units are accepted for weighing samples.

Q6: What tensile machine load capacity do I need, and are there different requirements for aged asphalt?

A:Minimum base capacity: 100 lb (45.4 kg) for unaged modified asphalt.

For asphalt conditioned via TFOT (D1754) or RTFOT (D2872) thermal aging, a 200 lb (90.7 kg) maximum load capacity is recommended, as aged binders generate higher tensile forces during pulling.

Pull speed must maintain 20 in./min (50 cm/min) with accuracy within ±2%.

Q7: How is ASTM D5801 different from ASTM D113 (Ductility Test)?

A: Core output: D113 only measures break elongation distance (single length value); D5801 calculates energy work (area under force-elongation curve) into two metrics: toughness and tenacity.

Pull speed: D113 =5 cm/min; D5801=50 cm/min (20 in./min).

Purpose: D113 simply evaluates low-temperature stretchability; D5801 distinguishes elastic polymer content via tenacity, which D113 cannot quantify.

Specimen geometry: D113 uses dog-bone briquette molds; D5801 uses cylindrical metal cups with hemispherical tension heads.

Q8: How many replicate specimens are required, and what rule applies if one sample fails prematurely?

A: Triplicate (3 separate cups) are mandatory per material batch. If one specimen fractures abnormally early with drastically lower force/elongation compared to the other two valid replicates, mark this trial invalid. Only average the two acceptable test results for final reporting in inch-pound units.

Q9: Why does my test produce inconsistent tenacity results between replicates?

A: Common root causes:

Improper pre-conditioning: Oven time, cooling duration or bath temperature out of tolerance.

Tension head material defect: Scratched aluminum or rusted steel heads altering friction.

Air bubbles trapped on asphalt surface during pouring, breaking the continuous tensile filament.

Specimen removed from water bath and held over 3 minutes before starting the pull test.

Tensile machine speed calibration drift exceeding ±2% tolerance.

Q10: How to calculate tenacity correctly from the force-elongation curve?

A: Locate the peak maximum force point on the curve.

Draw a straight tangent line following the downward slope of the curve right after the peak load.

Extend this tangent line until it crosses the horizontal zero-force axis at the elongation baseline.

The shaded area bounded by the curve, tangent line and maximum elongation is the tenacity value.

Toughness uses the entire area under the curve with no tangent segmentation.

Q11: Why can't I just use penetration or softening point tests instead?

A: Traditional tests like penetration (D5) or softening point measure static properties at specific temperatures. They cannot capture:

Energy absorption during dynamic deformation

Elastomeric behavior (ability to stretch and recover)

Resistance to crack propagation under tensile stress

ASTM D5801 fills this gap by measuring how the material behaves under tensile loading – directly simulating what happens in a pavement when thermal contraction or traffic loads try to pull the asphalt apart.

Q12: What are the most common mistakes in this test?

A: Air bubbles in the sample → Causes premature failure and low readings. Fix: Gently brush surface with a butane lighter flame for a few seconds.

Exceeding the 3-minute window between bath removal and test start → Temperature drifts, affecting results.

Using wrong tension head material → Aluminum scratches (±15% error); steel rusts. Use brass or stainless steel.

Inadequate thermometer calibration → Temperature deviations >0.1°C invalidate results.

Insufficient cleaning of tension heads → Residual asphalt reduces adhesion, altering the force curve. Final wipe with acetone required.

Not conditioning properly → Skipping or shortening the 15-min oven or 75-min bath steps changes the material state.
