ASTM D2294 Metal-to-Metal Adhesive Shear Creep Tester | UnitedTest

ASTM D2294 determines time-dependent shear creep properties of metal-to-metal adhesive joints under sustained tension loading and controlled temperature conditions. UnitedTest manufactures ASTM D2294 compliant creep testing machines for long-term adhesive bond performance evaluation.

ASTM D2294 is a specialized standard test method designed to measure time-dependent shear creep behavior of metal-to-metal adhesive bonded joints. It utilizes a standard lap-type specimen under constant tensile loading to induce pure shear stress within the adhesive bondline, accurately simulating long-term static service loads in industrial bonding structures.

Once the target tension load is achieved, a precision spring-loaded creep apparatus maintains consistent static load throughout the test cycle. Specimens are tested under precisely controlled temperature environments, with optional humidity and environmental conditioning available for advanced aging analysis. The standard continuously monitors and records bondline creep deflection over extended time periods, providing critical long-term deformation data for adhesive material ranking, structural joint reliability assessment, and long-duration load resistance verification.

Widely applied in automotive, aerospace, machinery and structural engineering industries, ASTM D2294 test data supports adhesive formulation optimization, bonded structure lifespan prediction, material qualification and quality control for metal bonding assemblies.

UnitedTest designs and manufactures high-precision ASTM D2294 adhesive shear creep testing machines. Our professional test systems deliver stable static tension loading, accurate temperature control and real-time creep deflection tracking, fully meeting laboratory R&D, industrial quality assurance and third-party structural adhesive certification requirements.

Test Principle:

This test method evaluates creep — the progressive, time-dependent deformation of a material under sustained static load — in adhesive bondlines subjected to shear stress induced by axial tension loading. A spring-loaded apparatus maintains a constant static tensile load on a single-lap bonded metal specimen over extended time periods, while the specimen is exposed to a specified temperature environment. Creep deformation is quantified by measuring the relative displacement of fine scribe lines marked across the bondline using a calibrated microscope. The test can also capture post-unload stress relaxation behavior of the adhesive joint.

Test Specimen Information:

Geometry: The specimen uses a single-lap shear joint configuration derived from ASTM D1002, with additional mounting holes for the creep apparatus.

The bonded area has a 12.7 mm (1/2 in) edge width; total specimen length is approximately 165.1 mm (6.5 in).

Replicate requirement: A minimum of 3 specimens must be tested for each combination of load, time, and temperature conditions.

Reporting dimensions: bond width and length ±2.54 mm (0.01 in); bondline thickness ±0.0127 mm (0.0005 in); full ID of adhesive, metal, surface prep, curing, and conditioning.

ASTM D2294 Metal-to-Metal Adhesive Shear Creep Test required Testing Equipment:

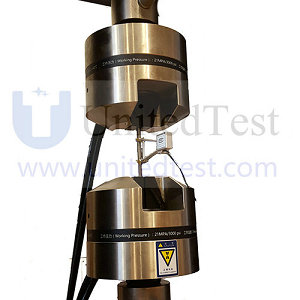

Tensile Creep Testing Machine

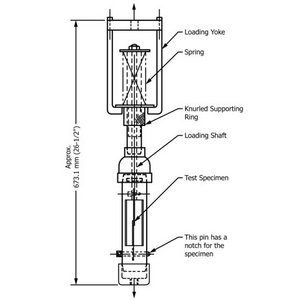

The core mechanical assembly consists of:

- A hollow loading chamber

- A solid extension/loading shaft with mounting points for test specimens

- A high-temperature-resistant compression spring

- A loading yoke and knurled supporting ring to lock in the spring load

- A tensile testing machine conforming to **ASTM D638** is required to apply the initial static load and compress the spring.

ASTM D2294 Metal-to-Metal Adhesive Shear Creep Test

Measurement Instrument

A calibrated optical microscope with 100× magnification, used to measure the displacement of scribe marks across the bond edge to calculate creep deflection.

Key Test Parameters:

Load application rate: 80 to 100 kgf/cm² per minute (1200 to 1400 psi/min) when applying the initial tensile load via the testing machine.

Load values are reported in kgf/cm² (or psi), preferably to three significant figures.

Suggested time points for deflection readings: 1, 3, 5, 10, 30, 50, 100, 300, 500, 1000 minutes (and longer as needed).

These intervals produce approximately evenly spaced data points when plotted on a logarithmic time scale.

Stress type: tensile applied to a lap joint → resolved as apparent shear in the bond.

Test procedure of ASTM D2294 Metal-to-Metal Adhesive Shear Creep Test

Setup and thermal conditioning: Attach the creep test apparatus to a tensile testing machine and bring it to the specified test temperature. Insert the specimen into the loading chamber and secure it to the chamber and load shaft with mounting pins.
Load application and lock-in: Apply tensile load at 80–100 kgf/cm²/min until the target stress is reached. Tighten the knurled supporting ring to engage the compressed spring, which will maintain the load independently. Unload the testing machine, remove the entire creep apparatus (leaving the loading yoke on the machine), and transfer it to the controlled test environment.
Baseline and periodic deflection measurement: Measure total creep deflection by observing the displacement of the fine scribe marks across both sides of the bond area using the 100× calibrated microscope.
Extended monitoring: Record deflection at the preselected time intervals. For non-ambient temperature tests, periodically add new scribe lines adjacent to the original marks; make a final mark immediately before removing the specimen from the temperature-controlled environment and unloading. Post-test measurement of these marks yields creep deflection at each interval. Relaxation measurements may also be collected after the load is removed.
Data recording: Document all periodic deflections, total deflection, applied stress magnitude and duration, and test temperature for each specimen.

Industries Application:

Aerospace: structural epoxy/polyimide/metal bonding, high‑temp creep at 120–260 °C, long‑duration qualification.

Automotive: body/chassis/electrification components where metal tabs are adhesive‑bonded and see sustained load plus thermal cycling.

Defense/space: metal bonded assemblies under sustained shear, low‑temp to high‑temp storage/operation.

Electronics/industrial: metal housings, heat‑sink bonding, sensors, where sustained clamping stress substitutes for creep allowance.

R&D and QC: formulation screening, curing‑condition optimization, comparison of commercial adhesives, supplier qualification, and generation of design allowable/creep limits.

Useful whenever a joint must resist sustained load, not just short‑term strength (D1002 only gives apparent short‑term shear strength).

Related Test Standard

ASTM D1002	Apparent shear strength of single‑lap adhesively bonded metal specimens by tension loading; D2293 specimens are derived from this geometry
ASTM D2294	Standard Test Method for Compressive Properties of Rigid Cellular Plastics
ASTM D2293	Standard Test Method for Creep Properties of Adhesives in Shear by Compression Loading (Metal-to-Metal)
ASTM D1780	Practice for conducting creep tests of metal‑to‑metal adhesives, typically dead‑weight/lever tensile‑shear creep, temperature/time based.
ASTM D2295	Comparative shear strength of metal‑to‑metal adhesives at elevated temperature (strength, not creep).
ASTM D638	Specifies performance requirements for the tensile testing machine used to apply the initial static load to the creep apparatus.

Importance of This Test for Adhesive Materials

Long-term durability assessment: Short-term shear strength tests (e.g., D1002) cannot predict time-dependent deformation. D2294 quantifies creep behavior under sustained load, which directly correlates to in-service joint lifespan and dimensional stability.
Formulation optimization: Enables side-by-side comparison of adhesive chemistries, fillers, and curing processes, guiding R&D toward creep-resistant formulations for high-demand applications.
Thermal performance validation: The wide temperature range (−55 to 260 °C) allows evaluation of adhesive performance in extreme thermal environments, a critical requirement for aerospace and automotive under-hood applications.
Cost-effective testing: The spring-loaded design is portable, low-cost, and can be transferred between environmental chambers without disrupting the static load, enabling parallel testing of multiple specimens at low capital cost.
Structural reliability assurance: Excessive creep in bonded joints can cause dimensional drift, loss of clamping force, or catastrophic failure over time. D2294 provides empirical data to validate joint designs and ensure long-term structural integrity.
