ASTM D2261 Tongue Tear Tester | Fabric Single Rip Tearing Strength | UnitedTest

ASTM D2261 standard uses the tongue single rip procedure with CRE tensile machines to measure fabric tear propagation strength. UnitedTest manufactures ASTM D2261 compliant testers for woven, knitted, nonwoven and coated fabric tear resistance testing.

ASTM D2261 is a globally recognized test method for evaluating fabric tearing strength using the tongue (single rip / trouser-shaped) test procedure, performed on constant-rate-of-extension (CRE) tensile testing machines. Unlike standard tear initiation tests, this method specifically measures the tensile force required to propagate a pre-cut tear across fabric specimens, delivering accurate data on progressive tear resistance rather than initial breakage force.

This versatile standard covers an extensive range of textile materials, including woven fabrics, air bag fabrics, blankets, napped fabrics, knitted fabrics, layered fabrics, pile fabrics, and nonwovens. It supports testing for all fabric treatment types, including untreated, heavily sized, coated, and resin-treated textiles, providing consistent mechanical performance data for finished and processed fabric products.

Widely adopted in textile manufacturing quality control, automotive safety textile certification, apparel material qualification, and industrial fabric R&D, ASTM D2261 ensures reliable evaluation of fabric durability and structural integrity under tearing stress. UnitedTest designs and manufactures high-precision ASTM D2261 tongue tear testing machines with stable CRE tensile control and accurate peak force recording, fully meeting standard requirements for laboratory testing and industrial batch inspection.

Test Principle

A rectangular specimen is slit lengthwise from the centre of one short edge, creating two "tongues" (legs). One tongue is gripped in the upper jaw, the other in the lower jaw. The jaws separate at a constant rate, forcing the tear to run along the slit line, while the force is recorded continuously.

During tearing, the force trace is irregular — a series of peaks and valleys, because the tear advances by successive rupture of yarns, fibre bonds or fibre interlocks:

Highest peaks reflect the strength of the yarn components / fibre bonds / interlocks that must be broken to keep the tear running.
Valleys between peaks have no specific significance (the minimum tearing force is taken as being above the lowest valleys).
Because the signal is irregular, the standard uses empirical peak-based methods to get a usable number. Values are comparative only: valid for comparing similar fabrics tested the same way, and no known procedure gives an absolute minimum tearing strength for all fabrics.

Test Specimen Info:

Test specimens — five in the machine direction (MD) and five in the cross-machine direction (CD) from each laboratory sampling unit, for each test condition (dry and/or wet).

Specimen geometry:

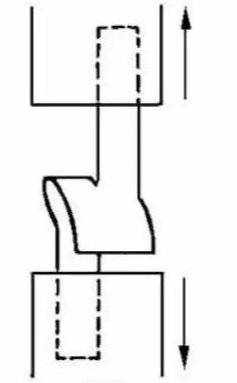

ASTM D2261 Tongue Tear Test for Fabric Tearing Strength

Rectangular 75 mm × 200 mm (±1 mm) — i.e. 3 in. × 8 in.

A preliminary cut 75 ±1 mm (3 ±0.05 in.) long at the centre of the 75 mm width (Fig. 1), forming two tongues.

Direction of test = the short (75 mm) direction.

For MD measurement, cut the specimen with its long dimension parallel to the CD; for CD measurement, long dimension parallel to the MD.

ASTM D2261 Tongue Tear Test for Fabric Tearing Strength Test Equipment

CRE tensile testing machine

complying with ASTM D76/D76M specification, equipped with an automatic recording chart or microprocessor‑based data acquisition system (CRE is preferred).

Clamps/jaws

Gripping surfaces ≥ 25 mm × 75 mm, flat and parallel. Hydraulic, pneumatic or manual clamping is allowed.

Jaw faces can use serrated metal, rubber, or 80‑120‑grit emery cloth tape to prevent specimen slippage without crushing fabric edges.

Cutting die or template

for cutting standardized tongue‑tear specimens to defined geometry and dimensions.

Test Procedure Of ASTM D2261 Tongue Tear Test for Fabric Tearing Strength

Sample sampling according to lot‑sample and laboratory‑sample protocols; cut standardized tongue‑tear specimens for machine and cross‑machine directions.
Perform textile pre‑conditioning (dry test) or full water‑soaking (wet test) as specified.
Calibrate tensile tester; set gauge length, test speed and suitable load‑cell range according to parameter requirements.
Mount specimen into upper and lower clamps with centered pre‑slit, ensure no slippage or over‑tensioning; for wet testing mount quickly after water‑soaking.
Start machine; begin force recording after reaching the 0.5 N pre‑load threshold. Stop cross‑head travel after sufficient tear propagation or total fabric rupture, return cross‑head to starting home position.
Record abnormal phenomena: jaw slippage, jaw‑edge breakage, off‑direction transverse tear, and so on. Remove finished specimen.
Repeat mounting and testing until five valid replicates are finished for each direction and each test condition (dry / wet).
Process force‑extension data following Option 1 or Option 2, compute average tearing strength, and calculate standard deviation / CV if requested.
Compile formal test report with mandatory reporting items (test standard reference, sampling description, tear‑strength results for each direction, calculation option used, dry‑or‑wet status, test‑machine information, jaw‑modification notes, software identification for automated data systems).

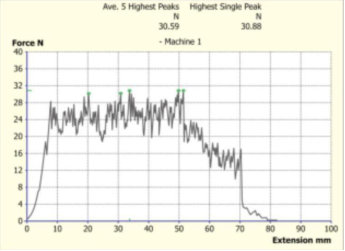

Typical non-woven fabric Force VS Extension curve

Test Parameters & Stipulations:

Initial clamp separation (gauge length)	75 ± 1 mm (3.0 ± 0.05 in.)
Test speed (default)	50 ± 2 mm/min (2 ± 0.1 in./min)
Test speed (by agreement)	300 ± 10 mm/min (12 ± 0.5 in./min)
Full-scale force range	Selected so maximum force falls between 10 % and 90 % of full scale
Take-up load before recording starts	0.5 N (0.1 lbf)
Total tear length	Approx. 75 mm (3 in.) ≈ ≥150 mm (6 in.) of crosshead travel, or until fully torn
Wet conditioning	Immerse in distilled/deionised water at ambient temperature until thoroughly soaked — typically ~1 h; for water-repellent fabrics add 0.1 % nonionic wetting agent. Desizing (if specified) per Test Method D629, without altering normal physical properties.

Industrial Application Fields

Apparel & fashion	Woven/knit fabric durability, spec compliance, warp vs. fill balance
Automotive & airbags	Air bag fabrics are explicitly in scope — tear propagation governs airbag integrity
Defense / military	DoD-approved method; uniforms, tents, webbing, parachute and cargo fabrics
Protective & workwear	FR/hi-vis, cut-and-tear resistant garments
Technical / industrial textiles	Coated and resin-treated fabrics, tarpaulins, awnings, sailcloth, belting
Nonwovens & hygiene/medical	Nonwoven tear resistance (gowns, drapes, wipes, filtration)
Home textiles & upholstery	Blankets, napped and pile fabrics, furniture upholstery
Composites / glass fabrics	Glass-fibre and high-strength fabrics require adapted clamping
R&D and QA labs	Finish/resin/coating evaluation, wet vs. dry performance, supplier qualification

Related standard:

ISO 6383-1	Plastics. Film and sheeting. Determination of tear resistance-Trouser tear method
ASTM D1922	Propagation Tear Resistance by Pendulum (Elmendorf) Method .
ASTM D5587	Trapezoid‑method tearing‑strength test for fabrics (another CRE‑based static tear test with different specimen geometry).
ISO 13937‑2	Textiles‑Tear properties of fabrics‑Part 2: Determination of tear force of trouser‑shaped test specimens (single‑tear method), the ISO counterpart of ASTM D2261 tongue‑tear test, with some differences in calculation details and parameters.
ASTM D2261	Standard Test Method for Tearing Strength of Fabrics by the Tongue (Single Rip) Procedure (Constant-Rate-of-Extension Tensile Testing Machine)
ASTM D1424	Elmendorf falling‑pendulum dynamic tearing‑strength test (impact‑type tear measurement, different principle from tongue‑tear static tensile mode)
GB/T 3917.2	Chinese national standard for trouser‑shaped (single‑rip) specimen tear‑force determination, aligned with ISO 13937‑2.
ASTM D2262	tongue tear on CRT machines; withdrawn 1995; its conditions now live on as Appendix X1 of D2261.
JIS L 1096 test A‑1	Japanese textile test standard, single‑tongue tear procedure
ISO 9073-4	tear resistance of nonwovens. Determination of tear resistance by the trapezoid procedure
ASTM D1004	Standard Test Method for Tear Resistance (Graves Tear) of Plastic Film and Sheeting
ISO 11897	Packaging - Sacks made from thermoplastic flexible film - Tear propagation on edge folds

Keywords: ASTM D2261 tongue tear tester,fabric single rip tearing strength machine,CRE tensile tear test equipment,trouser tear fabric resistance analyzer,woven fabric tear propagation tester,knitted textile single rip test rig,nonwoven fabric tear strength instrument,air bag fabric mechanical tear tester,coated resin treated fabric test device,napped layered fabric quality control machine,textile durability performance tester,apparel fabric mechanical certification equipment,industrial textile tear resistance analyzer,textile lab physical testing machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Tear fixture ISO 505, ASTM D1004, vise grip or self-tightening roller grips are the most popular for this application and the least expensive. They can be provided with a rubber faced surface to measure the tear resistance strength of flexible plastic film and sheeting.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Q 1: What is ASTM D2261 test, and why is this test important for fabrics?

A: ASTM D2261 is the standard tongue (single‑rip / trouser‑shaped) tear‑strength test for textiles using a CRE constant‑rate‑of‑extension tensile tester. It measures force to propagate an existing pre‑cut tear, NOT force to create a brand‑new tear in intact fabric. It is critical because real‑world fabric failures often start from small nicks or cuts that keep spreading into large rips. This test simulates such real‑life damage evolution. It is widely used for commercial incoming inspection, shipment acceptance, dispute resolution between buyer‑supplier, R&D for coating/resin finishing, and safety‑critical textiles like air‑bag fabrics and military textiles.

Q 2: What specimens are required for ASTM D2261?

A: Specimen dimension is 75 mm × 200 mm ±1 mm. A 75 mm pre‑slit is cut at the mid‑point of the short edge to create two “tongues”. You need 5 replicates for machine direction (MD) and 5 replicates for cross‑machine direction (CD) for each test condition (dry or wet). Avoid sampling within 1/10 fabric width from fabric edges. Stretch‑prone fabrics need 24 hours relaxation before cutting samples.

Q3: What is the difference between CRE and CRT machine for ASTM D2261?

A: CRE (Constant‑Rate‑of‑Extension) tensile tester is the preferred primary instrument.CRT (Constant‑Rate‑of‑Traverse) tester can be used only with written mutual agreement between purchaser and supplier. Special CRT operation rules are listed in Appendix X1 of D2261; test speed must be set to 300 mm/min. Test report must explicitly note that CRT equipment was used.

Q4: Two calculation options in ASTM D2261: when to pick Option 1 vs Option 2?

Option 1 (Average of five highest peaks): Use when force‑extension curve shows ≥5 measurable peaks after initial tear peak. Average the top‑five peak force values. This is the common choice for woven cotton, wool fabrics.

Option 2 (Single‑peak force): Use when fabric shows fewer than five peaks (typical for many non‑woven materials). Take the single maximum peak force as tear‑strength result. The calculation selection must be clearly documented on final test report.

Q5: What if my specimen breaks near jaw edge or slips during testing?

A: If ≥25 % specimens break within 5 mm of jaw edge or slip out of clamps: modify jaw faces (add emery cloth, rubber lining, change clamping pressure). If after modification the problem still occurs, the fabric is classified as untearable per ASTM D2261. All jaw modifications must be written in test report. Off‑path transverse tear also invalidates that specimen; discard and retest new sample.

Q6: How does ASTM D2261 differ from ASTM D1424 (Elmendorf) and ASTM D5587 trapezoid tear? Can I compare test results cross‑standards?

ASTM D2261 (tongue tear): Static CRE tensile tester, trouser‑shaped slit sample, records full force‑extension curve, evaluates tear‑propagation peaks. Supports both dry & wet test.

ASTM D1424 (Elmendorf): Falling‑pendulum impact‑type tester, measures tear‑propagation energy, dynamic impact loading.

ASTM D5587 (trapezoid tear): CRE tester with trapezoid‑shaped specimen geometry.

Q7: When lab‑to‑lab test results differ, how do we resolve disputes following ASTM D2261?

A: Buyer and supplier should run comparative inter‑laboratory test: take homogeneous specimens from same fabric lot, randomly split equal sample quantity for both labs. Compare average results with agreed‑upon statistical confidence level (95 % is typical). If statistical bias exists, find root cause for correction OR agree to offset future test‑result interpretation considering known bias.

Q8: What similar international standard corresponds to ASTM D2261?

A: ISO 13937‑2 Textiles‑Tear properties of fabrics‑Part 2: Trouser‑shaped (single‑rip) specimen test. It shares the same trouser‑sample concept but has minor differences in peak‑evaluation rules and parameters; results are not fully interchangeable between D2261 and ISO 13937‑2 without mutual agreement.

Q9. How is the specimen mounted?

A: Each tongue is centred in its jaw so that the originally adjacent cut edges form a straight line joining the centres of the clamps, and the two tongues present opposite faces of the fabric to the operator. Specimens must not be tensioned or stressed when mounted.

Q10. Why is the force curve so jagged, and why use peaks rather than an average of the whole trace?

A: Tearing advances by successive rupture of yarns, fibre bonds and fibre interlocks, so the record is a series of peaks and valleys. The standard notes that the highest peaks reflect the strength of the yarn components, fibre bonds or interlocks needed to stop a tear, while the valleys between peaks have no specific significance. Averaging the whole trace would be dominated by troughs and would seriously understate the fabric's real resistance.

Q11. What makes a result invalid, and what do you do about it?

A: If the fabric slips in the jaws, or 25 % or more of specimens break within 5 mm (0.25 in.) of the jaw edge, you may coat the fabric under the jaw face area or modify the jaw face — and the modification must be stated in the report. If, after modification, 25 % or more still break at the jaw edge, or the fabric does not tear substantially lengthwise, the fabric is considered untearable by this test method. Any tear running crosswise to the applied force must also be recorded.

Q12: Why choose ASTM D2261 Tongue (Single‑Rip) Tear Strength Test Machine & Fixture from UnitedTest?

A: UnitedTest supplies complete ASTM D2261‑13R24 tongue tear test solutions: CRE universal tensile testing machine, standard tongue‑tear grips, cutting template and test software for fabric single‑rip trouser tear‑strength measurement for woven, knit, non‑woven, air‑bag and coated textiles. Support dry‑condition & wet‑specimen testing for QC lab, textile R&D and commercial shipment acceptance test.

UnitedTest is a professional manufacturer of materials‑testing equipment, delivering fully‑compliant test hardware and software solutions for ASTM D2261‑13R24 Standard Test Method for Tearing Strength of Fabrics by the Tongue (Single‑Rip) Procedure using CRE constant‑rate‑of‑extension universal tensile testing machines.

Our ASTM D2261 test system measures fabric tear‑propagation resistance for woven fabrics, knitted fabrics, air‑bag fabrics, blankets, napped fabrics, pile fabrics, layered textiles, non‑wovens, coated and resin‑treated fabrics. It supports both standard dry‑state conditioning and wet‑specimen tear evaluation for quality‑control laboratories, textile product R&D, incoming‑goods inspection, commercial shipment acceptance and military‑grade textile qualification.

UnitedTest ASTM D2261 Test Solution Includes:

CRE‑type Universal Tensile Testing Machine (UTM): Complies with ASTM D76/D76M requirement for textile tensile testers. Configurable force range, accurate constant‑speed control (50 mm/min or optional 300 mm/min), high‑frequency data‑acquisition to capture tear‑force peaks for single‑rip tongue tear test.
Standard Tongue‑Tear Test Grips (Jaws): 25 mm × 75 mm parallel flat gripping surfaces. Optional serrated, rubber‑faced or 80‑120‑grit emery‑cloth jaw inserts, hydraulic / pneumatic / manual clamping options to prevent fabric slip or jaw‑edge specimen breakage during testing.
Specimen‑cutting template / die: For cutting standardized 75 mm × 200 mm trouser‑shaped tongue tear specimens.
Dedicated textile‑test software: Supports two calculation modes specified in ASTM D2261: average of five highest peak forces OR single‑peak‑force calculation. Auto‑generates test report with MD / CD direction results, wet/dry status, test‑parameter logging for lab documentation.
Technical support: parameter setup guidance, fixture installation, method validation and after‑sales service.

Key features for ASTM D2261 compliance:

Pre‑load threshold setting at 0.5 N for consistent test start‑point
Gauge‑length preset: 75 mm initial jaw separation
Configurable cross‑head travel stop for 75 mm tear‑propagation termination
Record full force‑vs‑extension curve for every specimen
Supports wet‑specimen test workflow for fabric tear‑strength under moist condition
Output test‑report includes all mandatory reporting fields defined in ASTM D2261 clause 12

Typical Application Markets

Automotive textiles (air‑bag fabric, interior fabric), military textiles, apparel fabric, home textile, industrial fabric, geotextile, non‑woven products, coated technical fabrics.

Looking for reliable ASTM D2261 tongue tear‑strength test equipment for your laboratory? Contact UnitedTest application engineers to discuss force‑range selection, grip configuration and custom test requirements for your fabric samples.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
