ASTM C158: Standard Test Methods for Strength of Glass by Flexure (Determination of Modulus of Rupture)

ASTM C158 is a standard test method for determining the flexural strength (modulus of rupture, MOR) of glass and glass-ceramics via bending, covering two core methods (A for flat glass, B for rectangular/elliptical cross-sections) with clear specimen, equipment, procedure, and calculation rules. It is critical for glass engineering as flexural strength directly governs structural safety, design optimization, and compliance with industry standardsNational Glass Association.

Test method and Test Principle:

Glass is a brittle, elastic material that fails due to the propagation of microscopic surface flaws (cracks). Its strength is not an intrinsic material constant but a statistically distributed property dependent on the size and severity of the largest flaw in the stressed region.

The test applies a pure bending moment to a beam specimen until fracture. The Modulus of Rupture (σ, in MPa or psi) is calculated from simple beam theory using the applied load at failure (F), the specimen dimensions (width b, thickness d), and the span distances.

For 4-Point Bending (Test Method A):	σ = (3F(L - L_i)) / (2bd²) where Lis F=peak load, the support span and L_i is the load span (distance between inner loading points).
For 3-Point Bending (Test Method B):	σ = (3FL) / (2bd²)

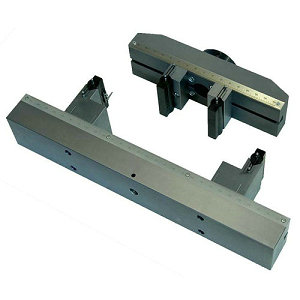

Test Method A (Four-Point Bending): The specimen is supported at two points and loaded at two points on the face opposite the supports. This creates a region of constant maximum bending moment between the inner loading points, ensuring failure will occur at the most severe flaw within that uniform stress zone.

ASTM C158 Flexural Bend Testing for Glass

Test Method B (Three-Point Bending / Center-Pointed Loading): The specimen is supported at two points and loaded at a single point midway between the supports. This creates a maximum bending moment only at the midpoint. It is simpler but more sensitive to local flaws directly under the loading point.

Four-point bending (Test Method A) is generally preferred for material property determination as it tests a larger surface area and reduces the influence of localized contact stresses.

Test sample information:

Method A (Flat Glass):

Sample size:	The specimens shall be approximately 250 mm (10 in.) in length and 38 mm in width. The specimens should be at least 4 mm and not more than 10 mm in thickness. The variation in width or thickness shall not exceed 5 % from one end to the other.
Number of Specimens	At least 30 specimens shall be used for one test and shall preferably be taken from several sheets, or regions of a single sheet.
Cut from sheet stock with diamond/cutting wheel; longitudinal cuts on the same original surface; no original sheet edges as longitudinal sides.
Surface:	Retain original as-manufactured state (no polishing unless specified).

Method B (General):

The specimen length should be 0.5 inches or 12.7 mm (minimum size). The glass should be at least 9.5 mm wide. The recommended value for the width-to-thickness ratio is 2:1 to 10:1.

ASTM C158 Glass Flexural Test Related Equipment:

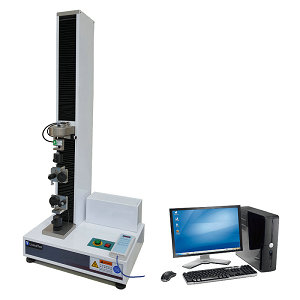

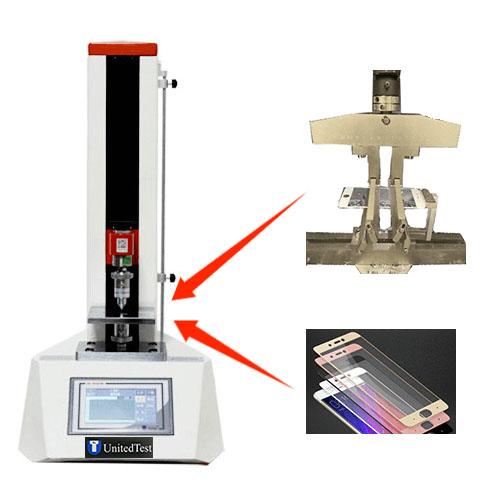

Universal Testing Machine	A calibrated universal testing machine (Recommend UnitedTest Brand) capable of applying a controlled, increasing load (typically in kN or lbf) at a specified constant rate. (Glass Bending Stegnth tester is an electronic universal testing machine, can be single columns or two columns, glass or cemaic bending flexural testing machine the load commonly less 1KN. )

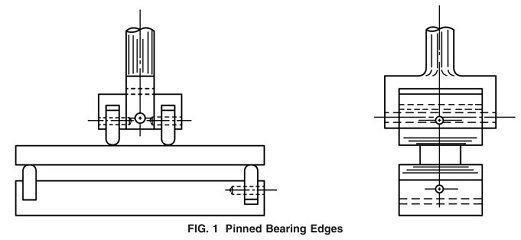

Loading Fixtures	Precision-ground cylindrical rods for applying and supporting the load. The standard specifies diameters and arrangements to ensure proper line contact. For 4-point bending: Two lower support rods, two upper loading rods. For 3-point bending: Two lower support rods, one upper loading rod. ASTM C158 Flexural Bend Testing fixture for Glass Materials
Alignment Device	Ensures the specimen and loading rods are parallel and properly aligned to avoid spurious stresses.
Micrometer/Calipers	For precise measurement of specimen dimensions (thickness, width).
Soft Padding Material	(Optional, but recommended) Thin strips of resilient material (e.g., cardboard, polymer) placed between the glass and the metal rods to distribute contact pressure and minimize contact damage.

ASTM C158 Glass Bending Test Procedure:

1, Measure the width and thickness of the specimen at several points.

2, Place the specimen on the support rods, ensuring it is centered and aligned. Use padding strips if specified.

3, Apply the load continuously at a constant rate such that failure occurs between 2 and 15 seconds (to standardize for static fatigue). Stress rate 1.1±0.2 MPa/s (10,000±2000 psi/min) until fracture.

4, Record the maximum load (N or lbf) at the moment of fracture and the time to failure.

5, Calculate the modulus of rupture for each specimen.

6, Perform Statistical Analysis: Analyze the data set (typically 10-30 specimens) using Weibull statistics to determine the characteristic strength and Weibull modulus, which describes the scatter in the data.

Related test stanard for the glass flexural:

ISO 1288-3: Glass in building — Determination of the bending strength of glass — Part 3: Test with specimen supported at two points (four point bending).

GB/T 37781: Test methods for bending strength of glass

EN 1288-4: Glass in building. Determination of the bending strength of glass-Testing of channel shaped glass

GOST 32281-3: Glass and glass products. Determination of bending strength. Basic principles of testing

KS L 3110: Test Method for Modulus of Rupture of Fire Bricks.

EN 1170-4: PRECAST CONCRETE PRODUCTS. TEST METHOD FOR GLASS-FIBRE REINFORCED CEMENT. PART 4: MEASURING BENDING STRENGTH, "SIMPLIFIED BENDING TEST" METHOD.

ASTM C1172: Standard Specification for Laminated Architectural Flat Glass.

ASTM C1408: Standard Specification for Heat-Treated Flat Glass--Kind HS, Kind FT Coated and Uncoated Glass.

Why Glass Flexural Strength is Critical for Glass Engineering?

Flexural strength is the fundamental mechanical property for structural glass design because:

Primary Failure Mode: Glass elements in buildings (windows, facades, stairs, floors) and other applications (vehicle windows, display cases) primarily fail due to bending stresses induced by wind, snow, impact, or self-weight.

Basis for Structural Design: Engineers cannot design safe glass structures without knowing its flexural strength. Standards like ASTM E1300 are built upon this data, allowing designers to select the correct glass type and thickness for a given load and probability of breakage.

Quantifies the Benefit of Tempering: The flexural strength test quantifies the dramatic increase in strength from thermal tempering (fully tempered glass is ~4-5x stronger than annealed glass) and heat-strengthening (~2x stronger).

Accounts for Statistical Flaw Distribution: The test procedure and its results acknowledge that glass strength is not a single number but a distribution. This probabilistic approach is essential for achieving a consistent, quantifiable level of safety (e.g., a 8 in 1000 breakage probability for glass under short-duration load).

Quality Assurance: It is the key metric for verifying that the thermal strengthening process has been performed correctly and consistently.

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens .

Geotextile puncture test fixture is suitable for the CBR puncture strength test of geosynthetics. It uses a flat-ended plunger to measure the CBR puncture strength of geosynthetics, which is the force recorded when the plunger penetrates the sample at a constant displacement rate. It is used for geotextiles, geomembranes, and their composite products, but is not suitable for materials with apertures larger than 10mm.

Q1: What is the core purpose of the ASTM C158 test, and why is it so important?

A: The core purpose is to determine the Modulus of Rupture (MOR), or flexural strength, of glass. This is the single most important mechanical property for structural design because glass in buildings, vehicles, and products primarily fails due to bending stresses. The data from this test is the fundamental input for engineering standards (like ASTM E1300) that ensure glass is designed with a predictable, quantifiable, and safe probability of breakage under load. Without this standardized test, we could not reliably design safe glass structures.

Q2: Why does the test use multiple specimens (e.g., 10-30 pieces) instead of just one?

A: Glass strength is not a single value; it is a statistical property governed by the random distribution of microscopic surface flaws. A single test tells you the strength of that one flawed specimen, not the material. Testing a large sample set allows engineers to perform Weibull statistical analysis, which yields two critical parameters: 1) the characteristic strength(a representative high-value), and 2) the Weibull modulus(which describes the scatter—low scatter means more consistent, reliable strength). This statistical approach is essential for safe probabilistic design.

Q3: Why is the Four-Point Bend (Test Method A) generally preferred over the Three-Point Bend (Test Method B)?

A: Four-point bending creates a region of constant maximum stress between the inner loading points. This ensures the specimen will fail at its most severe flaw within a significant, uniformly stressed area of the surface, which is more representative of how real-world glass panels fail. Three-point bending concentrates the maximum stress only at the midpoint, directly under the loading head. This result is more sensitive to localized contact damage and a single, unlucky flaw at that exact spot, which may not be representative of the overall material strength.

Q4: Our company produces tempered glass. We test surface compression (with a polariscope) for quality control. Why do we also need ASTM C158?

A: Surface compression measurement (e.g., ASTM C1048/C1279) is a fantastic, non-destructive quality control (QC) check for the tempering process. It confirms the stress level. However, ASTM C158 provides the ultimate performance metric: the actual strength under load. It directly verifies the functional result of that compression. The two tests are complementary: the polariscope ensures the process is correct, and the flexural strength test proves the product performs as required. It's the final, destructive validation.

Q5: How does ASTM C158 relate to international standards like ISO 1288?

A: ASTM C158 (Test Method A) is functionally equivalent to ISO 1288-3 (the four-point bend test for glass). The core principles, formulas, and intent are identical. The main differences are often in the prescribed specimen dimensions, support spans, and some procedural details. For global companies, understanding both standards is important. Data generated from one is often acceptable for certification in other regions, though specific project or product specifications will dictate the required standard.

Q6: Can ASTM C158 be used to test tempered/chemically strengthened glass, or is it only for annealed glass?

A: ASTM C158 is valid for all glass types, including annealed, heat-tempered, chemically strengthened, and laminated glass (as well as glass-ceramics). The standard specifies adjusted loading rates for strengthened glass (80–120% of the estimated MOR, refined after initial testing) to account for its much higher flexural strength (tempered glass has 3–5x the MOR of annealed glass). For laminated glass, the test measures the composite flexural performance of the glass-ply/interlayer system—critical for applications like glass railings and automotive windshields where the laminate structure resists fracture.

Q7: What's the difference for 4 points and 3 points bending test?

Three-point bending and four-point bending tests are commonly used methods in mechanical experiments to evaluate the bending performance of materials, but they differ in test setup and result analysis.

1. Test setup: In a three-point bending test, the specimen is placed between two support points, and a concentrated force is applied at the center or slightly off-center of the specimen, causing it to bend between the two points until fracture occurs. In a four-point bending test, the specimen is also placed between two support points, but there are two symmetrical loading points above the specimen, applying a distributed force rather than a concentrated one. As a result, the bending moment distribution in four-point bending is more uniform.

2. Result analysis: The results of three-point bending tests are typically used to calculate the bending strength and bending modulus of the specimen. Because the loading method is concentrated, the accuracy of the test results may be affected by the position of the loading point. In contrast, four-point bending test results more accurately reflect the bending performance of the specimen, as the bending moment is distributed evenly and the influence of the loading point position on the test results can be eliminated.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
