4 point bend fixtures

4 point bend fixtures

The four point bending flexural test provides values for the modulus of elasticity in bending, flexural stress ,flexural strain and the flexural stress-strain response of the material. This test is very similar to the three point bending flexural test. The major difference being that the addition of a 4th bearing brings a much larger portion of the beam to the maximum stress, as opposed to only the material right under the central bearing.

This difference is of prime importance when studying brittle materials, where the number and severity of flaws exposed to the maximum stress is directly related to the flexural strength and crack initiation.

General introduction

The four point bending flexural test provides values for the modulus of elasticity in bending, flexural stress ,flexural strain and the flexural stress-strain response of the material. This test is very similar to the three point bending flexural test. The major difference being that the addition of a 4th bearing brings a much larger portion of the beam to the maximum stress, as opposed to only the material right under the central bearing.

This difference is of prime importance when studying brittle materials, where the number and severity of flaws exposed to the maximum stress is directly related to the flexural strength and crack initiation.

It is one of the most widely used apparatus to characterize fatigue and flexural stiffness of asphalt mixtures.

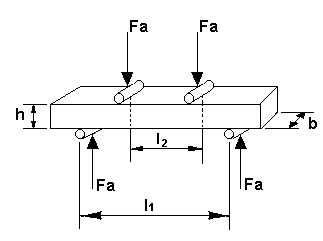

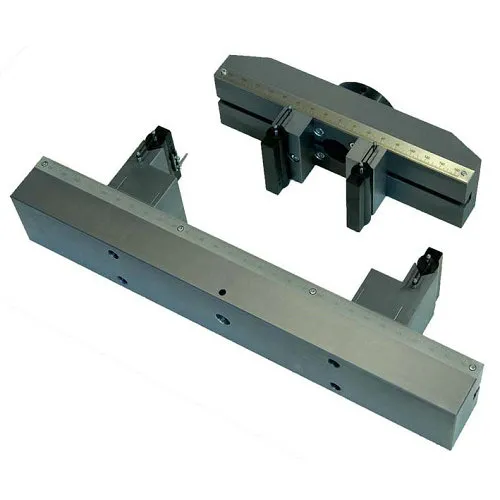

Four point flexural testing fixtures have two base supports and two top loading points. There are two types of 4 point bend tests based on where the load contact points are on the sample. The first type divides the sample into three parts and the loading points are placed at 1/3(L) apart. The second test splits the sample into four parts and the two top points are at 1/4(L) and 3/4(L).

4 point bend fixtures

Standard

EN 14509 Test Methods of Self-supporting double skin metal faced insulating roofing sandwich panel –

EN 14509 specifies factory-made self-supporting double-skin metal-faced insulating sandwich panels for roofs, external walls, internal walls/ceilings.  Mechanical property tests include shear strength and modulus, compressive strength or stress, shear strength under long-term load, tensile strength, bending bearing capacity, and wrinkle pressure.

ASTM F1264 Intramedullary Fixation Device Torsion & Bend Fatigue Test –

ASTM F1264 Standard Specification and Test Methods for Intramedullary Fixation Devices

ASTM F1264 is a standard specification used to describe the design and mechanical function of intramedullary fixation devices (IMFDs). It establishes terminology, classification, material, marking‑labeling requirements and four mandatory‑annex mechanical test methods for intramedullary nails/rods used in skeletal fracture fixation. It does not define mandatory clinical performance thresholds; tests deliver comparative mechanical data rather than absolute clinical pass‑fail criteria.

it also includes four standard testing methods:

1, static four point bending test method (Annex A1),

2, static torsion test method (Annex A2),

3, bending fatigue test method (Annex A3),

4, bending fatigue test method for IMFD locking screws (Annex A4).


The UTDS series Dynamic/Fatigue Testing machine used for bone needle,  bending intramedullary nail fatigue test is mainly used for biomechanical performance testing of various materials, including artificial blood vessels, soft tissues, bones, bone plates, and vertebrae Interfusion device, knee joint, spine Dynamic and static mechanical tests on materials such as column fixators, metal coatings, hip joints, and intramedullary nails, including tension, compression, bending, and torsion.

ASTM C203 Flexural Testing for Block-Type Thermal Insulation –

ASTM C203 — Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation

ASTM C203 evaluates breaking load and flexural properties (flexural strength / modulus of rupture) of pre‑formed block‑type thermal insulation and cellular plastics by simple‑beam bending tests.


ISO 9585 Bone Plate Four-Point Bending Test –

ISO 9585 Implants for surgery‑Determination of bending strength and stiffness of bone plates

A static (single‑cycle) four‑point bending test method for straight bone plates. It may also be used for plates with a small initial curvature intended to preload the bone, and for the straight portion of angled plates. It is not recommended for plates shorter than 50 mm, nor for plates designed to be used with, or forming part of, intramedullary devices (a separate method for short plates was noted as "in preparation").


ASTM D7264 Flexural test for Polymer Matrix Composites –

ASTM D7264 Standard Test Method for Flexural Properties of Polymer Matrix Composite Materials

ASTM D7264 measures flexural strength, flexural modulus, flexural strain and load‑deflection response under quasi‑static beam bending conditions. Two distinct loading procedures (A and B) are defined in this standard.
