snbbing and capstan tensile test fixture

snbbing and capstan tensile test fixture

ISO 3341, ASTM D2256; yarn, thin wire

Snubbing and Capstan grips are all engineered to perform high strength tensile tests where the test samples are long compared to their cross-sectional area, such as wire, rope and strapping.  Capstan Bollard grip designs are simple and cost effective gripping solutions that reduce jaw breaks and sample slippage that are common in direct clamp designs.

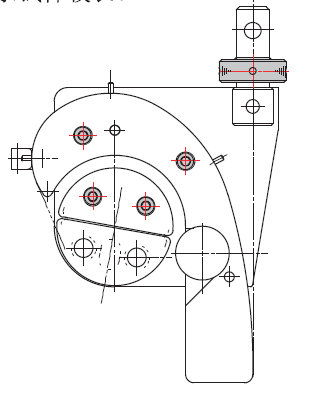

Snubbing and Capstan grips rely primarily on friction to hold the specimen. The end of the specimen is clamped lightly between the fixed and movable halves of the split capstan. This holds the specimen in place while it is being installed. Ample radii are provided where the specimen then wraps around the capstan half. For maximum holding power the clamped specimen can be wound counterclockwise around the fixed half and then around the movable half, to achieve an almost full 360 degrees of engagement around the circumference of the grip. If less holding power is required, or when testing shorter specimens, the clamped specimen can be wrapped counterclockwise around the movable half of the split capstan, providing 180 degrees of contact around the circumference.

General introduction

Snubbing and Capstan grips are all engineered to perform high strength tensile tests where the test samples are long compared to their cross-sectional area, such as wire, rope and strapping.  Capstan Bollard grip designs are simple and cost effective gripping solutions that reduce jaw breaks and sample slippage that are common in direct clamp designs.


Snubbing and Capstan grips rely primarily on friction to hold the specimen. The end of the specimen is clamped lightly between the fixed and movable halves of the split capstan. This holds the specimen in place while it is being installed. Ample radii are provided where the specimen then wraps around the capstan half. For maximum holding power the clamped specimen can be wound counterclockwise around the fixed half and then around the movable half, to achieve an almost full 360 degrees of engagement around the circumference of the grip. If less holding power is required, or when testing shorter specimens, the clamped specimen can be wrapped counterclockwise around the movable half of the split capstan, providing 180 degrees of contact around the circumference.


It's sutiable for kinds of textile yarn material, thread etc., with wide range capacity.

snbbing and capstan tensile test fixture

Standard

ISO 2062 Textile tensile test: Breaking Force and Elongation of Yarns –

ISO 2062 specifies the method for determining the breaking force and elongation at break of textile yarns (single, piled, or cabled) under a constant rate of extension (CRE). It is a fundamental tensile test for yarn quality control.

The test operates on the principle of applying a constant rate of elongation to a single yarn specimen until it breaks:

A single yarn is securely clamped between two grips at a fixed gauge length.

The lower grip moves downward at a constant speed, stretching the yarn at a rate of 100% per minute of the gauge length.

The machine continuously records the force (load) applied and the corresponding elongation.

The test ends when the yarn breaks. The maximum force recorded is the breaking force, and the stretch at that point is the elongation at break (expressed as a percentage).

ISO 3341 Tensile Test of Textile Glass Yarn –

ISO 3341:2000 Textile glass — Yarns — Determination of breaking force and breaking elongation


ISO 3341 specifies a method for the determination of the tensile breaking force and elongation at break of glass yarns taken from packages.

The method is applicable to various types of glass yarn (single, folded, cabled, strands, structures without twist, rovings, etc.). It is basically intended for single, folded and cabled glass yarns having a diameter of less than 2 mm, or a linear density lower than 2000 tex, taken from packages.  This test is applicable to various types of glass yarn (single, folded, cabled, strands, structures without twist, rovings, etc.). It is basically intended for single, folded and cabled glass yarns having a diameter of less than 2 mm, or a linear density lower than 2000 tex, taken from packages.

ASTM D2256 Thread and Yarn Tensile Testing of Single-Strand String –

ASTM D2256 is the standard test method for tensile properties of yarns by the single-strand method. It is the predominant standard used in North America and is technically very similar to ISO 2062. It quantifies breaking force, elongation at break, and derived properties (tenacity, modulus, toughness) under diverse conditions, serving as a benchmark for quality control, product development, and material specification.

ISO 1805 Netting Yarn Breaking Force & Knot Breaking Force Test –

ISO 1805 Fishing nets — Determination of breaking force and knot breaking force of netting yarns

ISO 1805 specifies laboratory test methods to measure breaking force and knot‑breaking force for fishing‑net yarns, covering both dry‑state and wet‑state testing.  Tests may be run in the dry or wet state, but: "tests in the wet state on the knotted yarn are considered to be particularly appropriate in indicating the behaviour of the yarn in use."


ISO 1806 Fishing nets mesh breaking force tension test –

ISO 1806 Fishing nets — Determination of mesh breaking force of netting

ISO 1806 measuring the mesh breaking force of fishing netting: the maximum tensile force a single net mesh can withstand before failure occurs at a knot or joint, including both dry‑state and wet‑state tensile testing.

ISO 3790 Netting Yarn Elongation Test –

ISO 3790 — Fishing nets — Determination of elongation of netting yarns

ISO 3790 specifies a laboratory method for determining the elongation of netting yarns taken either from packages (cones, bobbins, spools) or from netting, in their final physical state — i.e., the yarn is tested as supplied/as used, without altering its structure. Tests may be run in dry or wet state, but the standard explicitly says wet-state tests are "particularly appropriate in indicating the behaviour of the yarn in use".

ASTM D885 Test details for Tire Cords Fabrics and Industrial Filament Yarns –

ASTM D885 Standard Test Methods for Tire Cords, Tire Cord Fabrics, and Industrial Filament Yarns Made from Manufactured Organic-Base Fibers

ASTM D885 defines standardized test procedures for industrial filament yarns, twisted tire cords, and woven tire cord fabrics manufactured from organic-based fibers (primarily nylon, polyester, and rayon). Mainly use for quality control and qualification of materials for pneumatic tire production, performance evaluation of reinforcing materials for other rubber goods (hoses, conveyor belts, etc.).

ASTM D7269 Aramid Yarn & Cord Tensile Testing –

ASTM D7269 Standard Test Methods for Tensile Testing of Aramid Yarns

ASTM D7269 defines standardized testing procedures exclusively for measuring the tensile properties of aramid yarns, twisted cords manufactured from aramid yarns, and fabrics woven from these cords. It does not include material specifications or acceptance tolerances.
