Screw Action Tensile Test Grip

Screw Action Tensile Test Grip

ASTM D2208 Grab suitable for plastic, rubber, leather tension test.

Screw side-action grips provide a very simple and efficient method for holding test specimens in a wide range of applications. screw grip is a one-sided closing specimen grip. A lead screw is used to open and close the grips, as well as apply gripping force before the test.

General introduction

Screw side-action grips provide a very simple and efficient method for holding test specimens in a wide range of applications. screw grip is a one-sided closing specimen grip. A lead screw is used to open and close the grips, as well as apply gripping force before the test.

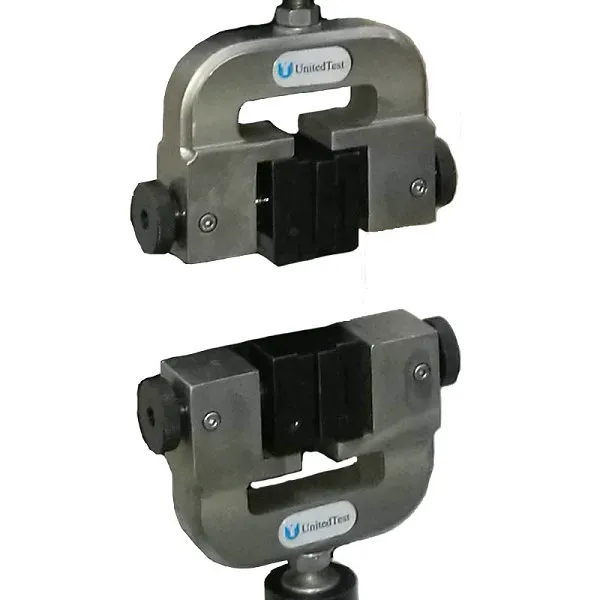

Screw Action Tensile Test GripScrew Action Tensile Test Grip
                   Vee Jaws
       Dovetail groove jaws

Main technical specification

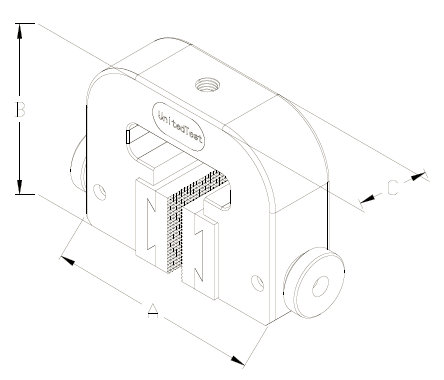

ModelMax. loadDimensions (mm)WeightConnectionsizeClamping widthClampingLength
55KNA:   130 B:   104 C:   401.3kgM1240/60/10045
1010KNA:   190 B:   120 C:   604.2kgM1640/60/10050
ModelMaterialFlat clamping rangeVee clamping rangeWorking temp. (℃)
545#   steel0-10/10-204-10/10-18-70~250
1045#   steel0-10/10-20/20-264-10/10-18-70~250

Screw Action Tensile Test Grip



Standard

ASTM D2208 Leather Breaking Strength Testing by Grab Method –

ASTM D2208 Standard Test Method for Breaking Strength of Leather by the Grab Method

ASTM D2208 specifies a grab‑type tensile test to measure breaking strength and elongation‑at‑rupture for certain leather types where the conventional strip‑tensile method (ASTM D2209) cannot produce accurate results.

ASTM D2339 Two-Ply Wood Adhesive Shear-by-Tension Loading Test –

ASTM D2339 Standard Test Method for Strength Properties of Adhesives in Two‑Ply Wood Construction in Shear by Tension Loading

ASTM D2339 defines a laboratory test to obtain comparative shear‑strength data for wood‑to‑wood adhesives. It only applies to adhesives bonding wood to wood, using tensile loading to generate shear stress across the adhesive bondline of two‑ply veneer assemblies. Tensile force is applied axially to a notched two‑ply wood specimen. Two saw kerfs are machined precisely to the bondline. Under tension loading, shear stress concentrates on the narrow bonded area between the grooves, causing shear failure along the adhesive joint.  ASTM D2339‑20 Tension Shear Tester for Two‑Ply Wood Adhesive | UnitedTest Manufacturer

ISO 13937-2 Trouser Method Fabric Tear Force Testing –

ISO 13937-2 Textiles – Tear properties of fabrics – Part 2: Determination of tear force of trouser‑shaped test specimens (Single tear method).

ISO 13937-2 is method for determining the tear force required to propagate an already-started single tear, using a rectangular specimen slit into two "trouser legs". Mainly for woven fabrics; may also apply to fabrics made by other techniques (e.g. some nonwovens). Not applicable to knitted fabrics, woven elastic fabrics, highly anisotropic fabrics, or loose fabrics where the tear tends to transfer from one direction to another. Only CRE (constant-rate-of-extension) machines are permitted.


ASTM D2261 Tongue Tear Test for Fabric Tearing Strength –

ASTM D2261 Standard Test Method for Tearing Strength of Fabrics by the Tongue (Single Rip) Procedure (Constant-Rate-of-Extension Tensile Testing Machine)

ASTM D2261 measure fabric tearing strength via the tongue (single‑rip / trouser‑shaped) specimen approach, primarily using a Constant‑Rate‑of‑Extension (CRE) tensile tester, It evaluates the force required to propagate an existing pre‑cut tear rather than the force needed to start a brand‑new tear in intact fabric. Applies to most fabrics: woven, air bag fabrics, blankets, napped, knit, layered, pile and nonwovens — untreated, heavily sized, coated, resin-treated or otherwise treated.


EN 205 Wood adhesive lap joint shear test –

EN 205 specifies the test method used to assess adhesives for wood and derived timber products for non-structural applications, measuring the tensile shear strength of lap joints. This standard evaluates adhesive resistance to hot and cold water ageing and verifies bond strength with a thin bond line of approximately 0.1 mm. UnitedTest delivers reliable EN 205 wood adhesive testing instruments for adhesive formulation research, factory quality control and third-party laboratory certification.

EN 302-1 Wood Adhesive Longitudinal Tensile Shear Strength Test –

EN 302-1 Adhesives for load-bearing timber structures – Test methods – Part 1: Determination of longitudinal tensile shear strength

EN 302-1 measures the shear strength of an adhesive bond in a single-lap joint made from beech, loaded in tension to rupture, either as a close-contact glue line (≤ 0.1 mm) or as a thick glue line / gap joint (0.3 – 4.0 mm). Its declared purpose is to generate performance data for classifying adhesives for load-bearing timber structures according to their suitability for defined climatic environments. It is explicitly not a structural design tool and does not necessarily represent in-service performance of a bonded member.


ISO 13445 Block Shear Test — Adhesive Shear Strength Tester for Rigid Substrates –

ISO 13445 Adhesives — Determination of shear strength of adhesive bonds between rigid substrates by the block-shear method

ISO 13445 determines the shear strength of adhesives used to bond materials whose elastic modulus is higher than that of the adhesive. It gives an estimate of adhesive shear strength on both machinable and non-machinable substrates.

Definitions:

  • Shear stress — force applied parallel to a flat adhesive joint, divided by the bond area.

  • Shear strength — the maximum shear stress sustained by the joint during the test.

\
