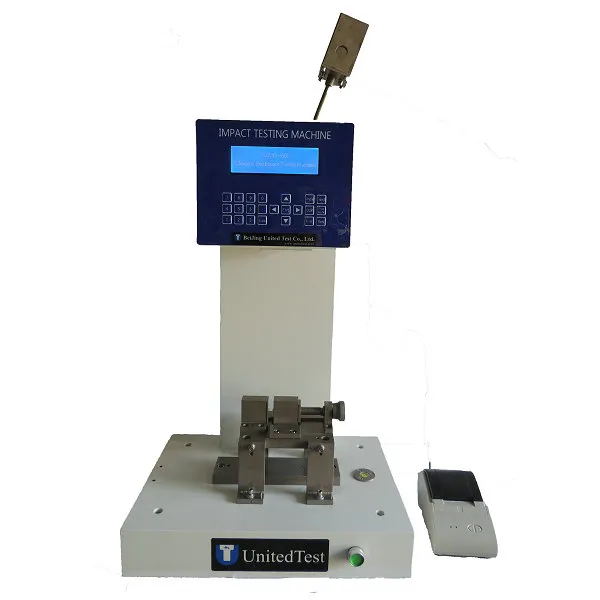

Electronic IZOD Impact Testing Machine ASTM D256

Electronic IZOD Impact Testing Machine ASTM D256

Model: XJUD-5.5/22, LCD or touching screen, ISO 180 ASTM D256

Model XJUD-5.5, XJUD-22 Electronic IZOD Impact Testing Machine has a wide has a wide measurement range, with PLC touch screen control and display. Test results are calculated automatically, featuring automatic energy loss correction, clear and intuitive operation, and accurate and reliable measurements. It is mainly used for determining the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, chemical stone, electrical insulating materials, and fiber-reinforced thermosetting and thermoplastic composites. The touch screen-controlled cantilever beam impact tester is an ideal testing device for chemical industry enterprises, research institutions, colleges and universities, quality inspection departments, and professional manufacturing laboratories.


General Introduction

Model XJUD-5.5, XJUD-22 Electronic IZOD Impact Testing Machine has a wide has a wide measurement range, with PLC touch screen control and display. Test results are calculated automatically, featuring automatic energy loss correction, clear and intuitive operation, and accurate and reliable measurements. It is mainly used for determining the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, chemical stone, electrical insulating materials, and fiber-reinforced thermosetting and thermoplastic composites. The touch screen-controlled cantilever beam impact tester is an ideal testing device for chemical industry enterprises, research institutions, colleges and universities, quality inspection departments, and professional manufacturing laboratories.

Key Features

  • LCD display, IZOD Test model
  • References

1, LCD display, IZOD Test model;

2, Adopts rotate encoder grating side angle technology, high accuracy, high reliability, and big measuring range;

3, Support vice, pendulum is nickel coating, good appearance and anti-corrosion.

4, Standard ISO 180, ASTM D256.

5, Indicate impact energy, impact strength, initial angle, rising angle, energy loss etc.,

6, Automatic correcting the energy loss; Auto-print and save the records.

7, Full range XJUD-22F is available, energy range 1J, 2.75, 5.5J, 11J, 22J

ISO 180: “Plastics -- Determination of Izod impact strength”


ASTM D256: “Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics”

Main Technical Specification

ModelXJUD-5.5XJUD-22
Impact energy1J, 2.75, 5.5J5.5J, 11J, 22J
Impact speed3.5m/s3.5m/s
Pendulum initial angle160°160°
Free impact energy loss Less than 0.05JLess than 0.1J
Initial potential energy errorLess than±1.5%
Pendulum center   to impact blade distance322mm322mm
Distance from   impact blade to upper surface22mm22mm
Blade angle radiusR=0.8mmR=0.8mm
Power220V, 50HZ
Display typeLCD display
Specimen clamping typeIZOD
Standard AccessoriesLoadframe, pendulum(1J, 5.5J),   pendulum weight (2.75J), vice adjusting plate, spanner, power cord, manual   etc.Loadframe, pendulum(5.5J, 11J,   22J), vice, impact standard plate, spanner, power cord, manual etc.


Main Accessories

Standard Accessories

Loadframe, pendulum(1J, 5.5J),

 pendulum weight (2.75J),

vice adjusting plate,

spanner,

power cord

manual etc.

Loadframe,

pendulum(5.5J, 11J,   22J),

vice,

impact standard plate,

power cord

spanner, manual etc.


Related Auxiliary Equipment for plastic impact test

Manual Impact sample making machine

QK-20 notch sample reparation machine is used to process the non-metal material impact test specimen notch, such as the plastics, organic glass etc., it’s an ideal notching machine for plastic impact test.

Standard

ISO 180 IZOD impact strength test for plastic, notched impact test –

ISO 180 specifies unified methods to measure the Izod impact strength of plastics under standardized conditions, evaluating material brittleness and toughness via pendulum impact tests.

EN 29653 Shear Impact Test for Adhesive Bonds –

EN 29653 Adhesives — Test method for shear impact strength of adhesive bonds

EN 29653 defines a laboratory test to measure the comparative shear‑impact performance of adhesive‑bonded joints under single‑blow pendulum impact loading.

ASTM D950 Impact Strength Test of Adhesive Bonds –

ASTM D950 Standard Test Method for Impact Strength of Adhesive Bonds

ASTM D950 defines a pendulum shear impact test to quantify comparative dynamic shear impact resistance of adhesive-bonded joints under instantaneous shock loads. It is widely accepted by industrial labs, and adhesive manufacturers for quality control and material comparison.


ASTM D6110 Plastic Charpy Impact Test of Notched Specimens –

ASTM D6110 test method is used to determine the resistance of plastics to breakage by flexural shock as indicated by the energy extracted from standardized pendulum-type hammers, mounted in standardized machines, in breaking standard specimens with one pendulum swing. This test method requires specimens to be made with a milled notch. The notch produces a stress concentration which promotes a brittle, rather than a ductile, fracture. The results of this test method are reported in terms of energy absorbed per unit of specimen width.

The tests require specimens made with a milled notch, hence the test is often referred to as the “notched bar impact test”. In both the Charpy and Izod Tests, the notch produces a stress concentration which promotes a brittle, rather than a ductile, fracture.


ASTM D6110 test method is for measuring plastics’ ability to resist fracture under sudden flexural shock (high-strain-rate impact loading). It quantifies the energy a notched plastic bar absorbs during complete fracture via a single pendulum swing, with results primarily reported as absorbed energy per unit specimen width (J/m). Similar with ISO 179 (plastic Charpy impact) but has entirely distinct technical specifications.

The tests require specimens made with a milled notch, hence the test is often referred to as the “notched bar impact test”. In both the Charpy and Izod Tests, the notch produces a stress concentration which promotes a brittle, rather than a ductile, fracture.

ASTM D1822 Tensile-Impact Test To Break Plastics and Electrical Insulating Materials –

ASTM D1822 Tensile Impact Energy to Break Plastics and Electrical Insulating Materials


ASTM D1822 standard outlines test procedures to find the energy required to rupture tension-impact specimens of plastic or electrical insulating materials. Test materials that are too bendable or too thin to be tested in accordance with the ASTM D256 standard are ideal for this test along with more rigid materials.

ISO 179-1, ISO 179-2 Plastics test of Charpy impact properties –

ISO 179: Plastics -- Determination of Charpy impact properties

ASTM D6110: Standard Test Method for Determining the Charpy Impact Resistance of Notched Specimens of Plastics.


ISO 179 specifies a method for determining the Charpy impact strength of plastics under defined conditions. A number of different types of specimen and test configurations are defined. Different test parameters are specified according to the type of material, the type of test specimen and the type of notch.

The method can be used to investigate the behaviour of specified types of specimen under the impact conditions defined and for estimating the brittleness or toughness of specimens within the limitations inherent in the test conditions. It can also be used for the determination of comparative data from similar types of material.

ISO 9854 Pipe Pendulum impact strength by the Charpy method –

ISO 9854 specifying Charpy pendulum impact test to evaluate low-temperature and room-temperature toughness of fluid-transporting thermoplastic pipes. Part 1 defines universal test rules while Part 2 sets customized testing parameters for individual thermoplastic pipe grades (PVC‑U, PE, PP‑R, ABS, PVC‑O, PVC‑HI, etc.). It is a supplementary Charpy test alternative when the reference full-pipe drop-weight impact test (ISO 3127) cannot be implemented for factory QC or material R&D.
