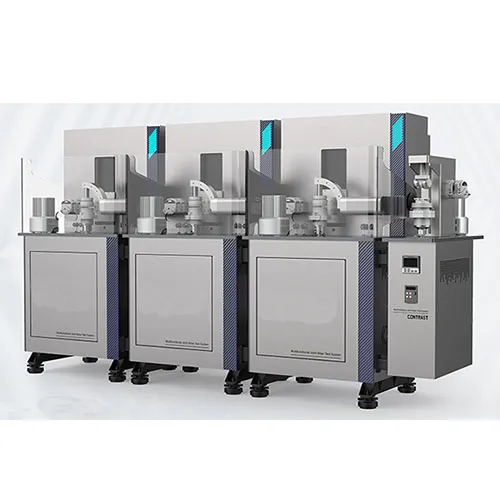

Multifunctional Hip Joint Wear Test System

Multifunctional Hip Joint Wear Test System

Model: UTDS-M03, ISO 14242-1, ISO 14242-2

UTDS-M03 Multifunctional Joint Wear Test System is design and produced fully according the ISO 14243-1-2012 Surgical Implants. Wear and tear of total knee prosthesis. Part 1.; ISO 14243-2-2016 Wear and tear of total knee prostheses for surgical implants.; ISO 14243-3-2014 Surgical implants.Wear and tear of total knee prostheses.Part 3.

For the test of Knee/hip abrasion, are widely used in artificial joint replacement materials, and are used to replace structural materials such as acetabular cup elements, femoral head, meniscus, tibia, etc., as well as lubricant materials for knee and hip joints, respectively.

At the same time, it has the function of abrasion test of positive shoulder joint and reverse shoulder joint and knee joint restraint test function, which is very comprehensive, and has strong customization and scalability, and will continue to expand more joint wear and static test functions.


General Introduction

UTDS-M03 Multifunctional Joint Wear Test System is design and produced fully according the ISO 14243-1-2012 Surgical Implants. Wear and tear of total knee prosthesis. Part 1.; ISO 14243-2-2016 Wear and tear of total knee prostheses for surgical implants.; ISO 14243-3-2014 Surgical implants.Wear and tear of total knee prostheses.Part 3.

For the test of Knee/hip abrasion, are widely used in artificial joint replacement materials, and are used to replace structural materials such as acetabular cup elements, femoral head, meniscus, tibia, etc., as well as lubricant materials for knee and hip joints, respectively.

At the same time, it has the function of abrasion test of positive shoulder joint and reverse shoulder joint and knee joint restraint test function, which is very comprehensive, and has strong customization and scalability, and will continue to expand more joint wear and static test functions. Table 1-1 shows the main technical indicators of the product.


Degrees of   freedom/axis

Force/Moment

Displacement/Rotation

sensor

Control mode

Axial loading

±3400 N

±45 mm

Force and displacement

Force or displacement control

flection

±30 Nm

±85°

Torque and displacement

Torque or displacement control

Internal and external rotation

±20 Nm

±40°

Torque and displacement

Torque or displacement control

Y-axis AP (front and rear)

±400 N

±25 mm

Force and displacement

Force or displacement control

Valgus/adduction and abduction

±6 Nm

±30°

Torque and displacement

Torque or displacement control

Software Features

Knee joint, hip and shoulder wear functions   are standard, and other joint wear functions can be customized


ISO 14242-1 - Implants for surgery — Wear of total hip-joint prostheses — Part 1: Loading and displacement parameters for wear-testing machines and corresponding environmental conditions for test
ISO 14242-1:2014 specifies the relative angular movement between articulating components, the pattern of the applied force, the speed and duration of testing, the sample configuration, and the test environment to be used for the wear testing of total hip-joint prostheses.

Multifunctional Hip Joint Wear Test System


Key Features

  • Main features
  • Actuator
  • Main Test
  • Wear Testing:

1. The operating principle of multi-axis direct drive motor, mature technology and high reliability;

2. Low failure rate, no need to replace parts regularly;

3. Six degrees of freedom per station, good flexibility and strong scalability;

4. It has the function of independent control of 3+1 stations, 3 experimental stations and 1 control station;

5. Control wear mode with both load and displacement;

6. Equipped with high-strength water bladder, 50W circle does not break or leak;

7. Mains AC 220v power supply, low operating cost;

8. Low noise, no oil pollution;

1), Servo liner actuator is the key part in this testing machine, the test output load through this actuator; with United Test technology self design, the actuator internally intall on the top side of frame, consist of actuator, servo motor, servo driving sytem, and load cell.

2), Servo liner actuator frequency limitation position have relief area, avoid the damage of out control.

3), Liner sensor with USA Schaevitz company LVDT, move smoothly, piston rod made by extra-fine process, surface chrome-plated polishing to Rα0.4u.

4), Between load cell and clamper connection, push-pull rod and clamper position have specialized gap elimination device, then improve the dynamic response ability.

1, Knee abrasion test

2, Hip abrasion test

3, Shoulder abrasion test

4, Anti-shoulder abrasion tes


UnitedTest ISO 14242-1 Multifunctional Hip Joint Wear Test System simulators, multi-station hip and knee simulators, assess the wear behavior of your implant materials, ensuring optimal performance over time.

Main Technical Specification

Degrees of freedom/axisForce/MomentDisplacement/RotationSensorControl mode
Axial loading±3400 N±45 mmForce and displacementForce or displacement control
flection±30 Nm±85°Torque and displacementTorque or displacement control
Internal and external rotation±20 Nm±40°Torque and displacementTorque or displacement control
Y-axis AP (front and rear)±400 N±25 mmForce and displacementForce or displacement control
Valgus/adduction and abduction±6 Nm±30°Torque and displacementTorque or displacement control
Software FeaturesKnee joint, hip and shoulder wear functions   are standard, and other joint wear functions can be customized


Standard

ISO 14243-1 Wear Simulate Test for knee-joint prostheses - Loading and displacement –

ISO 14243-1 Implants for surgery. Wear of total knee-joint prostheses. Loading and displacement parameters for wear-testing machines with load control and corresponding environmental conditions for test

ISO 14243-1 specifies test conditions for load‑controlled knee wear simulators, covering loading, displacement parameters and corresponding environmental test conditions for total knee arthroplasty (TKA) prostheses wear evaluation.

ISO 22622 Total Ankle Wear Testing — Gait-Cycle Wear Simulation for Ankle Implants –

ISO 22622 Implants for surgery — Wear of total ankle-joint prostheses — Loading and displacement parameters for wear-testing machines with load or displacement control and corresponding environmental conditions for test

ISO 22622 specifies the relative angular movement, force pattern, speed, test duration, specimen configuration and test environment for wear testing of total ankle-joint prostheses (TAR) on machines with either load control or displacement control.

It gives input parameters only — wear is measured and calculated per ISO 14243‑2 (gravimetric method), which is the single normative reference.

ISO 21536 Test for Knee Joint Replacement Implants –

ISO 21536 Non-active surgical implants — Joint replacement implants — Specific requirements for knee-joint replacement implants

ISO 21536 is a Level 3 (most specific) product-requirements standard, it sets the mandatory design, material, dimensional, surface-finish and preclinical-evaluation requirements that any knee-joint replacement implant (femoral component, tibial component, tibial tray, patellar component, patellar tray, meniscal component, unicompartmental knee prosthesis) must satisfy, and it points to a family of referenced test-method standards for the actual laboratory work.

ASTM F3141 Knee Joint Simulator for Total Knee Replacement Loading Profiles –

ASTM F3141 Standard Guide for Total Knee Replacement Loading Profiles

ASTM F3141 is an ASTM guide that supplies coordinated force-, torque-, and motion-time histories for reproducing several activities of daily living on a knee-joint simulator. In other words, it standardizes the loading input and functional-simulation framework, not the final wear measurement, damage assessment, acceptance criterion, or clinical prediction.

Its central value is that walking-only simulator tests do not represent the higher flexion, turning, stair, and rising loads that a total knee replacement (TKR) may experience. F3141 therefore supplies reference waveforms intended to reveal wear, degradation, impingement, subluxation, and other damage mechanisms under a broader range of conditions. The standard explicitly says that it does not address the assessment or measurement of damage modes, wear, or failure, and that its results cannot directly predict in vivo performance; they are suitable for comparing designs tested under similar conditions.
