Metal bone screw torsion tester

Metal bone screw torsion static and fatigue tester

Model: UT1050, ASTM F543 torsion test

ASTM F543 standard specifies the torque required to measure the insertion and extraction of metal bone screws from standard materials, in order to confirm the consistency of the tested product. Load maintains 11.17N and rotates at a rate of 3r/min for 4 turns, followed by 4 turns.

UnitdTest UT1050 series Metal bone screw torsion testing equipment has a lightweight body, easy operation, and precise control, making it suitable for bone nail testing. We provide you with professional testing fixtures to meet standard requirements, as well as precise and effective test plans (SOP), and optional data post-processing software to reduce the difficulty of data processing and assist in the mechanical performance analysis of metal bone screws.


General Introduction

ASTM F543 standard specifies the torque required to measure the insertion and extraction of metal bone screws from standard materials, in order to confirm the consistency of the tested product. Load maintains 11.17N and rotates at a rate of 3r/min for 4 turns, followed by 4 turns.

UnitdTest UT1050 series Metal bone screw torsion testing equipment has a lightweight body, easy operation, and precise control, making it suitable for bone nail testing. We provide you with professional testing fixtures to meet standard requirements, as well as precise and effective test plans (SOP), and optional data post-processing software to reduce the difficulty of data processing and assist in the mechanical performance analysis of metal bone screws.

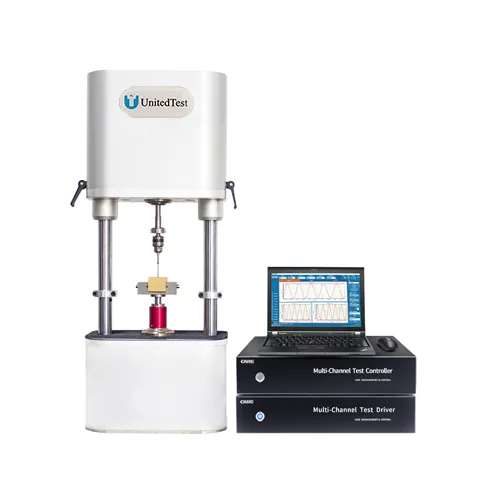

Metal bone screw torsion testerMetal bone screw torsion testerMetal bone screw torsion tester

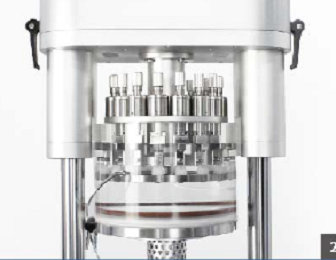

 Liquid bath test condition
Bone plate 4 points bending testSelf-Tapping test fixture


Key Features

  • Features
  • Control system, Software
  • Related standards
  • Multiple protection functions

A new generation fatigue testing system with small electromagnetic motors as the driving core;

Meet the strict requirements of material mechanics testing for high-precision, high-frequency, high stability, and durability in biological material mechanics experiments;

Optional torsion channel for multi axis tension and torsion loading;

Can perform tests such as stretching, compression, bending, shearing, twisting (optional), creep, relaxation, etc;


Suitable for testing metal materials, microelectronic materials, polymer materials, and biomaterials;

Multiple fixtures and accessories are available for selection.

Built-in full digital closed-loop, multi-channel, multi-functional, easy-to-manipulate Bab103 twist test and control software , Russian standard, French standard, Australian standard, European standard, etc./GB, GJB, ISO, JIS, ASTM, DIN, BS, NF, EN, AS, NBR, IEC, GOST, CNS).

Automatic control of torque loads, automatic hold, cycle control and self-programming control.

maximum torque and maximum fracture torsional angle test, rot torque test, bone screw fracture position test, bone screw torsion yield strength test.

automatic tracking measurement of torque and torsional angle, showing test curves, torque values, torsional angles, and torsional speeds in real time.

automatic control of the test process, torque, stress, deformation, torsion angle full closed loop control, display, full keyboard input operation and control mode intelligent setup system.

control mode intelligent settings, control between the control mode without impact, smooth switching, loading, unloading smooth.

Process reproduction and data reanalysis, curve amplification, comparison, traversal, curves can be freely enlarged and reduced.

multi-curve display (torque-time curve, torque-torque angle curve, angle-time curve, etc.), coordinates are self-contained, fullness self-adjusting.

control software, modular, open programming, personalized design, can be adjusted.

standard modules: rights management module, test module, control module, analysis module, query module, output module, etc.

flexible Excel or Word reporting format to select, specify, sort, individually, merge, and multi-type output.

action tips and wizards.

network database management, can be directly linked with a number of networking companies.

automatic return at the end of the experiment, intelligent, efficient and fast.


ISO 6475:1989
Implants for surgery — Metal bone screws with asymmetrical thread and spherical under-surface — Mechanical requirements and test methods
ISO 5835:1991
Implants for surgery — Metal bone screws with hexagonal drive connection, spherical under-surface of head, asymmetrical thread — Dimensions
ISO 9268
Implants for surgery -- Metal bone screws with conical under-surface of head -- Dimensions
ASTM F543
Test Methods for Metallic Medical Bone Screws
ASTM F116
Standard Specification for Medical Screwdriver Bits

YY 0605.12-2016, YY 0605.9-2015, YY/T0605.5, YY/T0605.6, YY/T0605.7, YY 0605.12-2016, YY 0605.9-2015, YY/T0605.5, YY/T0605.6, YY/T0605.7, GB/T13810-2017, GB/T19701.2-2016, GB 4234.1-2017, ISO 5832, ISO 9268, ISO 5833, ISO 6475, ASTM F2502, ASTM F543, ASTM F116,

Test force overload protection, overcurrent, overpressure protection, safety protection when the specimen breaks,

operation prompt guide protection,

automatic protection at the end of the test, etc.

Main Technical Specification

Axial loadingMaximum peak load100N
Peak value of dynamic load100N
Peak value of static load40N
Load measurement range0.4%~100%F.S.
Load measurement accuracyBetter than ± 0.2% of the indicated value (within   the load measurement range)
Maximum fatigue loading frequency100Hz
Axial travel40mm
Displacement resolution0.1μm
TorsionTwisted loading formTop mounted (pull/twist integrated)
Dynamic peak torque5N·m
Torque measurement range0.4%~100%F.S.
Accuracy of torque measurementBetter than ± 0.2% of the indicated value (within   the torque measurement range)
Maximum torsional loading frequency1Hz (static or low-frequency dynamic)
Angle measurement rangeNo angle limitation
maximum speed30r/min
Corner resolution0.018°
Test space (upper and lower clamp space)0-300mm
net weight75kg
External dimensions400×250×1200(mm)
Electrical requirementsAC220V 300W
Optional accessoriesBone nail fixture, clamp fixture, compression   fixture, three-point bending fixture, etc
applicationStatic/dynamic testing of surgical implants (such   as self tapping test, screw in/out test, low load static test, dynamic   fatigue test, etc.)




Standard

ASTM F2502 Test of Internal Fixation Implants Bioabsorbable Plates and Screws –

ASTM F2502 Standard Specification and Test Methods for Absorbable Plates and Screws for Internal Fixation Implants

ASTM F2502 defines the requirements and mechanical test methods specifically for bioabsorbable (or biodegradable) orthopedic implants used to stabilize bone fractures. Unlike permanent metal implants, these devices are designed to provide temporary support and then gradually dissolve in the body. This standard ensures they possess sufficient initial mechanical strength and that their degradation properties are characterized in a standardized way.

ISO 6475 Bone Screw Torsion Breaking Torque Test Methods –

ISO 6475 Implants for surgery — Metal bone screws with asymmetrical thread and spherical under-surface — Mechanical requirements and test methods

ISO 6475 specifies mechanical test methods for determining breaking torque and rotation angle at failure of metal bone screws with asymmetrical threads and spherical under-surfaces, along with minimum mechanical requirements for stainless steel screws in Annex A. It is critical for validating torsional integrity to prevent intraoperative/surgical failure and ensure regulatory compliance.

ASTM F382 Metallic Bone Plates fatigue bending test –

ASTM F382 Standard Specification and Test Method for Metallic Bone Plates

ASTM F382 unified terminology, geometric classification, material requirements, marking & packaging rules, and mechanical test protocols for metallic bone plates used in surgical skeletal internal‑fixation. It define two mandatory test methods:  Single‑Cycle Bend Test and Bending Fatigue Test. Both adopt four‑point bending configuration. It is of great significance for ensuring the safety and reliability of metallic bone plates, which are widely used to align and fix bone segments in orthopedic reconstructive surgeries.

ASTM F384 Testing for Metallic Angled Orthopedic Fracture Fixation Devices –

ASTM F384 Standard Specifications and Test Methods for Metallic Angled Orthopedic Fracture Fixation Devices

ASTM F384 provides a comprehensive reference for angled devices used in surgical internal fixation of the skeletal system, establishing consistent methods to classify and define geometric and performance characteristics, plus standard test methods for measuring mechanical characteristics judged important to in vivo performance.

ISO 9585 Bone Plate Four-Point Bending Test –

ISO 9585 Implants for surgery‑Determination of bending strength and stiffness of bone plates

A static (single‑cycle) four‑point bending test method for straight bone plates. It may also be used for plates with a small initial curvature intended to preload the bone, and for the straight portion of angled plates. It is not recommended for plates shorter than 50 mm, nor for plates designed to be used with, or forming part of, intramedullary devices (a separate method for short plates was noted as "in preparation").


ASTM F2009 Axial Disassembly Force Testing for Modular Prosthesis Tapers –

ASTM F2009 Standard Test Method for Determining the Axial Disassembly Force of Taper Connections of Modular Prostheses

ASTM F2009-25 is a comparative laboratory test method that measures the axial tensile force required to pull apart a self-locking modular taper (cone/bore) connection of a hip or shoulder prosthesis after that connection has been assembled under a tightly controlled 2 kN axial preload.
