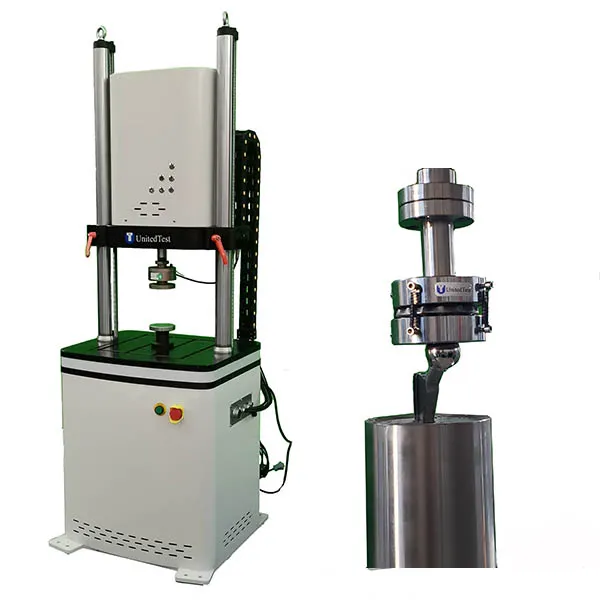

Model: UTDS, ASTM F2068, ISO 7206 Hip Joint Prosthesis Testing

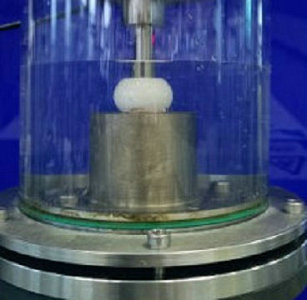

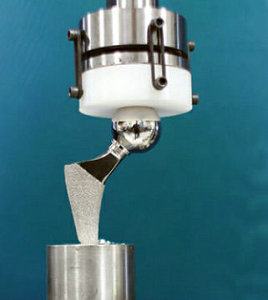

ISO 7206, ASTM F2068 is a testing standard designed to measure the
durability of the metaphyseal bone components of hip implants. This
testing procedure is applicable to implants with symmetrical planes,
anterior or hyperbolic shapes of the epiphyseal bone, as well as
prostheses used for restorative surgery. This test requires a dynamic
testing machine and ISO 7206, ASTM F2068 fixtures. The lower part of the
test sample is first embedded into a solid medium. Apply a cyclic load
to the head of the sample, causing double-sided bending and twisting
until the sample fractures or reaches the selected number of cycles.
The
ISO 7206, ASTM F2068 standard specifies the test methods and
performance requirements to determine the fatigue performance of the
neck of the femoral components in partial and total hip arthroplasty
under specific test conditions. The fatigue test is conducted with a
frequency of 1 to 30 Hz, R=0.1, a maximum load of 5340N, for 10 million
cycles or until sample failure occurs.
General Introduction
ISO 7206, ASTM F2068 is a testing standard designed to measure the durability of the metaphyseal bone components of hip implants. This testing procedure is applicable to implants with symmetrical planes, anterior or hyperbolic shapes of the epiphyseal bone, as well as prostheses used for restorative surgery. This test requires a dynamic testing machine and ISO 7206, ASTM F2068 fixtures. The lower part of the test sample is first embedded into a solid medium. Apply a cyclic load to the head of the sample, causing double-sided bending and twisting until the sample fractures or reaches the selected number of cycles.
The ISO 7206, ASTM F2068 standard specifies the test methods and performance requirements to determine the fatigue performance of the neck of the femoral components in partial and total hip arthroplasty under specific test conditions. The fatigue test is conducted with a frequency of 1 to 30 Hz, R=0.1, a maximum load of 5340N, for 10 million cycles or until sample failure occurs.
UnitedTest electromagnetic UTDS series fatigue testing devices provide precise sine wave load control with stable peaks, allowing you to obtain professional testing tools that meet the test condition requirements in the standard, as well as accurate and effective testing protocols (SOP), assisting in the mechanical performance analysis of femoral stems.
![]() | ![]() |
Key Features
1), Frame is double column frame structure, servo liner actuator installed at upside of frame. Clamper will be installed on the corsshead and top of actuator piston rod;
2), Frame crosshead adjustment use leading screw rising and falling, manual clamping, elastic loosen structure, ensure the crosshead is reliable during test. And ensure the crosshead is locked unmoving at non-test condition.
3), Column outer surface processed by durionise, enhance the anti-wear ability, improve anti-corrosion ability, and more beautiful appearance.
4), With feature of compact structure, high stiffness, high centering, easy clamp test sample; can match various test fixture to extend test function.

Fatigue testing on an elastomer
1), Servo liner actuator is the key part in this testing machine, the test output load through this actuator; with United Test technology self design, the actuator internally intall on the top side of frame, consist of actuator, servo motor, servo driving sytem, and load cell.
2), Servo liner actuator frequency limitation position have relief area, avoid the damage of out control.
3), Liner sensor with USA Schaevitz company LVDT, move smoothly, piston rod made by extra-fine process, surface chrome-plated polishing to Rα0.4u.
4), Between load cell and clamper connection, push-pull rod and clamper position have specialized gap elimination device, then improve the dynamic response ability.
ISO 7206-4: Implants for surgery -- Partial and total hip joint prostheses -- Part 4: Determination of endurance properties of stemmed femoral components.
ISO 7206-6: Implants for surgery -- Partial and total hip joint prostheses -- Part 6: Determination of endurance properties of head and neck region of stemmed femoral components.
ISO 7206-8: Implants for surgery -- Partial and total hip joint prostheses -- Part 8: Endurance performance of stemmed femoral components with application of torsion.
ASTM F2580: Standard test method for evaluation of modular connection of proximally fixed femoral hip prosthesis.
A new generation fatigue testing system with a large electromagnetic motor as the actuation core;
The direct drive electromagnetic motor operates stably with high repeatability, ensuring precise control of force and displacement;
The built-in electromagnetic actuator has the characteristics of low friction, high repeatability, high system response, and high speed;
Can perform tests such as tensile, compressive, bending, shear, creep, relaxation, etc;
Meet the strict requirements of modern material mechanics testing for high precision, high frequency, high stability, and durability;
It has the characteristics of oil-free, sealless, maintenance free, long service life, high integration, easy installation, and small footprint;
Various fixtures and accessories are available for selection.
1. Environmental Friendliness
No hydraulic oil leakage or pollution
Low noise operation (≤70dB) allows placement in office areas
Energy-efficient (only consumes power during testing)
2. Cost Benefits
Initial investment: Lower than hydraulic systems
Maintenance: No hydraulic fluids, filters, or seals to replace
Running costs: Minimal power consumption
Space savings: Small footprint reduces laboratory space requirements
3. Performance Advantages
Precision: Backlash-free motion with high repeatability
Control flexibility: Smooth transition between load, displacement, and strain control
Safety: Dual-stage drive mechanisms and overload protection
Clean operation: Ideal for testing sensitive materials like medical devices
4. Ease of Use
Ergonomic design: Intuitive touchscreen or PC interface
Quick setup: Easy specimen installation with specialized fixtures
Automation: Programmable test sequences and data logging
Real-time monitoring: Simultaneous capture of force, displacement, strain, and cycle count (up to 10^9 cycles for long-term fatigue testing).
Biomechanical metrics: Automated calculation of fatigue life (S-N curves), modulus degradation, creep-fatigue interaction, and failure mode (brittle vs. ductile).
Compliance with biological testing standards: Pre-programmed test protocols for ISO, ASTM, and FDA guidelines for biomaterials.
Data export: Compatibility with bioinformatics tools for post-test analysis of tissue/biomaterial degradation.
Main Technical Specification
| Max. dynamic load | ±10KN Accuracy ±1% |
| Max. static load | ±10kN |
| Dynamic fluctuation | Less than ±1%FS |
| Actuator max. stroke | ±50mm, accuracy ±0.5%FS |
| Amplitude at Max. frequency | ±1mm |
| Max. Frequency | 0.1HZ~15Hz |
| Max. line velocity | 150mm/s |
| Control mode | Load, displacement, deformation |
| Main test waveform | Sinusoidal wave, triangular wave, square wave, sawtooth wave etc., |
| Pass through Zero | Complete display the pass through zero hysteresis loop curve. |
| Columns number | 2 |
| Vertical space | 750mm |
| Max. test space | 450mm (include test fixture) |
| Test width | 450mm |
| Cooling method | Water cooling |
| Weight | 350kg |
| Dimensions | 785*620*2050mm |
| Standard Power | 380/220V, 50/60HZ, 3 phase, 4Kw |
| Working system | MS Win10 / Win11 |
| Load cell | USA, Vishay Celtron |
Main Accessories
| High Stiffness Frame | 1 set |
| Servo liner actuator | 1 set |
| Servo motor/driver (Japan Panasonic) | 1 set |
| Loadcel: (USA Vishay Celtron) | 1 set |
| LVDT (Japan Tamagawa liner displacement sensor) | 1 set |
| Tensile test fixture (optional according requirement) | |
| Compression platen (100mm) | 1 set |
| Fully digital servo controller | 1 set |
| Professional testing software | 1 set |
| Computer | 1 set |
| Printer | 1 set |
| Documents (Manual, packing list, certificate) | |
Main Structure

UTDS series Electronic Dynamic Universal Testing Machine mainly consist of parts as below:
1, movable loading platform, can 360 degree free adjusting, easy for sample test.
2, Imported actuator, Japan Panasonic driving system.
3, Data collection system, English software, static/dynamic controller.
4, USA Vishay celtron load cell.
6.1 Servo actuator
Actuator mounted on the top pf working table.
● Max. load capacity: 10000N.
● Effective stroke: +/-50mm (total 100mm)
● Actuator include Japan Tamagawa high accuracy displacement sensor.
● Actuator amplitude limitation position designed with buffer zone, avoid the damage caused by out of control.
● Include device to eliminate the gap clearance, minimize the side force, reduce the impact during high frequency test.

6.2, Load cell
● Use the USA Vishay Celtron load cell, 10KN, overload capacity 150%, mounted at front end of actuator piston, with self-lock nut.
● Calibrated before delivery.
6.3, Data collection system and controller
Servo control system include fully digitally servo controller, computer, software etc.,
1)Controller main consist of:
● Controller frame SUPERTEST T8.3, max. upgrade to 6 channel.
● With two sensor signal unit (load, displacement)
● Signal generator unit
● Computer
2)Controller frame SUPERTEST T8.3 specification:
● Control unit: fully digital PIDF control.
● Frequency range: 0.01 ~15HZ, resolution: 0.01Hz
● Control waveform: Sine wave, Triangle wave, square wave, oblique wave, half of wave etc.,
● Control mode: Load, displacement close-loop control.
● System with load cell calibration, zeroing etc., function.
3)Main function of controller:
● Controller with various corresponding software suite, can meet kinds of different test requirement.
● With calibration system to help customer to calibrate the machine easily.
With multi-control mode, can realize smooth swift, with automatically zeroing, save and recover PID setting, automatically data collection, sample protection function etc.,
Software
Main interface:



Standard
ISO 7206‑4 and ISO 7206‑6 are key international standards defining fatigue endurance tests for stemmed femoral components of partial and total hip joint prostheses. ISO 7206‑4 evaluates the femoral stem under simulated proximal loosening; ISO 7206‑6 evaluates the femoral neck under well‑fixed, normal in‑vivo loading.

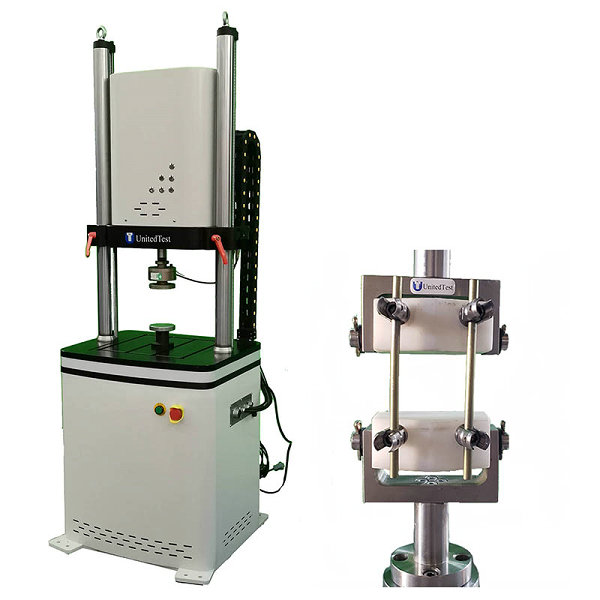

ASTM F1798 Standard Test Method for Evaluating the Static and Fatigue Properties of Interconnection Mechanisms and Subassemblies Used in Spinal Arthrodesis Implants.
ASTM F1798 provides standardized methods for mechanically testing the interconnections within spinal implant systems. It is for evaluating the uniaxial static/fatigue strength and loosening resistance of interconnection mechanisms in spinal arthrodesis implant subassemblies, providing a standardized way to characterize mechanical performance of connections like rod-clamp, screw-rod, and hook-rod assemblies. It is critical for design validation, regulatory compliance, and clinical safety in the spinal implant industry.
ASTM F2706 is a critical biomechanical evaluation tool in the medical device industry, specifically for spinal implants. ASTM F2706 establishes standardized mechanical test methods to evaluate the static (strength) and fatigue (long-term durability) performance of spinal implant assemblies intended for use in the occipito-cervical (OC) and cervico-thoracic (CT) regions (from the skull to the upper back). It simulates a worst-case scenario: a complete vertebrectomy (removal of a vertebra), creating a highly unstable spine segment that the implant must stabilize.
ASTM F2706 establishes standardized mechanical test methods to evaluate the static (strength) and fatigue (long-term durability) performance test, defines in‑vitro mechanical test protocols for posterior occipital‑cervical (OC) and occipital‑cervical‑thoracic (OCT) spinal fixation assemblies under a vertebrectomy worst‑case model, aiming for relative mechanical comparison of implant designs, rather than defining pass‑fail performance thresholds.
ASTM F2068: Standard Specification for Femoral Prostheses – Metallic Implants
ASTM F2068 covers metallic stemmed femoral prostheses used to replace the natural hip joint by means of hemi-arthroplasty or total hip surgical procedures. Prostheses for hemi-arthroplasty are intended to articulate with the natural acetabulum of the patient. Prostheses for total hip replacement are intended to articulate with prosthetic acetabular cups. Prostheses may have integral femoral heads or cones designed to accept modular heads.
The mechanical strength (fatigue test ISO 7206-4, ISO 7206-6, shear strength test ASTM F1044, tensile test ASTM F1147, abrasion resistance test ASTM F1978), corrosion resistance, and biocompatibility of the head portions of one-piece integral implants are covered by this specification.
ASTM F1160 Standard Test Method for Shear and Bending Fatigue Testing of Calcium Phosphate and Metallic Medical and Composite Calcium Phosphate/Metallic Coatings;
Rotating beam fatigue testing generates higher frequencies than traditional high cycle fatigue (HCF) methods. UnitedTest testing services provide critical data about coatings and metallic surface treatments to ISO 1143, ASTM F1160 standards.
Rotating beam fatigue testing, Shear and Bending Fatigue testing.
Rotating beam fatigue testing is a mechanical test method used to evaluate the fatigue properties of materials. In this test, a beam specimen is subjected to cyclic loading, which induces repeated bending causing failure over time. The specimen is mounted on a rotating apparatus, which allows for the cyclic load to be applied at constant amplitude and frequency.
During the test, the beam specimen is rotated at a constant speed while a loading force is applied to it. The force causes the beam to bend, and as the beam rotates, it undergoes cyclic bending stress that can induce fatigue failure.
ASTM F382 Standard Specification and Test Method for Metallic Bone Plates
ASTM F382 unified terminology, geometric classification, material requirements, marking & packaging rules, and mechanical test protocols for metallic bone plates used in surgical skeletal internal‑fixation. It define two mandatory test methods: Single‑Cycle Bend Test and Bending Fatigue Test. Both adopt four‑point bending configuration. It is of great significance for ensuring the safety and reliability of metallic bone plates, which are widely used to align and fix bone segments in orthopedic reconstructive surgeries.
ASTM F1264 Standard Specification and Test Methods for Intramedullary Fixation Devices
ASTM F1264 is a standard specification used to describe the design and mechanical function of intramedullary fixation devices (IMFDs). It establishes terminology, classification, material, marking‑labeling requirements and four mandatory‑annex mechanical test methods for intramedullary nails/rods used in skeletal fracture fixation. It does not define mandatory clinical performance thresholds; tests deliver comparative mechanical data rather than absolute clinical pass‑fail criteria.
it also includes four standard testing methods:
1, static four point bending test method (Annex A1),
2, static torsion test method (Annex A2),
3, bending fatigue test method (Annex A3),
4, bending fatigue test method for IMFD locking screws (Annex A4).
The UTDS series Dynamic/Fatigue Testing machine used for bone needle, bending intramedullary nail fatigue test is mainly used for biomechanical performance testing of various materials, including artificial blood vessels, soft tissues, bones, bone plates, and vertebrae Interfusion device, knee joint, spine Dynamic and static mechanical tests on materials such as column fixators, metal coatings, hip joints, and intramedullary nails, including tension, compression, bending, and torsion.
ISO 16402:2008, Implants for Surgery - Acrylic Resin Cement - Flexural Fatigue Testing of Acrylic Resin Cements Used in Orthopaedics, is an international standard dedicated to testing the flexural performance of acrylic resin bone cement applied in orthopedic surgeries. It plays a critical role in ensuring the long-term mechanical stability of bone cement, which is essential for the success of orthopedic implants.
Bone Cement Four-Point Bending Fatigue Test is primarily used to evaluate the fatigue performance of bone cement materials under four-point bending conditions. Specifically, it can conduct mechanical performance tests, such as fatigue durability and lifespan, on specimens of bone cement, biomaterials, surgical implant materials, and medical materials. By simulating real-world stress conditions, the tester assesses the bending strength, fatigue life, deformation characteristics, and performance of bone cement under various environmental conditions. These test results are crucial for ensuring the reliability and safety of bone cement in practical applications, aiding in product design optimization, production process improvement, and overall product quality enhancement.
ASTM F2118: Standard Test Method for Constant Amplitude of Force Controlled Fatigue Testing of Acrylic Bone Cement Materials
ISO 16402: Implants for surgery – Acrylic resin cement – Flexural fatigue testing of acrylic resin cements used in orthopaedics
This test method describes test procedures for evaluating the constant amplitude, uniaxial, tension-compression uniform fatigue performance of acrylic bone cement materials. This test method is relevant to orthopaedic bone cements based on acrylic resins, as specified in Specification F451. The procedures in this test method may or may not apply to other surgical cement materials. Dog bone shaped specimens are loaded at constant stress amplitude to generate SN-curves.
ISO 14879‑1 Implants for surgery — Total knee‑joint prostheses — Part 1: Determination of endurance properties of knee tibial trays.
ISO 14879‑1 specifies a laboratory test method for evaluating the fatigue/endurance behaviour of the metallic tibial tray (the metal baseplate that carries the plastic insert) used in total knee replacements.The standard covers two major types of tests: static mechanical testing (to evaluate the ultimate load - bearing capacity and stiffness of the tibial tray) and cyclic fatigue testing (to simulate long - term physiological loading and assess durability).
ASTM F1800 Standard Practice for Cyclic Fatigue Testing of Metal Tibial Tray Components of Total Knee Joint Replacements
ASTM F1800 defines an in‑vitro cyclic constant‑amplitude force fatigue test for metallic tibial baseplates of total knee replacement implants. It simulates a worst‑case clinical scenario where one tibial condyle loses bone support, generating high bending moment on the metal tray. Test results serve for comparative laboratory ranking rather than direct prediction of in‑vivo clinical performance.
ASTM WK51649 Femoral knee component fatigue testing system - Fatigue Testing of Total Knee Femoral Components Under Closing Conditions
ASTM WK51649 is a draft standard (work item) under development by ASTM Committee F04.22 on Arthroplasty . It proposes a test method for evaluating the fatigue resistance of total knee femoral components under closing conditions, similar in scope to ASTM F3210. (ASTM F3210-22e1 Standard Test Method for Fatigue Testing of Total Knee Femoral Components Under Closing Conditions)
ASTM WK51649 Fatigue testing of the metal femoral component of a total knee joint prosthesis is conducted to establish the F-N curve at different load levels and to determine the fatigue limit of the sample under 10 million cycles.
ASTM F3210 Standard Test Method for Fatigue Testing of Total Knee Femoral Components Under Closing Conditions
ASTM F3210 establishes an in‑vitro cyclic fatigue test procedure for total knee arthroplasty (TKA) femoral implants under closing‑style loading, simulating a severe clinical scenario where one condyle bears full knee load at 90° tibiofemoral flexion with local loss of bone support.
ASTM F3140 — Standard Test Method for Cyclic Fatigue Testing of Metal Tibial Tray Components of Unicondylar Knee Joint Replacements
ASTM F3140 defines a laboratory method that applies a cyclic, constant-amplitude compressive force to a finished metallic tibial tray used in partial/unicondylar knee arthroplasty (UKR). It applies to trays covering either the medial or the lateral tibial plateau.

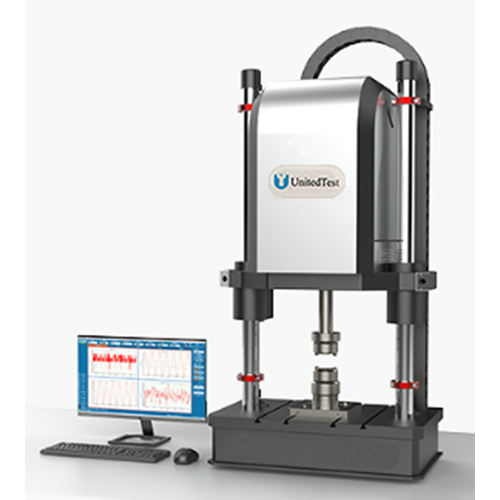

Critical Applications in Tissue Engineering & Biomaterials
1. Orthopedic Tissue Engineering
Fatigue testing of 3D-printed bone scaffolds (assessing durability under cyclic compression over 10^6 cycles)
Dynamic fatigue of cartilage constructs (evaluating glycosaminoglycan (GAG) retention under joint-like cyclic loading)
Tendon/ligament graft fatigue (testing tensile fatigue resistance of collagen-based constructs)
2. Cardiovascular Biomaterials
Pulsatile fatigue testing of biodegradable stents (assessing radial strength retention over cardiac cycles)
Cyclic flexure testing of vascular grafts (mimicking arterial wall deformation during blood flow)
Fatigue resistance of heart valve leaflets (dynamic bending/tensile loading to simulate valve opening/closing)
3. Soft Tissue Engineering
Fatigue testing of skin substitutes (cyclic stretching to mimic movement-induced deformation)
Bladder/ureteral scaffold fatigue (cyclic distension to simulate urine filling/emptying)
Neural tissue scaffolds (low-force cyclic shear loading to mimic spinal cord motion)
4. Biomaterial Development
Fatigue characterization of biodegradable polymers (PLGA, PCL) for implantable devices (tracking mechanical degradation as the material resorbs)
Ceramic scaffold fatigue (assessing crack propagation in hydroxyapatite-based bone grafts)
Composite biomaterials (e.g., polymer-fiber scaffolds for tissue regeneration) fatigue life validation
Compliance with Industry Standards
| Standard | Application |
|---|---|
| ASTM F1813 | Fatigue testing of metallic bone plates/screws |
| ISO 10993-14 | Mechanical testing of degradable biomaterials |
| ASTM D7137 | Flexural fatigue of polymer biomaterials |
| ISO 7206-4 | Fatigue testing of hip joint implants (low-force components) |
| FDA 21 CFR Part 860 | Biomechanical testing of medical devices (tissue-engineered products) |
