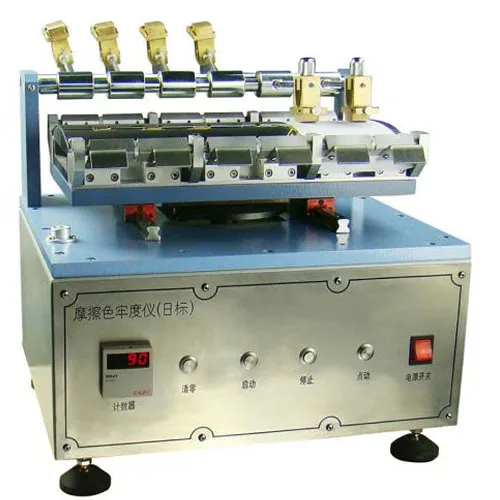

JIS Color fastness friction testing machine

JIS Color fastness friction testing machine

Model: UT4032J; JIS L0849, JIS L0801, JIS L0803, JIS L0805

UT4032J Color fastness friction testing machine is used for The machine is suitable for the test of the staining fastness to rubbing of dyed textiles, and the grade of staining rubbing fastness is assessed against the gray sample card of the staining grade.

General Introduction

UT4032J Color fastness friction testing machine is used for The machine is suitable for the test of the staining fastness to rubbing of dyed textiles, and the grade of staining rubbing fastness is assessed against the gray sample card of the staining grade.

Main features

  • Features
  • Standard

The specimen is fixed on the curved platform of the learning vibration shape, and the friction head with weight requirements is pressed on the sample to reciprocate and rub back, and the grade is assessed according to the staining of the fabric lining the friction head.

JIS L0849 Test Method for Colour Fastness to Rubbing (Type II)

JIS L0849, JIS L0801, JIS L0803, JIS L0805


Main Technical Specification

Test benchCurved test bench (Japanese standard: shape proposed by the Society for the Promotion of Science)
Number of sample positions6
Specimen tablemetal curved surface with a surface radius of 200mm and a cross-section of 180mm×50mm
Shape of the jointmetal surface with a surface radius of 45mm and a cross-section of 20mm× 20mm
Test load2N
Friction head stroke100mm
Reciprocating speed30 times/min
Preset times1 time~9999 times, 10 times~99990 times, 100 times~999900 times
Power220V   50HZ, 70W
Weight  28kg
Dimensions430mm×430mm×360mm


Standard

ISO 20433 Crockmeter — Leather Colour Fastness to Crocking Test –

ISO 20433 Leather — Tests for colour fastness — Colour fastness to crocking

ISO 20433 specifies a method to determine how much colour is transferred from the surface of coloured leather to other surfaces by rubbing.

Two tests are always run in parallel: one dry rubbing cloth, one wet rubbing cloth. It applies to all types of coloured leather, and — importantly — may be run before and/or after after-treatments and surface finishes, since these strongly influence colour transfer.

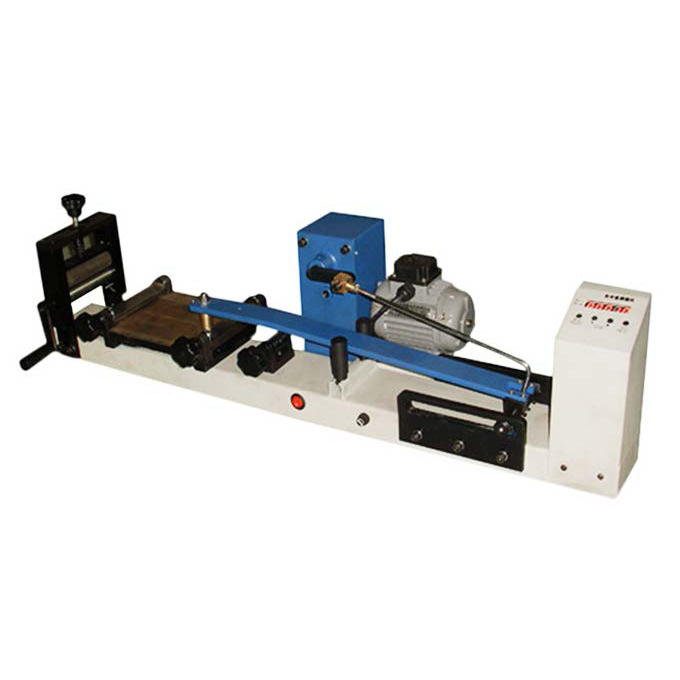

ISO 105-X12 Textiles Tests for colour fastness to rubbing –

ISO 105-X12: Textiles -- Tests for colour fastness to rubbing

ISO 105-X12 specifies a method for determining the resistance of the colour of textiles of all kinds, including textile floor coverings and other pile fabrics, to rubbing off and staining other materials.

It evaluates a fabric's resistance to "crocking"—the transfer of color from a textile to another surface through rubbing. Whether it's a vibrant printed t-shirt, a woven carpet, or yarn-dyed upholstery, this test ensures that the color remains fast and does not stain other materials during everyday use. The standard accommodates both dry rubbing and wet rubbing tests, providing a complete picture of a textile's durability and color stability.  crockmeter, textile colour fastness to rubbing tester

ISO 105-D02 Textiles Colorfastness Test - Organic solvents –

ISO 105-D02 defines a uniform lab testing method to quantify textile colour resistance against combined mechanical rubbing plus organic solvent spot cleaning (hand-applied local stain removal with dry-cleaning solvents), excluding loose staple fibre as test object.
