ISO 9653 Adhesive Bond Shear Impact Pendulum Tester | UnitedTest

ISO 9653 Adhesives — Test method for shear impact strength of adhesive bonds establishes a standardized pendulum impact testing procedure to evaluate comparative shear impact resistance of bonded joints exposed to sudden instantaneous shock loads. This international standard delivers consistent, repeatable impact energy data to benchmark how adhesive bonds withstand abrupt mechanical collision stress in real-world service scenarios.

UnitedTest, a professional material testing equipment manufacturer established in 1985, engineers and supplies fully ISO 9653 compliant pendulum shear impact testing machines to measure shear impact strength of multi-type adhesive bonded assemblies for adhesive R&D laboratories, production quality control and third-party certification facilities worldwide. Our pendulum impact testers satisfy cross-standard testing requirements including ISO 9653, EN 29653, ASTM D950 and GB/T 6328 for universal adhesive impact performance verification.

Our UnitedTest ISO 9653 shear impact tester features a precisely calibrated pendulum assembly that maintains a fixed 3.4 m/s impact head velocity as required by the standard. The unit accurately captures energy absorption the instant adhesive bond rupture occurs, with final test results output in J/m² as the official shear impact strength unit. This versatile test equipment supports bonded specimens across three mainstream substrate combinations: wood-to-wood, metal-to-metal and plastic-to-plastic adhesive joints, covering construction, automotive, electronics and furniture adhesive applications.

Engineers utilize ISO 9653 shear impact test data to compare impact toughness of different adhesive formulations, optimize substrate surface pretreatment processes, validate finished bonded component shock resistance, and complete mandatory product compliance testing against global adhesive safety standards.

Test Principle

The impact value is determined using a pendulum‑type impact machine. A standardized specimen is held in a fixed fixture and struck by the machine's impact head in shear at a defined velocity. The energy absorbed by the specimen at the moment of failure is recorded and then divided by the bonded area, yielding the impact value expressed in joules per square metre (J/m²).

Impact head velocity: 3.4 m/s (fixed by the standard)

Impact value definition: Energy absorbed by a standard‑design specimen when sheared by a single blow of the testing‑machine hammer.

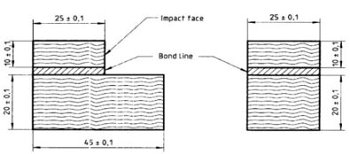

Test Specimen Details

Metal-to-metal specimen	Two stacked rectangular blocks: Upper block 25 mm (width) ×10 mm (height); lower base block 25 mm width ×20 mm height ×45 mm length. Bonded contact area = 25 mm ×25 mm square. Adjustment rule: If full-size specimen cannot fracture under machine energy, reduce the 25×25 bonded block square while retaining the 25×45 base block dimension; modified size must be fully recorded in test reports.
Wood-to-wood specimen	Same outer dimension outline as metal specimens; Wood grain runs parallel to bond line and impact width direction. Fabrication: Bond 10 mm-thick narrow strips to 20 mm-thick wide strips, then cross-cut to 25 mm-wide finished specimens along grain orientation.
Plastic-to-plastic specimen	Adopts the identical block dimension system as metal specimens, with surface preparation following ISO 13895 dedicated plastic surface treatment rules (added in the 1998 revised edition).
Specimen Quantity	Metal-to-metal joints: At least 10 valid specimens per adhesive formulation. Wood-to-wood joints: At least 20 valid specimens, sourced from a minimum of four separate bonded assemblies.

Test Equipment required for ISO 9653 Adhesive Bonds Shear Impact Strength Test:

Pendulum-type impact testing machine

Recommend UnitedTest Charpy/IZOD impact testing machine.

Fixed impact head velocity: 3.4 m/s

Flat impact head: Striking surface wider than specimen, aligned to fully contact the impact face perpendicularly.

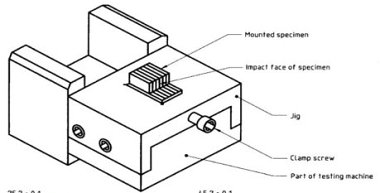

Steel fixture jig

Machined from solid steel, bolted rigidly to the machine base; corner drillings eliminate dirt accumulation to keep specimens flush against the stop surface;

fitted with clamping screws to prevent specimen overturn during impact.

A metal spacer plate may be inserted for non-metallic adherends.

ISO 9653 Adhesive Bonds Shear Impact Strength Test

Fixed vice/bolts

Secure the jig immovably under impact load. The vertical height must ensure the hammer’s lower edge strikes within 0.80 mm of the bond line; standard jaw-to-hammer gap is 22 mm.

Core Test Parameters & Mandatory Stipulations

Impact head velocity	3.4 m/s
Strike position relative to bond line	≤ 0.80 mm
Wood conditioning duration	7 days or until mass equilibrium
Impact value unit	J/m² (reported to the nearest 100 J/m²)

Impact value formula: Impact strength (J/m²) = Absorbed fracture energy (J) ÷ Bonded contact area (m²)

Rounding rule: Report final values to the nearest 100 J/m².

Failure classification: Record failure modes per ISO 10365:

Metal joints: Cohesive failure, adhesive failure, contact failure percentage

Wood joints: Wood substrate failure, adhesive layer failure, contact failure percentage (via visual inspection)

Adhesive layer thickness: Measured to precision 0.03 mm, with measurement location and range documented in reports.

Test Procedures of ISO 9653 Adhesive Bonds Shear Impact Strength Test:

Specimen clamping: Mount specimen into the jig, ensure full flush contact with the jig retaining stop; gently rest the pendulum head against the specimen impact face, adjust jig position to achieve full flat contact between hammer and specimen surface.

Impact execution: Lift pendulum hammer to pre-calibrated release height, disengage safety lock to release the pendulum and deliver shear blow to the joint.

Data recording:

a. Record energy absorbed (J) for each fractured specimen;

b. Document exact bonded area dimension;

c. Classify and record failure pattern per ISO 10365;

d. For wood specimens, calculate percentage split of wood/adhesive/contact failure via visual assessment.

Data computation: Compute average, maximum and minimum shear impact strength values for the specimen batch, round results as specified, and compile all data into a formal test report.

Test Applications (Industry Fields)

Wood construction & furniture manufacturing: Evaluate structural wood glues for flooring, timber framing, cabinetry (resist transportation impact, furniture drop shock).

Metal fabrication, automotive & aerospace: Test structural adhesives for vehicle body panels, aircraft metal assembly, heavy machinery components (crash impact, vibration shock resistance).

Plastics & composite assembly: Bonded plastic housings, consumer electronics casings, composite lightweight structural parts.

General adhesive R&D & quality control: Adhesive manufacturers use the test to grade impact toughness of new formulations; third-party labs perform standardized comparative performance testing for material certification and supplier qualification.

Civil engineering structural bonding joints for multi-material composite assemblies (metal-plastic, wood-metal hybrid bonds)

Related Stadard:

ISO 9653	Adhesives - Test method for shear impact strength of adhesive bonds
ASTM D950	Standard Test Method for Impact Strength of Adhesive Bonds
GB/T 6328	Test method for shear impact strength of adhesive bonds
EN 29653	ADHESIVES - TEST METHOD FOR SHEAR IMPACT STRENGTH OF ADHESIVE BONDS
JIS K 6855	Testing methods for impact shear strength of adhesive bonds
ISO 11343	Adhesives — Determination of dynamic resistance to cleavage of high-strength adhesive bonds under impact wedge conditions — Wedge impact method
ISO 16525-6	Adhesives. Test methods for isotropic electrically conductive adhesives. Determination of pendulum-type shear impact
ISO 179	Plastics: determination of Charpy impact properties

Importance of the ISO 9653 Shear Impact Test for Adhesive Materials

Simulate real-world dynamic shock failure: Static tensile shear tests only reflect slow-load bond strength, while ISO 9653 reproduces instantaneous impact loads (vehicle collisions, product drops, construction vibration shock) that most bonded assemblies face in service. It evaluates dynamic toughness rather than just static bearing capacity.

Standardized comparative grading: Uniform specimen geometry, conditioning and impact velocity eliminate test variability across labs, enabling fair side-by-side comparison of different adhesive formulations to screen high-impact-resistance grades for dynamic service environments.

Failure mechanism diagnosis: Mandatory failure pattern recording differentiates cohesive failure (adhesive bulk toughness), adhesive failure (interfacial bonding quality) and substrate failure, guiding adhesive formulation optimization and surface treatment process improvement.

Engineering safety design basis: Provides quantifiable shear impact strength data for structural engineers to calculate load safety margins for bonded components under sudden shock, avoiding catastrophic joint fracture in automotive, aerospace and construction applications.

Quality control & product certification benchmark: Manufacturers use the test as a mandatory QC checkpoint to batch-verify adhesive consistency; regulatory and certification bodies reference ISO 9653 results to approve structural adhesive products for commercial use.

Multi-substrate compatibility evaluation: Covers wood, metal, plastic and hybrid bonds, supporting material selection for multi-material lightweight assemblies widely adopted in modern manufacturing.

Keywords: UnitedTest ISO 9653 tester, ISO 9653 adhesive shear impact tester, pendulum shear impact test machine for adhesive bonds, adhesive shock load impact resistance testing equipment, testing machine manufacturer, UnitedTest impact tester, adhesive shear impact test machine, ISO 9653 tester, pendulum impact testing machine, adhesive bond impact strength tester, material impact test equipment, ISO 9653 test, Adhesive bond impact strength test, shear impact strength testing machine for adhesive bonds

Charpy Impact is a single point test that measures a materials resistance to impact from a swinging pendulum. Charpy impact is defined as the kinetic energy needed to initiate fracture and continue the fracture until the specimen is broken.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1. What is the ISO 9653 test and what does it measure?

A: ISO 9653:1998 is an International Standard that specifies a method for determining the comparative shear impact value of adhesive bonds using a pendulum-type impact machine. The test measures the energy absorbed (in J/m²) when a bonded specimen fails under a single shear impact blow at a controlled velocity of 3.4 m/s. It applies primarily to metal-to-metal and wood-to-wood bonds, and can be extended to plastic-to-plastic and hybrid substrate combinations.

Q2. Why is the ISO 9653 shear impact test important for adhesive materials?

A: The ISO 9653 test is critically important because:

Polymer-based adhesives exhibit viscoelastic behavior — their mechanical response under sudden dynamic loads differs dramatically from quasi-static conditions. A bond that performs well in static shear may fail catastrophically under impact.

Impact events are unavoidable in real-world applications — from automotive collisions and bird strikes (medium impact velocity) to drops and vibrations in consumer electronics.

It enables objective, standardized comparison of adhesive formulations, allowing R&D teams to quantify the effect of filler additions (e.g., nano-silica), crosslink density adjustments, and curing process changes.

Failure mode diagnosis: Combined with ISO 10365 failure pattern classification, the test distinguishes cohesive (within adhesive), adhesive (interface), and contact failures — guiding both formulation improvement and surface preparation optimization.

Quality assurance & international trade: As an ISO-recognized standard adopted by CEN (EN ISO 9653:2000), China (GB/T 6328-2021), Japan (JIS K 6855), Korea (KS M ISO 9653), and others, it facilitates global specification and acceptance of adhesive products.

Important limitation per ISO 9653: The impact value is a comparative metric — results cannot be directly extrapolated to surfaces or geometries different from those tested. It ranks adhesives under identical conditions rather than predicting absolute field performance.

Q3. Which industries need ISO 9653 adhesive shear impact testing?

A: The test is essential for any industry where bonded structures face dynamic or sudden loads:

Automotive & Aerospace — Structural adhesive joints in crash-sensitive components; bird-strike resistant composites

Construction & Mass Timber — Laminated beam joints, seismic-resistant structural bonding

Electronics — Encapsulant adhesion resisting drop and vibration; conductive adhesive bonds

Woodworking & Furniture — Shock-resistant joints in furniture, flooring, and musical instruments

Metal Fabrication — Metal-to-metal bonds in machinery subject to sudden torsional or shear shocks

Composite & Sports Equipment — Ski cores, bicycle frames, helmet shells

Q4. How does ISO 9653 differ from ASTM D950?

A: Both standards measure adhesive bond impact strength using a pendulum impact machine at 3.4 m/s and report energy absorbed in J/m². Key differences:

Geographic adoption: ISO 9653 is the international/European/Asian standard; ASTM D950 is the US standard.

Specimen geometry: ISO 9653 defines specific block dimensions for metal and wood; ASTM D950 uses a 60 × 12 × 10 mm specimen with a 30°-inclined bond face to reduce stress concentration.

Scope nuances: ISO 9653 explicitly extends to plastic-to-plastic bonds with surface prep per ISO 13895; ASTM D950 focuses on rigid adhesives.

Result interpretation: Both report impact strength in J/m² (ISO 9653) or J/m² / ft·lbf/in² (ASTM D950).

UnitedTest adhesive shear impact testers can be configured for both ISO 9653 and ASTM D950 geometries with interchangeable fixtures.

Q5. Why choose UnitedTest as your ISO 9653 testing machine manufacturer?

A: UnitedTest delivers distinct advantages for laboratories seeking reliable adhesive shear impact test equipment:

✅ Full standards compliance — Designed to ISO 9653:1998, EN ISO 9653:2000, GB/T 6328-2021

✅ Precision 3.4 m/s pendulum system — Carbon-fiber arm, digital encoder (±0.01°), automated energy loss compensation

✅ Interchangeable fixtures — Tool-free switching between metal, wood, and plastic adhesive specimen geometries

✅ Intelligent data system — Auto-averaging, Grubbs outlier rejection, CSV export, direct thermal printing with timestamp & operator ID

✅ Traceable calibration — Angular encoder calibrated via laser interferometer; energy verified with certified reference specimens (uncertainty < ±0.5%)

✅ CE certified, ISO 9001 manufacturing, exported to 80+ countries

✅ OEM/ODM service, 15-day lead time, comprehensive training & after-sales support

Q6: What’s the difference between ISO 9653 shear impact test and static lap shear test ISO 4587?

A: ISO 4587 only tests slow static tensile shear strength; the UnitedTest ISO 9653 adhesive shear impact tester simulates instantaneous high-speed shock load (3.4m/s pendulum velocity), which reproduces real crash, drop and vibration conditions for structural adhesives. Static test cannot reflect anti-shock toughness of bonded joints.

Q7: What specimens can be tested on UnitedTest ISO 9653 pendulum impact tester?

A: Our ISO 9653 compliant test machine supports three main bonded specimens: metal-to-metal specimens, wood-to-wood timber adhesive blocks and plastic-to-plastic plastic bonding samples, plus hybrid multi-material joints as extended applications of ISO 9653 standard. We supply matched standard steel jig fixture for all specimen sizes.

Q8: Does UnitedTest provide standard ISO 9653 fixture and customized fixture for special adhesive specimens?

A: Yes. We equip every ISO 9653 shear impact tester with original standard adapter jig as shown in ISO 9653 Figure 1. We also offer OEM customized steel fixtures for non-standard plastic composite bonded specimens for special industrial testing demands.

Q9: Is UnitedTest a professional manufacturer of ISO 9653 pendulum shear impact test equipment? Can I get factory direct price?

A: UnitedTest is a professional China testing machine manufacturer specializing in ISO standard adhesive mechanical test equipment. We supply ISO 9653 shear impact tester factory direct without middlemen, support OEM/ODM customization, global after-sales technical support and machine calibration service.

Q10. What factors affect ISO 9653 test accuracy, and how does UnitedTest address them?

A: Key precision factors and our engineering responses:

Specimen alignment — Misalignment between pendulum head and specimen can significantly alter stress distribution across the bond. UnitedTest fixtures feature precision-machined locating surfaces ensuring the strike point is within 0.80 mm of the bond line.

Environmental control — Temperature/humidity fluctuations affect adhesive properties. Our testers pair with ISO 291-compliant conditioning chambers (23 °C ± 2 °C, 50 ± 5 % RH).

Instrument calibration — Bearing lubrication and pivot alignment every 6 months; encoder recalibration and energy verification annually or every 5,000 impacts.

Operator training — UnitedTest provides comprehensive operation manuals, video training, and on-site installation.

Statistical robustness — Minimum 10 (metal) or 20 (wood) specimens per ISO 9653; our software auto-calculates mean, SD, min/max with outlier rejection.
