ISO 23658 Buildings and civil engineering works — Sealants — Testing of adhesion properties using a bead peel test

ISO 23658 defines a practical bead peel laboratory test method to assess adhesion performance of one component and multi component construction sealants, mainly for elastic sealants and optionally for plastic sealants (requires skilled operators). The test evaluates sealant adhesion with cleaners, activators, primers on diverse substrates under peeling load, both in initial state and after artificial ageing simulation. Sealants under test shall have minimum elongation at break of 25 % per ISO 8339.

Test Principle

Continuous sealant beads are applied onto flat substrate panels. Specimens complete curing conditioning and optional artificial ageing sequences. Technicians manually peel the sealant bead off the substrate at a defined peel angle. Failure patterns (adhesive, cohesive or mixed plus multi‑layer interface defects) are visually observed, classified and recorded according to ISO 10365 failure‑pattern designation standard.

Test Specimen Production Rules

Two specimen preparation approaches are defined:

Method without mold (for non sagging sealants)

• Minimum bead length: 80 mm minimum, reserve ~50 mm bead length for each ageing cycle.

• Bead geometry: Semicircular cross section; bead height controlled 5 mm 8 mm. Too flat or over high beads create biased test results. Ensure full substrate wet out, avoid entrapped air bubbles.

Method with mold (for self levelling sealants)

• Non adhesive foam tape mold frames define bead boundaries; pour or tool liquid self levelling sealant inside the mould cavity. Maintain bead height 5 8 mm. Prevent chemical incompatibility between sealant and mold materials.

• Bond breaking tape may be laid at bead starting end (10-15 mm) to create an easy to grip peel tab.

• Multiple sealant beads can be laid on one substrate panel if multiple ageing treatments are planned.

ISO 23658 Bead Peel Test for Sealants Adhesion

Required Test Equipment of ISO 23658 Bead Peel Test for Sealants Adhesion

1. Test substrates: Selected based on end use application, agreed by involved parties (glass, aluminium, mortar, painted panels, stone etc.).

2. Application accessories: Sealant nozzle, shaping spatula for bead forming; non adhesive self adhesive foam tape (mold for self levelling sealants); bond breaking tape (10 15 mm length for easy peel tab initiation).

3. Cutting tool: Sharp cutting knife; safety protective gloves for manual peeling cutting operation.

Key Test Parameters & Mandatory Stipulations:

Sealant bead height	5 mm‑8 mm
Minimum bead starting length	≥ 80 mm; ~50 mm consumed per ageing cycle
Peel operating angle	130°‑160° between peeled bead and substrate surface
Interval between sequential cuts during cohesive‑failure peeling	3 s dwell time under stress; cutting spacing approx. 3‑6 mm
Typical ageing‑cycle example	14 d standard climate → 7 d de‑ionized‑water immersion (23 °C) → 3 d oven ageing (70 °C)
Result reporting resolution	Report failure percentage rounded to nearest 10 %

Test Stipulation & Full Test Procedure

Sample preparation: Select substrates and define surface treatments (cleaner, activator, primer). Prepare sealant beads either by mold‑free method (non‑sagging sealant) or mold‑assisted method (self‑levelling sealant). Apply bond‑breaking tape at bead start‑end if needed. Ensure good substrate wetting and zero air entrapment.

Ageing simulation (optional): Apply agreed artificial ageing sequences (water soaking, high‑temperature oven cycles). After each ageing step, retain sufficient bead length for subsequent peel evaluation.

Peel‑test execution:

1. Fix substrate firmly. Use knife to cut the bead starting end down to substrate surface, produce ~25 mm free tab for manual gripping. Wear safety gloves.

2. Pull the sealant bead manually at peel angle **130°‑160°**.

- If 100 % adhesive failure occurs: directly peel 50 mm bead length.

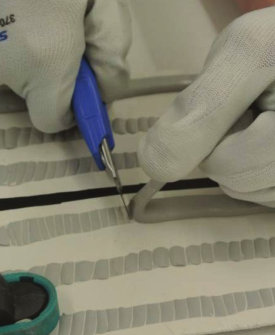

- If cohesive failure appears: increase pulling force until sealant starts tearing. Hold stress for 3‑5 seconds, cut close to bond line at intervals of approx. 3‑6 mm, keep 3 seconds stress‑holding interval between each cut. Repeat until minimum 50 mm bead length is peeled for that ageing condition.

ISO 23658 Bead Peel Test for Sealants Adhesion

Evaluation: Classify failure modes complying with ISO 10365. Record percentage of cohesive failure (CF), adhesive failure (AF). Document special defects: incomplete curing, bubbles in bond zone, primer‑layer failure, paint‑coating delamination, substrate corrosion etc. Round percentage figures to nearest 10 %.

Industrial Application Fields

ISO 23658:2020 applies across building and civil‑engineering sealant industries:

- Fast screening for sealant‑substrate compatibility, primer / cleaner formulation validation in R&D laboratories.

- In‑line process monitoring and quality‑assurance for sealant manufacturing production.

- Pre‑qualification assessment for facade, window, curtain‑wall, concrete‑joint sealants on varied construction substrates (glass, metal, stone, coated panels).

- Evaluate adhesion retention performance after water exposure and thermal ageing.

Related Test Standard:

ISO 11527	Buildings and civil engineering works. Sealants. Test method for the determination of stringiness
GB/T 30774	Test method to determine stringiness of sealants
ISO 23658	Buildings and civil engineering works — Sealants — Testing of adhesion properties using a bead peel test
ISO 10591	Building and civil engineering sealants – Determination of adhesion/cohesion properties of sealants after immersion in water
ISO 10590	Determination of tensile properties of sealants at maintained extension after immersion in water. While ISO 10591 stretches specimens until break after water immersion, ISO 10590 holds specimens at fixed extension during water exposure and inspects failure status, these two standards complement each other for water‑resistance assessment of construction sealants.
ISO 8339	tensile properties of sealants (extension under defined conditions)
ISO 8340	Tensile properties at constant temperature
ISO 9047	adhesion/cohesion under temperature cycling and movement capability
ASTM C719	adhesion/cohesion of elastomeric joint sealants under cyclic movement, sometimes with weathering
