ISO 10591 Sealant Adhesion Cohesion Tester After Water Immersion | UnitedTest

ISO 10591 tests adhesion and cohesion properties of building and civil engineering plastic-behaviour sealants after water immersion, evaluating water-affected bond strength and internal cohesion performance. UnitedTest provides ISO 10591 compliant sealant testing machines for joint sealant durability quality testing and certification.

ISO 10591 is an international standard dedicated to building and civil engineering sealant performance testing, focusing on the determination of adhesion and cohesion properties of plastic-behaviour sealants following long-term water immersion exposure. This test method professionally evaluates water-induced changes in bonding strength and internal structural integrity of common gunnable mastics and non-elastomeric joint fillers widely used in construction joint systems.

Specifically formulated for predominantly plastic-behaviour sealant materials, ISO 10591 differs from elastic structural sealant test standards, though it shares core joint durability assessment principles applicable to all construction sealing components. Water immersion testing effectively simulates humid, damp, and outdoor environmental service conditions, helping engineers verify sealant waterproof stability, bonding reliability, and anti-failure performance for building expansion joints, civil engineering structural joints, and exterior construction sealing applications.

UnitedTest manufactures high-precision ISO 10591 compliant sealant adhesion and cohesion testing machines. Our professional test equipment accurately simulates standard water immersion environments and completes post-immersion bond and cohesion strength testing, supporting construction sealant product research, batch quality control, and engineering material compliance verification.

Test Principle

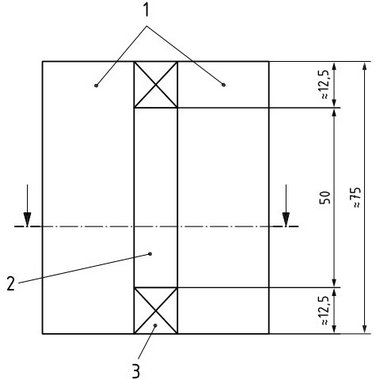

Test specimens are assembled with test sealant bonded between two parallel substrate surfaces. Specimens undergo defined water‑immersion conditioning cycles. Afterwards, specimens are stretched until rupture in tensile equipment, and the elongation‑at‑break value is recorded for evaluating water‑affected adhesion and cohesion performance of sealant.

Test Specimen Production Rules

Substrate material: as defined in ISO 13640; standard options are mortar, anodized aluminium, and glass. Other substrates may be used by agreement.

Quantity: for each substrate material, prepare three specimens.

Geometry: two identical substrate pieces per specimen with a sealant bead; spacers give a nominal bead cross‑section of about 12 mm × 12 mm (ISO uses 12×12 spacers). Other dimensions are allowed only if bead and bonded area remain equivalent to the figures in the standard.

Spacers: 12 mm × 12 mm cross‑section, anti‑adherent surface.

Anti‑adherent backing: e.g. polyethylene film behind the bead to control shape.

ISO 10591 Adhesion properties of sealants after immersion in water

Required Test Equipment of ISO 10591 Adhesion properties of sealants after immersion in water

Constant-Rate Extension Device	Constant-speed Universal Testing Machine (UTM), Capable of constant extension rate (5.5 ± 0.5) mm/min, recording force‑extension diagrams
Test substrates	Mortar, anodized aluminium or glass complying with ISO 13640; alternative substrates may be used upon mutual agreement of parties. Two identical substrate pieces are needed for one specimen.
Spacers	Anti‑adherent surface, cross‑section dimension 12 mm × 12 mm, for controlling sealant joint geometry during specimen making.
Anti‑adherent base	Polyethylene (PE) film or equivalent, following sealant manufacturer recommendations
Water containers	Container A and Container B, for distilled‑water immersion at (23 ± 2) °C.

Key Test Parameters & Mandatory Stipulations:

Oven temperature (Method B)	(70 ± 2) °C
Method A – standard cure	28 days at about 23 °C and 50±10 % RH.
Tensile extension rate	(5.5 ± 0.5) mm/min
Post‑conditioning water immersion time	4 days at 23 °C water bath
Post‑immersion air storage	1 day under standard climate before tensile test
Calculation rounding for elongation result	Rounded to 5 % increment

Step by step Test Procedure of ISO 10591 Adhesion properties of sealants after immersion in water

1. After finishing selected conditioning (Method A or B), remove spacers from specimens.

2. Immerse specimens in 23 °C water for four consecutive days.

3. Take specimens out and store one day in air at (23 ± 2) °C, (50 ± 10) % RH.

4. Mount specimens into tensile machine; stretch continuously at (5.5 ± 0.5) mm/min until rupture occurs; record force‑extension curve.

5. Result calculation formula:

ISO 10591 Adhesion properties of sealants after immersion in water

Where:

E = elongation‑at‑break (%),

W₀ = original sealant joint width (mm),

W₁= final width at break (mm).

2. Compute arithmetic mean value of three replicate elongation‑at‑break results, rounded to 5 %. Record failure mode: adhesive failure, cohesive failure or mixed failure.

Industrial Application Fields

This test targets predominantly plastic‑behaviour sealants for building and civil‑engineering construction joints, including facade joints, window‑wall joints, concrete‑structure expansion joints. It belongs to material‑performance laboratory assessment for construction sealants, used in product development, quality‑control batch inspection, and tender‑specification verification for construction sealant products.

Building façades and exterior walls – window perimeter, panel joints, rainwater exposure

Glazing joints – aluminium/glass substrates

Concrete/masonry joints – mortar substrates, basements, retaining structures

Civil engineering – bridges, tunnels, water structures, expansion joints where sealants see standing water or wetting–drying

Sanitary and humid interiors – though more elastic products may be evaluated by other methods

Product R&D and QC for plastic sealants, mastics, butyls, some polyurethane/acrylic/bituminous joint materials

Specification compliance together with product standards such as EN 15651 series for non‑structural building joint sealants.

Related Test Standard:

ISO 11527	Buildings and civil engineering works. Sealants. Test method for the determination of stringiness
GB/T 30774	Test method to determine stringiness of sealants
ISO 23658	Buildings and civil engineering works — Sealants — Testing of adhesion properties using a bead peel test
ISO 10591	Building and civil engineering sealants – Determination of adhesion/cohesion properties of sealants after immersion in water
ISO 10590	Determination of tensile properties of sealants at maintained extension after immersion in water. While ISO 10591 stretches specimens until break after water immersion, ISO 10590 holds specimens at fixed extension during water exposure and inspects failure status, these two standards complement each other for water‑resistance assessment of construction sealants.
ISO 8339	tensile properties of sealants (extension under defined conditions)
ISO 8340	Tensile properties at constant temperature
ISO 9047	adhesion/cohesion under temperature cycling and movement capability
ASTM C719	adhesion/cohesion of elastomeric joint sealants under cyclic movement, sometimes with weathering

Keywords: ISO 10591 sealant water immersion test,building sealant adhesion cohesion tester,civil engineering joint filler durability test machine,plastic behaviour sealant water resistance test rig,gunnable mastic post-immersion bond strength tester,non-elastomeric sealant cohesion performance analyzer,construction joint sealant environmental durability test equipment,water exposure sealant structural stability tester,building expansion joint sealing material quality machine,civil infrastructure sealant certification test instrument,humid condition sealant bonding performance test,outdoor construction sealant durability verification apparatus

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

ISO 10591 Sealant Test Machine | Water Immersion Adhesion Cohesion Tensile Tester | UnitedTest

Q1: What is ISO 10591 test used for, and why is this test important for construction sealants?

A: ISO 10591 evaluates how water immersion impacts adhesion‑cohesion performance for predominantly plastic‑behaviour building & civil‑engineering joint sealants. Real‑world joints face long‑term rain, moisture and humidity; water can weaken the sealant‑substrate bonding interface or degrade sealant internal cohesion, leading to joint leakage, peeling or early sealant failure. This standardized water‑soaking lab test quantifies retained elongation‑at‑break and identifies failure modes (adhesive / cohesive / mixed). Manufacturers use it for formula development & batch QC; specifiers verify whether sealants meet project water‑resistant bonding requirements, preventing premature field failures.

Q2: Which sealant types does ISO 10591 apply to? Are elastic high‑modulus sealants covered?

A: This standard is limited to predominantly plastic‑behaviour sealants for building/civil‑engineering joints. Highly elastic, high‑modulus sealants are not its primary target. For elastic sealant water‑ageing assessment, combine with companion standard ISO 10590 (tensile test under maintained extension after water immersion).

Q3: What is the difference between Conditioning Method A and Conditioning Method B in ISO 10591:2021? When to select each one?

A: Method A: 28‑day curing at (23 ± 2) °C, (50 ± 10) % RH; baseline curing without heat‑water pre‑ageing.

Method B: Complete Method‑A curing first, then run three cycles of alternating hot‑oven (70 °C) and distilled‑water soaking, followed by 24 h standard‑climate stabilization before formal water immersion test.

Important note: Method B simulates combined heat‑water stress; it is NOT for predicting real‑world long‑term durability. Selection shall be agreed between testing parties (supplier‑buyer, lab‑client). Method A is basic curing; Method B adds accelerated thermal‑moisture stress.

Q4: What substrates are required for ISO 10591 specimens? Can I use other substrates besides mortar, anodized aluminium, glass?

A: Standard‑mandated substrates are mortar, anodized aluminium or glass complying with ISO 13640 (test‑substrate specification). Alternative substrates are allowed only upon mutual written agreement of all parties. The sealant bead dimension (12 mm × 12 mm) and bonding contact area must stay identical as per standard drawings, even if substrate outer dimensions change.

Q5: How many test specimens are required per substrate? What are specimen dimension rules?

A: Minimum three replicate specimens for each substrate material. Sealant joint cross‑section must be 12 mm width × 12 mm depth, controlled by anti‑adherent 12 × 12 mm spacers. Mortar substrates vs aluminium/glass substrates follow different outer geometry shown on Figure 1 and Figure 2 of ISO 10591:2021. Spacers must remain in‑situ through all conditioning steps, only removed just before tensile testing.

Q6: How do I interpret test failure modes (adhesive / cohesive / mixed failure) from ISO 10591 test?

A: 1. Adhesive failure: Separation occurs at sealant‑substrate interface; water destroyed surface bonding.

2. Cohesive failure: Sealant material itself fractures internally; bonding to substrate holds well but bulk sealant degrades after water exposure.

3. Mixed failure: Partial adhesive + partial cohesive fracture.

All failure types must be documented in the formal ISO 10591 test report, together with individual elongation‑at‑break data and average value (rounded to 5 % increments).

Q7: What mandatory content must an ISO 10591 formal test report contain?

A: Report shall include: lab name & test date, standard reference ISO 10591:2021, sealant product data (type, colour, batch, mixing ratio for multi‑component sealants), substrate type, primer usage, conditioning method (A or B), force‑extension graphs, each‑specimen elongation‑at‑break %, average elongation‑at‑break, failure‑mode classification, any deviations versus standard procedure.

Q8: Common mistakes that invalidate ISO 10591 test results?

A: - Removing spacers too early during conditioning; spacers can only be removed right before tensile test.

- Wrong tensile cross‑head speed (outside 5.5 ± 0.5 mm/min).

- Using tap water instead of distilled water for immersion cycles.

- Skipping the 1‑day air‑storage step after final 4‑day water immersion.

- Ignoring substrate‑cleaning procedure (mortar ash removal; aluminium/glass solvent cleaning with acetone).

- Missing documentation of failure modes or force‑extension curves.

Q9. Can UnitedTest equipment be configured for ISO 10591?

A: Yes. A typical lab line includes a universal tensile tester for the 5.5±0.5 mm/min break test, a convection oven for Method B, a 23±2 °C water-immersion tank, and a 23±2 °C / 50±10% RH conditioning room or chamber. Sealant jigs, 12×12 mm spacer fixtures, substrate holders and force–extension software can be added.

Q10: Why choose UnitedTest ISO 10591 sealant testing equipment?

A: UnitedTest manufactures professional universal tensile testing machines fully compliant with ISO 10591:2021, for building and civil‑engineering sealants water‑immersion adhesion‑cohesion evaluation. Accurate 5.5 ± 0.5 mm/min test speed, force‑extension curve recording, complete sealant‑testing fixture packages for laboratory QC, R&D and third‑party inspection.

UnitedTest is a leading manufacturer of material‑testing instruments, delivering complete testing solutions for construction sealant labs, sealant manufacturers, third‑party test institutes and civil‑engineering material‑quality departments.

Our universal tensile test system supports full ISO 10591:2021 standard requirements: determination of adhesion‑cohesion properties for building and civil‑engineering sealants after water immersion. The test assesses sealant’s retained tensile elongation‑at‑break after defined water‑soaking conditioning, identifies adhesive, cohesive or mixed failure modes for plastic‑behaviour joint sealants used in facades, windows, concrete expansion joints.

Core compliance features for ISO 10591:2021

- Precise cross‑head extension rate: configurable to **5.5 ± 0.5 mm/min**, strictly matching 2021‑edition standard parameter

- PC‑based test software: auto‑record force‑extension diagrams, auto‑calculate elongation‑at‑break per ISO 10591 formula, round results to 5 % increments, generate complete test‑report templates aligned with ISO 10591 reporting requirements

- Custom‑optional sealant‑specimen fixture kits for mortar, anodized‑aluminium and glass substrate specimens

- Compatible with complementary sealant standards: ISO 10590, ISO 6927 related mechanical tests

- Flexible load‑cell selection for low‑force sealant tensile testing; single‑column / dual‑column frame options for table‑top lab or heavy‑duty‑lab deployment

UnitedTest does not only supply the tensile tester hardware. We provide application guidance covering ISO 10591 specimen preparation tips, substrate‑cleaning guidance, Conditioning Method A / Method‑B setup advice, helping customers avoid common test errors and achieve repeatable, auditable test results.

This ISO 10591‑compliant testing machine is widely used for: sealant new‑formula R&D, incoming‑material inspection, finished‑product batch quality‑control, construction‑project tender‑specification verification, third‑party laboratory certification testing for building & civil‑engineering sealant products.

If you need ISO 10591 complete laboratory solution including tensile tester, sealant test fixtures, or supporting equipment (convection oven, water‑immersion containers, climate chamber), contact UnitedTest technical team for your custom quotation.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
